Description
Overview

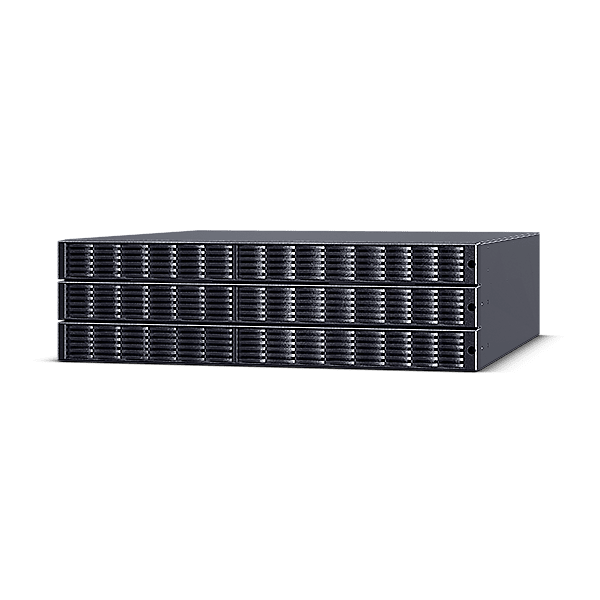

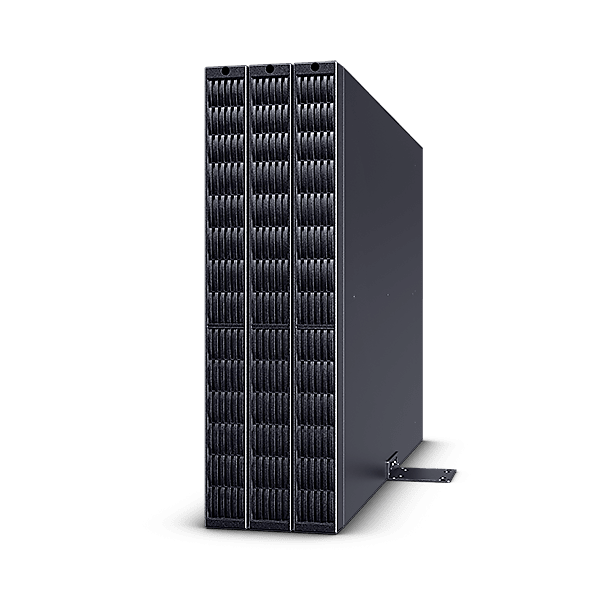

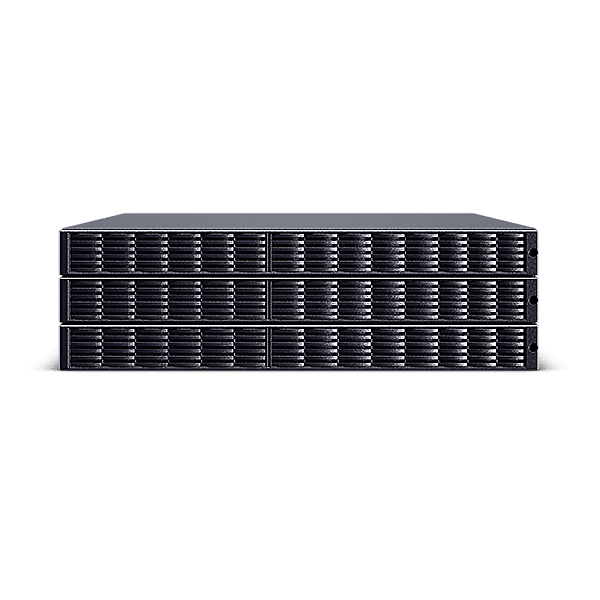

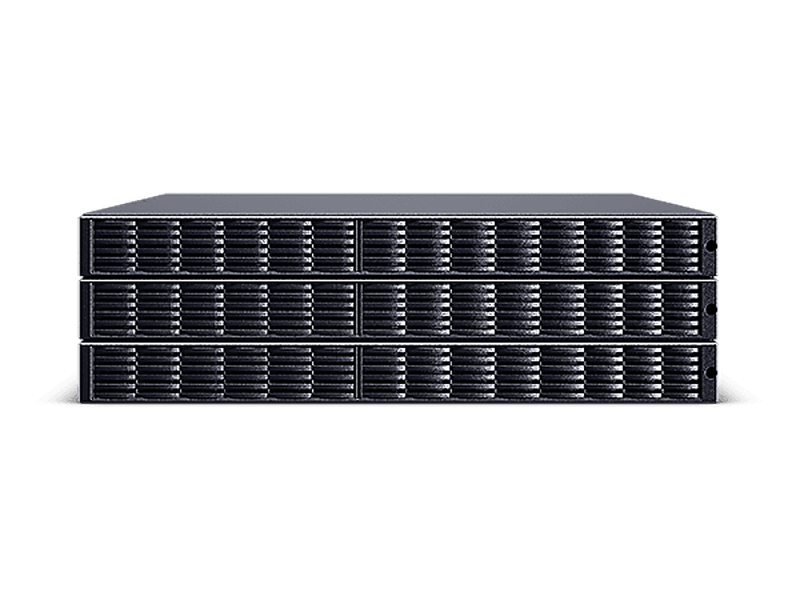

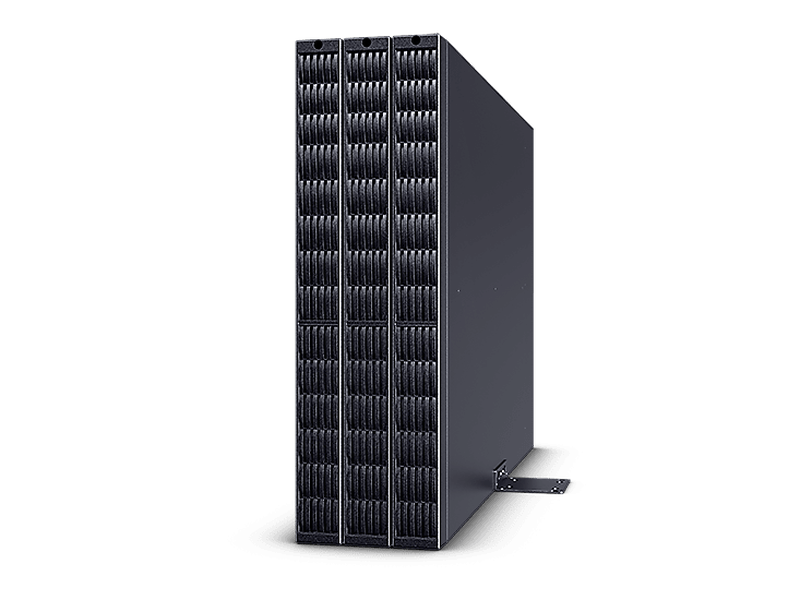

CyberPower BPS240V9ART3U extended battery module significantly extends runtime when used with a compatible CyberPower UPS. With rugged, industrial-grade metal construction, it can be installed even in demanding environments.
Features
- Rack/Tower Convertible Configurations
- EBM Expansion Capability
- Sealed Lead-acid Batteries
- Metal Housing
CyberPower BPS240V9ART3U extended battery module significantly extends runtime when used with a compatible CyberPower UPS. With rugged, industrial-grade metal construction, it can be installed even in demanding environments.
Features
- Rack/Tower Convertible Configurations
- EBM Expansion Capability
- Sealed Lead-acid Batteries
- Metal Housing
| General | |
|---|---|
| Nominal Output Voltage (Vdc) | 240 |
| Rated Output Current (A) | 75 |
| Battery | |
| Battery Type | Sealed Lead-acid |
| Battery Quantity | 20 pcs |
| Single Battery Voltage (V) | 12 |
| Single Battery Capacity (AH) | 9 |
| Built-in Charger | No |
| Typical Recharge Time (Hours) | 4 |
| User-replaceable | Qualified Personnel Only |
| Expansion Ready | Yes |
| Physical | |
| Form Factor | Rackmount, Tower |
| Enclosure Construction | Metal |
| Color | Black |
| Rackmount Rail | Yes |
| Rackmount Ears | Yes |
| Unit Dimensions (WxHxD) | 433 x 127.8 x 660 mm |
| Net Weight | 66 kg |
| Installed Rack Height (U) | 3 |
| Shipping Dimensions | |
| Dimensions (WxHxD) | 575 x 404 x 890 mm |
| Shipping Weight | 73 kg |
| Environmental | |
| Operating Temperature | 32 ~ 104 °F / 0 ~ 40 °C |
| Operating Relative Humidity | 0 ~ 90% (Non-condensing) |
| Operating Elevation | 0–4,921 ft / 0–1,500 m |
| Storage Temperature | -4 ~ 104 °F / -20 ~ 40 °C |
| Storage Relative Humidity | 0 ~ 90% (Non-condensing) |
| Storage Elevation | 0–4,921 ft / 0–1,500 m |
| Certifications | |
| Certifications | CE |
| RoHS Compliant | Yes |
