CyberPower Hotswap Maintenance Bypass Switch to suit Online Series 1-3 KVA UPS

CyberpowerSKU: MBP20HVAU3

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$325.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Payment & Security

Apple Pay Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Estimate shipping

Description

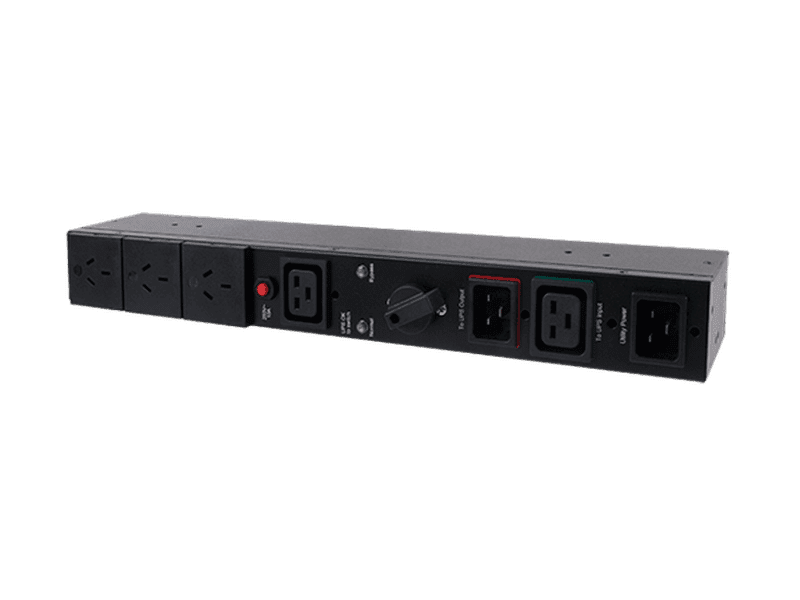

CyberPower MBP20HVAU3 Maintenance Bypass PDU (MBP) allows administrators to ensure a consistent and seamless connection for connected equipment through the manual bypass switch and quick transfer time. The standard IEC connectors support most IT devices and UPSs of maximum ratings up to 3kVA. With its flexible configuration, the MBP can be easily attached to backup UPS either in horizontal or vertical deployment to make the most of users’ work space.



FEATURES:

>1U Rackmount

LED Status Indicator

Metal Housing

Retaining Clip Design

Multiple Mounting Options

Rack Ears Included

Cascading Design



TYPICAL APPLICATION

Servers

Network Devices

Telecom Equipment



SPECIFICATIONS:

INPUT
Input Voltage Range (Vac)
200 ~ 240
Rated Input Current (A)
16
MBP Socket to Utility Power (Socket)
IEC C20
MBP Socket to UPS Power Input (Socket)
IEC C19
MBP Socket to UPS Outlet (Socket)
IEC C20
OUTPUT Outlet Type (Socket)
IEC C19 x 1
AU x 3
Typical Transfer Time (ms)
< 4
Cascading
Yes, IEC 16A Output Socket
MANAGEMENT LED Indicators
Normal Status (Green Color) , Bypass Status (Red Color)
Management Cable
Power Cord x4
PHYSICAL Form Factor
>1U Rackmount
Enclosure Construction
Metal
Color
Black
Installation
Multi-Position Mountings , Vertical Rackmount , Horizontal Rackmount
Installation Attached to Rack/Tower UPSs
Yes
Retaining Clips
Retaining Clips on the IEC Input and Output Sockets
Rackmount Ears
Yes
PHYSICAL SIZE Dimensions (WxHxD) (in.)
17 x 2 x 3
Dimensions (WxHxD) (mm.)
433 x 51 x 76
Weight (lbs.)
2.86
Weight (kg.)
1.3
SHIPPING DIMENSIONS Dimensions (WxHxD) (in.)
9.65 x 2.6 x 19.68
Dimensions (WxHxD) (mm.)
245 x 66 x 500
Weight (lbs.)
7.7
Weight (kg.)
3.5
ENVIRONMENTAL Operating Temperature (°F)
32 ~ 104
Operating Temperature (°C)
0 ~ 40
Operating Relative Humidity (Non-condensing) (%)
0 ~ 90
Operating Elevation (feet/meters)
0-10,000 feet (0-3,000 meters)
Storage Temperature (°F)
5 ~ 113
Storage Temperature (°C)
-15 ~ 45
Storage Relative Humidity (Non-condensing) (%)
0 ~ 95
Storage Elevation (feet/meters)
0-50,000 feet (0-15,000 meters)
CERTIFICATIONS Certifications
CE , C-Tick
RoHS
Yes
