Description
Overview

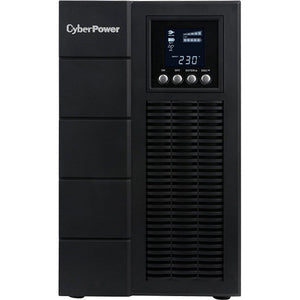

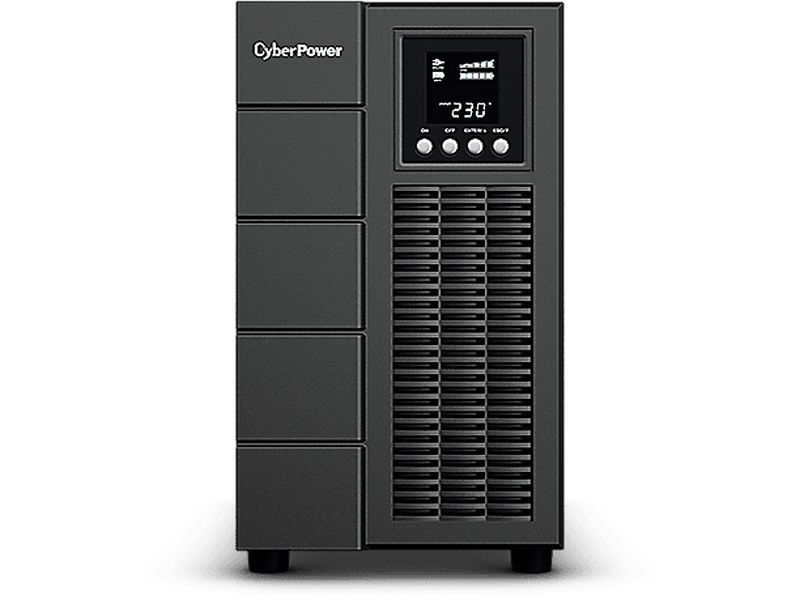

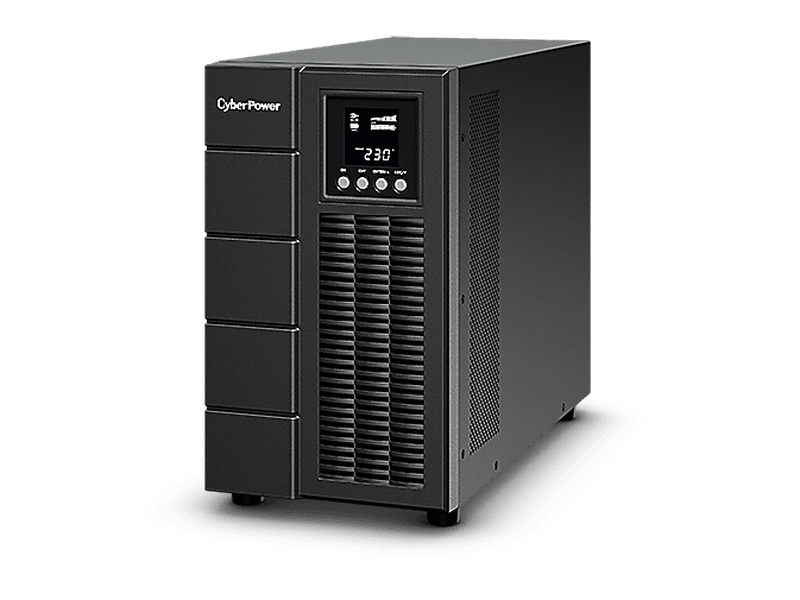

CyberPower OLS3000E is a high-performance UPS featuring online double-conversion topology, which provides seamless Pure Sine Wave power for mission-critical devices such as NAS and servers, DVRs/surveillance systems, transportation and infrastructure, and emergency systems. It’s typically integrated in the back office, server room, and data center environment.
Features
- Online (Double Conversion) UPS Topology
- Generator Compatible
- Zero Transfer Time
- Extended Battery Module (EBM)
- EMI and RFI Filtration
- LCD Status Display
- PowerPanel Management Software
- ECO Mode
- Overload Protection
- Smart Battery Management (SBM)
- Surge and Spike Protection
- Phone/Fax/Modem/DSL/Network Protection
- Emergency Power Off (EPO) Port
- SNMP/HTTP Remote Management Capability (Optional)
CyberPower OLS3000E is a high-performance UPS featuring online double-conversion topology, which provides seamless Pure Sine Wave power for mission-critical devices such as NAS and servers, DVRs/surveillance systems, transportation and infrastructure, and emergency systems. It’s typically integrated in the back office, server room, and data center environment.
Features
- Online (Double Conversion) UPS Topology
- Generator Compatible
- Zero Transfer Time
- Extended Battery Module (EBM)
- EMI and RFI Filtration
- LCD Status Display
- PowerPanel Management Software
- ECO Mode
- Overload Protection
- Smart Battery Management (SBM)
- Surge and Spike Protection
- Phone/Fax/Modem/DSL/Network Protection
- Emergency Power Off (EPO) Port
- SNMP/HTTP Remote Management Capability (Optional)
| General | |
|---|---|
| Model | OLS3000E |
| UPS Topology | Online Double Conversion |
| Form Factor | Mini Tower |
| Waveform Output | Pure Sine Wave |
| Efficiency | Up to 95% |
| Generator Compatible | Yes |
| Auto Restart | Yes |
| Electrical Input | |
| Input Voltage Range | 120 ~ 280 Vac |
| Input Frequency | 40 ~ 70 Hz |
| Input Plug Type | IEC C20 |
| Electrical Output | |
| Capacity | 3000 VA / 2400 W |
| Output Voltage | 208 / 220 / 230 / 240 Vac ± 1% |
| Output Frequency | 50 / 60 Hz ± 0.5% |

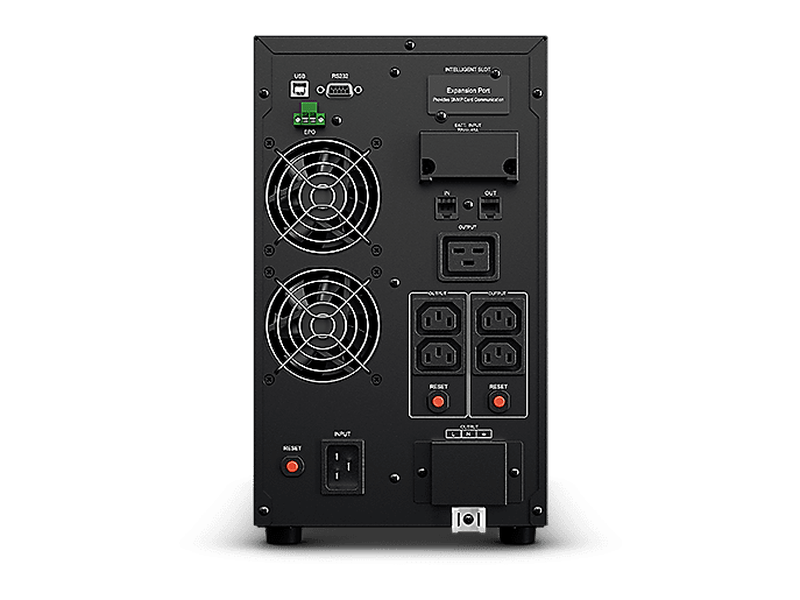

| Outlet Types | IEC C13 x 4, IEC C19 x 1, Hardwire Terminal Block x 1 |
| Total Outlets | 6 |
| Transfer Time | 0 ms |
| Crest Factor | 3:1 |
| Harmonic Distortion | <3% (Linear Load), <5% (Non-linear Load) |
| Bypass | Automatic & Manual |
| Battery | |
| Battery Type | Sealed Lead Acid (VRLA) |
| Runtime at Half Load | 14 minutes |
| Recharge Time | 5 hours |
| Extended Battery Module Support | Yes |
| Smart Battery Management | Yes |
| Surge Protection & Filtering | |
| Surge Suppression | Yes |
| EMI/RFI Filtering | Yes |
| Phone/Network Protection | RJ11/RJ45 (Combo) |
| Management & Communications | |
| LCD Panel | Yes |
| LED Indicators | System, Battery, Load, Fault |
| USB Port | Yes |
| Serial Port | Yes |
| Network Port | RJ45 |
| Remote Management | SNMP/HTTP (Optional RMCARD205) |
| Software | PowerPanel Business Edition |
| Audible Alarms | Battery Mode, Overload, Fault, Replace Battery |
| Emergency Power Off (EPO) | Yes |
| Physical | |
| Dimensions (WxHxD) | 196 x 337 x 416 mm / 7.72 x 13.27 x 16.38 in |
| Weight | 28.2 kg / 62.17 lbs |
| Shipping Dimensions | 295 x 458 x 519 mm / 11.61 x 18.03 x 20.43 in |
| Shipping Weight | 30.4 kg / 67.02 lbs |
| Color | Black |
| Enclosure | Metal |
| Environmental | |
| Operating Temperature | 0 ~ 40 °C / 32 ~ 104 °F |
| Storage Temperature | -20 ~ 50 °C / -4 ~ 122 °F |
| Operating Humidity | 20 ~ 90% (Non-condensing) |
| Storage Humidity | 10 ~ 90% (Non-condensing) |
| Operating Elevation | 0 ~ 1,500 m / 0 ~ 4,921 ft |
| Storage Elevation | 0 ~ 1,500 m / 0 ~ 4,921 ft |
| Thermal Dissipation | 1126 BTU/hr |
| Audible Noise | 45 dBA @ 1.5 m |
| Certifications | |
| Certifications | CE, EAC, LOA |
| RoHS Compliant | Yes |
