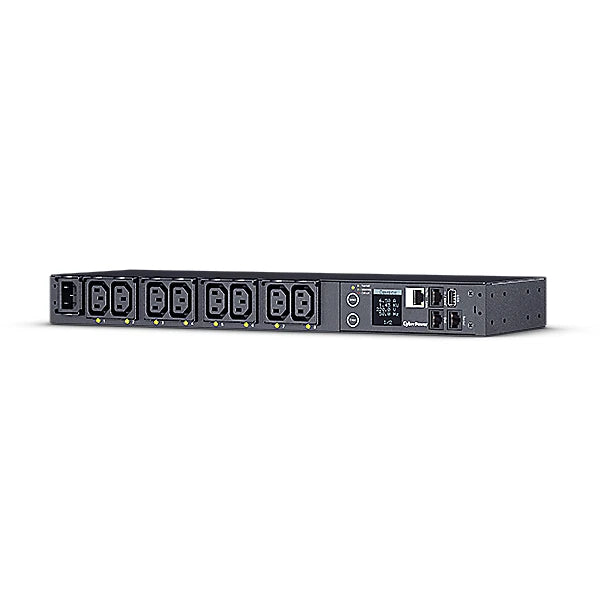

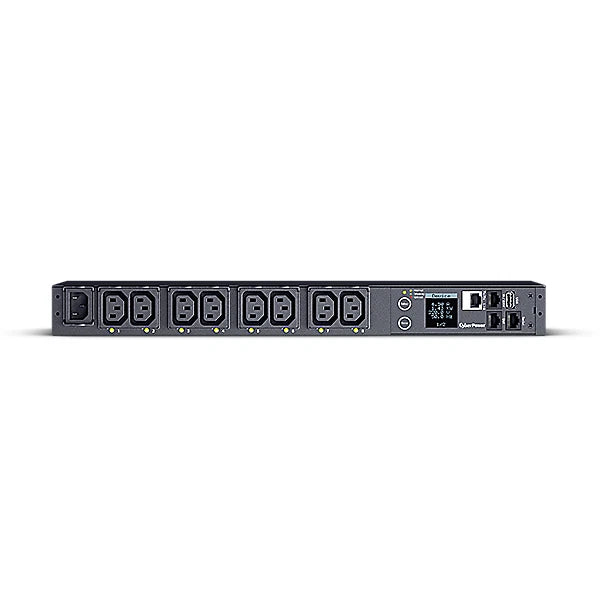

CyberPower PDU41004 1U 8-Outlet 12A/10A Switched ePDU

CyberPowerSKU: PDU41004

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$641.00

Estimate shipping

Description

CyberPower PDU41004 1U 8-Outlet 12A/10A Switched ePDUFeatures

  • Real-time Local/Remote Monitoring and Switching
  • Work under High Temperature
  • ±1% Measurement Accuracy
  • Digital Real-time Load Display
  • Hot-swappable LCD Design
  • LED Status Indicator
  • Support Environmental Sensor
  • PowerPanel Management Software
  • Cord Retention Tray

  • Controllable Receptacles with Power Sequencing
  • Ultra Low Power Consumption
  • Industrial-grade Metal Housing
  • User Configurable Color LCD
  • Rotatable LCD for Proper Display Orientation
  • Firmware Upgrade via USB
  • User-upgradeable Firmware
  • Adjustable Mounting Brackets
  • IEC Receptacle Locking

Specifications


Type
Switched
Phase
Single Phase


Nominal Input Voltage ( Vac )
100 ~ 240
Input Frequency ( Hz )
50 / 60
Maximum Input Current ( A )
12 (UL)
10 (CE)
Input Connector Type
IEC C14 x 1
Power Cord Length (ft.)
10
Power Cord Length (m.)
3.05


Output Voltage ( V )
Depends on Input
Idle Power Consumption ( W )
< 5
Outlets - # of Bank(s) ( Bank )
1
Outlet(s) - Total
8
Outlet(s) - Front
8
Outlet Type
IEC C13 x 8
Remote Individual Outlet Control
Yes


LCD Information Display
Input Voltage (Volts), Input Frequency (Hz), Current Level (Amps), Power Consumption (Kilowatts), Network Information, Serial Number, Environment Status, Hardware Version, Firmware Version
Color LCD
Yes
Hot-swappable LCD Module
Yes
Auto LCD Orientation
Yes
LCD Setting & Control
Outlet Control, LCD Settings, Reset / Reboot
LED Indicators
PDU Status, Tx/Rx, Link, Outlet
Metering Accuracy
± 1%
A-type USB Port
Yes
Connectivity Port
RJ45, RJ45 (for Serial), RJ45 (for Environmental Sensor/Daisy Chain (In)), RJ45 (for Daisy Chain (Out))
Environmental Sensor Supported
Yes
User-upgradeable Firmware
Yes
Power Management Software
PowerPanel Business (Recommended for small-medium scale management), PowerPanel Enterprise (Recommended for large scale management)
Supported Protocols
IPv4/v6, SNMPv1/v3, HTTP/HTTPs, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SSH, SSL, TLS, Telnet, FTP, and Syslog
Authentication
RADIUS, LDAP, LDAPS, Windows AD


Installed Rack Height (U)
1
Form Factor
1U Vertical Rackmount, 1U Horizontal Rackmount
Enclosure Construction
Steel
Color
Black
Cord Retention Tray
Yes
IEC Receptacle Locking
Yes
External Site Ground Pin
Yes
Adjustable Mounting Brackets
2 Set (L-short, L-long)


Dimensions (WxHxD) (in.)
17.05 x 1.75 x 4.41
Dimensions (WxHxD) (mm.)
433 x 44 x 112
Weight (lbs.)
4.6
Weight (kg.)
2.1


Dimensions (WxHxD) (in.)
19.68 x 2.56 x 9.84
Dimensions (WxHxD) (mm.)
500 x 65 x 250
Weight (lbs.)
8.6
Weight (kg.)
3.9


High Temperature Operation
Yes
Operating Temperature (°F)
32 ~ 140
Operating Temperature (°C)
0 ~ 60
Operating Relative Humidity (Non-condensing) ( % )
0 ~ 95
Operating Elevation ( feet/meters )
0-11,483 feet (0-3,500 meters)
Storage Temperature (°F)
5 ~ 149
Storage Temperature (°C)
-15 ~ 65
Storage Relative Humidity (Non-condensing) ( % )
0 ~ 95
Storage Elevation ( feet/meters )
0-49,213 feet (0-15,000 meters)


Certifications
CE, FCC Class A, UL60950, UL62368, EN 55032 Class A
RoHS
Yes
