Description
Overview

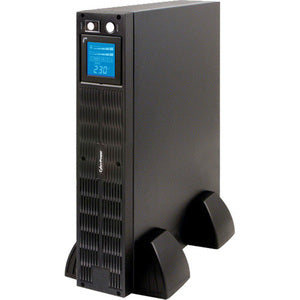

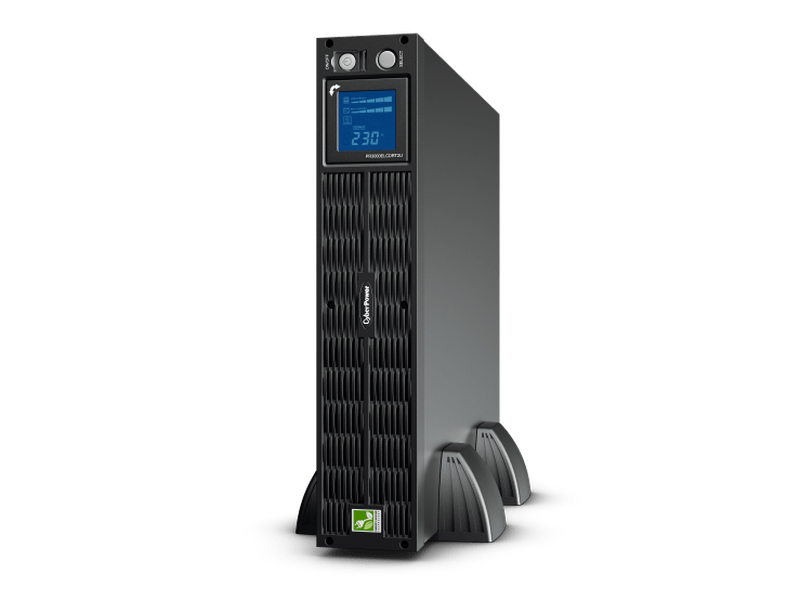

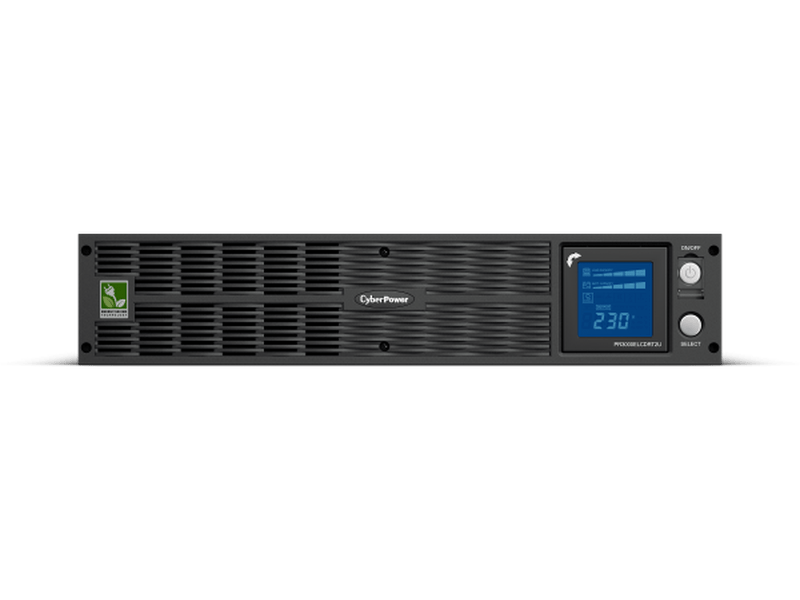

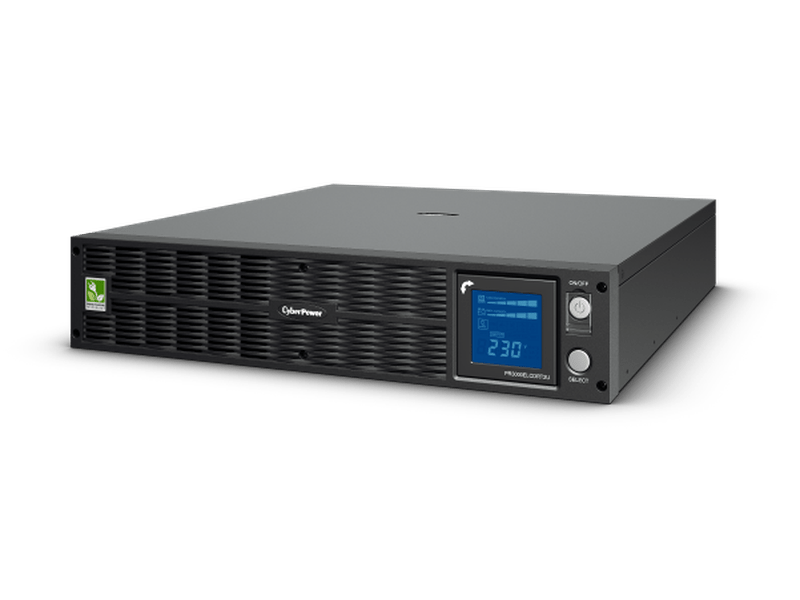

CyberPower PR3000ELCDRT2U Line-Interactive UPS, with seamless Pure Sine Wave, provides the best power protection available for office system devices including PCs, workstations, networking devices, and peripherals. It’s typically integrated in the back office, server room, and data center environment. The rackmount / tower convertible design gives it enhanced flexibility for installation and operation in almost any environment.
Multiple UPS systems can be connected to a single main Emergency Power Off (EPO) switch. In the event of an emergency, the UPS systems can be shut down immediately with the EPO button. As for battery maintenance, the UPS allows battery hot-swapping, which enables users to perform normal battery maintenance without significant interruption.
Features
- Line-interactive UPS Topology
- Active PFC Compatible
- Automatic Voltage Regulation (AVR)
- Critical/Non-critical Load Outlets
- Extended Battery Module (EBM)
- EMI and RFI Filtration
- LCD Status Display
- Emergency Power Off (EPO) Port
- SNMP/HTTP Remote Management Capability (Optional)
- Energy Saving Technology
- Pure Sine Wave Output
- Overload Protection
- Hot-swappable Batteries
- Surge and Spike Protection
- Phone/Fax/Modem/DSL/Network Protection
- USB Connectivity Port
- PowerPanel Management Software
- Rack/Tower Convertible Configurations
CyberPower PR3000ELCDRT2U Line-Interactive UPS, with seamless Pure Sine Wave, provides the best power protection available for office system devices including PCs, workstations, networking devices, and peripherals. It’s typically integrated in the back office, server room, and data center environment. The rackmount / tower convertible design gives it enhanced flexibility for installation and operation in almost any environment.
Multiple UPS systems can be connected to a single main Emergency Power Off (EPO) switch. In the event of an emergency, the UPS systems can be shut down immediately with the EPO button. As for battery maintenance, the UPS allows battery hot-swapping, which enables users to perform normal battery maintenance without significant interruption.
Features
- Line-interactive UPS Topology
- Active PFC Compatible
- Automatic Voltage Regulation (AVR)
- Critical/Non-critical Load Outlets
- Extended Battery Module (EBM)
- EMI and RFI Filtration
- LCD Status Display
- Emergency Power Off (EPO) Port
- SNMP/HTTP Remote Management Capability (Optional)
- Energy Saving Technology
- Pure Sine Wave Output
- Overload Protection
- Hot-swappable Batteries
- Surge and Spike Protection
- Phone/Fax/Modem/DSL/Network Protection
- USB Connectivity Port
- PowerPanel Management Software
- Rack/Tower Convertible Configurations
| General | |
|---|---|
| Phase | Single Phase |
| Form Factor | Rackmount, Tower |
| UPS Topology | Line-interactive |
| Energy Saving Technology | GreenPower UPS™ Bypass Technology |
| Active PFC Compatibility | Yes |
| Input | |
| Nominal Input Voltage (Vac) | 220 / 230 / 240 |
| Input Voltage Range (Vac) | 160 ~ 286 |
| Adjustable Voltage Range (Vac) | 150 ~ 300 |
| Input Frequency (Hz) | 50 ± 3 / 60 ± 3 |
| Input Frequency Detection | Auto-sensing |
| Rated Input Current (A) | 16 |
| Input Connector Type | IEC C20 |
| Detachable Power Cord Plug Type | Schuko x 1, UK x 1 |
| Power Cord Length | 10 ft / 3.05 m |
| Output | |
| Capacity (VA) | 3000 |
| Capacity (Watts) | 2700 |
| On Battery Waveform | Pure Sine Wave |
| On Battery Voltage (Vac) | 220 / 230 / 240 ± 5% |
| On Battery Frequency (Hz) | 50 ± 1% / 60 ± 1% |
| Power Factor | 0.9 |
| AVR | Double Boost, Single Buck |
| Overload Protection | Internal Current Limiting, Circuit Breaker |
| Total Outlets | 10 |
| Outlet Types | IEC C19 x 1, IEC C13 x 9 |
| Battery & Surge Protected | 10 |
| Critical Load (CL) | 4 |
| Non-critical Load (NCL) | 6 |
| Typical Transfer Time (ms) | 4 |
| Battery | |
| Runtime at Half Load (min) | 7 |
| Runtime at Full Load (min) | 2.3 |
| Recharge Time (Hours) | 4 |
| Start On Battery | Yes |
| User-replaceable | Yes |
| Hot-swappable | Yes |
| Battery Type | Sealed Lead-acid |
| Replacement Battery Pack (RBP) | RBP0040 |
| RBP Quantity | 1 |
| Compatible EBM | BPE48V75ART2U (Built-in Charger) |
| Max. EBM Quantity | 0–5 (≤75% Load), 0–2 (75–100% Load) |
| Surge Protection & Filtering | |
| Surge Suppression (Joules) | 810 |
| EMI/RFI Filtration | Yes |
| Phone/Network Protection | RJ11/RJ45 Combo (1-in, 1-out) |
| Management & Communications | |
| LCD Panel | Yes |
| LCD Display Info | Operation Type, Power, Battery, Load, Fault & Warning, Other Info |
| LCD Settings | Alarm, Input/Output, Battery |
| LED Indicators | Power On |
| USB Port | 1 (HID Compliant) |
| EPO Port | Yes |
| Audible Alarms | Battery Mode, Low Battery, Overload, Overcharge, Overheat |
| Management Cables | Power Cord x6, USB x1, Serial x2, EPO x1, Phone Line x1 |
| Software | PowerPanel Business (Recommended) |
| Remote Monitoring | SNMP/HTTP (Optional RMCARD205) |
| Physical | |
| Enclosure | Metal |
| Color | Black |
| Rackmount Rail & Ears | Yes |
| UPS Dimensions (in.) | 17.05 x 3.46 x 18.9 |
| UPS Dimensions (mm) | 433 x 88 x 480 |
| Weight | 81 lbs / 37 kg |
| Rack Height | 2U |
| Shipping Dimensions (in.) | 22.2 x 10.8 x 24.1 |
| Shipping Dimensions (mm) | 563 x 275 x 613 |
| Shipping Weight | 97.9 lbs / 44.5 kg |
| Environmental | |
| Operating Temp (°F / °C) | 32 ~ 104 / 0 ~ 40 |
| Operating Humidity | 0 ~ 95% (Non-condensing) |
| Operating Elevation | 0–9,843 ft / 0–3,000 m |
| Storage Temp (°F / °C) | 5 ~ 113 / -15 ~ 45 |
| Storage Humidity | 0 ~ 95% (Non-condensing) |
| Storage Elevation | 0–49,213 ft / 0–15,000 m |
| Thermal Dissipation | 194.5 BTU/hr |
