Description
Overview
CyberPower PR750ELCD Line-Interactive UPS, with seamless Pure Sine Wave, provides the best power protection available for office system devices including PCs, workstations, networking devices, and peripherals. It’s typically integrated in the back office, server room, and data center environment.
The UPS can be locally managed via USB or serial ports, or remotely managed via an SNMP Card (an optional Remote Management Card), allowing administrators and users unsurpassed flexibility to remotely access each UPS through the network to perform real-time monitoring, UPS configurations, and scheduled system shutdowns by using PowerPanel Management software.
Features
- Line-interactive UPS Topology
- Active PFC Compatible
- Automatic Voltage Regulation (AVR)
- Critical/Non-critical Load Outlets
- Surge and Spike Protection
- LCD Status Display
- USB Connectivity Port
- PowerPanel Management Software
- Tower Form Factor
- Energy Saving Technology
- Pure Sine Wave Output
- Overload Protection
- Hot-swappable Batteries
- EMI and RFI Filtration

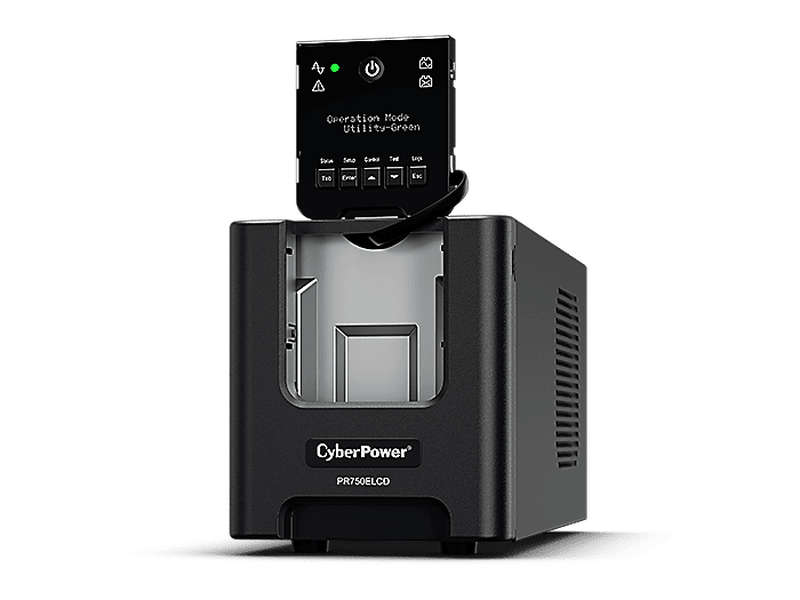

- Detachable LCD Panel
- Emergency Power Off (EPO) Port
- SNMP/HTTP Remote Management Capability (Optional)
CyberPower PR750ELCD Line-Interactive UPS, with seamless Pure Sine Wave, provides the best power protection available for office system devices including PCs, workstations, networking devices, and peripherals. It’s typically integrated in the back office, server room, and data center environment.
The UPS can be locally managed via USB or serial ports, or remotely managed via an SNMP Card (an optional Remote Management Card), allowing administrators and users unsurpassed flexibility to remotely access each UPS through the network to perform real-time monitoring, UPS configurations, and scheduled system shutdowns by using PowerPanel Management software.
Features
- Line-interactive UPS Topology
- Active PFC Compatible
- Automatic Voltage Regulation (AVR)
- Critical/Non-critical Load Outlets
- Surge and Spike Protection
- LCD Status Display
- USB Connectivity Port
- PowerPanel Management Software
- Tower Form Factor
- Energy Saving Technology
- Pure Sine Wave Output
- Overload Protection
- Hot-swappable Batteries
- EMI and RFI Filtration
- Detachable LCD Panel
- Emergency Power Off (EPO) Port
- SNMP/HTTP Remote Management Capability (Optional)
| General | |
|---|---|
| Phase | Single Phase |
| Form Factor | Tower |
| UPS Topology | Line-interactive |
| Energy Saving Technology | GreenPower UPS™ Bypass Technology |
| Active PFC Compatibility | Yes |
| Input | |
| Nominal Input Voltage (Vac) | 230 |
| Input Voltage Range (Vac) | 150 ~ 301 |
| Input Frequency (Hz) | 50 ± 3 / 60 ± 3 |
| Input Frequency Detection | Auto-sensing |
| Rated Input Current (A) | 10 |
| Input Connector Type | IEC C14 |
| Detachable Power Cord Plug Type | IEC C14 x 1 |
| Power Cord Length | 6 ft / 1.83 m |
| Output | |
| Capacity (VA) | 750 |
| Capacity (Watts) | 675 |
| On Battery Waveform | Pure Sine Wave |
| On Battery Voltage (Vac) | 230 ± 5% |
| On Battery Frequency (Hz) | 50 ± 1% / 60 ± 1% |
| Power Factor | 0.9 |
| Automatic Voltage Regulation (AVR) | Double Boost, Single Buck |
| Overload Protection | Internal Current Limiting |
| Total Outlets | 6 |
| Outlet Type | IEC C13 x 6 |
| Battery & Surge Protected | 6 |
| Critical Load (CL) | 0 |
| Non-critical Load (NCL) | 0 |
| Typical Transfer Time (ms) | 4 |
| Battery | |
| Runtime at Half Load (min) | 10.5 |
| Runtime at Full Load (min) | 2.5 |
| Typical Recharge Time (Hours) | 8 |
| Quick Recharge Time (Hours) | 3 |
| Start On Battery | Yes |
| User-replaceable | Yes |
| Hot-swappable | Yes |
| Battery Type | Sealed Lead-acid |
| Replacement Battery Pack (RBP) | RBP0014 |
| RBP Quantity | 1 |
| Surge Protection & Filtering | |
| Surge Suppression (Joules) | 405 |
| EMI/RFI Filtration | Yes |
| Management & Communications | |
| LCD Panel | Yes |
| LCD Type | Detachable LCD Panel |
| LCD Information Display | Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Info, Event & Log |
| LCD Setting & Control | Mode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning, Event & Log |
| LED Indicators | Power On, Line Mode, Battery Mode, Wiring Fault, Replace Battery |
| USB Port | 1 (HID Compliant) |
| EPO Port | Yes |
| Audible Alarms | Battery Mode, Low Battery, Overload, UPS Fault |
| Management Cables | Power Cord x2, USB Cable x1, Serial Cable x1, EPO Cable x1 |
| Power Management Software | PowerPanel Business (Recommended) |
| Remote Monitoring | SNMP/HTTP (Optional RMCARD205) |
| Physical | |
| Enclosure Construction | Metal |
| Color | Black |
| UPS Dimensions (in.) | 5.35 x 6.38 x 13.74 |
| UPS Dimensions (mm) | 136 x 162 x 349 |
| Weight | 27.12 lbs / 12.3 kg |
| Shipping Dimensions (in.) | 10.71 x 11.14 x 19.13 |
| Shipping Dimensions (mm) | 272 x 283 x 486 |
| Shipping Weight | 29.28 lbs / 13.28 kg |
| Environmental | |
| Operating Temperature (°F / °C) | 32 ~ 104 / 0 ~ 40 |
| Operating Humidity | 0 ~ 95% (Non-condensing) |
| Operating Elevation | 0–9,843 ft / 0–3,000 m |
| Storage Temperature (°F / °C) | 5 ~ 113 / -15 ~ 45 |
| Storage Humidity | 0 ~ 95% (Non-condensing) |
| Storage Elevation | 0–49,213 ft / 0–15,000 m |
| Thermal Dissipation | 75 BTU/hr |
| Fanless Design | Yes – virtually no noise |
| Certifications | |
| Certifications | CE, EAC, RCM |
| RoHS Compliant | Yes |
