Description
Overview

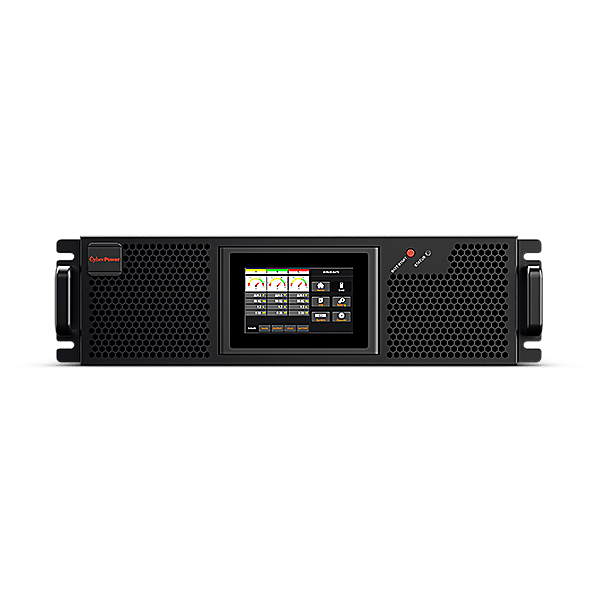

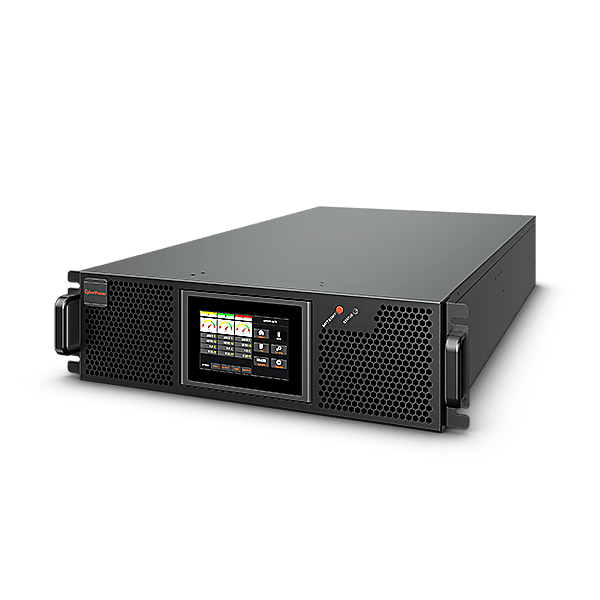

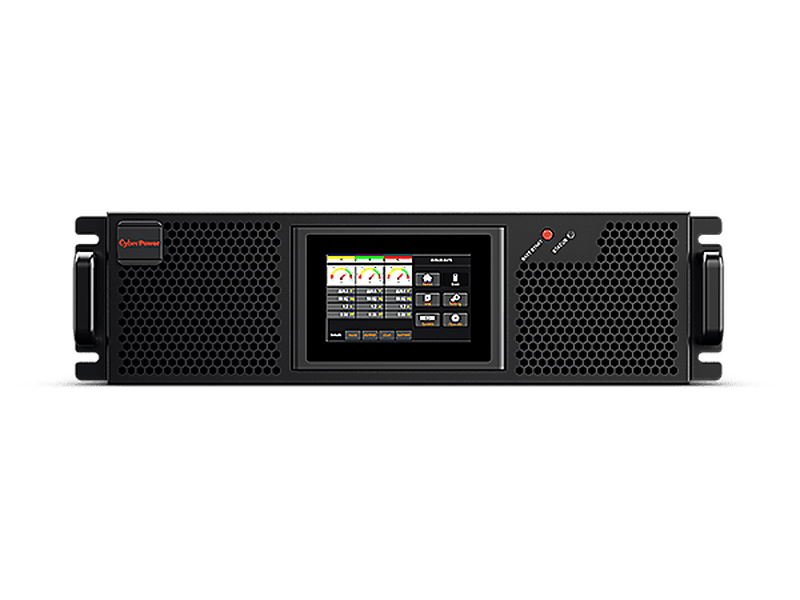

CyberPower RT33020KE guarantees power backup protection for IT equipment such as FTTx devices, networking devices and NAS/storage devices. The product adopts double conversion online topology, and it is typically integrated in the back office, server room, and data center environment.
With integrated IGBT technology and intelligent DSP-based control, the RT33 UPS produces less input total harmonic distortion (THDi), achieving higher power efficiency. The system also intelligently controls the whole process of the charging and discharging, effectively improving the life time of the battery. The system can be configured to 3-in/3-out or 3-in/1-out according to the users' needs. The product is of rack modular design, compatible with 19” standard rack cabinet. Its 5.5” touchscreen color LCD with graphic display provides more information and is easier for customer to operate. The LCD display can also be configured to vertical or horizontal display through LCD setting.
Features
- Three-phase Design
- ECO Mode
- Flexible System Configuration
- Rack Modular Design
- Color LCD Panel
- Dual Inputs
- Generator Compatible
- Battery Cold Start
- SNMP/HTTP Remote Management Capability (Optional)
- Extended Battery Module (EBM)
- Online (Double Conversion) UPS Topology
- High Density Design
- High Output Power Factor
- Rack/Tower Convertible Configurations
- LCD Touch Panel
- UPS Parallel Expansion
- Pure Sine Wave Output
- Smart Battery Management (SBM)
- PowerPanel Management Software
CyberPower RT33020KE guarantees power backup protection for IT equipment such as FTTx devices, networking devices and NAS/storage devices. The product adopts double conversion online topology, and it is typically integrated in the back office, server room, and data center environment.
With integrated IGBT technology and intelligent DSP-based control, the RT33 UPS produces less input total harmonic distortion (THDi), achieving higher power efficiency. The system also intelligently controls the whole process of the charging and discharging, effectively improving the life time of the battery. The system can be configured to 3-in/3-out or 3-in/1-out according to the users' needs. The product is of rack modular design, compatible with 19” standard rack cabinet. Its 5.5” touchscreen color LCD with graphic display provides more information and is easier for customer to operate. The LCD display can also be configured to vertical or horizontal display through LCD setting.
Features
- Three-phase Design
- ECO Mode
- Flexible System Configuration
- Rack Modular Design
- Color LCD Panel
- Dual Inputs
- Generator Compatible
- Battery Cold Start
- SNMP/HTTP Remote Management Capability (Optional)
- Extended Battery Module (EBM)
- Online (Double Conversion) UPS Topology
- High Density Design
- High Output Power Factor
- Rack/Tower Convertible Configurations
- LCD Touch Panel
- UPS Parallel Expansion
- Pure Sine Wave Output
- Smart Battery Management (SBM)
- PowerPanel Management Software
General | |
---|---|
Model | RT33020KE |
Phase | Three Phase |
Form Factor | Rackmount, Tower |
UPS Topology | Online Double Conversion |
Energy Saving Technology | ECO Mode Efficiency > 98% |
Active PFC Compatibility | Yes |
Parallel Expansion | Yes (up to 4 units) |
Input | |
Dual Power Inputs | Yes |
Generator Compatibility | Yes |
Nominal Input Voltage | L-N: 220/230/240 Vac, L-L: 380/400/415 Vac |
Input Voltage Range | L-N: 132 ~ 276 Vac, L-L: 228 ~ 478 Vac |
Input Frequency | 50 ± 3 / 60 ± 3 Hz |
Input Frequency Range | 40 ~ 70 Hz |
Rated Input Current | 31 A |
Input Power Factor | 0.99 |
Input Connector Type | Hardwire Terminal Block |
Output | |
Capacity | 20000 VA / 20000 W |
Waveform | Pure Sine Wave |
Rated Output Voltage | L-N: 220/230/240 Vac, L-L: 380/400/415 Vac |
Output Voltage Tolerance | ±1.5% |
Output Frequency | 50 ± 0.1 / 60 ± 0.1 Hz |
Power Factor | 1.0 |
Outlet Type | Hardwire Terminal Block x 1 |
Transfer Time | 0 ms |
Internal Bypass | Automatic & Manual |
Battery | |
Battery Type | External Battery Module (EBM) |
Smart Battery Management | Yes |
Cold Start | Yes |
Compatible EBM | BM240V63ART3U |
Management & Communications | |
LCD Panel | 5.5” Color Touchscreen (Rotatable) |
LED Indicators | Yes |
Serial Ports | RS232, RS485, Dry Contact |
Remote Monitoring | SNMP/HTTP (Optional RMCARD205) |
Software | PowerPanel Business |
Physical | |
Dimensions (WxHxD) | 438 x 130 x 750 mm |
Weight | 27 kg |
Rackmount Rail & Ears | Included |
Color | Black |
Enclosure | Metal |
Ingress Protection | IP20 |
Environmental | |
Operating Temperature | 0 ~ 40 °C |
Storage Temperature | -40 ~ 70 °C |
Humidity | 0 ~ 95% (Non-condensing) |
Audible Noise | 58 dBA @ 1.0 m |
Certifications | |
Certifications | CE, BSMI, IEC62040-1, IEC62040-2 |
