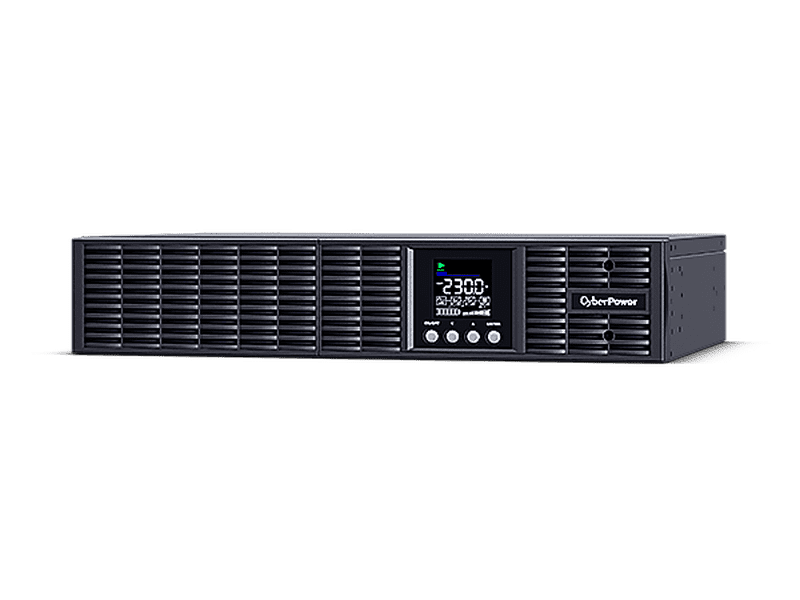

CyberPower Systems Online S 1000VA 900W Rack UPS

CyberpowerSKU: OLS1000ERT2Ua

CyberPower Smart App 1000VA/900Watt UPS, Online Double Conversion, Rackmount, 8x C13 Outlets, Network Protection, Roackmount Kit Included

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$689.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Payment & Security

Apple Pay Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Estimate shipping

Description

Smart App UPS Systems
OLS1000ERT2Ua

CyberPower OLS1000ERT2Ua is a high-performance UPS featuring online double-conversion topology, which provides seamless Pure Sine Wave power for mission-critical devices such as NAS and servers, DVRs/surveillance systems, transportation and infrastructure, and emergency systems. It’s typically integrated in the back office, server room, and data center environment.

The UPS features color LCD panel for users to monitor power system and configure settings easily, and relay-type dry contact to perform local management. This model is designed with extended battery module auto-detection, which can automatically detect the quantity of connected Extended Battery Modules (EBM) to estimate UPS's runtime. The variable speed fans provide automatic thermal management based on power load to reduce noise and provide greater comfort for users.

FEATURES

- Online (Double Conversion) UPS Topology
- ECO Mode
- Generator Compatible
- Overload Protection
- Zero Transfer Time
- Smart Battery Management (SBM)
- Extended Battery Module Auto-detection
- Surge and Spike Protection
- Critical/Non-critical Load Outlets
- EMI and RFI Filtration
- Phone/Fax/Modem/DSL/Network Protection
- Color LCD Panel
- Variable Speed Fans
- Emergency Power Off (EPO) Port
- PowerPanel® Management Software
- SNMP/HTTP Remote Management Capability (Optional)
- Rack Mount Form Factor

TYPICAL APPLICATION

- SOHO Office
- Office
- Back Office
- Server Room
- Data Center
- Supermarket
- Factory
- Airport
- Train Station
- Security Systems
- Surveillance Systems
- Telecom Devices
- Networking Devices
- NAS/Storage Devices
- Satellite Devices
- Computers
- Workstations

Specifications

Brand

- CyberPower

Product Number

- OLS1000ERT2Ua

Phase

- Single Phase

UPS Topology

- Online Double Conversion

Energy Saving Technology

- Online ECO Mode Efficiency > 95%

Active PFC Compatibility

- Yes

Generator Compatibility

- Yes

Nominal Input Voltage ( Vac )

- 230 ± 10%

Input Voltage Range ( Vac )

- 160 ~ 300

Adjustable Voltage Range ( Vac )

- 0~30% Load for 80 ~ 300 Vac
- 0~60% Load for 120 ~ 300 Vac
- 0~80% Load for 140 ~ 300 Vac
- 0~100% Load for 160 ~ 300 Vac

Input Frequency ( Hz )

- 50 ± 10
- 60 ± 10

Input Frequency Detection

- Auto-sensing

Rated Input Current ( A )

- 4.5

Input Power Factor

- 0.99

Input Connector Type

- IEC C14

Detachable Power Cord Plug Type

- AU x 1

Power Cord Length (ft.)

- 5

Power Cord Length (m.)

- 1.5

Capacity (VA)

- 1000

Capacity (Watts)

- 900

On Battery Waveform

- Pure Sine Wave

On Battery Voltage(s) ( Vac )

- 208 ± 1%
- 220 ± 1%
- 230 ± 1%
- 240 ± 1%

Output Voltage Setting

- Configurable

On Battery Frequency ( Hz )

- 50 ± 0.5%
- 60 ± 0.5%

Output Frequency Setting

- Configurable

Power Factor

- 0.9

ECO Mode Voltage Tolerance

- ± 15 %

Overload Protection

- Internal Current Limiting, Circuit Breaker, Fuse

Overload Protection (Line Mode)

- 110~120% Load for 1 min, >120% Load Immediately

Overload Protection (Battery Mode)

- 110~120% Load for 10 sec, >120% Load Immediately

Overload Protection (Bypass Mode)

- >130% Load Immediately

Crest Factor

- 3 : 1

Harmonic Distortion (Linear Load)

- THD<3%

Harmonic Distortion (Non-linear Load)

- THD<5%

Internal Bypass

- Automatic Bypass, Manual Bypass

Outlet(s) - Total

- 8

Outlet Type

- IEC C13 x 8

Outlet(s) - Battery & Surge Protected

- 8

Outlet(s) - Critical Load (CL)

- 4

Outlet(s) - Non-Critical Load (NCL)

- 4

Typical Transfer Time ( ms )

- 0

Runtime at Half Load ( min )

- 11

Runtime at Full Load ( min )

- 4

Typical Recharge Time ( Hours )

- 4

Maximum Charging Current ( A )

- 1.5

Start On Battery

- Yes

Smart Battery Management (SBM)

- Yes

User-replaceable

- Yes

Hot-swappable

- Yes

Battery Type

- Sealed Lead-acid

Battery Cartridge

- RBP0156

RBP Quantity ( pcs )

- 1

Battery Quantity (Each RBP) ( pcs )

- 2

Battery Voltage (Each RBP) ( V )

- 24

Single Battery Capacity ( AH )

- 12 V 9 AH

Extended Battery Module (EBM)

- BPSE24V40ART2U

Max. EBM Quantity ( pcs )

- 3

Surge Suppression ( Joules )

- 440

EMI/RFI Filtration

- Yes

Phone/Network Protection RJ11/RJ45 (Combo)

- 1-in, 1-out

LCD Panel

- Yes

LCD Orientation

- Configurable LCD screen orientation

LCD Information Display

- Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log

LCD Setting & Control

- Mode Setting, Alarm Setting, Input & Output, Battery Setting

HID Compliant USB Port(s)

- 1

Dry Contact (with Relay)

- Yes

Emergency Power Off (EPO) Port

- Yes

Audible Alarms

- Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery

Management Cable ( pcs )

- Power Cord x2, USB Cable x1

Power Management Software

- PowerPanel® Business (Recommended)

SNMP/HTTP Remote Monitoring

- Yes - with optional RMCARD205

Form Factor

- Rack

Enclosure Construction

- Metal

Color

- Black

Rackmount Rail

- Yes

Rackmount Ears

- Yes

Dimensions (WxHxD) (in.)

- 17.24 x 3.46 x 16.93

Dimensions (WxHxD) (mm.)

- 438 x 88 x 430

Operating Temperature (°F)

- 32 ~ 104

Operating Temperature (°C)

- 0 ~ 40

Operating Relative Humidity (Non-condensing) ( % )

- 20 ~ 90

Operating Elevation ( feet/meters )

- 0-5,000 feet (0-1,500 meters)

Storage Temperature (°F)

- -4 ~ 122

Storage Temperature (°C)

- -20 ~ 50

Storage Relative Humidity (Non-condensing) ( % )

- 10 ~ 90

Storage Elevation ( feet/meters )

- 0-5,000 feet (0-1,500 meters)

Online Thermal Dissipation ( BTU/hr )

- 342

Audible Noise at 1.5M from Surface of Unit ( dBA )

- 45

Certifications

- CE, RCM

RoHS

- Yes
