Description
Smart App UPS Systems

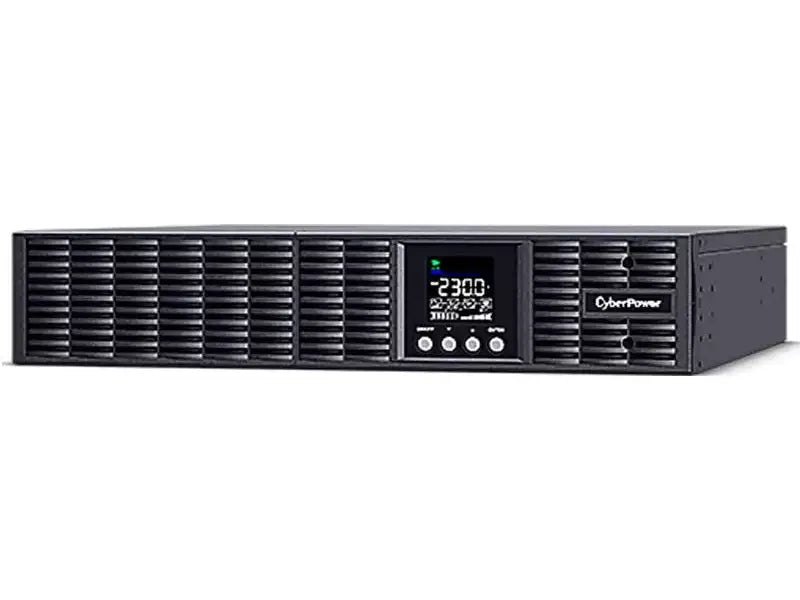

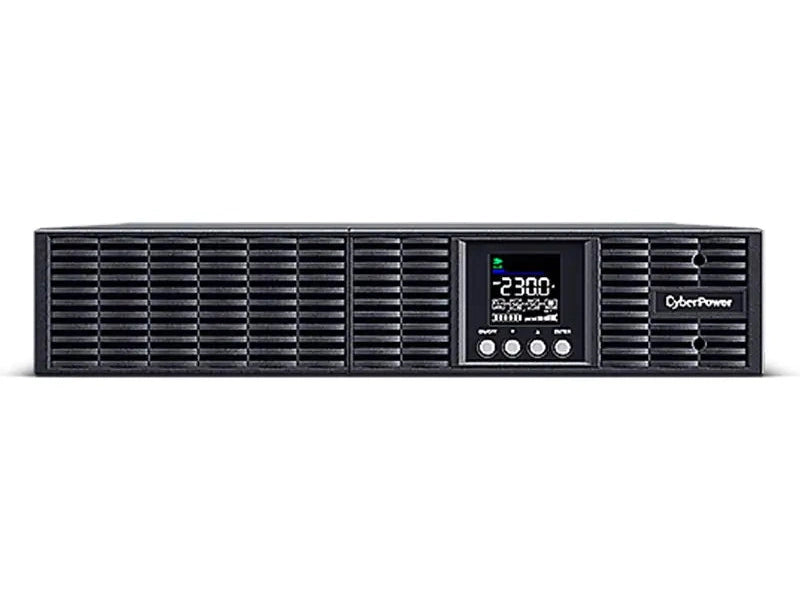

OLS3000ERT2Ua
CyberPower OLS3000ERT2Ua is a high-performance UPS featuring online double-conversion topology, which provides seamless Pure Sine Wave power for mission-critical devices such as NAS and servers, DVRs/surveillance systems, transportation and infrastructure, and emergency systems. It’s typically integrated in the back office, server room, and data center environment.
The UPS features color LCD panel for users to monitor power system and configure settings easily, and relay-type dry contact to perform local management. This model is designed with extended battery module auto-detection, which can automatically detect the quantity of connected Extended Battery Modules (EBM) to estimate UPS's runtime. The variable speed fans provide automatic thermal management based on power load to reduce noise and provide greater comfort for users.
FEATURES
- Online (Double Conversion) UPS Topology
- ECO Mode
- Generator Compatible
- Overload Protection
- Zero Transfer Time
- Smart Battery Management (SBM)
- Extended Battery Module Auto-detection
- Surge and Spike Protection
- Critical/Non-critical Load Outlets
- EMI and RFI Filtration
- Phone/Fax/Modem/DSL/Network Protection
- Color LCD Panel
- Variable Speed Fans
- Emergency Power Off (EPO) Port
- PowerPanel® Management Software
- SNMP/HTTP Remote Management Capability (Optional)
- Rack Mount Form Factor
TYPICAL APPLICATION
- SOHO Office
- Office
- Back Office
- Server Room
- Data Center
- Supermarket
- Factory
- Airport
- Train Station
- Security Systems
- Surveillance Systems
- Telecom Devices
- Networking Devices
- NAS/Storage Devices
- Satellite Devices
- Computers
- Workstations
Specifications
Brand
- CyberPower
Product Number
- OLS3000ERT2Ua
Phase
- Single Phase
UPS Topology
- Online Double Conversion
Energy Saving Technology
- Online ECO Mode Efficiency > 95%
Active PFC Compatibility
- Yes
Generator Compatibility
- Yes
Nominal Input Voltage ( Vac )
- 230 ± 10%
Input Voltage Range ( Vac )
- 190 ~ 300
Adjustable Voltage Range ( Vac )
- 0~30% Load for 80 ~ 300 Vac
- 0~60% Load for 140 ~ 300 Vac
- 0~80% Load for 160 ~ 300 Vac
- 0~100% Load for 190 ~ 300 Vac
Input Frequency ( Hz )
- 50 ± 10
- 60 ± 10
Input Frequency Detection
- Auto-sensing
Rated Input Current ( A )
- 13
Input Power Factor
- 0.99
Input Connector Type
- IEC C20
Detachable Power Cord Plug Type
- AU x 1
Power Cord Length (ft.)
- 5
Power Cord Length (m.)
- 1.5
Capacity (VA)
- 3000
Capacity (Watts)
- 2700
On Battery Waveform
- Pure Sine Wave
On Battery Voltage(s) ( Vac )
- 208 ± 1%
- 220 ± 1%
- 230 ± 1%
- 240 ± 1%
Output Voltage Setting
- Configurable
On Battery Frequency ( Hz )
- 50 ± 0.5%
- 60 ± 0.5%
Output Frequency Setting
- Configurable
Power Factor
- 0.9
ECO Mode Voltage Tolerance
- ± 15 %
Overload Protection
- Internal Current Limiting, Circuit Breaker, Fuse
Overload Protection (Line Mode)
- 110~120% Load for 1 min, >120% Load Immediately
Overload Protection (Battery Mode)
- 110~120% Load for 10 sec, >120% Load Immediately
Overload Protection (Bypass Mode)
- >130% Load Immediately
Crest Factor
- 3 : 1
Harmonic Distortion (Linear Load)
- THD<3%
Harmonic Distortion (Non-linear Load)
- THD<5%
Internal Bypass
- Automatic Bypass, Manual Bypass

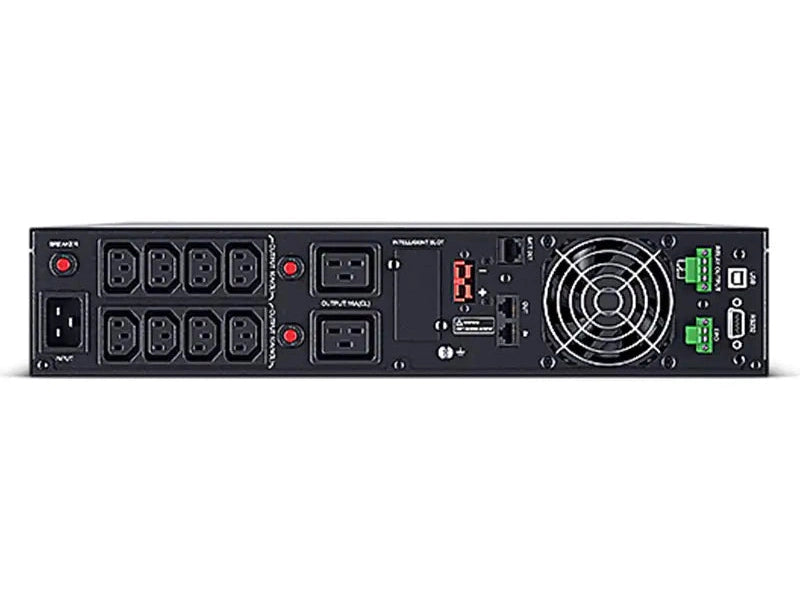

Outlet(s) - Total
- 9
Outlet Type
- IEC C19 x 1
- IEC C13 x 8
Outlet(s) - Battery & Surge Protected
- 9
Outlet(s) - Critical Load (CL)
- 5
Outlet(s) - Non-Critical Load (NCL)
- 4
Typical Transfer Time ( ms )
- 0
Runtime at Half Load ( min )
- 11
Runtime at Full Load ( min )
- 4
Typical Recharge Time ( Hours )
- 4
Maximum Charging Current ( A )
- 1.5
Start On Battery
- Yes
Smart Battery Management (SBM)
- Yes
User-replaceable
- Yes - Qualified Personnel Only
Hot-swappable
- Yes
Battery Type
- Sealed Lead-acid
Battery Cartridge
- RBP0158
RBP Quantity ( pcs )
- 1
Battery Quantity (Each RBP) ( pcs )
- 6
Battery Voltage (Each RBP) ( V )
- 72
Single Battery Capacity ( AH )
- 12 V 9 AH
Extended Battery Module (EBM)
- BPSE72V40ART2U
Max. EBM Quantity ( pcs )
- 3
Surge Suppression ( Joules )
- 440
EMI/RFI Filtration
- Yes
Phone/Network Protection RJ11/RJ45 (Combo)
- 1-in, 1-out
LCD Panel
- Yes
LCD Orientation
- Configurable LCD screen orientation
LCD Information Display
- Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log
LCD Setting & Control
- Mode Setting, Alarm Setting, Input & Output, Battery Setting
HID Compliant USB Port(s)
- 1
Dry Contact (with Relay)
- Yes
Emergency Power Off (EPO) Port
- Yes
Audible Alarms
- Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery
Management Cable ( pcs )
- Power Cord x2, USB Cable x1
Power Management Software
- PowerPanel® Business (Recommended)
SNMP/HTTP Remote Monitoring
- Yes - with optional RMCARD205
Form Factor
- Rack
Enclosure Construction
- Metal
Color
- Black
Rackmount Rail
- Yes
Rackmount Ears
- Yes
Dimensions (WxHxD) (in.)
- 17.24 x 3.46 x 24.2
Dimensions (WxHxD) (mm.)
- 438 x 88 x 610
Operating Temperature (°F)
- 32 ~ 104
Operating Temperature (°C)
- 0 ~ 40
Operating Relative Humidity (Non-condensing) ( % )
- 20 ~ 90
Operating Elevation ( feet/meters )
- 0-5,000 feet (0-1,500 meters)
Storage Temperature (°F)
- -4 ~ 122
Storage Temperature (°C)
- -20 ~ 50
Storage Relative Humidity (Non-condensing) ( % )
- 10 ~ 90
Storage Elevation ( feet/meters )
- 0-5,000 feet (0-1,500 meters)
Online Thermal Dissipation ( BTU/hr )
- 1126
Audible Noise at 1.5M from Surface of Unit ( dBA )
- 45
Certifications
- CE, RCM
RoHS
- Yes
