Description
Overview

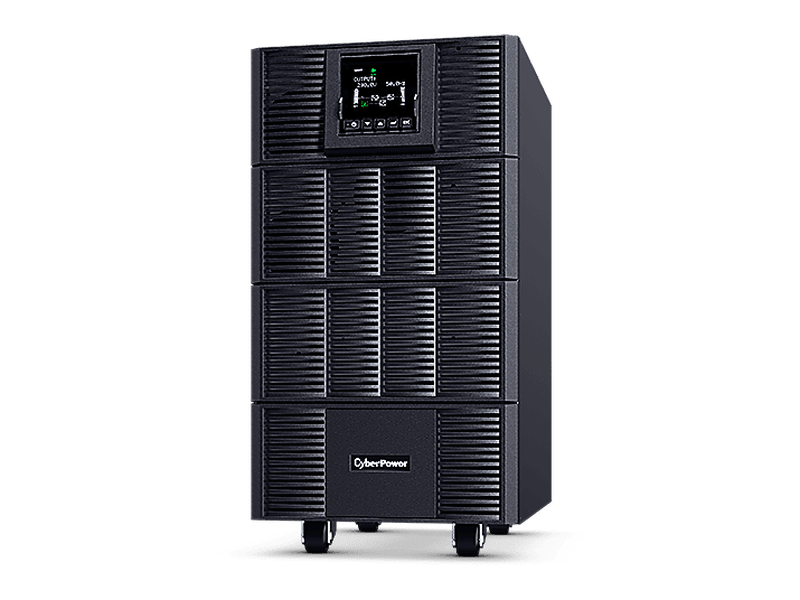

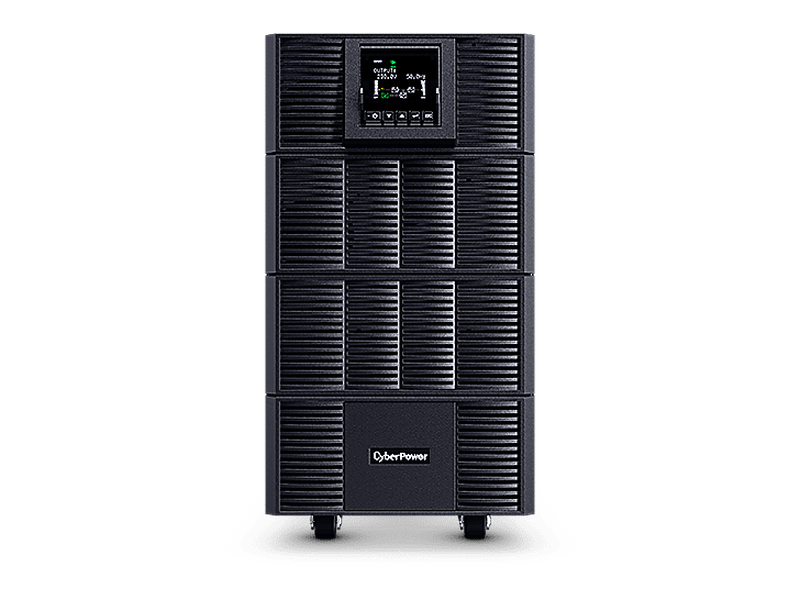

CyberPower OLS6KE is a high-efficiency UPS featuring online double-conversion topology, which provides seamless Pure Sine Wave power for mission-critical devices such as NAS and servers, DVRs/surveillance systems, transportation and infrastructure, and emergency systems. It’s typically integrated into the back office, server room, and data center environment.
The UPS’s output power factor is 1, which means it is capable of connecting to more critical loads than conventional UPS. The user-friendly tiltable color LCD panel allows users to monitor the power status and configure the settings with ease. This product is capable of detecting the quantity of connected Extended Battery Modules (EBM) automatically to estimate UPS's runtime. The battery charging current is adjustable via LCD setting to shorten charging time. It is also designed with relay-type dry contacts to facilitate specific UPS event notifications for seamless management. Moreover, the selected product is equipped with Remote Cloud Card to support remote monitoring via a web portal or the mobile app.
Features
- Online (Double Conversion) UPS Topology
- High Output Power Factor
- UPS Parallel Expansion
- Maintenance Bypass Switch
- Extended Battery Module Auto-detection
- Tiltable LCD Panel
- Emergency Power Off (EPO) Port
- Built-in Remote Cloud Card by Ethernet
- SNMP/HTTP Remote Management Capability (Optional)
- ECO Mode
- Pure Sine Wave Output
- Overload Protection
- Adjustable Charging Current
- Color LCD Panel
- Relay-type Dry Contact
- PowerPanel Management Software
- Zero Transfer Time
CyberPower OLS6KE is a high-efficiency UPS featuring online double-conversion topology, which provides seamless Pure Sine Wave power for mission-critical devices such as NAS and servers, DVRs/surveillance systems, transportation and infrastructure, and emergency systems. It’s typically integrated into the back office, server room, and data center environment.
The UPS’s output power factor is 1, which means it is capable of connecting to more critical loads than conventional UPS. The user-friendly tiltable color LCD panel allows users to monitor the power status and configure the settings with ease. This product is capable of detecting the quantity of connected Extended Battery Modules (EBM) automatically to estimate UPS's runtime. The battery charging current is adjustable via LCD setting to shorten charging time. It is also designed with relay-type dry contacts to facilitate specific UPS event notifications for seamless management. Moreover, the selected product is equipped with Remote Cloud Card to support remote monitoring via a web portal or the mobile app.
Features
- Online (Double Conversion) UPS Topology
- High Output Power Factor
- UPS Parallel Expansion
- Maintenance Bypass Switch
- Extended Battery Module Auto-detection
- Tiltable LCD Panel
- Emergency Power Off (EPO) Port
- Built-in Remote Cloud Card by Ethernet
- SNMP/HTTP Remote Management Capability (Optional)
- ECO Mode
- Pure Sine Wave Output
- Overload Protection
- Adjustable Charging Current
- Color LCD Panel
- Relay-type Dry Contact
- PowerPanel Management Software
- Zero Transfer Time
General | |
---|---|
Model | OLS6KE |
UPS Topology | Online Double Conversion |
Form Factor | Rackmount / Tower Convertible |
Power Capacity | 6000 VA / 6000 W |
Output Power Factor | 1.0 |
Energy Saving Technology | ECO Mode Efficiency > 98% |
Parallel Expansion | Yes |
Maintenance Bypass | Yes |
Electrical Input | |
Nominal Input Voltage | 230 Vac |
Input Voltage Range | 110 ~ 300 Vac |
Input Frequency | 50 / 60 Hz (Auto-sensing) |
Input Connector Type | Hardwire Terminal Block |
Input Power Factor | 0.99 |
Electrical Output | |
Output Voltage | 200 / 208 / 220 / 230 / 240 Vac ± 1% |
Output Frequency | 50 / 60 Hz ± 0.5% |
Waveform | Pure Sine Wave |
Outlet Type | Hardwire Terminal Block x 1 |
Transfer Time | 0 ms |
Overload Protection | 110–150% staged timing, >150% Immediate |
Battery | |
Battery Type | Sealed Lead-acid |
Runtime at Half Load | 17.7 minutes |
Recharge Time | Adjustable via LCD |
Extended Battery Module Support | Yes |
EBM Auto-detection | Yes |
Smart Battery Management | Yes |
Management & Communications | |
LCD Panel | Tiltable Color LCD |
LCD Display Info | Power, Battery, Load, Fault, Event & Log |
LCD Settings | Mode, Alarm, Input/Output, Battery, Communication, Security |
USB Port | Yes |
Serial Port | RS232 |
Dry Contact | Relay-type |
EPO Port | Yes |
Remote Monitoring | SNMP/HTTP (Optional RMCARD205) |
Built-in Remote Cloud Card | Yes (Ethernet) |
Software | PowerPanel Business |
Physical | |
Dimensions (WxHxD) | 438 x 130 x 750 mm |
Weight | 27 kg |
Rackmount Rail & Ears | Included |
Color | Black |
Enclosure | Metal |
Environmental | |
Operating Temperature | 0 ~ 40 °C |
Storage Temperature | -40 ~ 70 °C |
Humidity | 0 ~ 95% (Non-condensing) |
Audible Noise | 58 dBA @ 1.0 m |
Certifications | |
Certifications | CE, BSMI, IEC62040-1, IEC62040-2 |
RoHS Compliant | Yes |
