Description

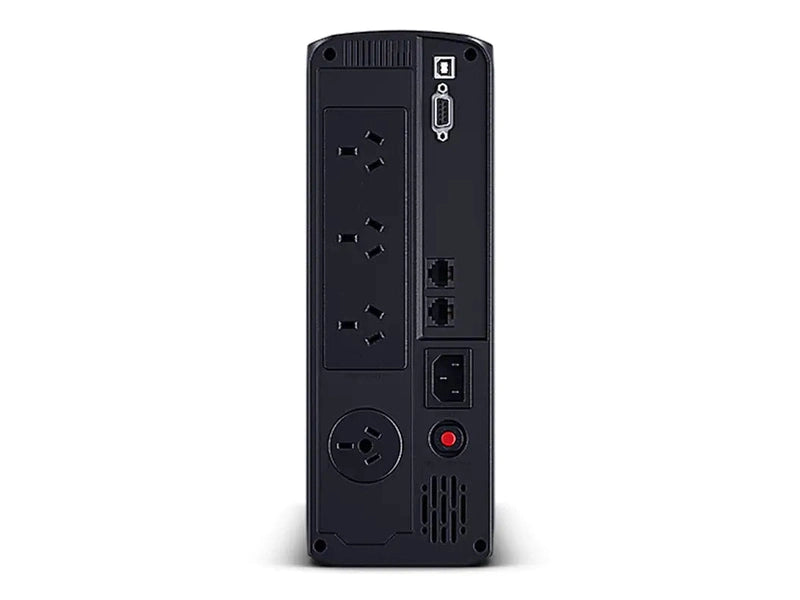

CyberPower Systems Value Pro 1600VA / 960W Line Interactive UPS (VP1600ELCD)
CyberPower VP1600ELCD offers home and office users a reliable battery backup and safeguards office PCs and other electronic devices from surges, spikes, brownouts and other power incidents. Designed with GreenPower UPS™ Technology to improve UPS operating efficiency and to minimize its energy consumption, users can enjoy significant energy cost savings over conventional UPS systems. The UPS provides Automatic Voltage Regulation (AVR) to maintain safe voltage for connected equipment.
The UPS provides multifunctional LCD readout to display clear power and battery conditions. The product features data line protection with high-speed transmission to safeguard phones, network and communication equipment against surge/spike as well as supply 1Gbps speed to transmit data. The UPS is also compatible with PowerPanel Power Management Software to achieve real-time monitoring and configuration.
-
Line-interactive UPS Topology
-
Generator Compatible
-
Automatic Voltage Regulation (AVR)
-
High-speed Ethernet Data Transmission
-
Surge and Spike Protection
-
PowerPanel Management Software
-
Energy Saving Technology
-
Simulated Sine Wave Output
-
LCD Status Display
-
USB Connectivity Port
-
Serial Connectivity Port
Specifications
GENERAL |
|
Phase |
Single Phase |
Form Factor |
Tower |
UPS Topology |
Line-interactive |
Energy Saving Technology |
GreenPower UPS™ Bypass Technology |
INPUT |
|
Generator Compatibility |
Yes |
Nominal Input Voltage ( Vac ) |
230 ± 10% |
Input Voltage Range ( Vac ) |
167 ~ 295 |
Input Frequency ( Hz ) |
50 ± 5 60 ± 5 |
Input Frequency Detection |
Auto-sensing |
Rated Input Current ( A ) |
6.96 |
Input Connector Type |
IEC C14 |
Detachable Power Cord Plug Type |
AU x 1 |
Power Cord Length (ft.) |
5 |
Power Cord Length (m.) |
1.5 |
OUTPUT |
|
Capacity (VA) |
1600 |
Capacity (Watts) |
960 |
On Battery Waveform |
Simulated Sine Wave |
On Battery Voltage(s) ( Vac ) |
230 ± 10 % |
On Battery Frequency ( Hz ) |
50 ± 1% 60 ± 1% |
Automatic Voltage Regulation (AVR) |
Single Boost, Single Buck |
Overload Protection |
Circuit Breaker |
Outlet(s) - Total |
4 |
Outlet Type |
AU x 4 |
Outlet(s) - Battery & Surge Protected |
3 |
Outlet(s) - Surge-Only Protected |
1 |
Typical Transfer Time ( ms ) |
4 |
BATTERY |
|
Runtime at Half Load ( min ) |
11 |
Runtime at Full Load ( min ) |
2 |
Typical Recharge Time ( Hours ) |
8 |
Start On Battery |
Yes |
User-replaceable |
No |
Battery Type |
Sealed Lead-acid |
SURGE PROTECTION & FILTERING |
|
Surge Suppression ( Joules ) |
450 |
EMI/RFI Filtration |
Yes |
Phone/Network Protection RJ11/RJ45 (Combo) |
1-in, 1-out |
MANAGEMENT & COMMUNICATIONS |
|
LCD Panel |
Yes |
LCD Information Display |
Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information |
LCD Setting & Control |
Mode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning |
LED Indicators |
Power On |
HID Compliant USB Port(s) |
1 |
Audible Alarms |
Battery Mode, Low Battery, Overload, UPS Fault |
Management Cable ( pcs ) |
USB Cable x1 |
Ethernet Data Transmission Speed |
Up to 1Gbps |
Power Management Software |
PowerPanel Personal (Recommended) |
PHYSICAL |
|
Enclosure Construction |
Plastic |
Color |
Black |
PHYSICAL SIZE - UPS MODULE |
|
Dimensions (WxHxD) (in.) |
3.9 x 11 x 14 |
Dimensions (WxHxD) (mm.) |
100 x 281 x 355 |
Weight (lbs.) |
22.97 |
Weight (kg.) |
10.42 |
ENVIRONMENTAL |
|
Operating Temperature (°F) |
32 ~ 104 |
Operating Temperature (°C) |
0 ~ 40 |
Operating Relative Humidity (Non-condensing) ( % ) |
0 ~ 90 |
Operating Elevation ( feet/meters ) |
0-9,843 feet (0-3,000 meters) |
Storage Temperature (°F) |
-4 ~ 122 |
Storage Temperature (°C) |
-20 ~ 50 |
Storage Relative Humidity (Non-condensing) ( % ) |
0 ~ 90 |
Storage Elevation ( feet/meters ) |
0-9,843 feet (0-3,000 meters) |
Online Thermal Dissipation ( BTU/hr ) |
68 |
Audible Noise at 1.0M from Surface of Unit ( dBA ) |
50 |
CERTIFICATIONS |
|
Certifications |
CE, RCM |
RoHS |
Yes |
OTHERS |
|
What’s in the Box |
VP1600ELCD UPS USB Cable User's Manual Product Registration Card * Product contents may vary according to different regions. For detailed information, please refer to user's manual/quick start guide. |
