Description

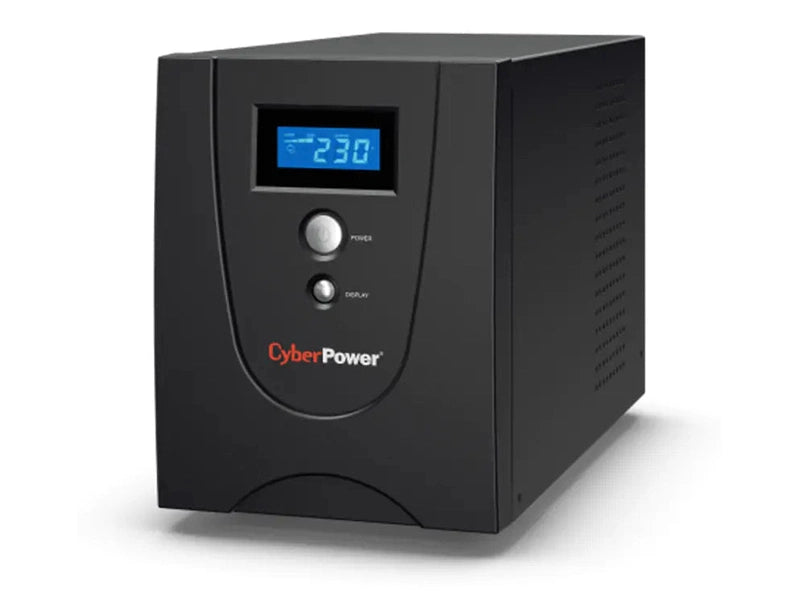

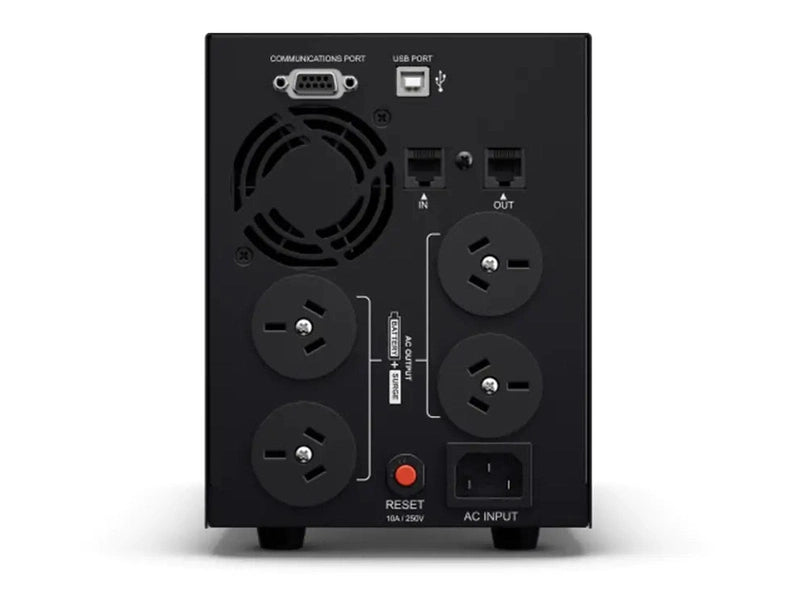

CyberPower 2200VA/1320W Value SOHO LCD UPS (VALUE2200ELCD)
CyberPower Value2200ELCD offers home and office users a reliable battery backup and safeguards office PCs, network communication equipment, and other electronic devices from surges, spikes, brownouts and other power incidents. Designed with GreenPower UPS™ Technology to improve UPS operating efficiency and to minimize its energy consumption, users can enjoy significant energy cost savings over conventional UPS systems.
-
Line-interactive UPS Topology
-
Simulated Sine Wave Output
-
Surge and Spike Protection
-
LCD Status Display
-
Tower Form Factor
-
Energy Saving Technology
-
Automatic Voltage Regulation (AVR)
-
Phone/Fax/Modem/DSL/Network Protection
-
PowerPanel Management Software
Specifications
|
GENERAL |
|
|
Phase |
Single Phase |
|
Form Factor |
Tower |
|
UPS Topology |
Line-interactive |
|
Energy Saving Technology |
GreenPower UPS™ Bypass Technology |
|
INPUT |
|
|
Nominal Input Voltage ( Vac ) |
230 ± 10% |
|
Input Voltage Range ( Vac ) |
170 ~ 290 |
|
Adjustable Voltage Range ( Vac ) |
0~100% Load for 170 ~ 290 Vac |
|
Input Frequency ( Hz ) |
50 ± 5 60 ± 5 |
|
Input Frequency Detection |
Auto-sensing |
|
Rated Input Current ( A ) |
10 |
|
Input Connector Type |
IEC C14 |
|
Detachable Power Cord Plug Type |
AU x 1 |
|
Power Cord Length (ft.) |
5 |
|
Power Cord Length (m.) |
1.5 |
|
OUTPUT |
|
|
Capacity (VA) |
2200 |
|
Capacity (Watts) |
1320 |
|
On Battery Waveform |
Simulated Sine Wave |
|
On Battery Voltage(s) ( Vac ) |
230 ± 10 % |
|
On Battery Frequency ( Hz ) |
50 ± 1% 60 ± 1% |
|
Automatic Voltage Regulation (AVR) |
Single Boost, Single Buck |
|
Overload Protection |
Circuit Breaker |
|
Outlet(s) - Total |
4 |
|
Outlet Type |
AU x 4 |
|
Outlet(s) - Battery & Surge Protected |
4 |
|
Typical Transfer Time ( ms ) |
4 |
|
BATTERY |
|
|
Runtime at Half Load ( min ) |
7 |
|
Runtime at Full Load ( min ) |
1 |
|
Typical Recharge Time ( Hours ) |
8 |
|
Start On Battery |
Yes |
|
User-replaceable |
Yes |
|
Battery Type |
Sealed Lead-acid |
|
SURGE PROTECTION & FILTERING |
|
|
Surge Suppression ( Joules ) |
150 |
|
EMI/RFI Filtration |
Yes |
|
Phone/Network Protection RJ11/RJ45 (Combo) |
1-in, 1-out |
|
MANAGEMENT & COMMUNICATIONS |
|
|
LCD Panel |
Yes |
|
LCD Information Display |
Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information |
|
LCD Setting & Control |
Alarm Setting |
|
LED Indicators |
Power On |
|
HID Compliant USB Port(s) |
1 |
|
Audible Alarms |
Battery Mode, Low Battery, Overload, UPS Fault |
|
Management Cable ( pcs ) |
Power Cord x1, USB Cable x1 |
|
Power Management Software |
PowerPanel Personal (Recommended) |
|
PHYSICAL |
|
|
Enclosure Construction |
Metal |
|
Color |
Black |
|
PHYSICAL SIZE - UPS MODULE |
|
|
Dimensions (WxHxD) (in.) |
5.512 x 7.09 x 12.835 |
|
Dimensions (WxHxD) (mm.) |
140 x 180 x 326 |
|
Weight (lbs.) |
31.9 |
|
Weight (kg.) |
14.5 |
|
ENVIRONMENTAL |
|
|
Operating Temperature (°F) |
32 ~ 104 |
|
Operating Temperature (°C) |
0 ~ 40 |
|
Operating Relative Humidity (Non-condensing) ( % ) |
0 ~ 90 |
|
Operating Elevation ( feet/meters ) |
0-9,843 feet (0-3,000 meters) |
|
Storage Temperature (°F) |
-4 ~ 122 |
|
Storage Temperature (°C) |
-20 ~ 50 |
|
Storage Relative Humidity (Non-condensing) ( % ) |
0 ~ 90 |
|
Storage Elevation ( feet/meters ) |
0-9,843 feet (0-3,000 meters) |
|
Online Thermal Dissipation ( BTU/hr ) |
225 |
|
Audible Noise at 1.5M from Surface of Unit ( dBA ) |
50 |
|
CERTIFICATIONS |
|
|
Certifications |
CE, EAC, RCM |
|
RoHS |
Yes |
|
OTHERS |
|
|
What’s in the Box |
VALUE2200ELCD UPS Power Cord USB Cable User's Manual Product Registration Card * Product contents may vary according to different regions. For detailed information, please refer to user's manual/quick start guide. |
