Description
Overview

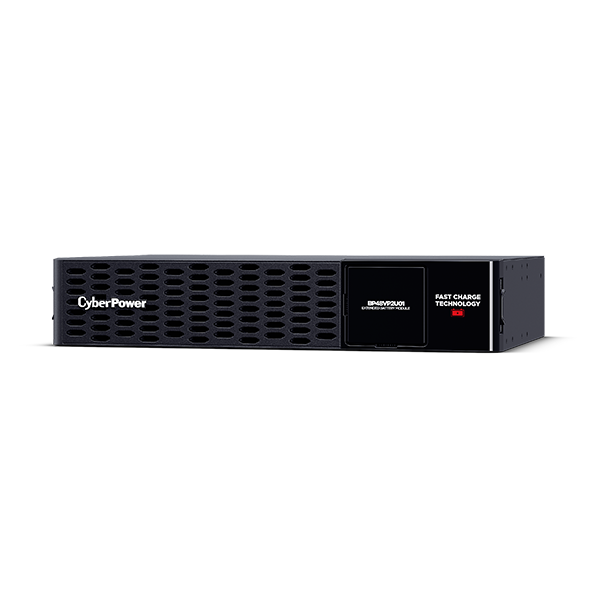

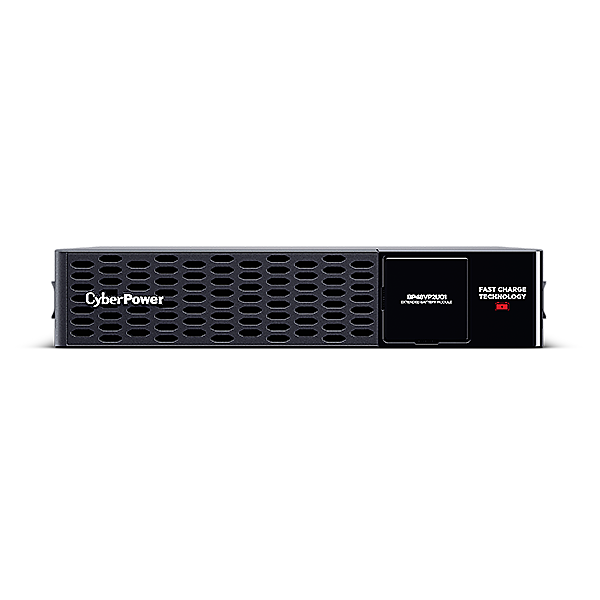

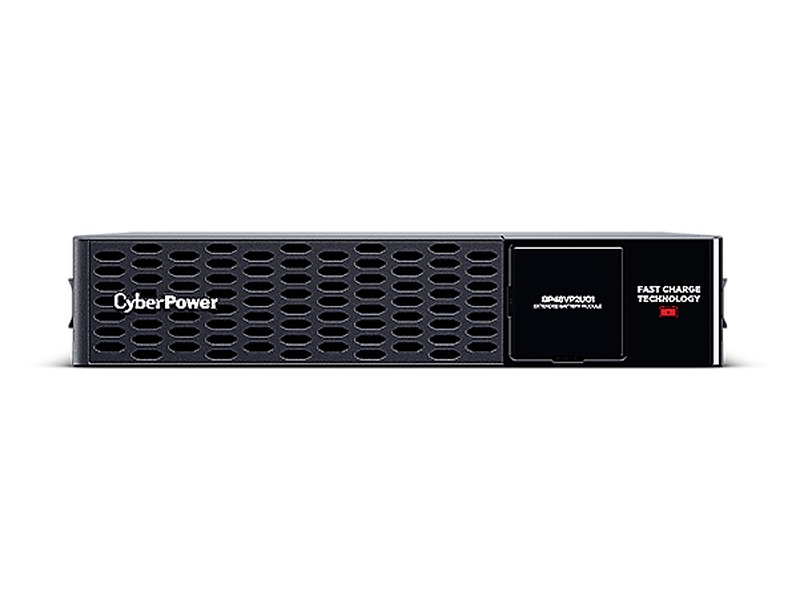

CyberPower BP48VP2U01 is an Extended Battery Module (EBM) which can be used in conjunction with compatible UPS systems to provide prolonged system runtime during power interruption. The battery module comes with DC plug-and-play power connectors to allow for adding multiple EBMs. With the built-in charger design, the EBMs can charge directly from utility without resorting to UPS, significantly saving total charging time when charging multiple EBMs.
The product features hot-swappable battery packs, allowing users to safely replace battery module without interrupting connected loads. The sealed lead-acid battery used within the EBM is stable and safe, which ensures the power system's reliable performance. Designed with industrial-grade metal enclosure, the product is suitable for data center and critical applications.
Features
- Rack/Tower Convertible Configurations
- Built-in charger for Extended Battery Module (EBM)
- Hot-swappable Batteries
- Metal Housing
- Sealed Lead-acid Batteries
- User-replaceable Batteries
- EBM Expansion Capability
CyberPower BP48VP2U01 is an Extended Battery Module (EBM) which can be used in conjunction with compatible UPS systems to provide prolonged system runtime during power interruption. The battery module comes with DC plug-and-play power connectors to allow for adding multiple EBMs. With the built-in charger design, the EBMs can charge directly from utility without resorting to UPS, significantly saving total charging time when charging multiple EBMs.
The product features hot-swappable battery packs, allowing users to safely replace battery module without interrupting connected loads. The sealed lead-acid battery used within the EBM is stable and safe, which ensures the power system's reliable performance. Designed with industrial-grade metal enclosure, the product is suitable for data center and critical applications.
Features
- Rack/Tower Convertible Configurations
- Built-in charger for Extended Battery Module (EBM)
- Hot-swappable Batteries
- Metal Housing
- Sealed Lead-acid Batteries
- User-replaceable Batteries
- EBM Expansion Capability
General | |
---|---|
Input Voltage Range (Vac) | 100 ~ 240 |
Input Frequency (Hz) | 50 / 60 |
Rated Input Current (A) | 10 |
Nominal Output Voltage (Vdc) | 48 |
Rated Output Current (A) | 60 |
Battery | |
Battery Type | Sealed Lead-acid |
Battery Quantity | 8 pcs |
Single Battery Voltage (V) | 12 |
Single Battery Capacity (AH) | 7 |
Built-in Charger | Yes |
Typical Recharge Time (Hours) | 6 |
User-replaceable | Yes |
Hot-swappable | Yes |
Expansion Ready | Yes |
Replacement Battery Pack | RBP0128 |
Replacement Battery Pack Quantity | 2 pcs |
Physical | |
Form Factor | Rackmount, Tower |
Enclosure Construction | Metal |
Color | Black |
Rackmount Rail | Yes |
Rackmount Ears | Yes |
Unit Dimensions (WxHxD) | 17.1 x 3.4 x 16.2 in / 433 x 86.5 x 412 mm |
Net Weight | 55.8 lbs / 25.3 kg |
Installed Rack Height (U) | 2 |
Shipping Dimensions | |
Dimensions (WxHxD) | 22.1 x 10.9 x 20.9 in / 560 x 275 x 530 mm |
Shipping Weight | 69.9 lbs / 31.7 kg |
Environmental | |
Operating Temperature | 32 ~ 104 °F / 0 ~ 40 °C |
Operating Relative Humidity | 0 ~ 95% (Non-condensing) |
Operating Elevation | 0–9,843 ft / 0–3,000 m |
Storage Temperature | 5 ~ 113 °F / -15 ~ 45 °C |
Storage Relative Humidity | 0 ~ 95% (Non-condensing) |
Storage Elevation | 0–49,213 ft / 0–15,000 m |
Certifications | |
Certifications | CE, FCC Class B, UL, cUL, VCCI |
RoHS Compliant | Yes |
