Description
Overview

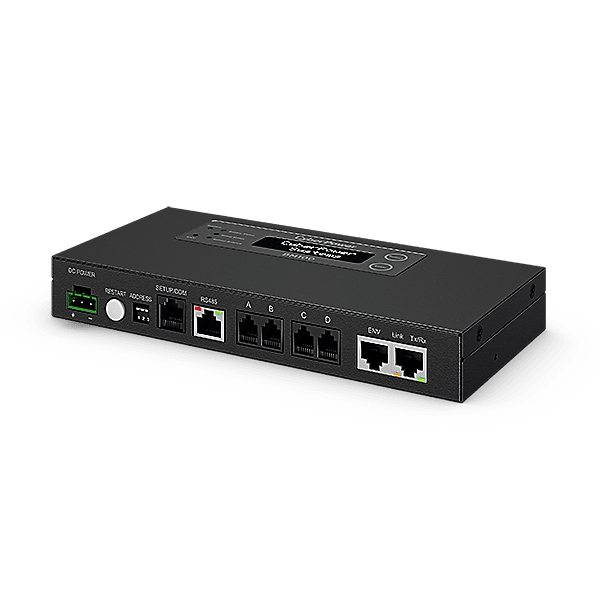

CyberPower BM100 is part of a battery management system, which consists of Battery Manager and Battery Probes. The system provides a proactive approach to manage and monitor the batteries, reducing the risk of downtime by ensuring the batteries are optimally charged and ready for use. The system can detect the flawed battery early to reduce the possibility of damage to the entire battery string, thus extending the battery lifespan and lowering maintenance costs.
The battery management system can monitor several strings of batteries and equalize each battery's voltage to enhance battery performance. After installing the hardware and configuring an IP address, users can simply monitor the battery voltage, temperature, internal resistance, state of charge (SOC) and state of health (SOH) through the user-friendly web interface.
The battery management system can support Environmental Sensor and user-upgradeable firmware. It is fully Ethernet TCP/IP compatible with integrated web server and supports SNMP/MIB communication, data record, alarm notification, and more. The system can also operate under wide temperature range.
Moreover, the selected product features wireless communication to simplify wiring and installation.
Features
- Reduce Risk of Downtime
- Support Multiple Management Interface
- User-friendly Web Interface
- Historical Battery Data Storage
- Automatic Event Notification
- Wide Operating Temperature
- Battery Voltage/Temperature/Resistance/SOC/SOH Monitoring
- Low Power Consumption
- Support Environmental Sensor
- Charge Equalization
- Battery Analysis at Selectable Intervals
- User-upgradeable Firmware
CyberPower BM100 is part of a battery management system, which consists of Battery Manager and Battery Probes. The system provides a proactive approach to manage and monitor the batteries, reducing the risk of downtime by ensuring the batteries are optimally charged and ready for use. The system can detect the flawed battery early to reduce the possibility of damage to the entire battery string, thus extending the battery lifespan and lowering maintenance costs.
The battery management system can monitor several strings of batteries and equalize each battery's voltage to enhance battery performance. After installing the hardware and configuring an IP address, users can simply monitor the battery voltage, temperature, internal resistance, state of charge (SOC) and state of health (SOH) through the user-friendly web interface.
The battery management system can support Environmental Sensor and user-upgradeable firmware. It is fully Ethernet TCP/IP compatible with integrated web server and supports SNMP/MIB communication, data record, alarm notification, and more. The system can also operate under wide temperature range.
Moreover, the selected product features wireless communication to simplify wiring and installation.
Features
- Reduce Risk of Downtime
- Support Multiple Management Interface
- User-friendly Web Interface
- Historical Battery Data Storage
- Automatic Event Notification
- Wide Operating Temperature
- Battery Voltage/Temperature/Resistance/SOC/SOH Monitoring
- Low Power Consumption
- Support Environmental Sensor
- Charge Equalization
- Battery Analysis at Selectable Intervals
- User-upgradeable Firmware
General | |
---|---|
Input DC Voltage Range (Vdc) | 15 ~ 60 |
Power Consumption (W) | 4 |
Number of Monitored Strings | 4 pcs |
UPS Support per Battery Manager | 1 pcs |
Number of String Batteries | 1 ~ 480 (1 string) 1 ~ 240 (2 strings) 1 ~ 120 (3 strings) 1 ~ 120 (4 strings) |
Number of Monitored Batteries | 480 pcs |
Management & Communications | |

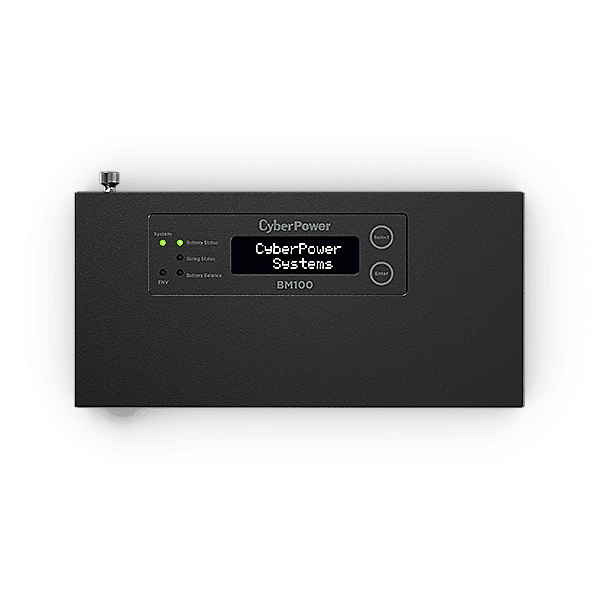

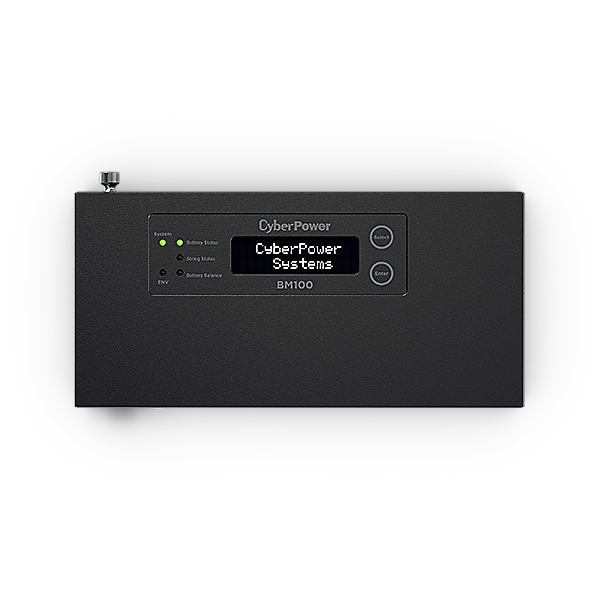

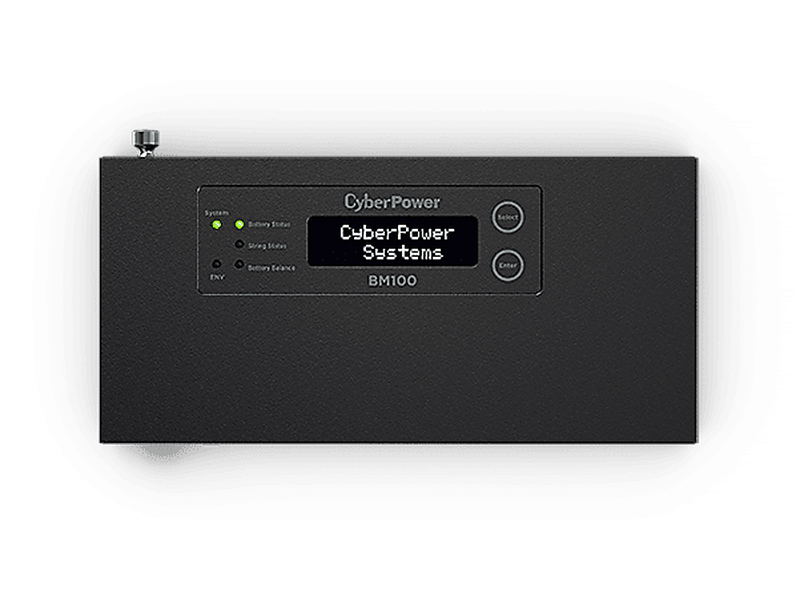

LCD Panel | Yes |
LED Indicators | System, ENV, Battery Status, String Status, Battery Balance |

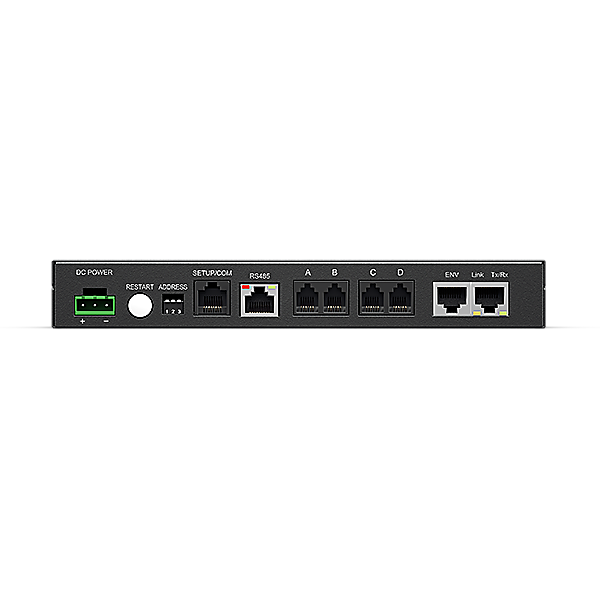

Battery Manager & Probe Ports | Yes – via RJ25 |
Network Port | RJ45 – 10/100Mbps Ethernet |
RS485 Port | Yes – MODBUS RTU |
Supported Protocols | IPv4/v6, SNMPv1/v3, HTTP/HTTPS, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SSH, SSL, TLS 1.2, Telnet, FTP, MODBUS TCP, Syslog |
Authentication | RADIUS, LDAP, LDAPS, Windows AD |
User-upgradeable Firmware | Yes |
Environmental Sensor Support | Yes |
Power Management Software | PowerPanel Battery Management |
BMS Software Supported | Yes |
Physical | |
Form Factor | Desktop |
Enclosure Construction | Metal |
Color | Black |
Unit Dimensions (WxHxD) | 8.27 x 1.14 x 3.94 in / 210 x 29 x 100 mm |
Net Weight | 1.26 lbs / 0.573 kg |
Installed Rack Height (U) | 0 |
Shipping Dimensions | |
Dimensions (WxHxD) | 9.72 x 2.95 x 5.87 in / 247 x 75 x 149 mm |
Shipping Weight | 2.13 lbs / 0.967 kg |
Environmental | |
Operating Temperature | -40 ~ 140 °F / -40 ~ 60 °C |
Operating Relative Humidity | 0 ~ 90% (Non-condensing) |
Operating Elevation | 0 ~ 9,843 ft / 0 ~ 3,000 m |
Storage Temperature | -40 ~ 149 °F / -40 ~ 65 °C |
Storage Relative Humidity | 0 ~ 90% (Non-condensing) |
Storage Elevation | 0 ~ 9,843 ft / 0 ~ 3,000 m |
Certifications | |
Certifications | CE, FCC Class A |
RoHS Compliant | Yes |
