Description
Overview

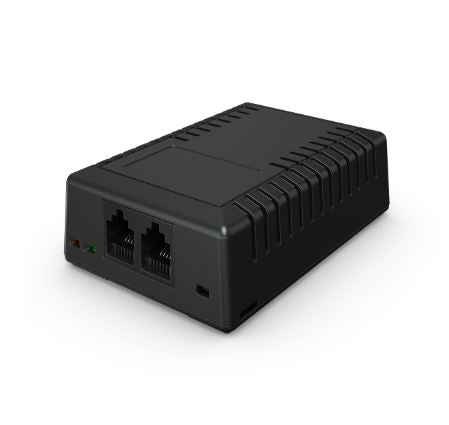

CyberPower BP100-12VT is part of a battery management system, which consists of Battery Manager and Battery Probes. The system provides a proactive approach to manage and monitor the batteries, reducing the risk of downtime by ensuring the batteries are optimally charged and ready for use. The system can detect the flawed battery early to reduce the possibility of damage to the entire battery string, thus extending the battery lifespan and lowering maintenance costs.
The battery management system can monitor several strings of batteries and equalize each battery's voltage to enhance battery performance. After installing the hardware and configuring an IP address, users can simply monitor the battery voltage, temperature, internal resistance, state of charge (SOC) and state of health (SOH) through the user-friendly web interface.
The battery management system can support Environmental Sensor and user-upgradeable firmware. It is fully Ethernet TCP/IP compatible with integrated web server and supports SNMP/MIB communication, data record, alarm notification, and more. The system can also operate under wide temperature range.
Moreover, the selected product features wireless communication to simplify wiring and installation.
Features
- Battery String Voltage Equalization
- Maximize Battery Performance
- Extend Battery Lifespan
- RoHS Compliant
CyberPower BP100-12VT is part of a battery management system, which consists of Battery Manager and Battery Probes. The system provides a proactive approach to manage and monitor the batteries, reducing the risk of downtime by ensuring the batteries are optimally charged and ready for use. The system can detect the flawed battery early to reduce the possibility of damage to the entire battery string, thus extending the battery lifespan and lowering maintenance costs.
The battery management system can monitor several strings of batteries and equalize each battery's voltage to enhance battery performance. After installing the hardware and configuring an IP address, users can simply monitor the battery voltage, temperature, internal resistance, state of charge (SOC) and state of health (SOH) through the user-friendly web interface.
The battery management system can support Environmental Sensor and user-upgradeable firmware. It is fully Ethernet TCP/IP compatible with integrated web server and supports SNMP/MIB communication, data record, alarm notification, and more. The system can also operate under wide temperature range.
Moreover, the selected product features wireless communication to simplify wiring and installation.
Features
- Battery String Voltage Equalization
- Maximize Battery Performance
- Extend Battery Lifespan
- RoHS Compliant
General | |
---|---|
Model | BP100-12V |
Battery Technology | Sealed Lead Acid (VRLA) |
Nominal Voltage | 12 VDC |
Capacity Range | 5 ~ 200 Ah |
Internal Resistance | 1.0 ~ 60 mΩ |
Charge Balance | ±30 mV |
DC Protection | DC Fuse |
Monitoring & Management | |
Battery Status Monitoring | Resistance, Voltage, Temperature, SOC, SOH |
Communication Interface | RJ25 |
Web Interface | Integrated Web Server |
Remote Protocols | SNMP/MIB, TCP/IP |
Alarm Notification | Supported |
Environmental Sensor Support | Yes |
Firmware | User-upgradeable |
Physical | |
Form Factor | Desktop |
Color | Black |
Material | Plastic |
Unit Dimensions (WxHxD) | 2.17 x 0.98 x 3.15 in / 55 x 25 x 80 mm |
Net Weight | 0.12 lbs / 0.057 kg |
Shipping Dimensions (WxHxD) | 6.61 x 2.28 x 6.46 in / 168 x 58 x 164 mm |
Shipping Weight | 0.45 lbs / 0.21 kg |
Environmental | |
Operating Temperature | -40 ~ 140 °F / -40 ~ 60 °C |
Operating Humidity | 0 ~ 90% (Non-condensing) |
Operating Elevation | 0 ~ 9,843 ft / 0 ~ 3,000 m |
Storage Temperature | -40 ~ 149 °F / -40 ~ 65 °C |
Storage Humidity | 0 ~ 90% (Non-condensing) |
Storage Elevation | 0 ~ 9,843 ft / 0 ~ 3,000 m |
Certifications | |
Certifications | CE, FCC Class A |
RoHS Compliant | Yes |
