Description

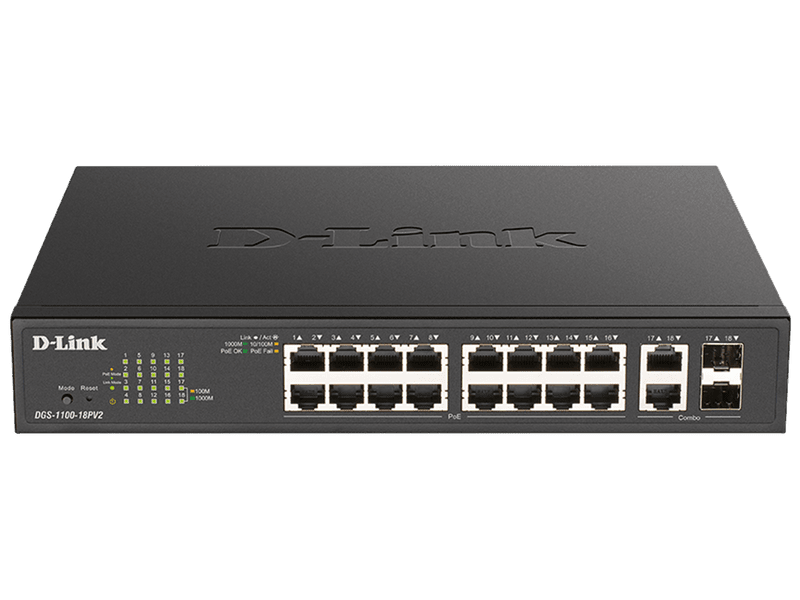

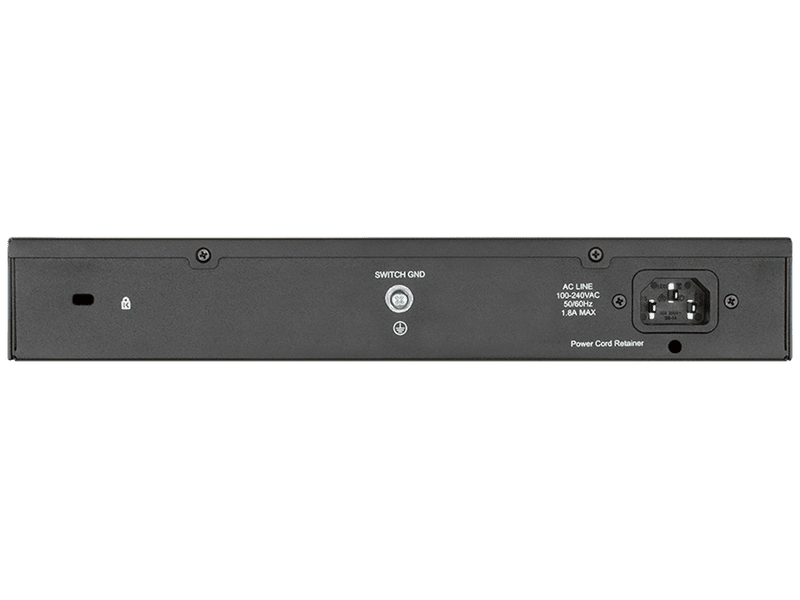

18-Port Gigabit Smart Managed PoE Switch with 16 PoE and 2 Combo RJ45/SFP ports (130W PoE budget)
DGS-1100-18PV2

- 16 x 10/100/1000BASE-T PoE+ ports
- 2x RJ45/SFP Combo ports
- PoE+ support with up to 30W per port
- 130 Watts PoE Power Budget
- Bandwidth Control ensures latency-sensitive traffic always gets the bandwidth it needs
- Quality of Service further prioritizes latency-sensitive traffic, ensuring timely delivery
- Segregate different types of traffic, such as surveillance or voice, with VLANs to heighten security
- IGMP Snooping sends multicast traffic only where it needs to go, significantly cutting down network traffic
- Innovative energy saving features are good for your budget, as well as the environment
- Get up and going quickly with streamlined first-time setup and ongoing management
Features
Powerful Switching for your Business

The DGS-1100 Series is a range of powerful switches that offer a lot of bang for your buck. They are great for busy SMBs who expect a lot of their network, including support for surveillance and VoIP. They are packed with traffic management & optimization features that keep your network congestion free. Meanwhile, management tools are flexible and intuitive, making your life easier.

Specifications
| Switch Type : | Layer 2 |
| Type of Port Required : | Gigabit Copper|Gigabit Fibre |
| Number of Ports : | 5 - 16 |
| PoE Type Required : | PoE|PoE+ |
| High Speed Stacking : | No |
| Design : | Desktop|Rackmountable |
| 1000Base-T ports : | 16 Ports |
| SFP ports : | 2 Ports (Combo) |
| PoE ports : | 16 Ports |
| PoE Budget : | 130 Watts |
| Switching Capacity : | 36 Gbps |
| QoS : | Yes |
| Spanning Tree Protocol : | Yes |
| Link Aggregation : | Yes |
| VLAN : | 4K Groups |
| Surveillance VLAN : | Yes |
| Jumbo Frame : | 9216 bytes |
| Voice VLAN : | Yes |
| IGMP Snooping : | Yes |
| Cable Diagnostics : | Yes |
| Energy Saving Technology : | EEE Compliant|RoHS 6 Compliant |
| 19" Rack Mountable : | Yes |
| Fans : | 1 |
| Built-in PSU : | Yes |
| Dimensions (Size) : | 280 x 230 x 44 mm |
| Web-based GUI : | Yes |
| Command Line Interface : | No |
| Types of ports : | SFP Ports|Gigabit Ports |
| Static Routing : | No |
| Switch Series : | DGS-1100 Series |
