Description

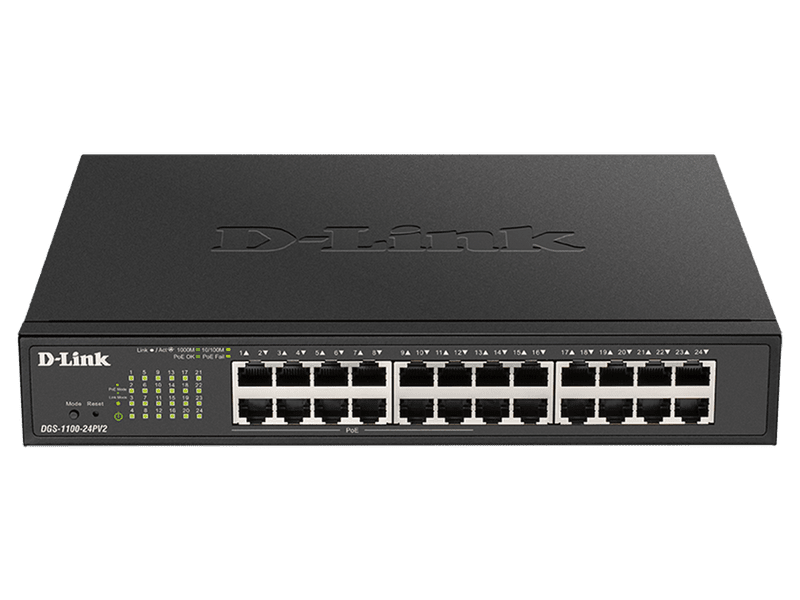

24-Port Gigabit Smart Managed PoE Switch with 12 PoE ports (100W PoE budget)
DGS-1100-24PV2

- 12 x 10/100/1000BASE-T PoE+ ports
- 12 x 10/100/1000BASE-T ports
- PoE+ support with up to 30W per port
- 100 Watts PoE Power Budget
- Bandwidth Control ensures latency-sensitive traffic always gets the bandwidth it needs
- Quality of Service further prioritizes latency-sensitive traffic, ensuring timely delivery
- Segregate different types of traffic, such as surveillance or voice, with VLANs to heighten security
- IGMP Snooping sends multicast traffic only where it needs to go, significantly cutting down network traffic
- Innovative energy saving features are good for your budget, as well as the environment
- Get up and going quickly with streamlined first-time setup and ongoing management
Features

Powerful Switching for your Business
The DGS-1100 Series is a range of powerful Switches that offer a lot of bang for your buck. They are great for busy SMBs who expect a lot out of their network, including support for surveillance and VoIP. They are packed with traffic management & optimisation features that keep your network congestion free. Meanwhile, management tools are flexible and intuitive, making your life easier.

Specifications
| Switch Type : | Layer 2 |
| Type of Port Required : | Gigabit Copper |
| Number of Ports : | 24 - 28 |
| PoE Type Required : | PoE|PoE+ |
| High Speed Stacking : | No |
| Design : | Desktop|Rackmountable|Fanless |
| 1000Base-T ports : | 24 Ports |
| PoE ports : | 12 Ports |
| PoE Budget : | 100 Watts |
| Switching Capacity : | 48 Gbps |
| QoS : | Yes |
| Spanning Tree Protocol : | Yes |
| Link Aggregation : | Yes |
| VLAN : | 4K Groups |
| Surveillance VLAN : | Yes |
| Jumbo Frame : | 9216 bytes |
| Voice VLAN : | Yes |
| IGMP Snooping : | Yes |
| Cable Diagnostics : | Yes |
| Energy Saving Technology : | EEE Compliant|RoHS 6 Compliant |
| 19" Rack Mountable : | Yes |
| Fans : | Fanless |
| Built-in PSU : | Yes |
| Dimensions (Size) : | 280 x 230 x 44 mm |
| Web-based GUI : | Yes |
| Command Line Interface : | No |
| Types of ports : | Gigabit Ports |
| Static Routing : | No |
| Switch Series : | DGS-1100 Series |
