Description

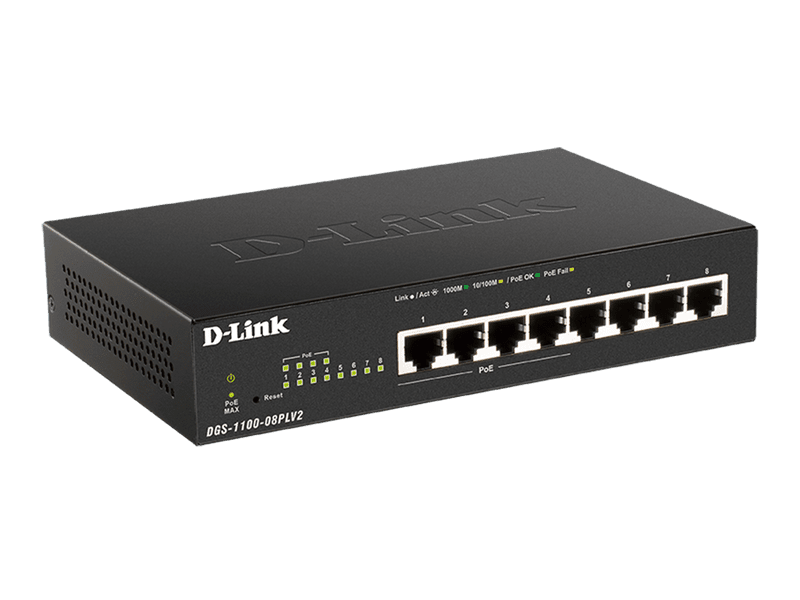

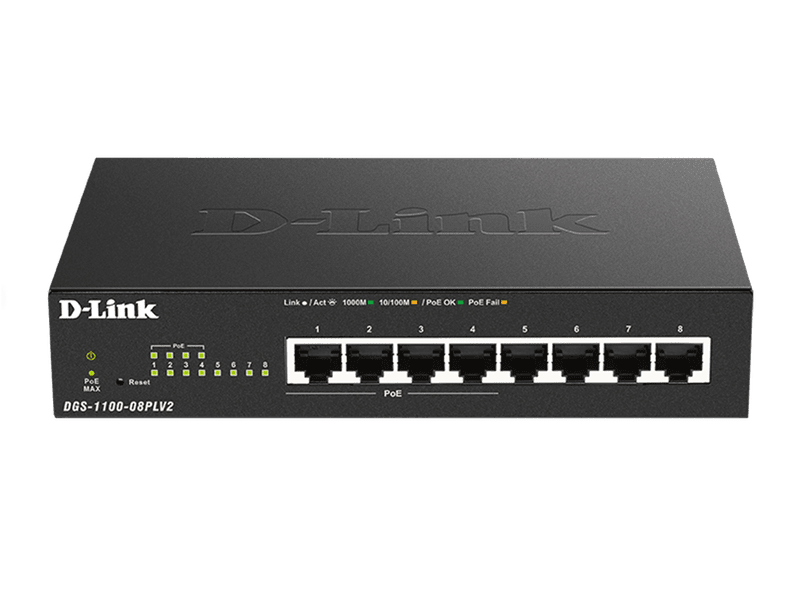

8-Port Gigabit Smart Managed PoE Switch with 4 PoE ports (80W PoE budget)
DGS-1100-08PLV2

- 8 x 10/100/1000BASE-T ports with 4 x PoE+ ports
- PoE+ support with up to 30W per port
- 80 Watts PoE Power Budget
- Bandwidth Control ensures latency-sensitive traffic always gets the bandwidth it needs
- Quality of Service further prioritizes latency-sensitive traffic, ensuring timely delivery
- Segregate different types of traffic, such as surveillance or voice, with VLANs to heighten security
- IGMP Snooping sends multicast traffic only where it needs to go, significantly cutting down network traffic
- Innovative energy saving features are good for your budget, as well as the environment
- Get up and going quickly with streamlined first-time setup and ongoing management
Features
Powerful Switching for your Business

The DGS-1100 Series is a range of powerful switches that offer a lot of bang for your buck. They are great for busy SMBs who expect a lot of their network, including support for surveillance and VoIP. They are packed with traffic management & optimization features that keep your network congestion free. Meanwhile, management tools are flexible and intuitive, making your life easier.

| Switch Type : | Layer 2 |
| Type of Port Required : | Gigabit Copper |
| Number of Ports : | 5 - 16 |
| PoE Type Required : | PoE|PoE+ |
| High Speed Stacking : | No |
| Design : | Desktop|Fanless |
| 1000Base-T ports : | 8 Ports |
| PoE ports : | 4 Ports |
| PoE Budget : | 80 Watts |
| Switching Capacity : | 16 Gbps |
| QoS : | Yes |
| Spanning Tree Protocol : | Yes |
| Link Aggregation : | Yes |
| VLAN : | 32 Groups |
| Surveillance VLAN : | Yes |
| Jumbo Frame : | 10000 bytes |
| Voice VLAN : | Yes |
| IGMP Snooping : | Yes |
| Cable Diagnostics : | Yes |
| Energy Saving Technology : | EEE Compliant|D-Link Green|RoHS 6 Compliant |
| 19" Rack Mountable : | No |
| Fans : | Fanless |
| Dimensions (Size) : | 190 x 120 x 38 mm |
| Web-based GUI : | Yes |
| Command Line Interface : | No |
| Types of ports : | Gigabit Ports |
| Static Routing : | No |
| Switch Series : | DGS-1100 Series |
