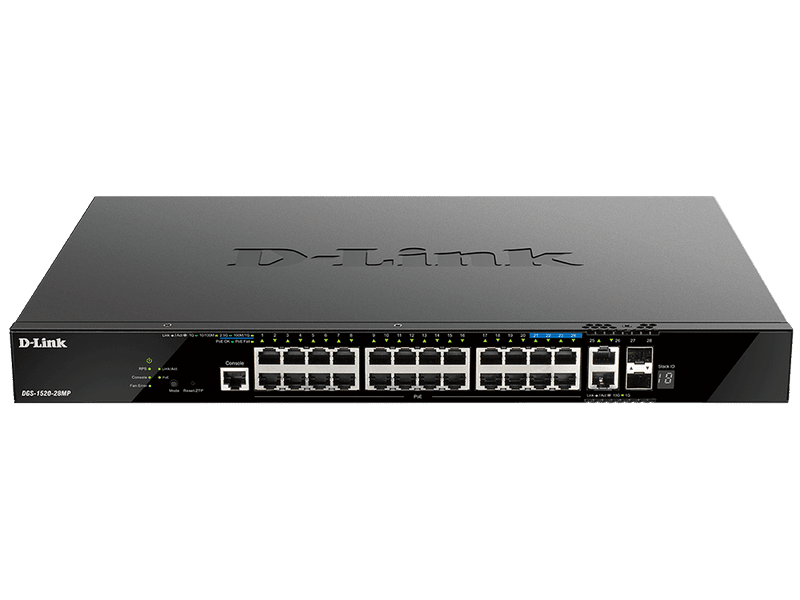

28-Port Gigabit Smart Managed Stackable PoE+ Layer 3 Switch with 20 PoE+ 1000Base-T, 4 PoE+ 2.5GBase-T and 4 10Gb Ports
DGS-1520-28MP
- High performance Layer 3 switch with 10Gig uplinks
- Physical stacking up to 8 switches
- Virtual stacking up to 32 switches
- 2 x 10GBase-T and 2 x SFP+ uplink ports
- 4 x 2.5GBase-T PoE+ ports
- PoE and PoE+ support
- PoE budget 370W, upgradeable to 740W (with DPS-700)
- Redundant Power Supply support
- Advanced security features
- Advanced Layer 2 and Layer 3 features
Specifications
| Switch Type : |
Layer 3 |
| Type of Port Required : |
Gigabit Copper|Gigabit Fibre|10 Gigabit Copper|10 Gigabit Fibre|2.5 Gigabit Copper |
| Number of Ports : |
24 - 28 |
| PoE Type Required : |
PoE|PoE+|Extended PoE Budget |
| High Speed Stacking : |
Yes |
| Design : |
Desktop|Rackmountable |
| 1000Base-T ports : |
24 Ports |
| PoE ports : |
24 Ports |
| PoE Budget : |
370 Watts (740 w RPS) |
| Switching Capacity : |
140 Gbps |
| QoS : |
Yes |
| Spanning Tree Protocol : |
Yes |
| Link Aggregation : |
Yes |
| VLAN : |
4K Groups |
| Surveillance VLAN : |
Yes |
| Jumbo Frame : |
12K bytes |
| Voice VLAN : |
Yes |
| IGMP Snooping : |
Yes |
| 802.1X Access Control : |
Yes |
| DHCP Server Screening : |
Yes |
| SNMP : |
Yes |
| Cable Diagnostics : |
Yes |
| Energy Saving Technology : |
EEE Compliant|D-Link Green|RoHS 6 Compliant |
| 19" Rack Mountable : |
Yes |
| Fans : |
4 |
| Built-in PSU : |
Yes |
| Dimensions (Size) : |
441 x 308 x 44 mm |
| Web-based GUI : |
Yes |
| Command Line Interface : |
Yes |
| Types of ports : |
10Gb SFP+ Ports|SFP Ports|Gigabit Ports|10Gb Copper Ports|2.5Gb Ports |
| 10Gb SFP+ ports : |
2 ports |
| Static Routing : |
Yes |
| 10GBase-T ports : |
2 ports |
| Switch Series : |
DGS-1520 Series |
