Description

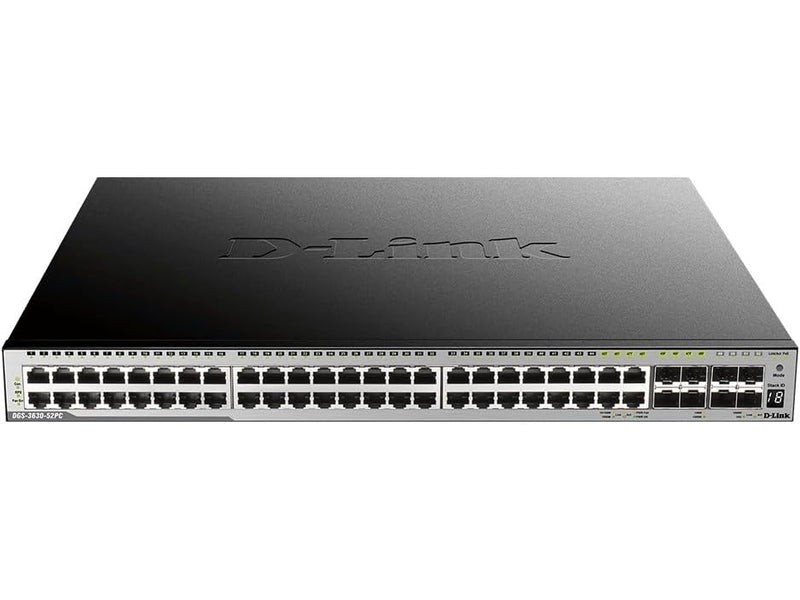

52-Port Layer 3 Stackable Managed Gigabit PoE Switch with 4 10GbE Ports
DGS-3630-52PC
- Gigabit Layer 3 Stackable Switch
- Four 10 Gigabit uplink ports
- 48 PoE+ ports with up to 740 Watts PoE budget
- 6kV surge protection on all RJ-45 ports
- Stackable up to 9 units, 432 GbE ports
- Supports long-distance stacking over fibre
- 80 Gbps per device stacking bandwidth
- Easy-to-use web GUI
- Industry standard CLI
Stackable Managed Switches
- Designed for Small to Medium Businesses, Enterprises and ISPs
- Deliver high performance, flexibility, fault tolerance, and advanced software features
- Gigabit Ethernet SFP, 10 GbE SFP+, security features, and advanced Quality of Service (QoS), the DGS-3630 Series can act as core, distribution or access layer switches
- High port densities, switch stacking, and easy management make the DGS-3630 Series suitable for a variety of applications
PoE
The DGS-3630-28PC and DGS-3630-52PC switches support the IEEE 802.3af PoE and IEEE 802.3at PoE+ standards, which provide up to 30 W of power per port to power devices such as IP phones, Access Points, or security cameras.
Both models feature a 370W PoE power budget which can be increased to 740 W when outfitted with the DPS-700 redundant power supply, allowing the switches to power even more devices.
Outperforming the competition
The DGS-3630-28TC was benchmarked against a market leading competitor's device. It matched or exceeded the competitor's performance across all tests despite being significantly lower in price with a much lower power consumption.
Versatile Management
The DGS-3630 Series provides:
- Network Assistant Utility
- Industry-standard CLI
- Intuitive web-based management interface
Support for SNMP allows centralized management of a large number of devices and out-of-band management is available via a dedicated console port.
A mini-USB console port allows the DGS-3630 Series to be managed without any extra connectors, and a USB Type A port can be used to store logs, configuration, and firmware images.
Security, Performance & Availability
Robust set of QoS features helps ensure that critical network services such as Voice over IP and video conferencing are given high priority through the network.
The D-Link Safeguard Engine increases the switch’s reliability, serviceability, and availability by preventing malicious flooding traffic caused by worms or virus attacks.
High Availability and Flexibility
Includes stacking technology, which allows multiple switches to be combined to form a single physical or virtual stack.
Scale your network using just a stacking cable and without the need for stacking modules.
Increased redundancy over multiple physical units, simplifies management and provides a single IP address to manage all members in the stack.
Multiple Software Images
The DGS-3630 Series is designed for use with three different software images:
- Standard Image (SI)
- Enhanced Image (EI)
- MPLS Image (MI)
Please refer to the Specifications tab or download the product datasheet for more information.
Specifications
Operating Altitude
|
up to 2000M |
---|---|
Switch Capacity
|
176 Gbps |
Dimensions
|
441mm x 380mm x 44mm |
Humidity
|
Operation 10%-95% RH Storage: 5% ~ 95% RH |
Interfaces
|

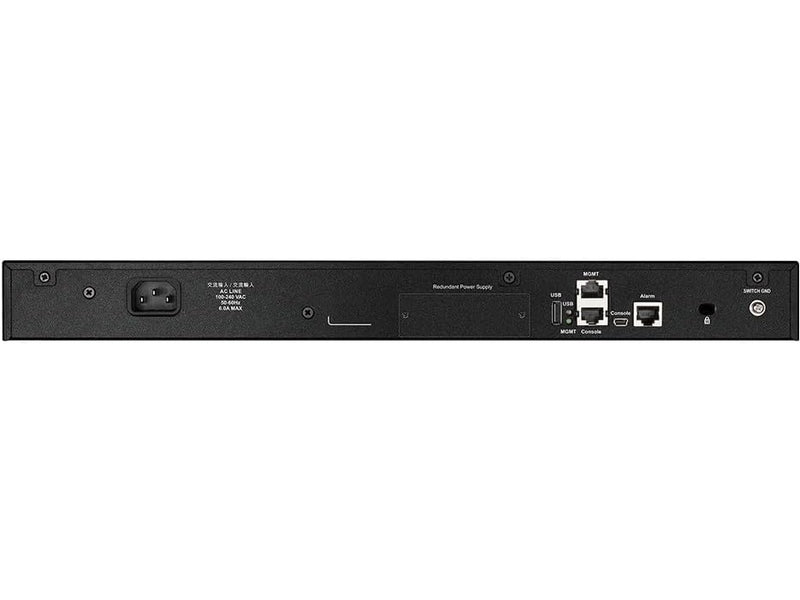

1 x RJ-45 Alarm port 1 x RJ-45 and Mini-USB port 1 x RJ-45 Management port 1 x USB 2.0 port 4 x 10G SFP+ ports 4 x Combo 10/100/1000BASE-T/SFP ports 44 x 10/100/1000BASE-T PoE ports |
Max. Packet Forwarding Rate
|
130.95 Mpps |
Maximum Heat Dissipation
|
1653.85 BTU/h |
Maximum Power Consumption
|
485 W (PoE on) 54.1 W (PoE off) |
MTBF
|
199,929.76 hours |
PoE Power Budget
|
370 W |
Power Input
|
AC:100 ~ 240 V |
Temperature
|
Operating: -5 to 50° C (23 to 122° F) Storage: -40 to 70 °C (-40 to 158 °F) |
