Description
Overview

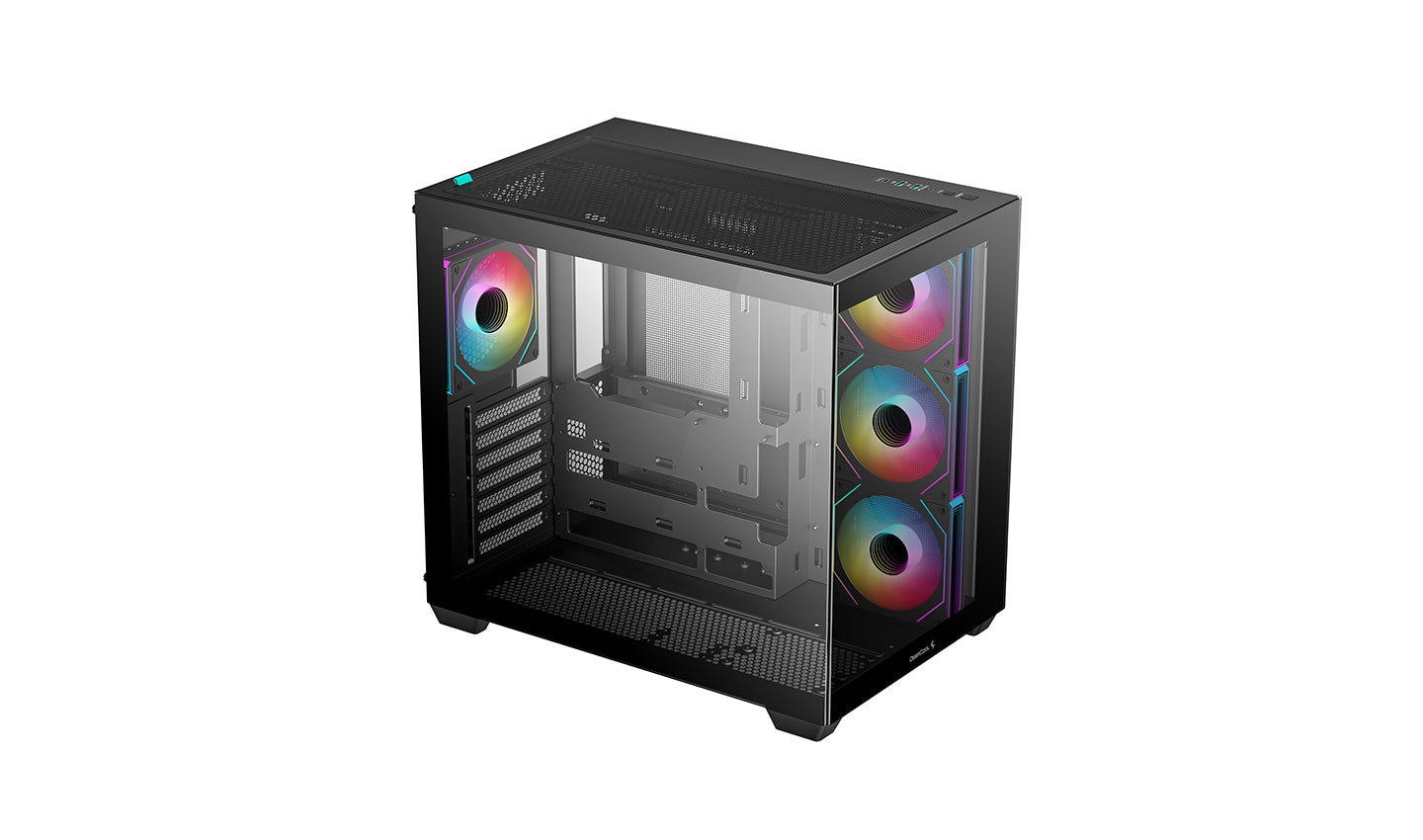

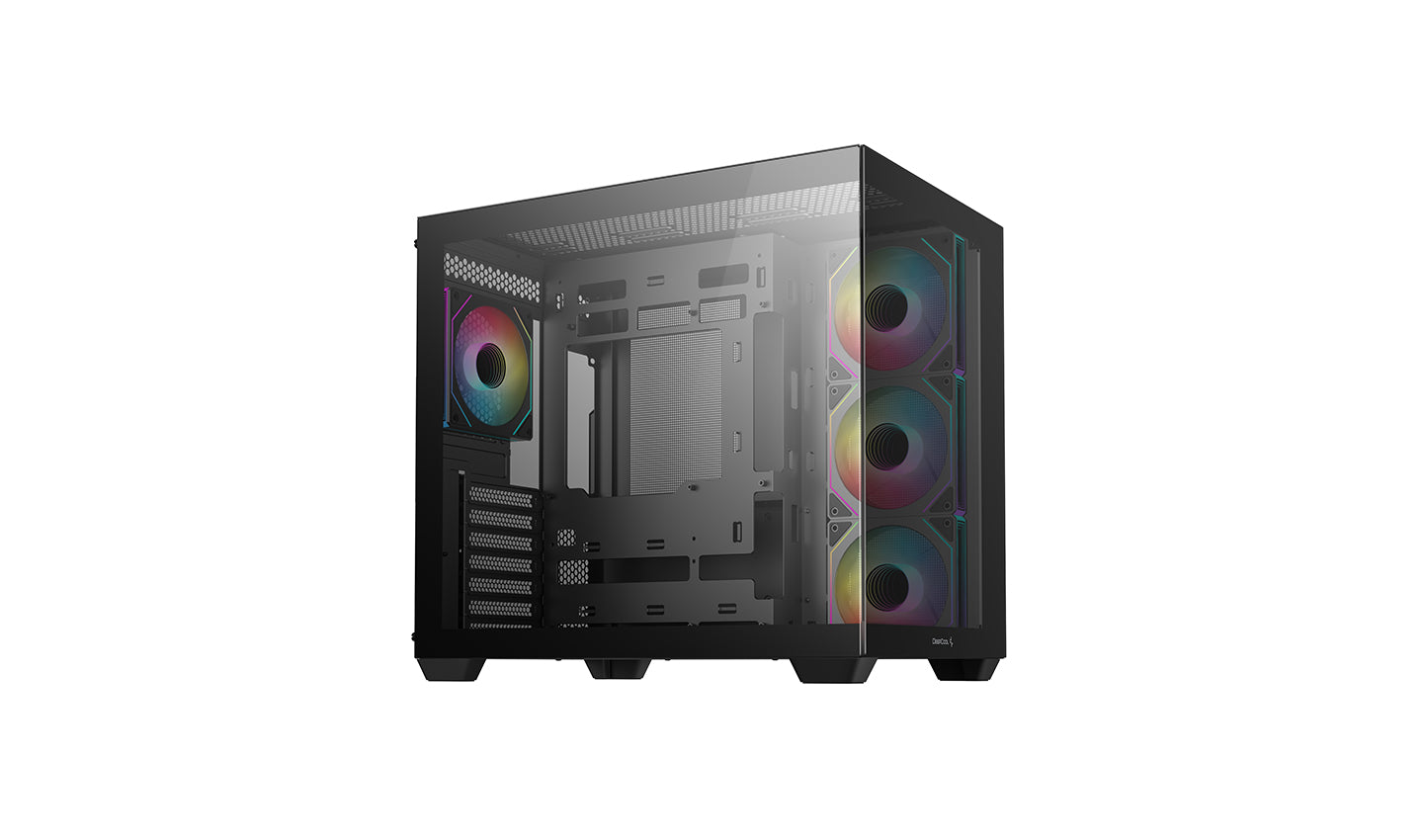

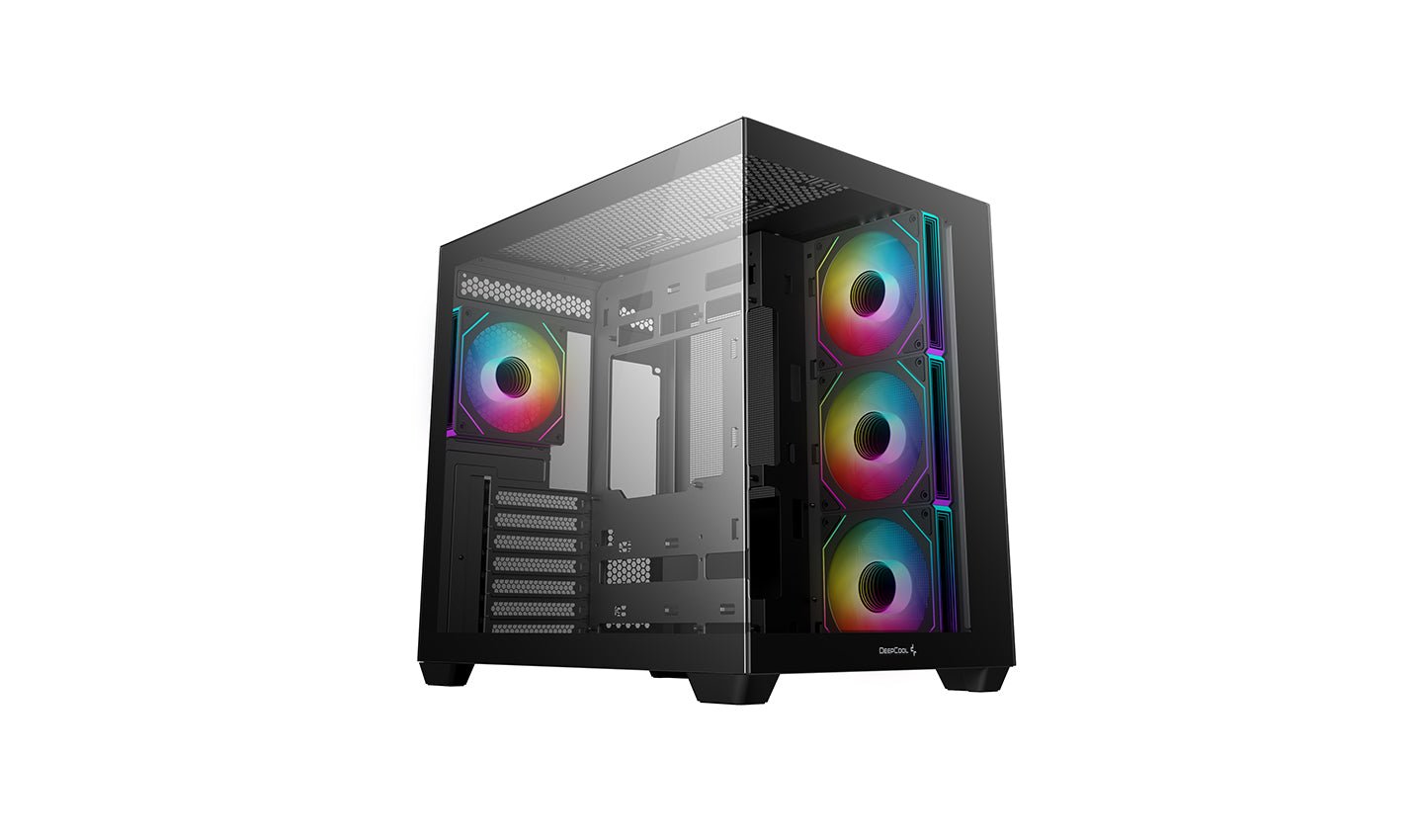

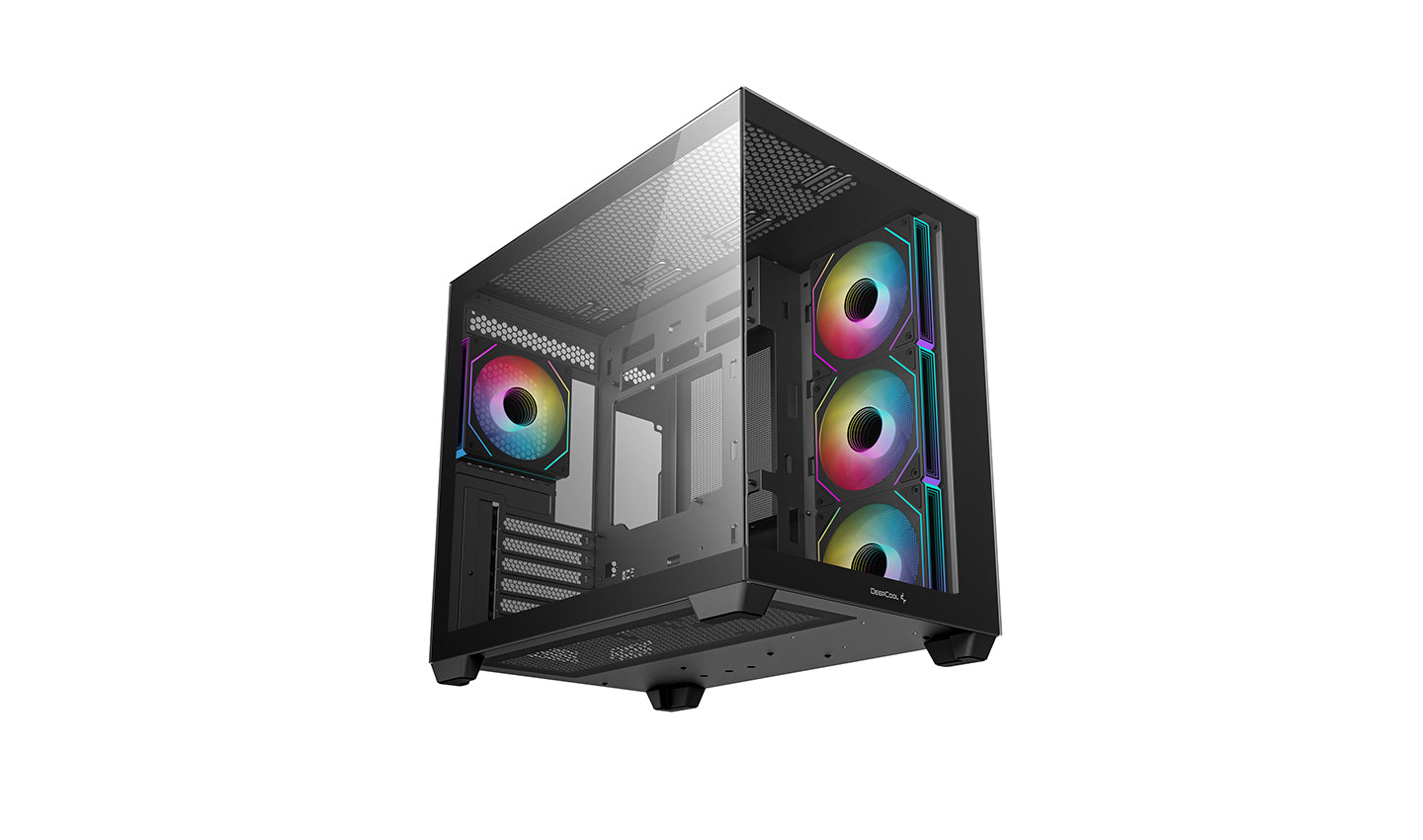

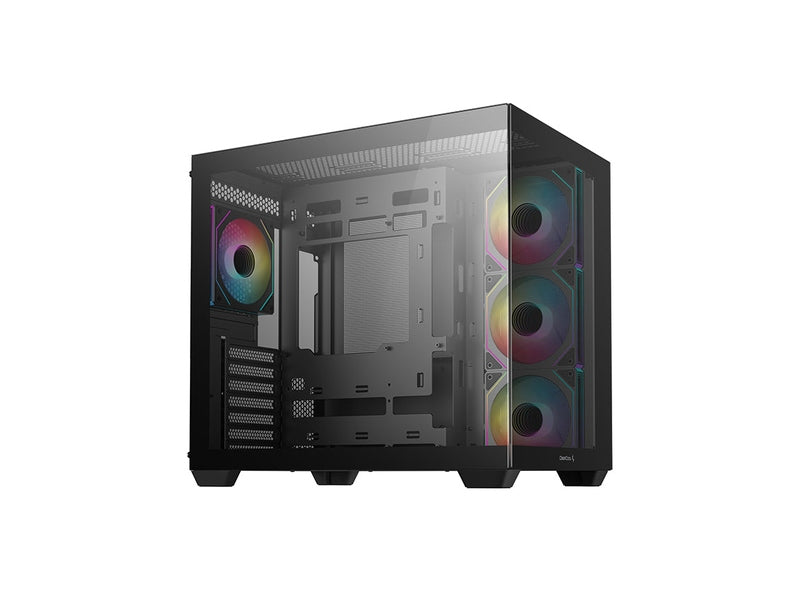

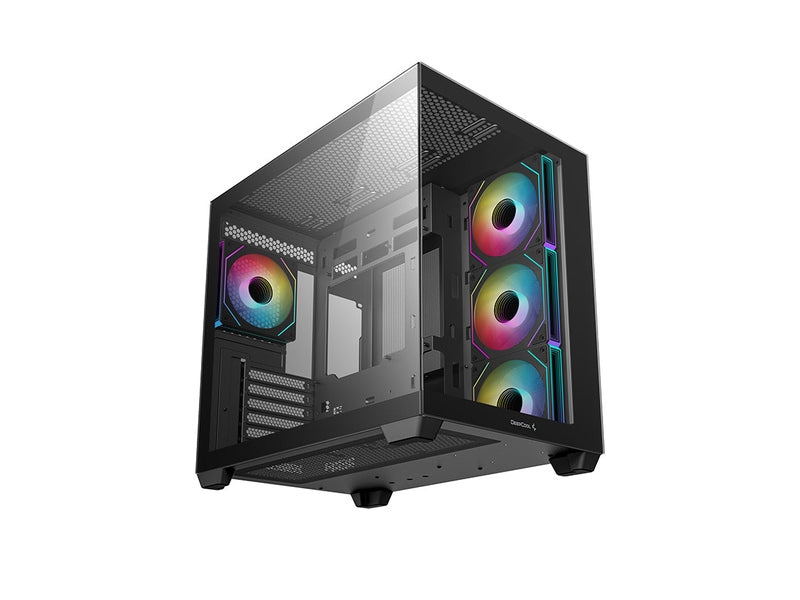

CG530 4F
Experience the ultimate showcase build with its pillarless design. Featuring a seamless, non A-pillar construction, the CG530 4F boasts both a tempered glass side panel and a glass front panel, providing a crystal-clear view of components into full display, turning it into a true work of art.
CG530 4F
Experience the ultimate showcase build with its pillarless design. Featuring a seamless, non A-pillar construction, the CG530 4F boasts both a tempered glass side panel and a glass front panel, providing a crystal-clear view of components into full display, turning it into a true work of art.
| DeepCool CG530 4F – Technical Specifications | |
|---|---|
| Product Dimensions (L × W × H) | 440 × 285 × 399 mm |
| Net Weight | 7.0 kg |
| Materials | ABS, SPCC, Tempered Glass |
| Motherboard Support | ITX, Micro-ATX, ATX (Rear Connector) |
| Front I/O Ports | USB 3.0 × 2, Gen2 Type-C × 1, Audio/Mic × 1 |
| 3.5" Drive Bays | 2 |
| 2.5" Drive Bays | 2 + 1 |
| Expansion Slots | 7 Slots |
| Pre-Installed Fans | Side: 3 × 120 mm (PWM + ARGB Reverse Blade) Rear: 1 × 120 mm (PWM + ARGB) |
| Fan Support | Top: 3 × 120 mm / 2 × 140 mm Side: 3 × 120 mm / 2 × 140 mm Rear: 1 × 120 mm Bottom: 3 × 120 mm Bottom (3.5" HDD): 2 × 120 mm Bottom (2.5" SSD): 2 × 120 mm |
| Radiator Support | Top: 120 / 140 / 240 / 280 / 360 mm Side: 120 / 140 / 240 / 280 mm Bottom: 120 / 240 / 360 mm |
| CPU Cooler Height Limit | 160 mm |
| GPU Length Limit | 410 mm |
| Power Supply Type | ATX PS2 (max length: 210 mm) |
| EAN | 6933412765158 |
| Part Number | R-CG530-BKADA4-G-1 |
