Overview
CG580 4F WH

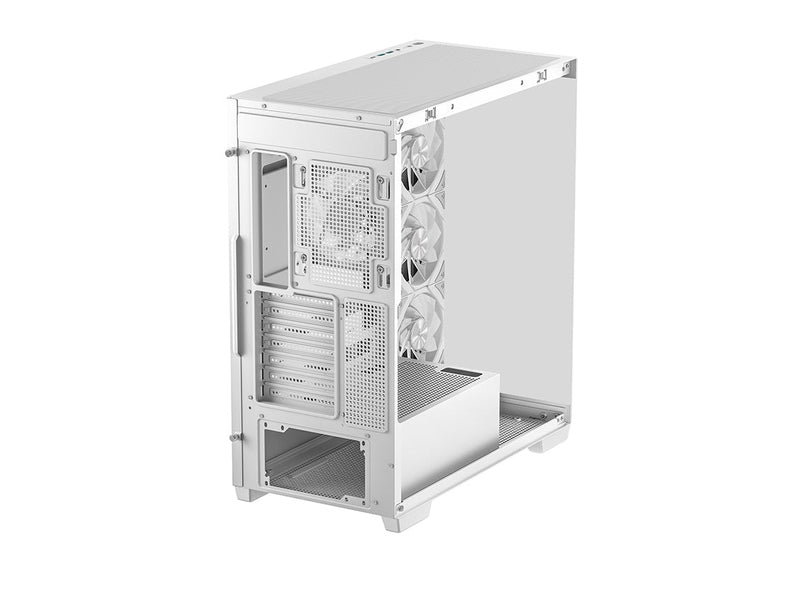

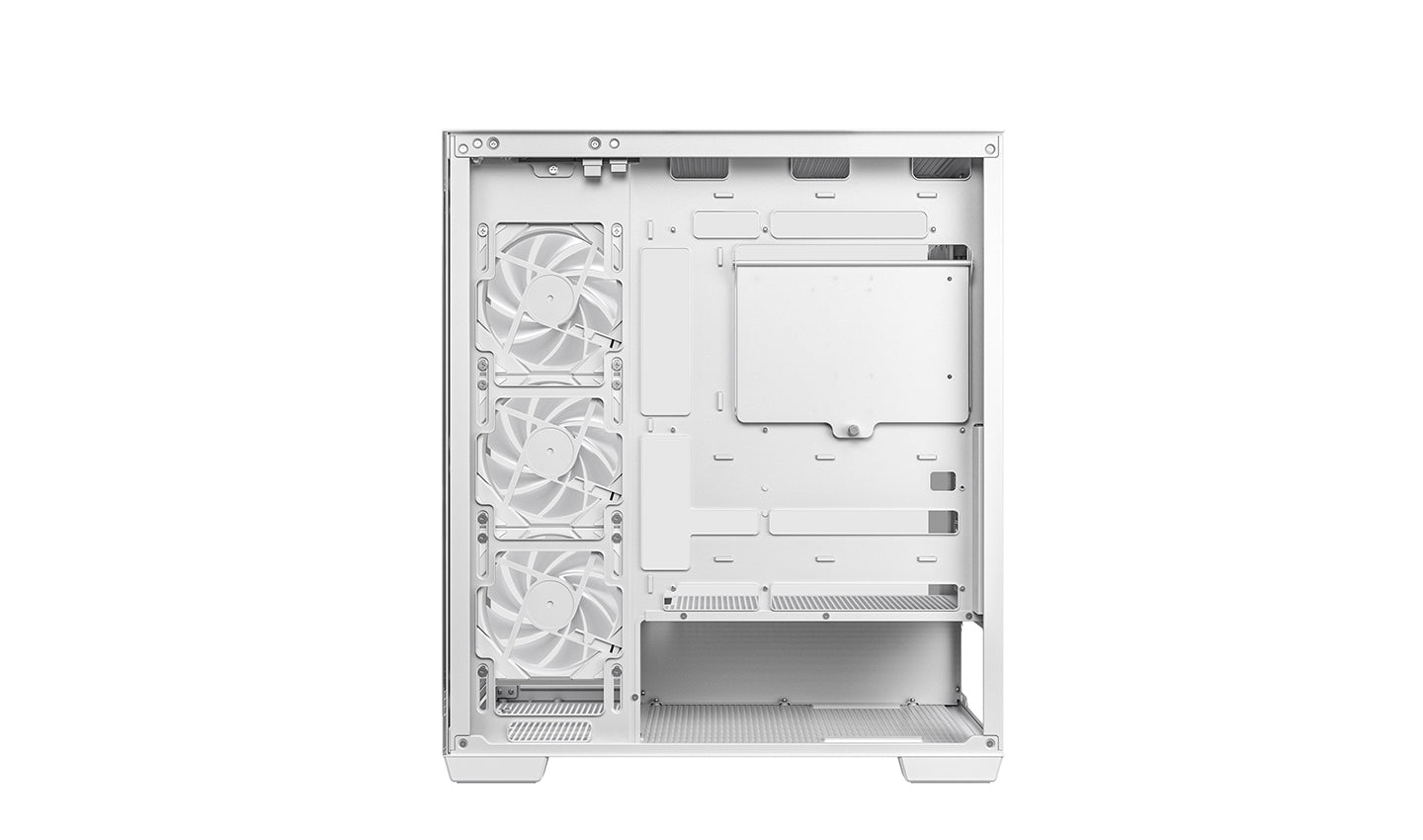

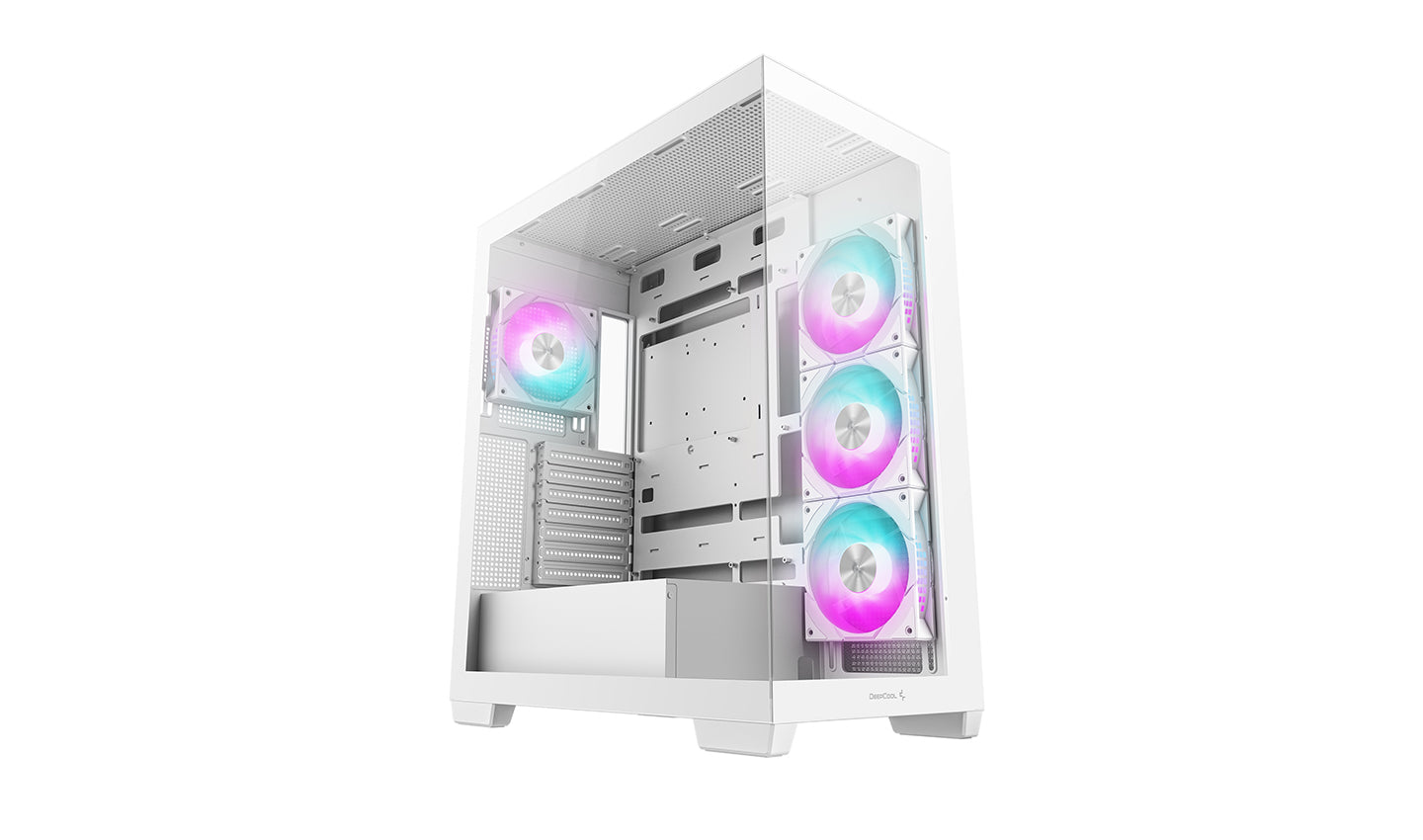

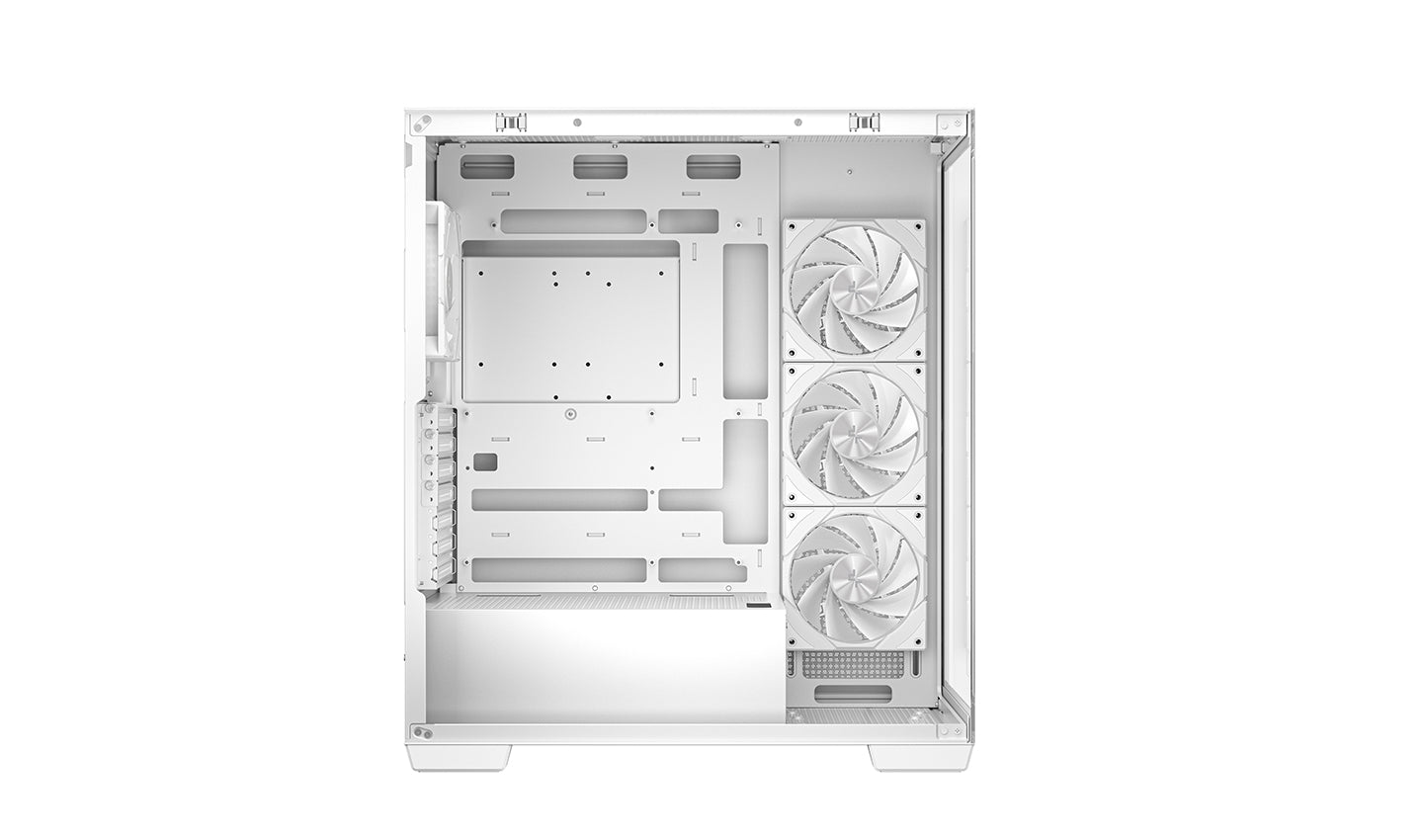

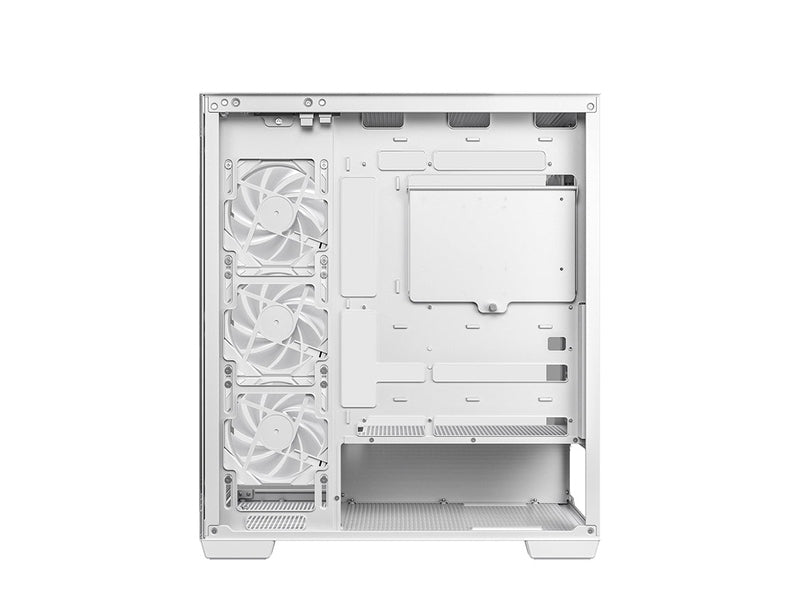

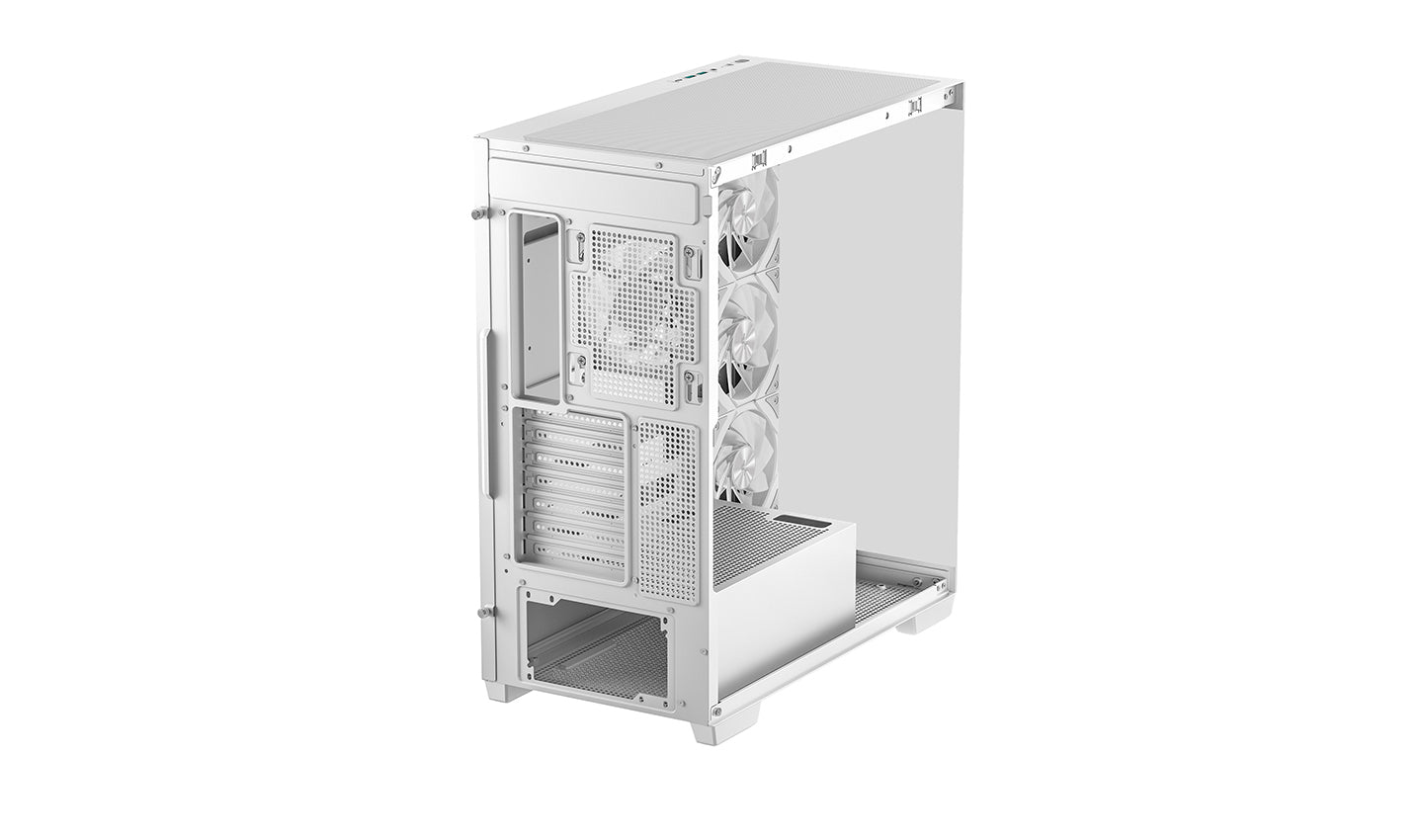

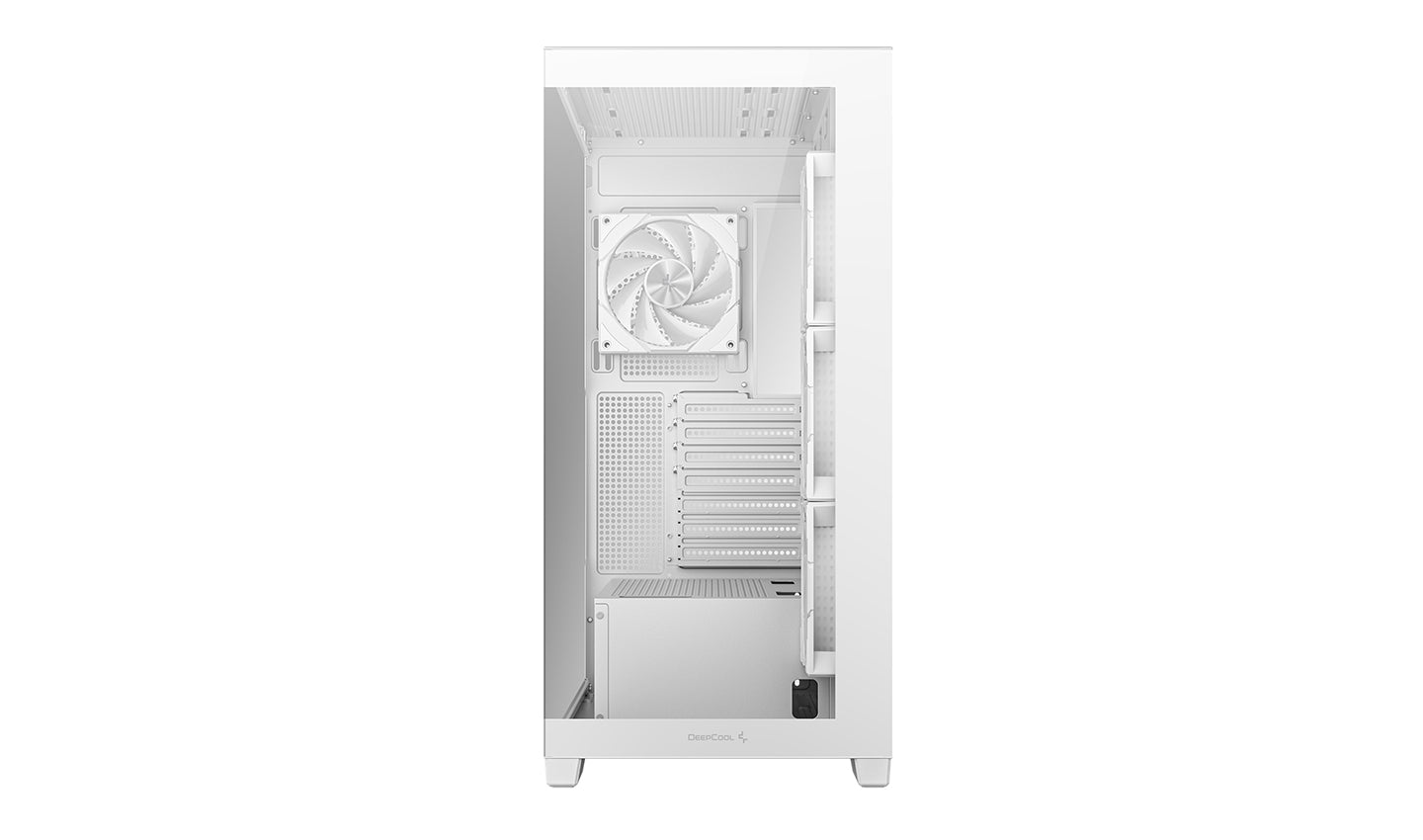

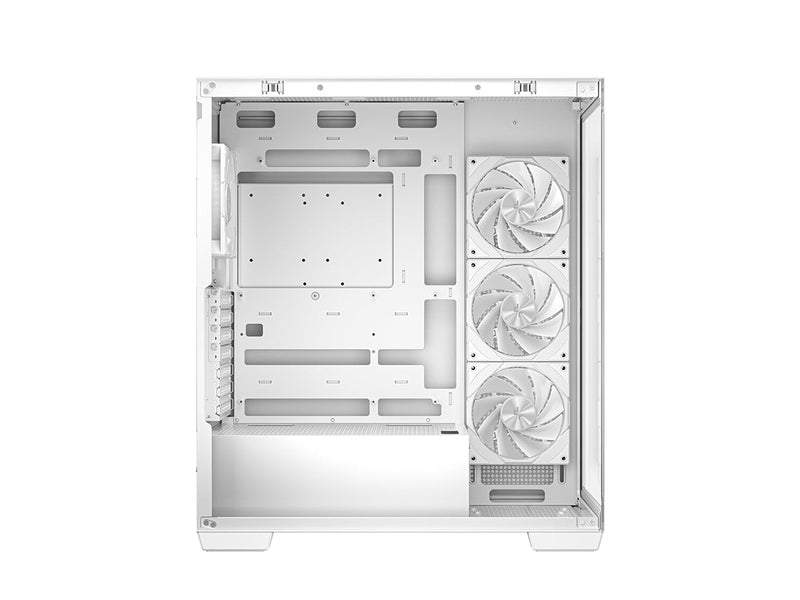

The CG580 4F WH is a picturesque single-chamber case crafted to elegantly display the most commonly used components. Equipped with 4 ARGB fans, support for 360mm radiators, and multiple fan configurations, it combines style with exceptional functionality. The design features a no A-pillar construction, along with glass side and front panels offering a 270°view, allowing builders to fully appreciate their hardware.
CG580 4F WH
The CG580 4F WH is a picturesque single-chamber case crafted to elegantly display the most commonly used components. Equipped with 4 ARGB fans, support for 360mm radiators, and multiple fan configurations, it combines style with exceptional functionality. The design features a no A-pillar construction, along with glass side and front panels offering a 270°view, allowing builders to fully appreciate their hardware.
| DeepCool CG580 4F WH – Technical Specifications | |
|---|---|
| Product Dimensions (L × W × H) | 437 × 235 × 501 mm |
| Net Weight | 8.7 kg |
| Materials | ABS, SGCC, Tempered Glass |
| Motherboard Support | ITX, Micro-ATX, ATX (Rear Connector) |
| Front I/O Ports | USB 3.0 × 2, Gen2 Type-C × 1, Audio & Mic × 1 |
| 3.5" Drive Bays | 2 |
| 2.5" Drive Bays | 2 |
| Expansion Slots | 7 Slots |
| Pre-Installed Fans | Side: 3 × 120 mm (PWM + ARGB Reverse Blade) Rear: 1 × 120 mm (PWM + ARGB) |
| Fan Support | Top: 3 × 120 mm / 2 × 140 mm Side: 3 × 120 mm Rear: 1 × 120 mm / 1 × 140 mm Bottom: 1 × 120 mm (choose between 3.5" HDD or 120 mm fan) PSU Shrouded: 2 × 120 mm |
| Radiator Support | Top: 120 / 140 / 240 / 280 / 360 mm Side: 120 / 240 / 360 mm Rear: 120 / 140 mm |
| CPU Cooler Height Limit | 176 mm |
| GPU Length Limit | 410 mm (limited to 262 mm with side-mounted 360 mm radiator and fan) |
| Power Supply Type | ATX PS2 (max length: 210 mm) |
| EAN | 6933412765189 |
| Part Number | R-CG580-WHADA4-G-1 |
