Overview
CG580

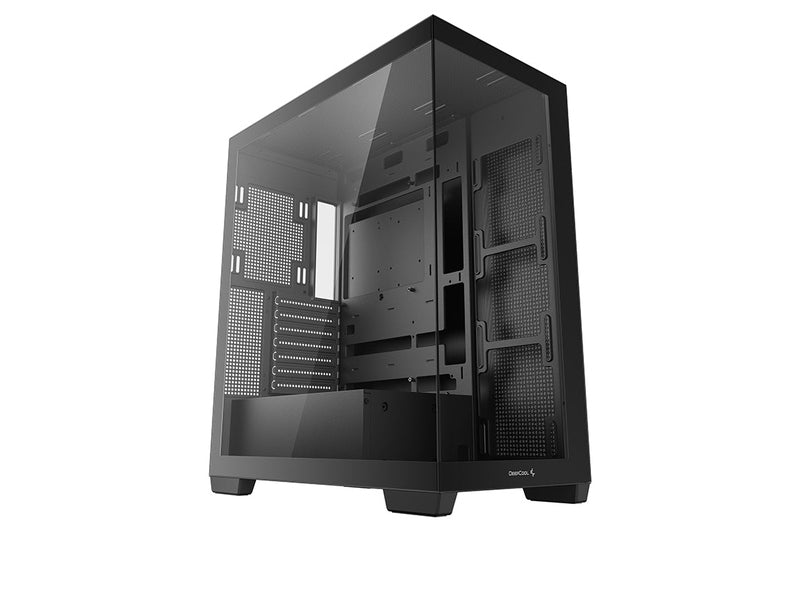

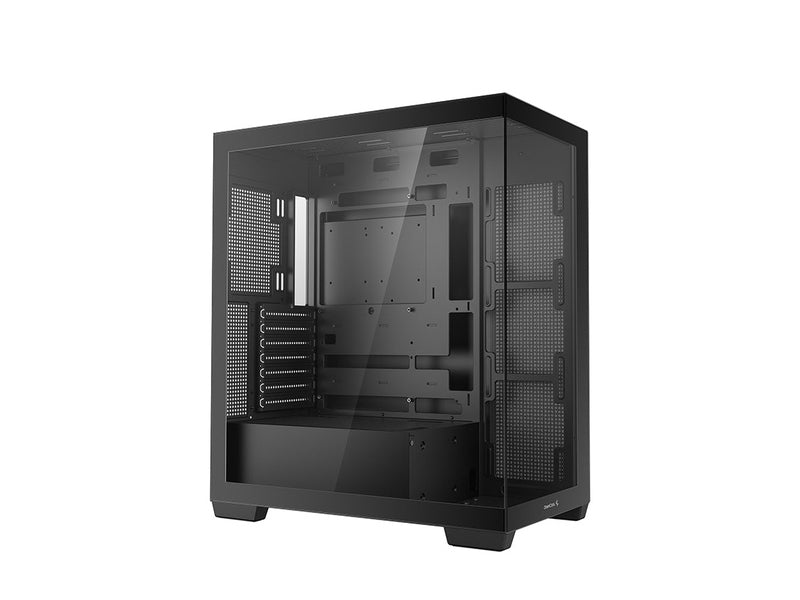

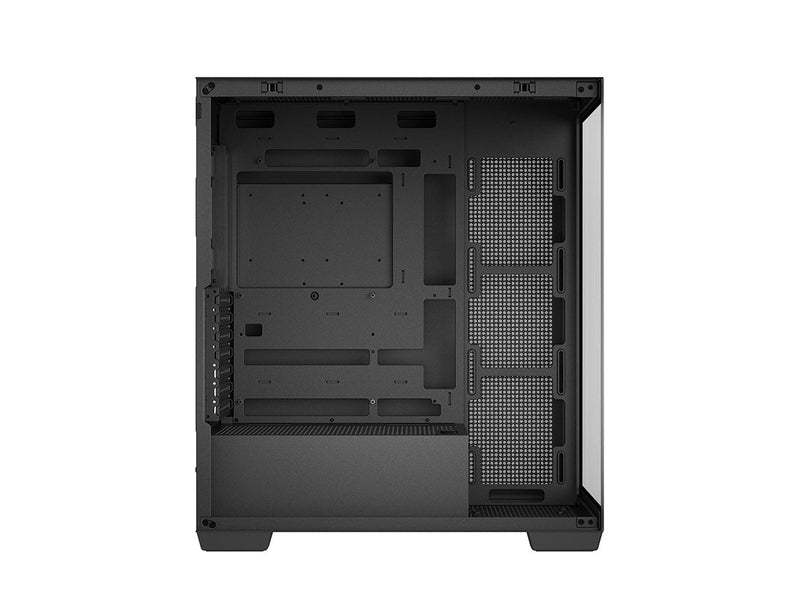

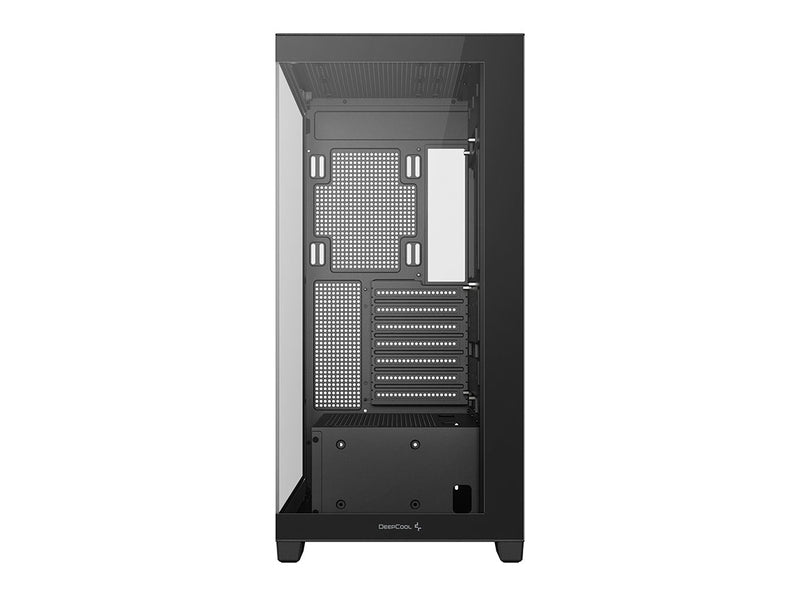

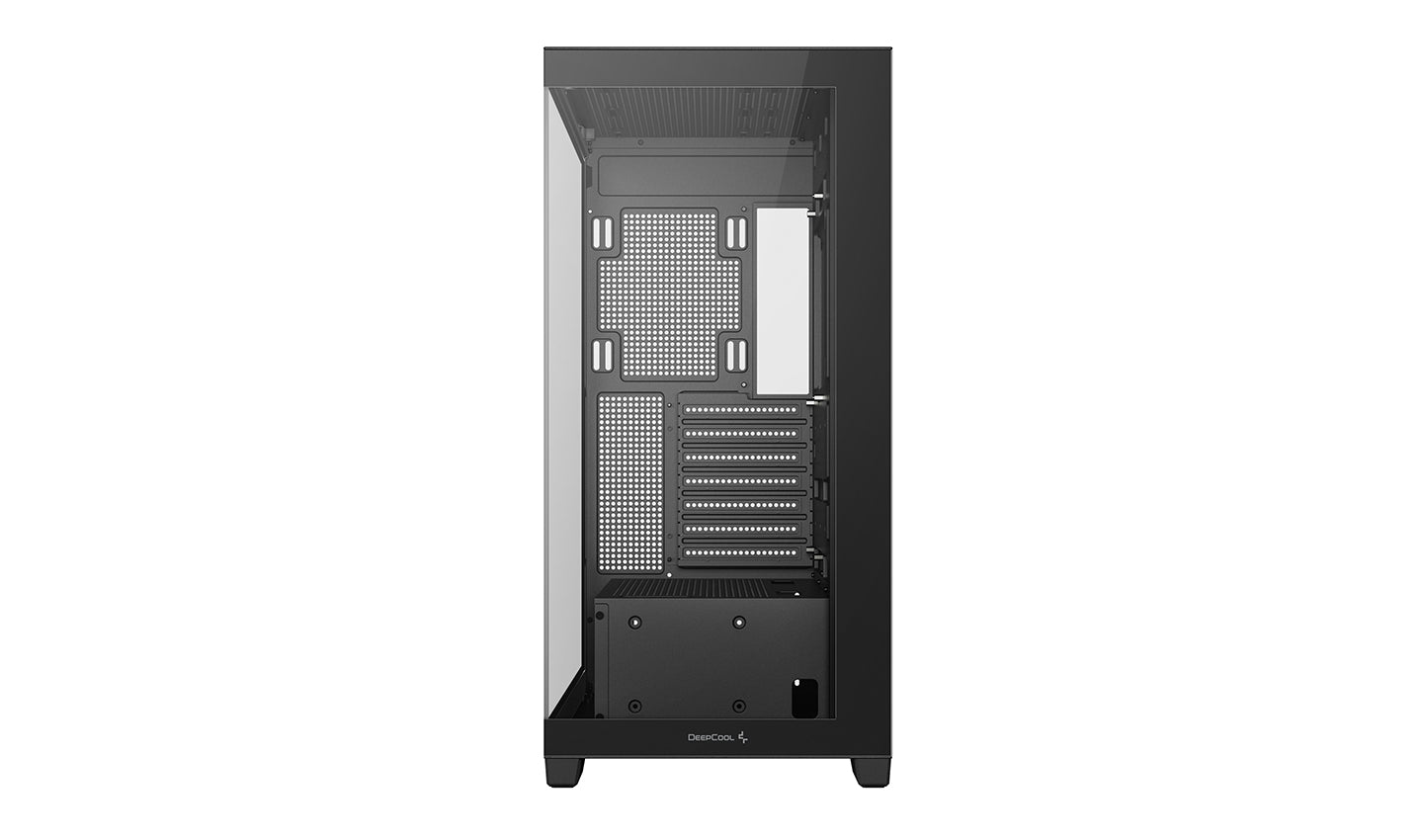

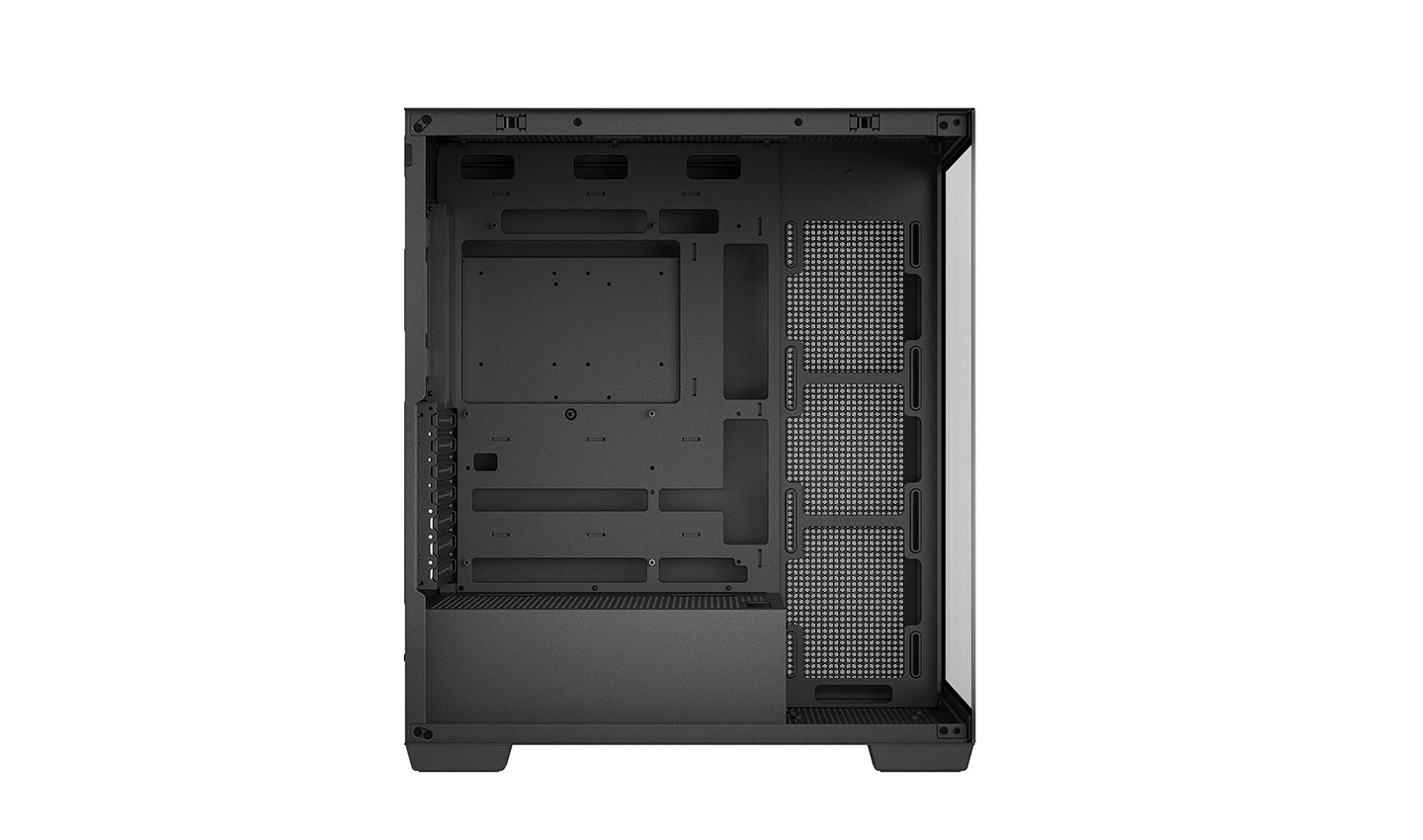

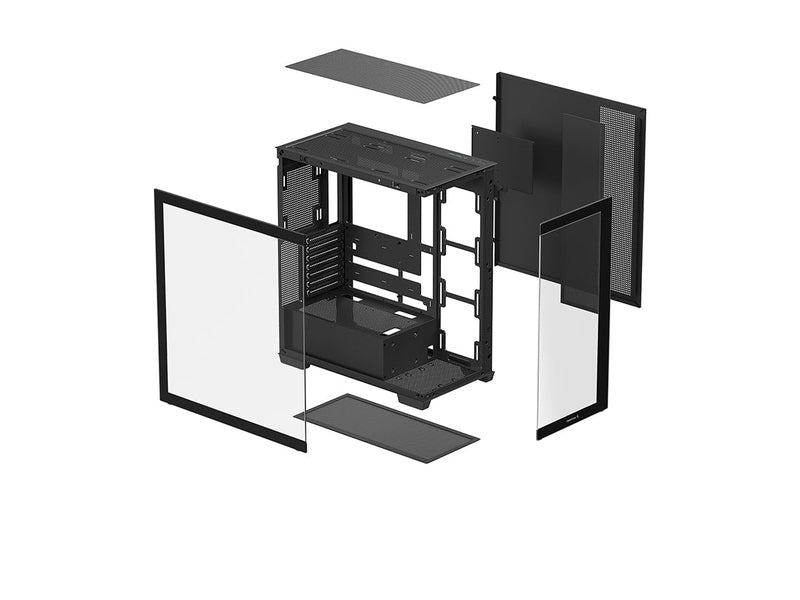

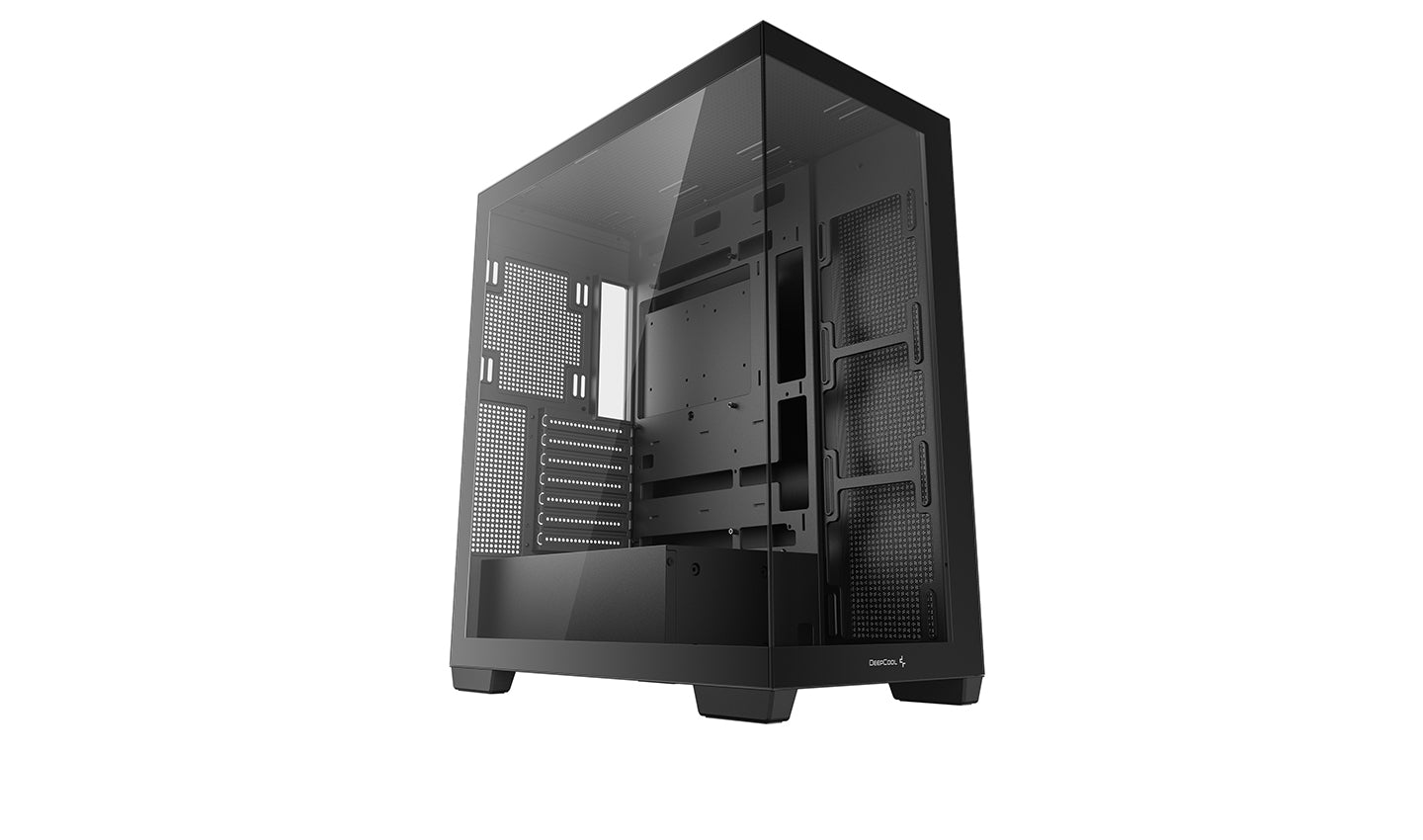

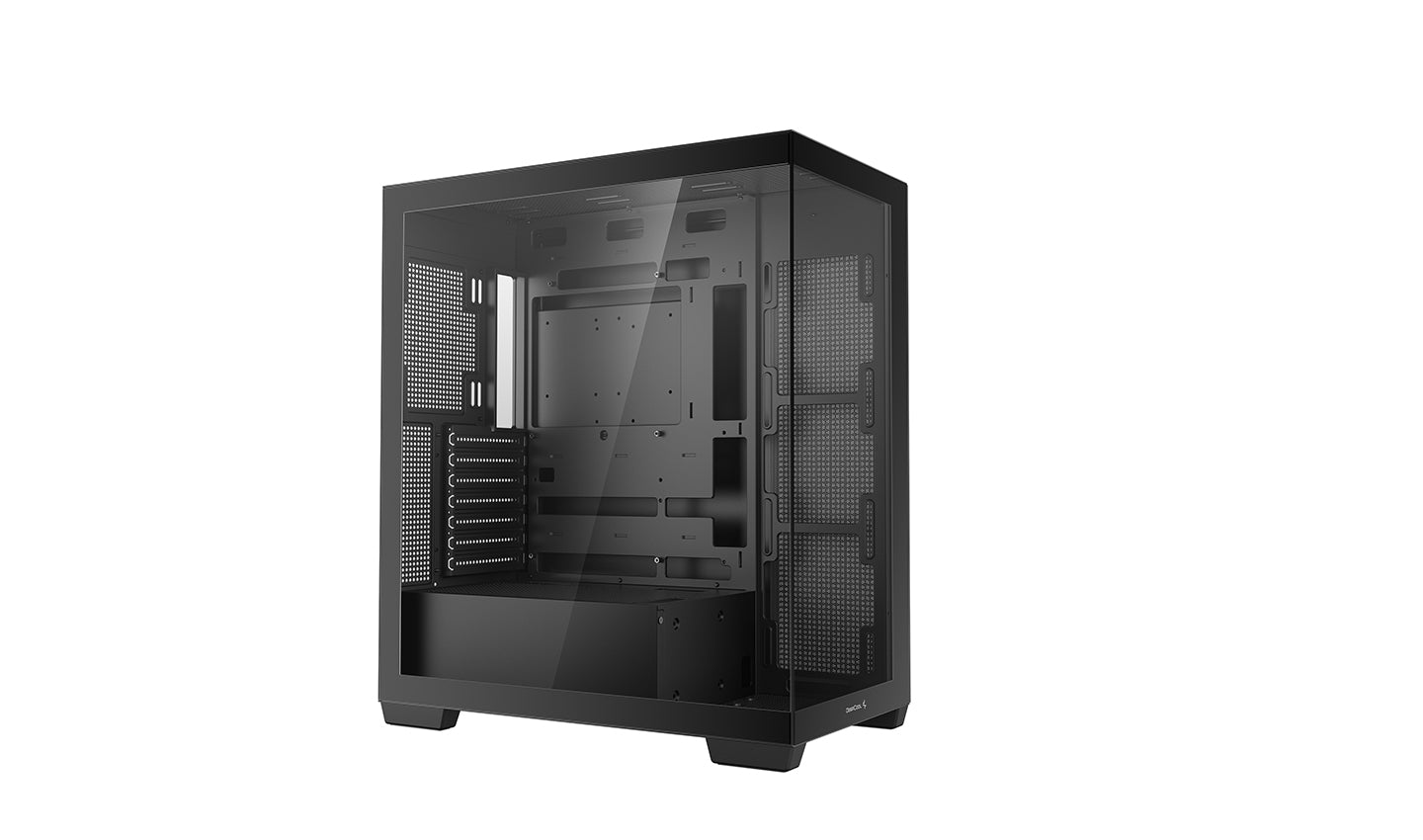

The CG580 is a picturesque single-chamber panoramic case that was built to accommodate the most commonly used components available while showing them off in style. With support for 360mm radiators and numerous fan configurations, the CG580 is also extremely functional. No fans are included, so the case is fully primed to accept your favorite cooling fans.
CG580
The CG580 is a picturesque single-chamber panoramic case that was built to accommodate the most commonly used components available while showing them off in style. With support for 360mm radiators and numerous fan configurations, the CG580 is also extremely functional. No fans are included, so the case is fully primed to accept your favorite cooling fans.
| DeepCool CG580 BK – Technical Specifications | |
|---|---|
| Product Dimensions | 437 × 235 × 501 mm (L × W × H) |
| Net Weight | 7.9 kg |
| Materials | ABS + SGCC + Tempered Glass |
| Motherboard Support | ITX / Micro-ATX / ATX ATX (Rear Connector) / Micro-ATX (Rear Connector) |
| Front I/O Ports | USB 3.0 ×2, Audio ×1, Power, Reset |
| 3.5" Drive Bays | 2 |
| 2.5" Drive Bays | 2 + 1 |
| Expansion Slots | 7 Slots |
| Pre-Installed Fans | None |
| Fan Support | Front: N/A Top: 3 × 120 mm / 2 × 140 mm Side: 3 × 120 mm Rear: 1 × 120 mm / 1 × 140 mm (Only supports up to 120 mm fan at rear when using a 360 mm radiator on top) Bottom: 1 × 120 mm (3.5" HDD or 120 mm fan – choose one) PSU Shroud: 2 × 120 mm |
| Radiator Support | Front: N/A Top: 120 / 140 / 240 / 280 / 360 mm Side: 120 / 240 / 360 mm Rear: 120 / 140 mm |
| CPU Cooler Height Limit | 176 mm |
| GPU Length Limit | 410 mm (Limited to 262 mm if a 360 mm radiator and fan set are mounted on the side) |
| Power Supply Type | ATX PS2 (maximum length: 210 mm) |
| EAN | 6933412774112 |
| P/N | R-CG580-BKNDA0-G-1 |
