Overview

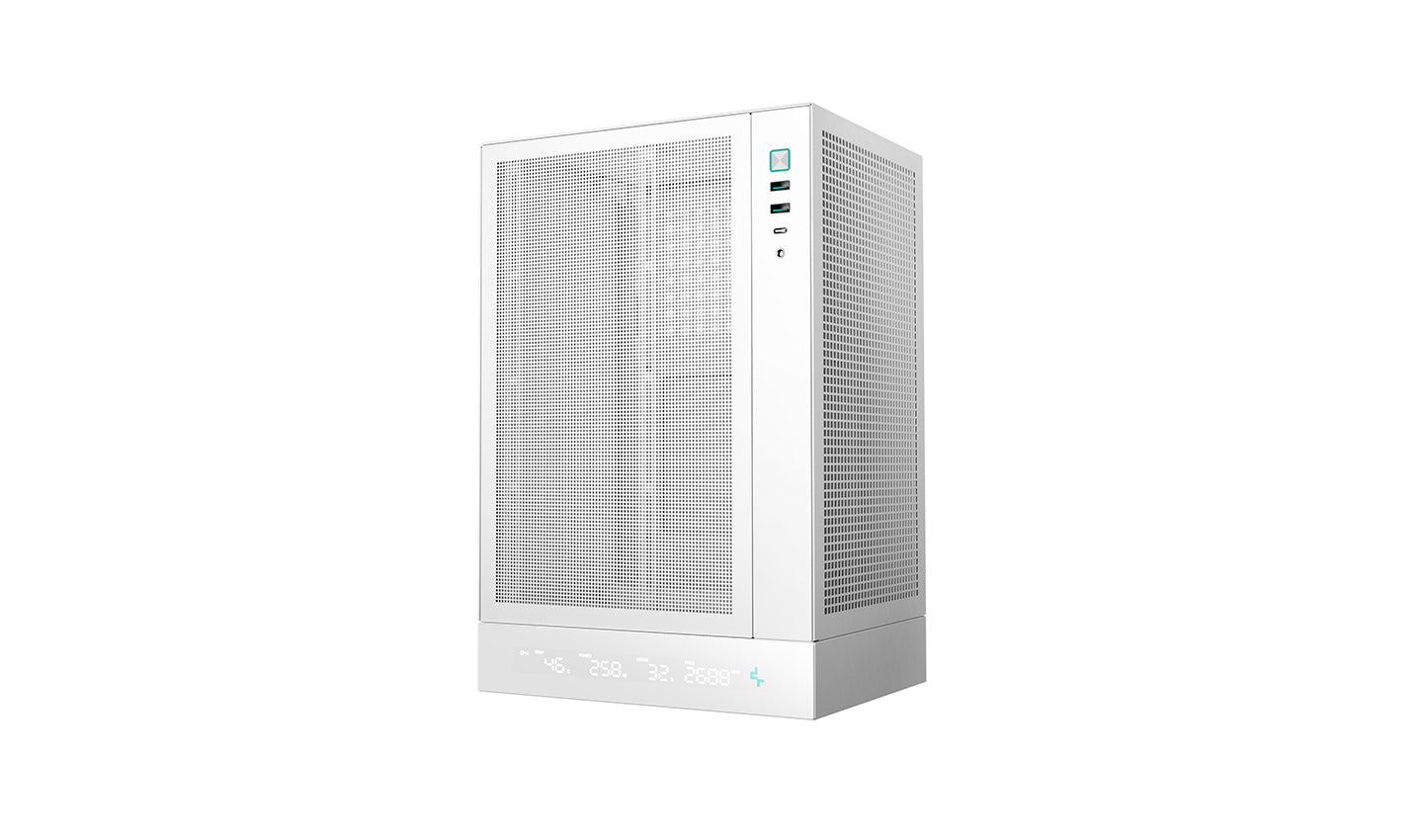

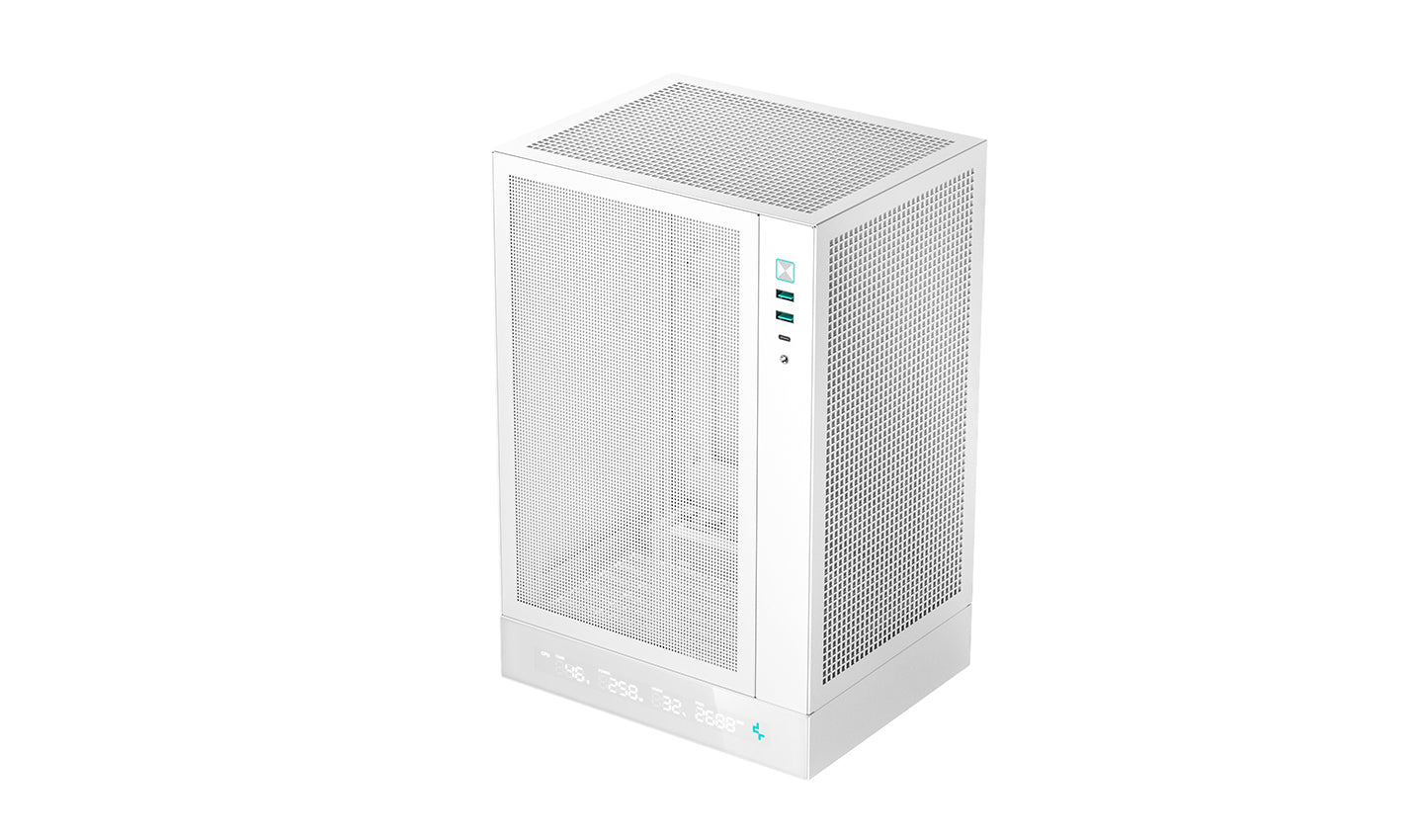

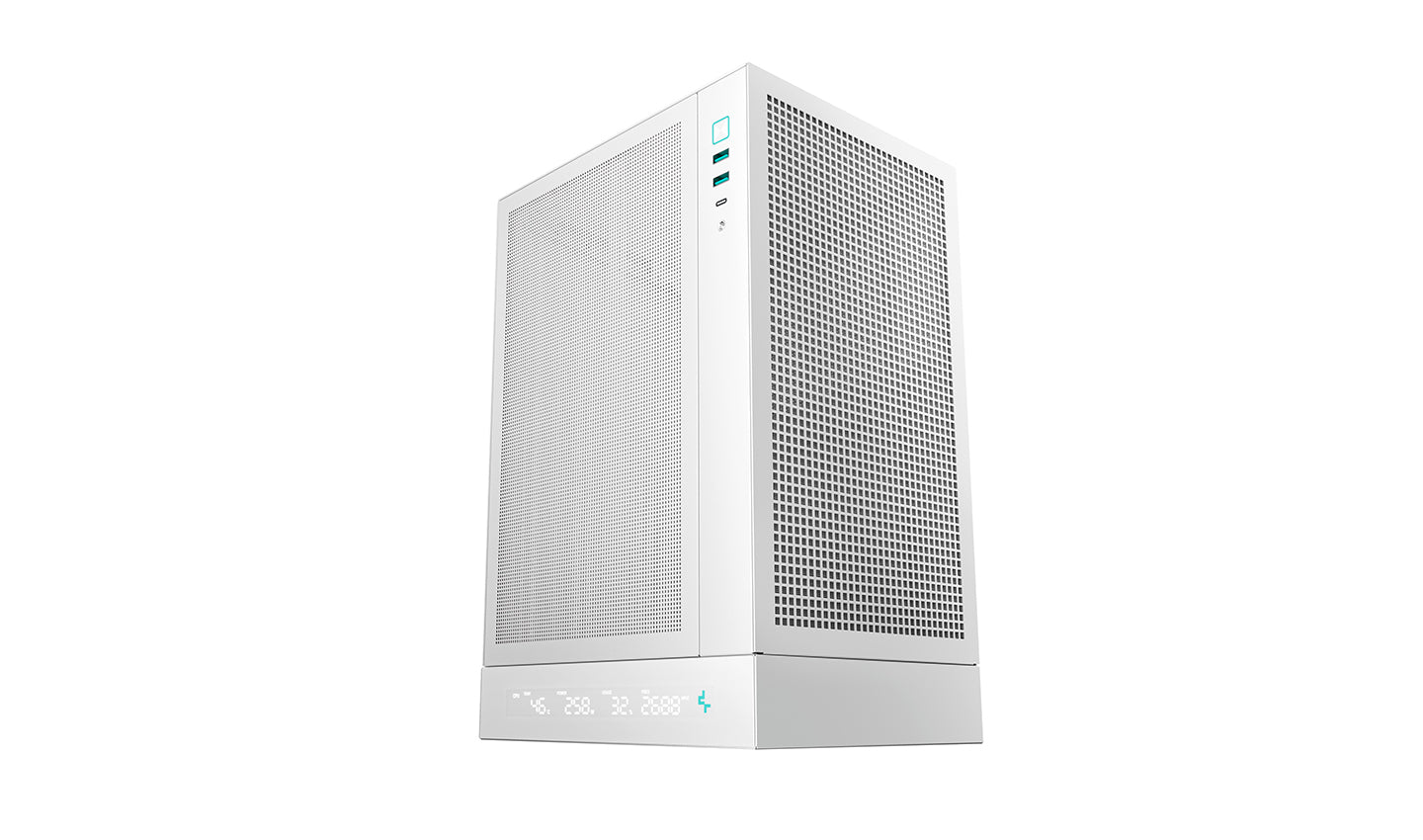

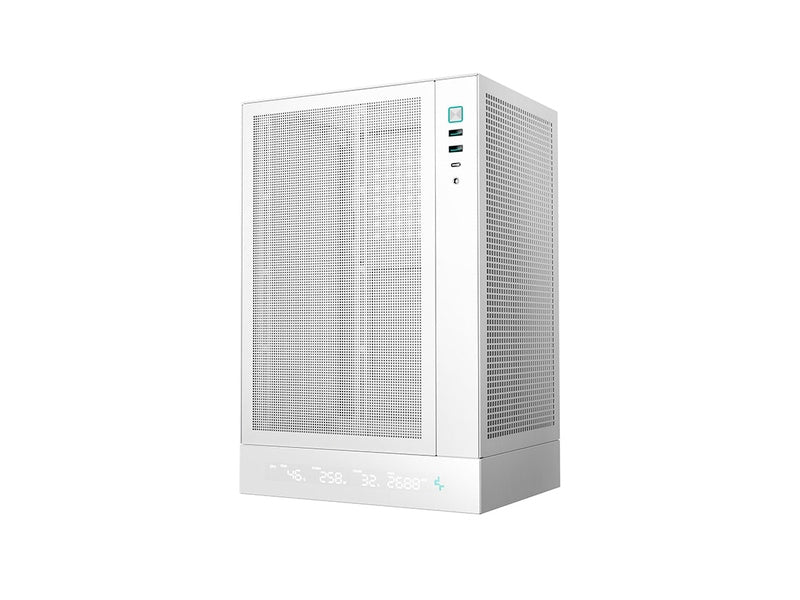

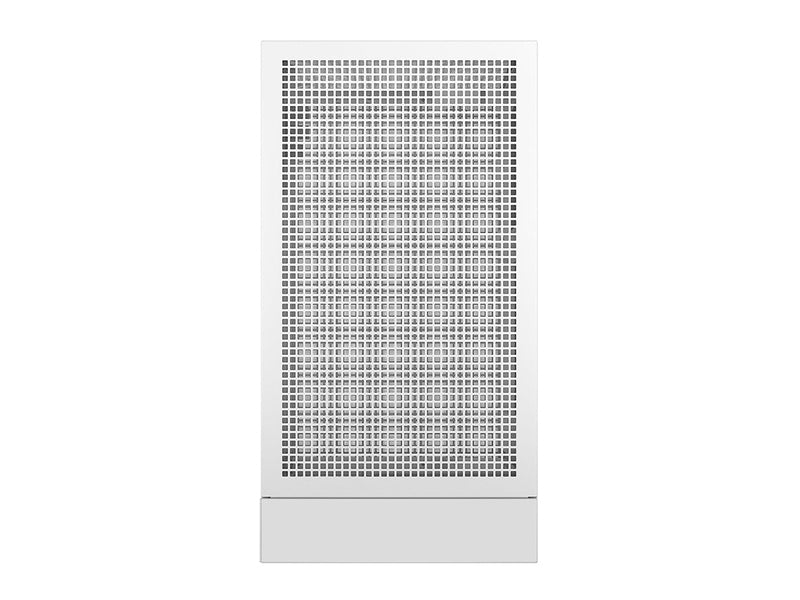

CH170 DIGITAL WH
The CH170 DIGITAL WH is a vertical ITX case that has all the hallmarks of a high-airflow DeepCool case but in a tiny footprint. The internal layout provides a lot of flexibility for coolers and PSU options.
CH170 DIGITAL WH
The CH170 DIGITAL WH is a vertical ITX case that has all the hallmarks of a high-airflow DeepCool case but in a tiny footprint. The internal layout provides a lot of flexibility for coolers and PSU options.
| DeepCool CH170 DIGITAL White – Technical Specifications | |
|---|---|
| Product Dimensions | 250 × 200 × 380 mm (L × W × H) |
| Net Weight | 3.4 kg |
| Materials | ABS + SPCC |
| Motherboard Support | Mini-ITX |
| Front I/O Ports | USB 3.0 × 2, Audio × 1, Gen2 Type-C × 1 |
| 3.5" Drive Bays | 1 (2.5 SSD / 3.5 HDD / Front 120 FAN: Choose one of the three) |
| 2.5" Drive Bays | 1 (2.5 SSD / 3.5 HDD / Front 120 FAN: Choose one of the three) |
| Expansion Slots | 3 Slots |
| Pre-Installed Fans | None |
| Fan Support | Top: 1 × 120 mm Front: NA Rear: 2 × 120 mm Bottom: 1 × 120 mm Side: 2 × 120 mm |
| Radiator Support | Side: 240 mm |
| CPU Cooler Height Limit | 172 mm |
| GPU Size Limit | Length: SFX/SFX-L: 305 mm / ATX: 230 mm Height: 138 mm Width: 65 mm (3 Slots) |
| Power Supply Type | ATX PS2 (maximum length: 140 mm) / SFX / SFX-L |
| EAN | 6933412774211 |
| P/N | R-CH170-WHNPI0D-G-1 |
