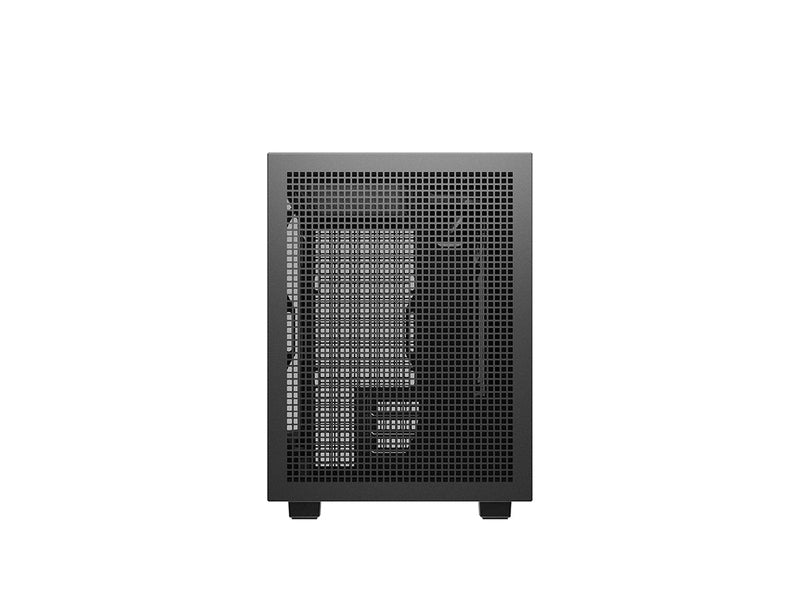

DeepCool CH260 M-ATX Case

DeepCoolSKU: R-CH260-BKNGM0-G-1

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$110.00

Estimate shipping

Description

Overview

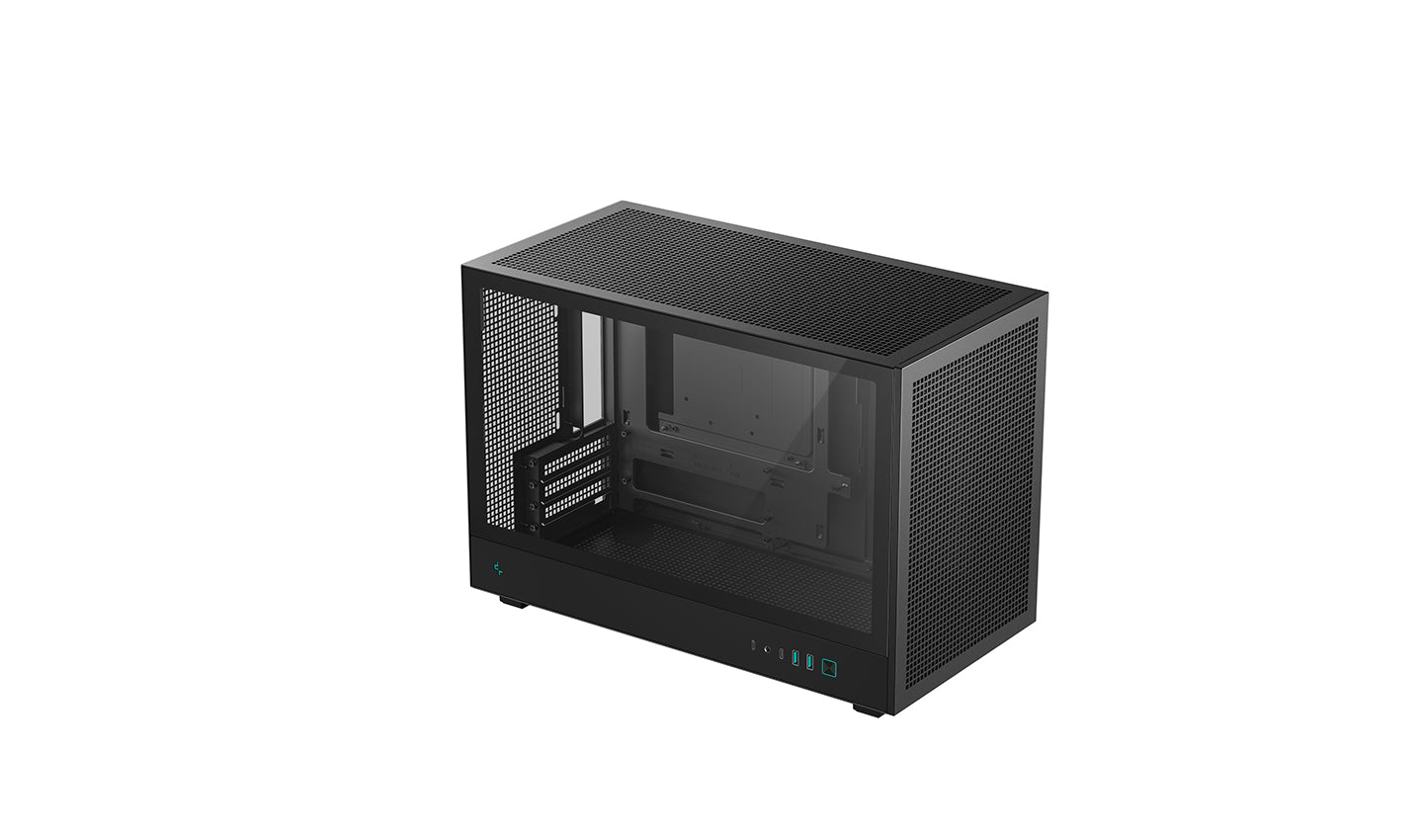

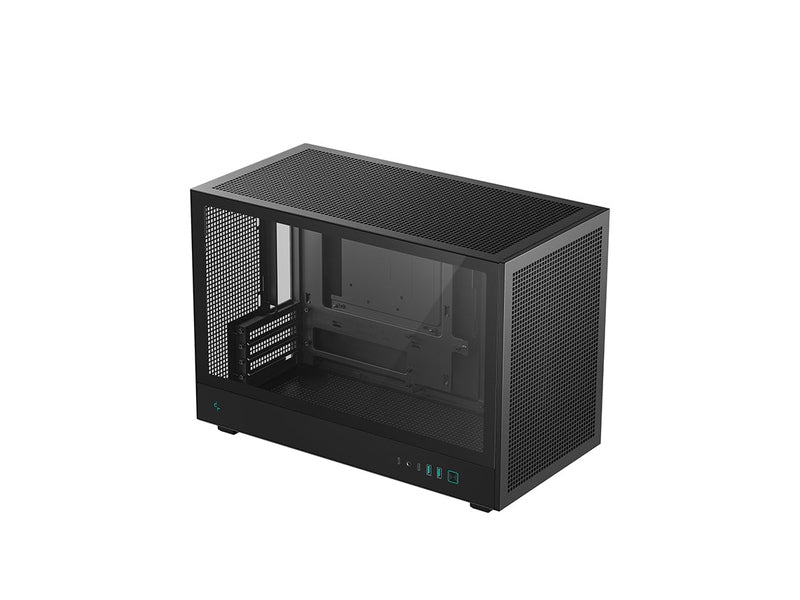

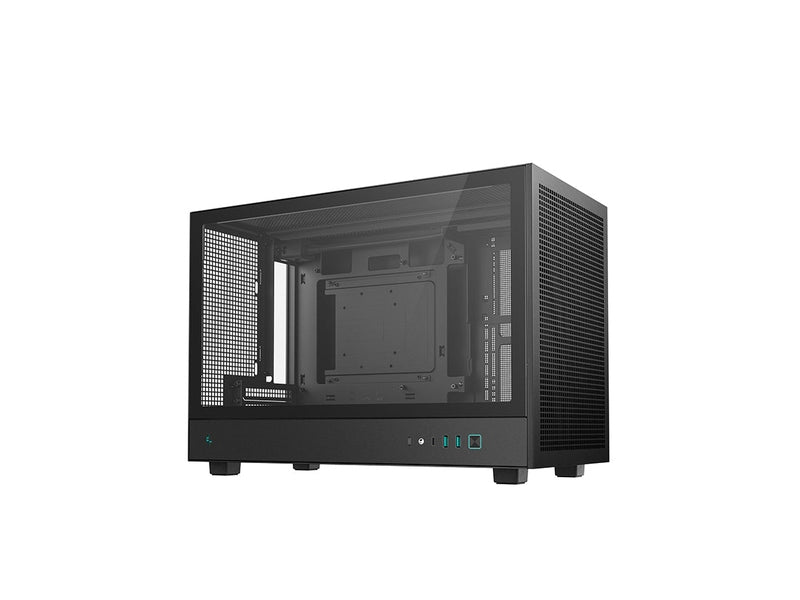

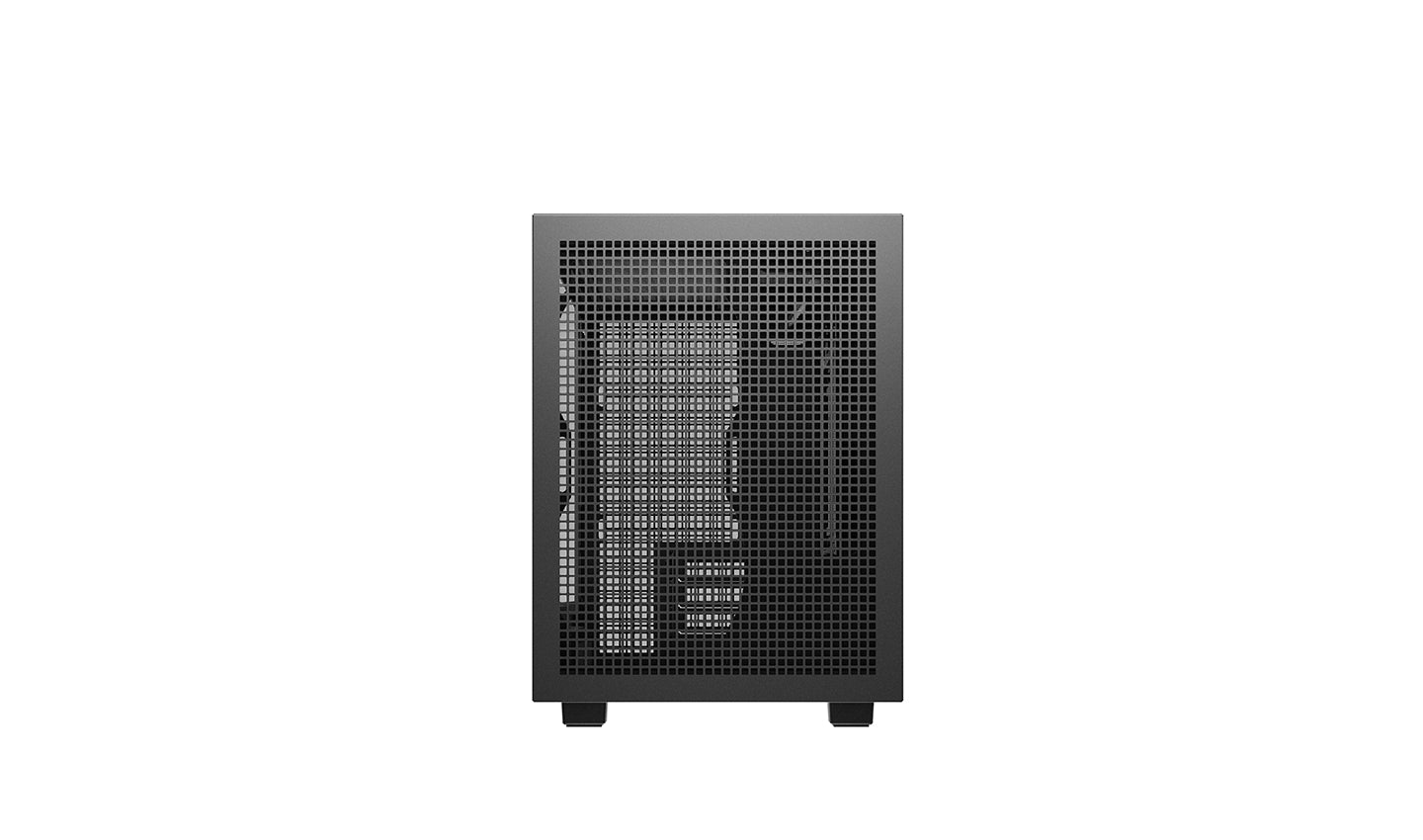

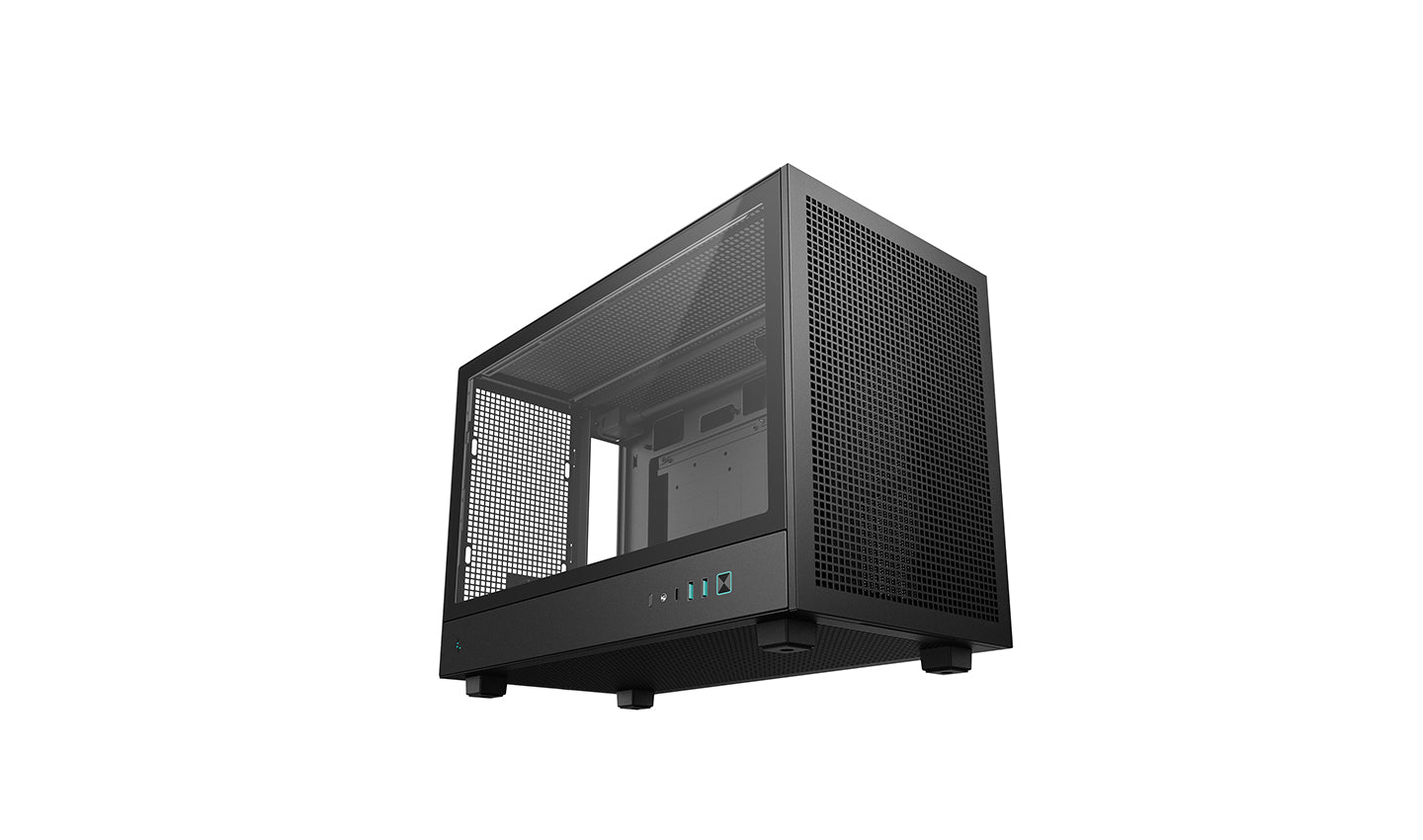

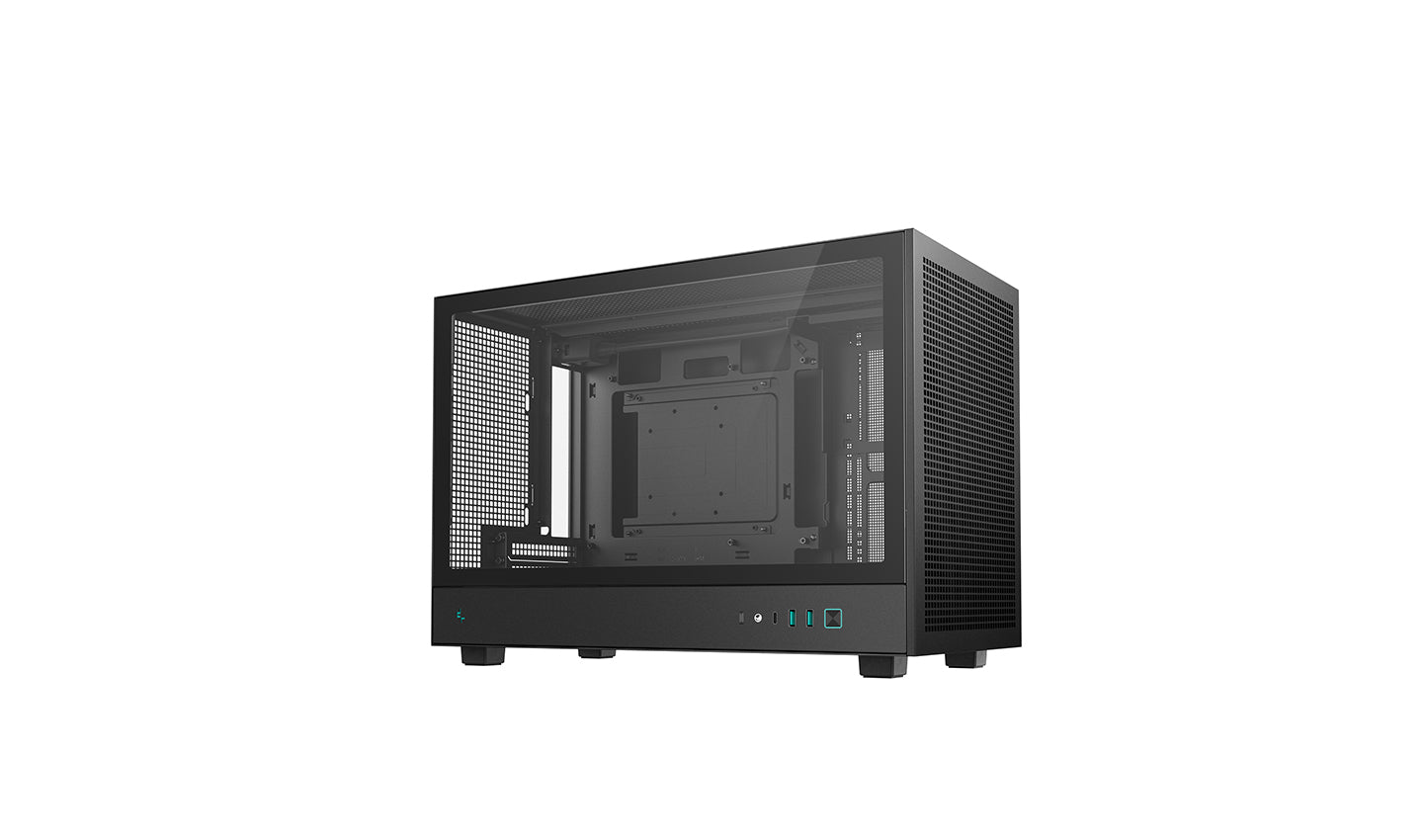

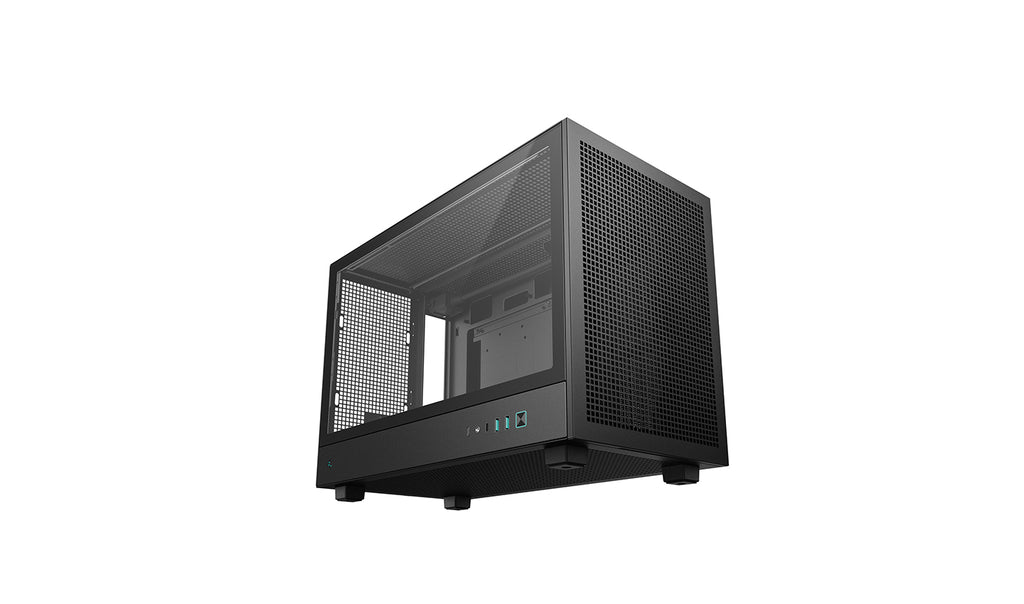

DeepCool CH260 Micro-ATX High-Airflow Case
The DeepCool CH260 (Model: R-CH260-BKNGM0-G-1) is a compact Micro-ATX case engineered for high airflow and full-size component compatibility. Featuring wraparound steel mesh panels on the front and top, it delivers exceptional ventilation for demanding builds. The case supports Micro-ATX and Mini-ITX motherboards, full-length GPUs up to 388mm (413mm without front fan), and ATX PS2 power supplies via a removable bracket for easier installation and cable management. A tempered glass side panel showcases internal hardware, while support for up to 6 × 120mm fans or a 360mm top-mounted radiator ensures thermal headroom. With a compact footprint and modular layout, the CH260 is ideal for gamers and creators seeking performance in a portable form factor.

DeepCool CH260 – Technical Specifications
Model CH260
Part Number R-CH260-BKNGM0-G-1
Case Type Micro-ATX Tower
Motherboard Support Micro-ATX / Mini-ITX
Dimensions 438 × 225 × 312.5 mm (L × W × H)
Net Weight 5.3 kg
Materials SPCC Steel, ABS, Tempered Glass
Expansion Slots 4
Drive Bays 2 × 2.5", 1 × 3.5"
GPU Clearance Up to 388 mm (413 mm without front fan)
CPU Cooler Clearance Up to 174 mm
PSU Support ATX PS2 (up to 150 mm)
Radiator Support Front: NA
Top:120/240/360mm
Bottom: NA
Rear:120mm
Fan Support Front:2×120mm
Top:3×120mm/2×140mm
Rear: 1×120mm
Pre-installed Fans None
Front I/O Ports 2 × USB 3.0
1 × Audio/Mic Combo Jack
Power / Reset Button
Side Panel Tempered Glass
Dust Filters Top, Front, Bottom
Color Black
