Overview

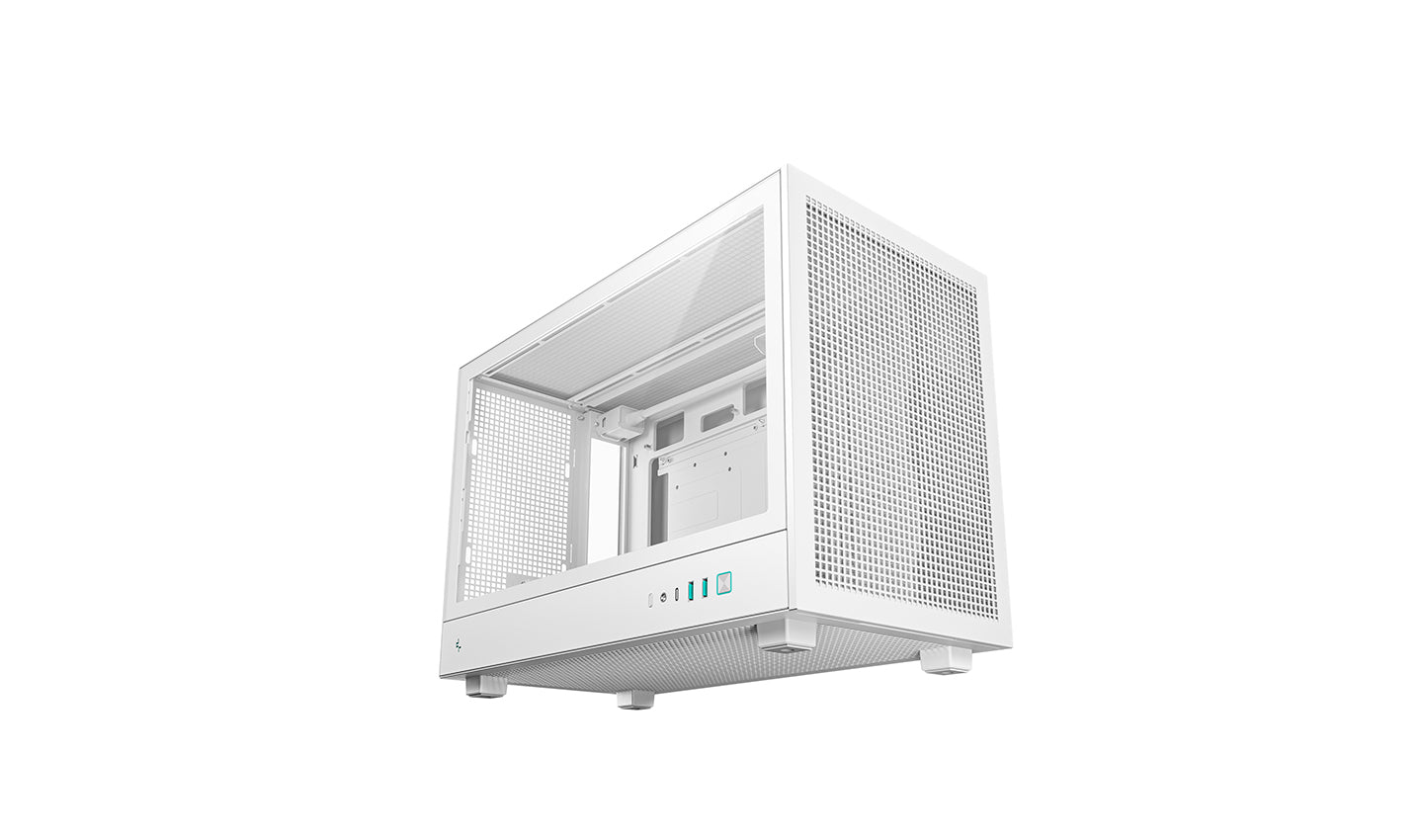

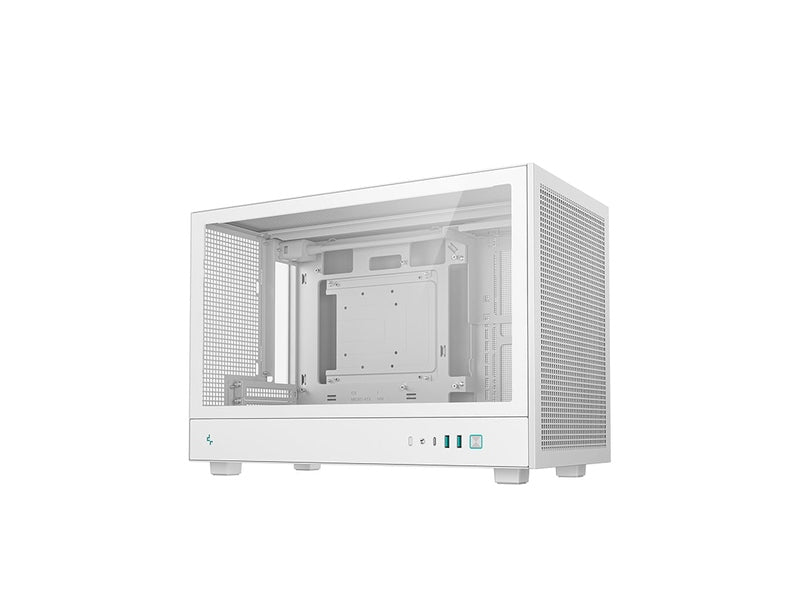

CH260 WH

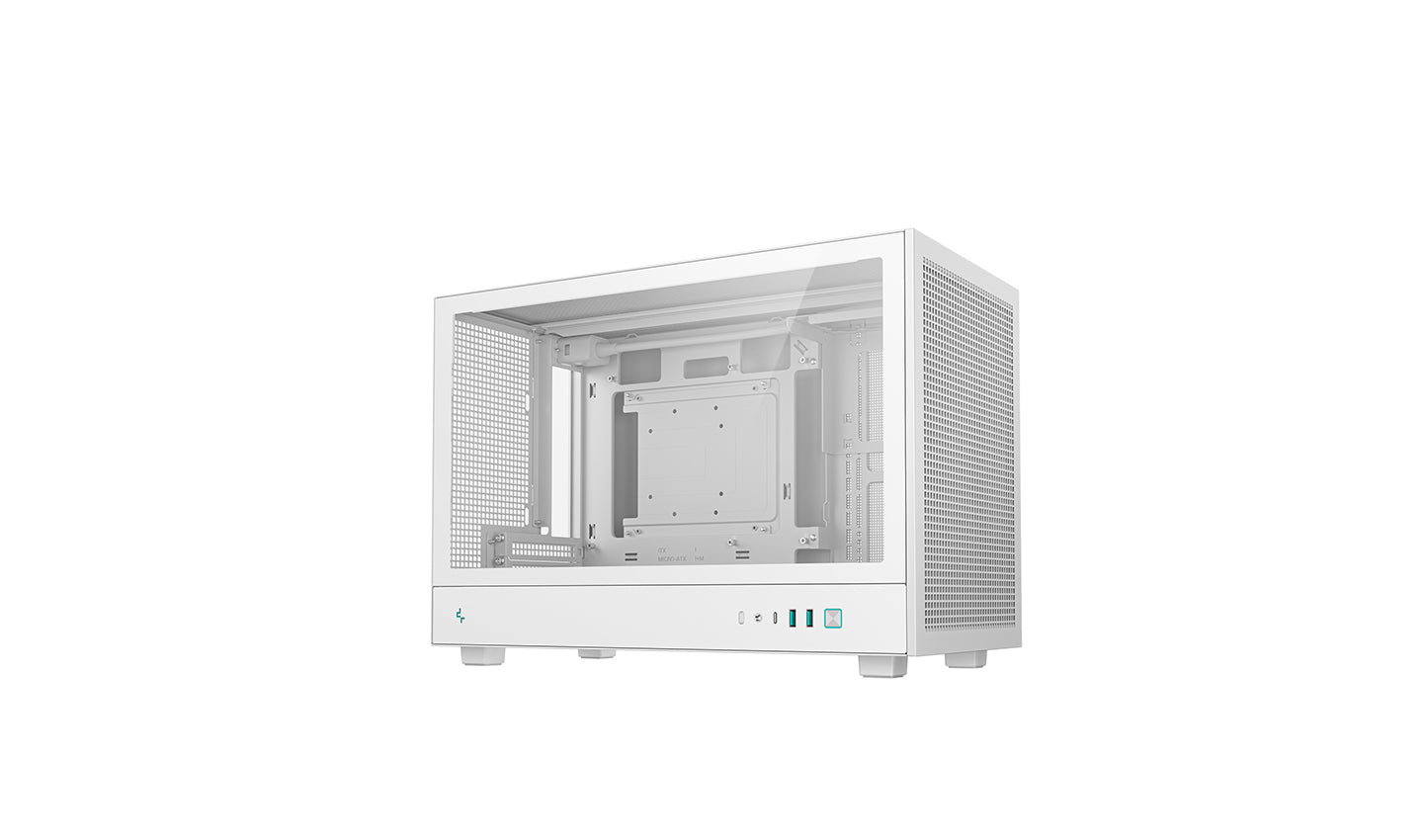

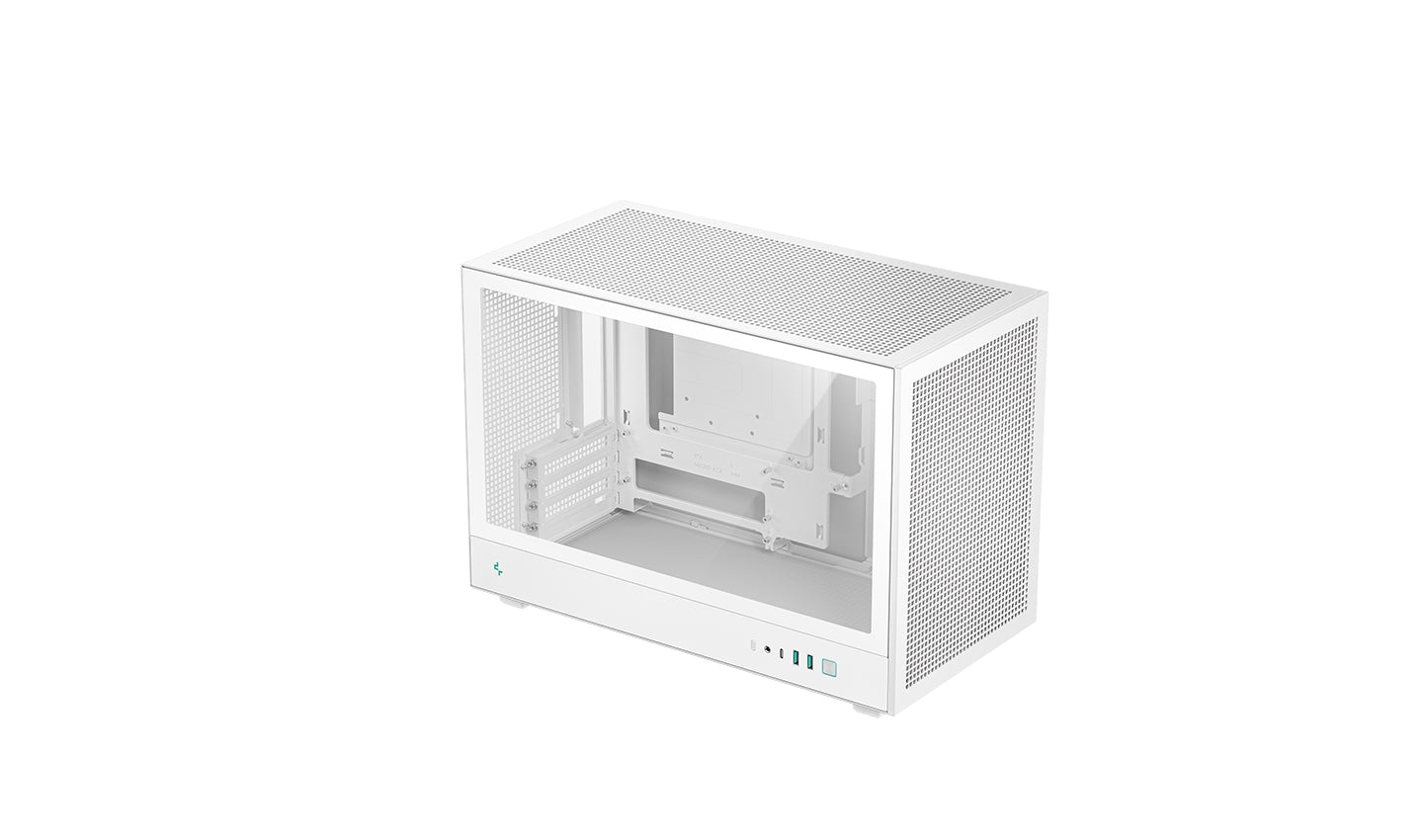

The CH260 WH is an expanded version of the classic DeepCool ITX case CH160, it is capable of containing up to M-ATX motherboard and inherited with the high airflow legacy thanks to the full steel mesh panel.CH260 WHThe CH260 WH is an expanded version of the classic DeepCool ITX case CH160, it is capable of containing up to M-ATX motherboard and inherited with the high airflow legacy thanks to the full steel mesh panel.
CH260 WH
The CH260 WH is an expanded version of the classic DeepCool ITX case CH160, it is capable of containing up to M-ATX motherboard and inherited with the high airflow legacy thanks to the full steel mesh panel.CH260 WHThe CH260 WH is an expanded version of the classic DeepCool ITX case CH160, it is capable of containing up to M-ATX motherboard and inherited with the high airflow legacy thanks to the full steel mesh panel.
| DeepCool CH260 WH – Technical Specifications | |
|---|---|
| Product Dimensions (L × W × H) | 438 × 225 × 312.5 mm |
| Net Weight | 5.3 kg |
| Materials | ABS, SPCC, Tempered Glass |
| Motherboard Support | Mini-ITX, Micro-ATX (Rear Connector) |
| Front I/O Ports | USB 3.0 × 2, Gen2 Type-C × 1, Audio/Mic × 1 |
| 3.5" Drive Bays | 1 |
| 2.5" Drive Bays | 1 |
| Expansion Slots | 4 Slots |
| Pre-Installed Fans | None |
| Fan Support | Front: 2 × 120 mm Top: 3 × 120 mm / 2 × 140 mm Rear: 1 × 120 mm |
| Radiator Support | Top: 120 / 240 / 360 mm Rear: 120 mm |
| CPU Cooler Height Limit | 174 mm |
| GPU Size Limit | 388 / 413 mm (no front fans) |
| Power Supply Type | ATX PS2 (max length: 150 mm) |
| EAN | 6933412765240 |
| Part Number | R-CH260-WHNGM0-G-1 |
