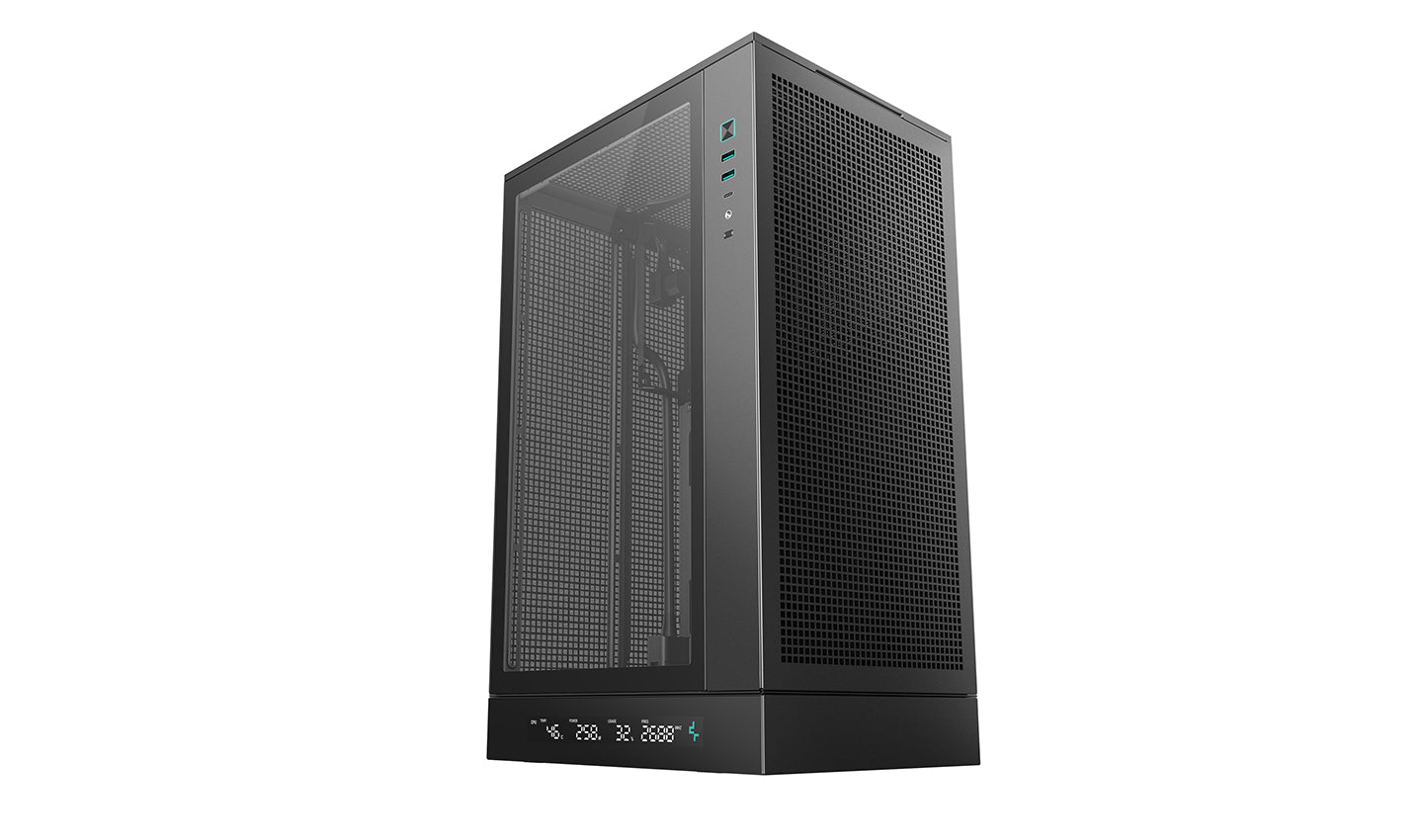

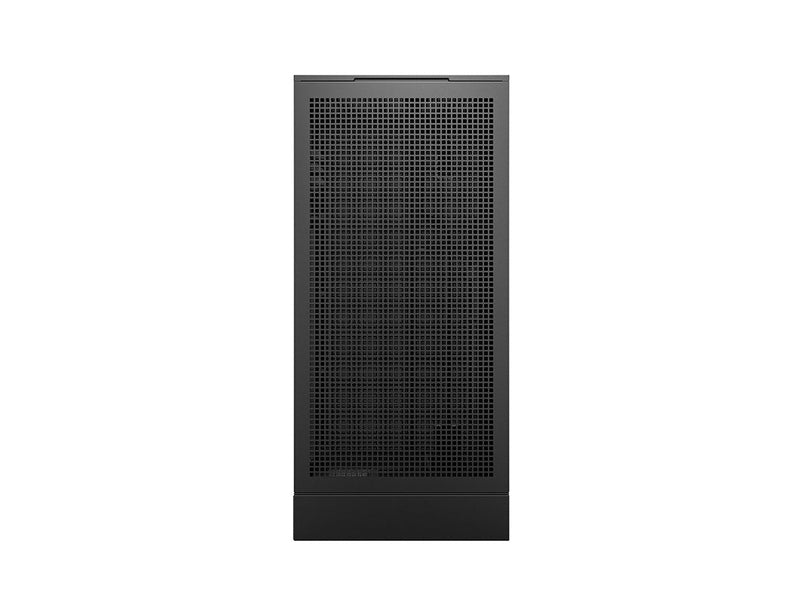

CH270 DIGITAL
The CH270 DIGITAL is an elevated mini-tower case with a small footprint to save up your desktop space. It is adapted to accommodate up to M-ATX motherboards and mainstream ATX components to smooth your building experience.
CH270 DIGITAL
The CH270 DIGITAL is an elevated mini-tower case with a small footprint to save up your desktop space. It is adapted to accommodate up to M-ATX motherboards and mainstream ATX components to smooth your building experience.
| DeepCool CH270 DIGITAL – Technical Specifications | |
|---|---|
| Product Dimensions (L × W × H) | 296 × 225 × 486 mm |
| Net Weight | 5.8 kg |
| Materials | ABS, SPCC, Tempered Glass |
| Motherboard Support | Mini-ITX, Micro-ATX (Rear Connector) |
| Front I/O Ports | USB 3.0 × 2, Gen2 Type-C × 1, Audio/Mic × 1 |
| 3.5" Drive Bays | 1 |
| 2.5" Drive Bays | 1 |
| Expansion Slots | 4 Slots |
| Pre-Installed Fans | None |
| Fan Support | Top: 2 × 120 mm Side: 3 × 120 mm / 2 × 140 mm Bottom: 1 × 120 mm |
| Radiator Support | Side: 120 / 240 / 360 mm Bottom: 120 mm |
| CPU Cooler Height Limit | 174 mm |
| GPU Size Limit | 388 / 413 mm (no top fans) |
| Power Supply Type | ATX PS2 (max length: 150 mm) |
| EAN | 6933412765257 |
| Part Number | R-CH270-BKNDM0-G-1 |
