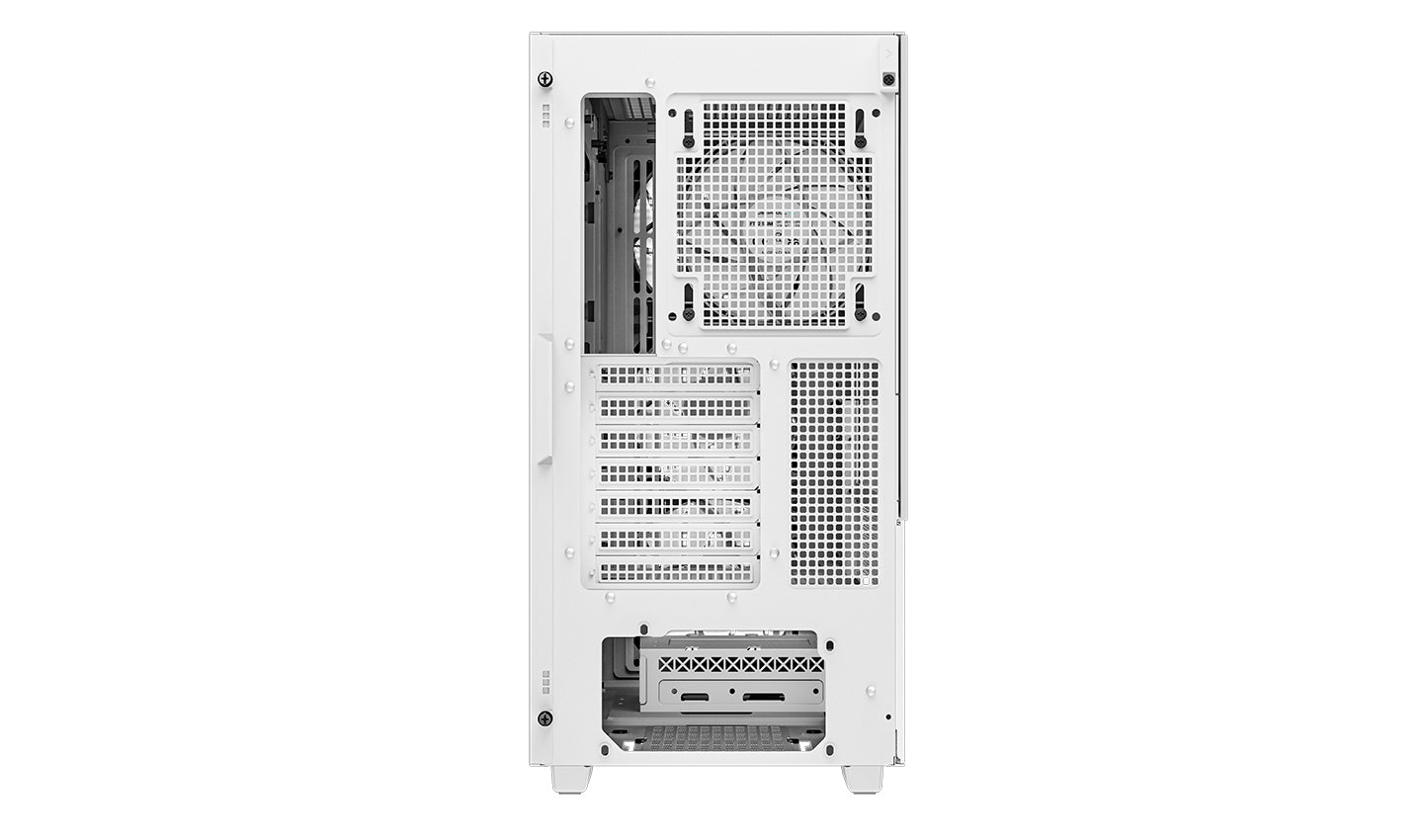

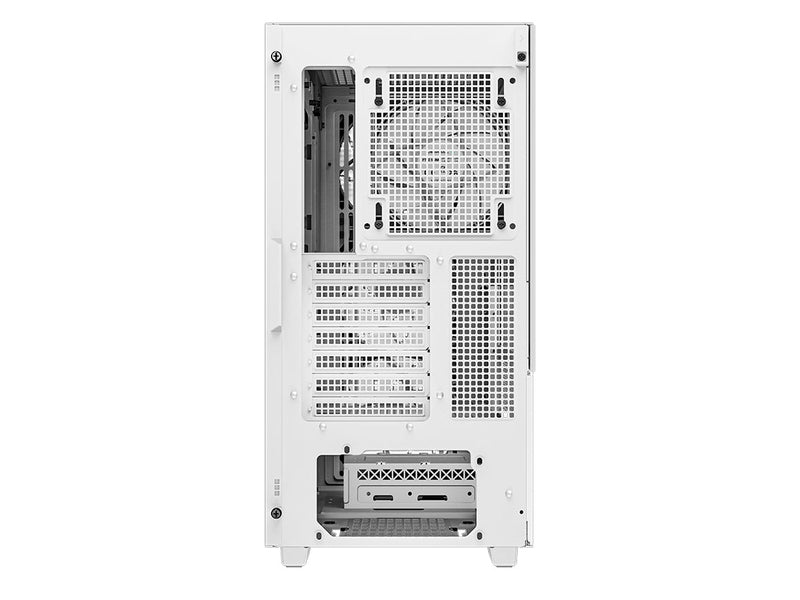

CH560 DIGITAL WH

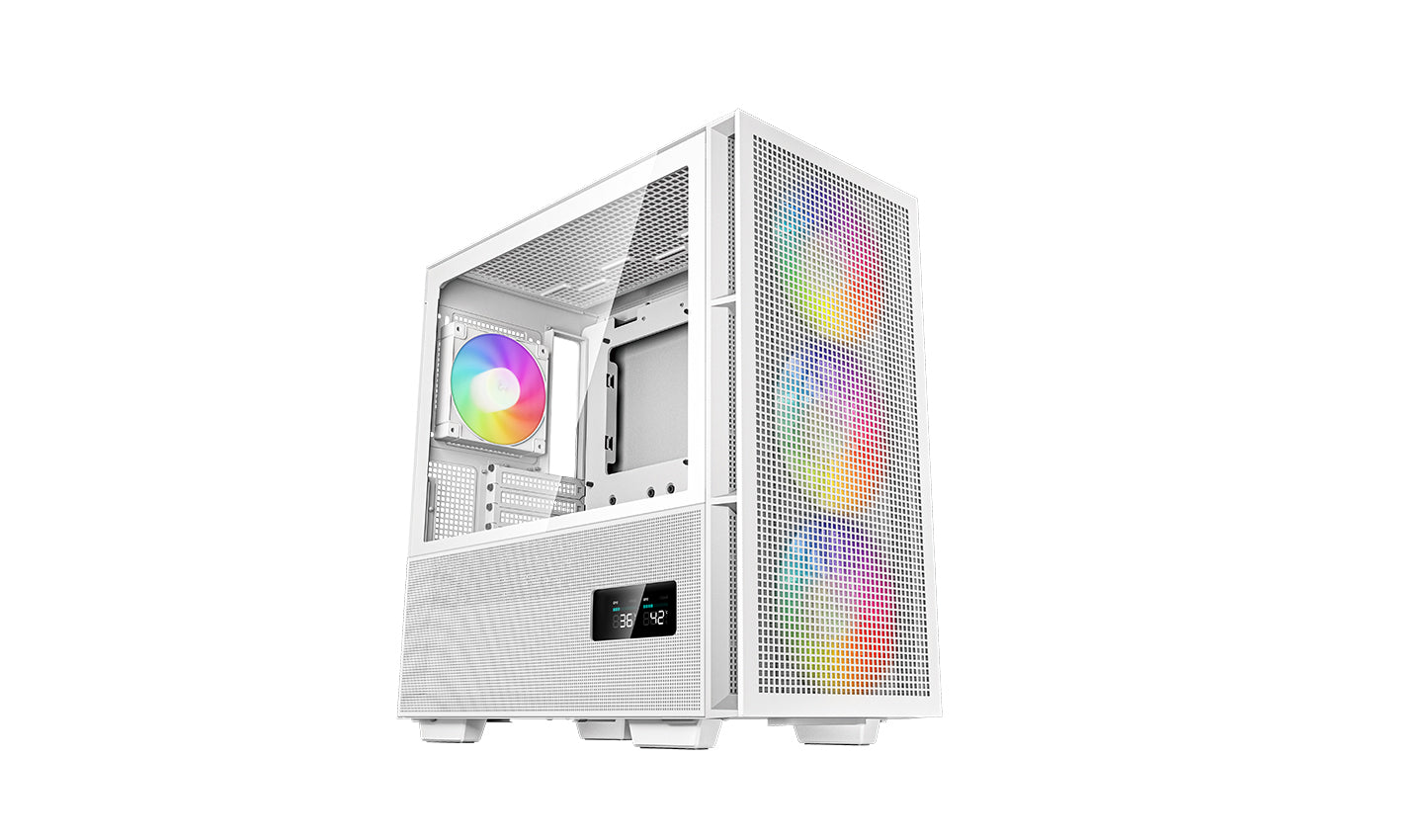

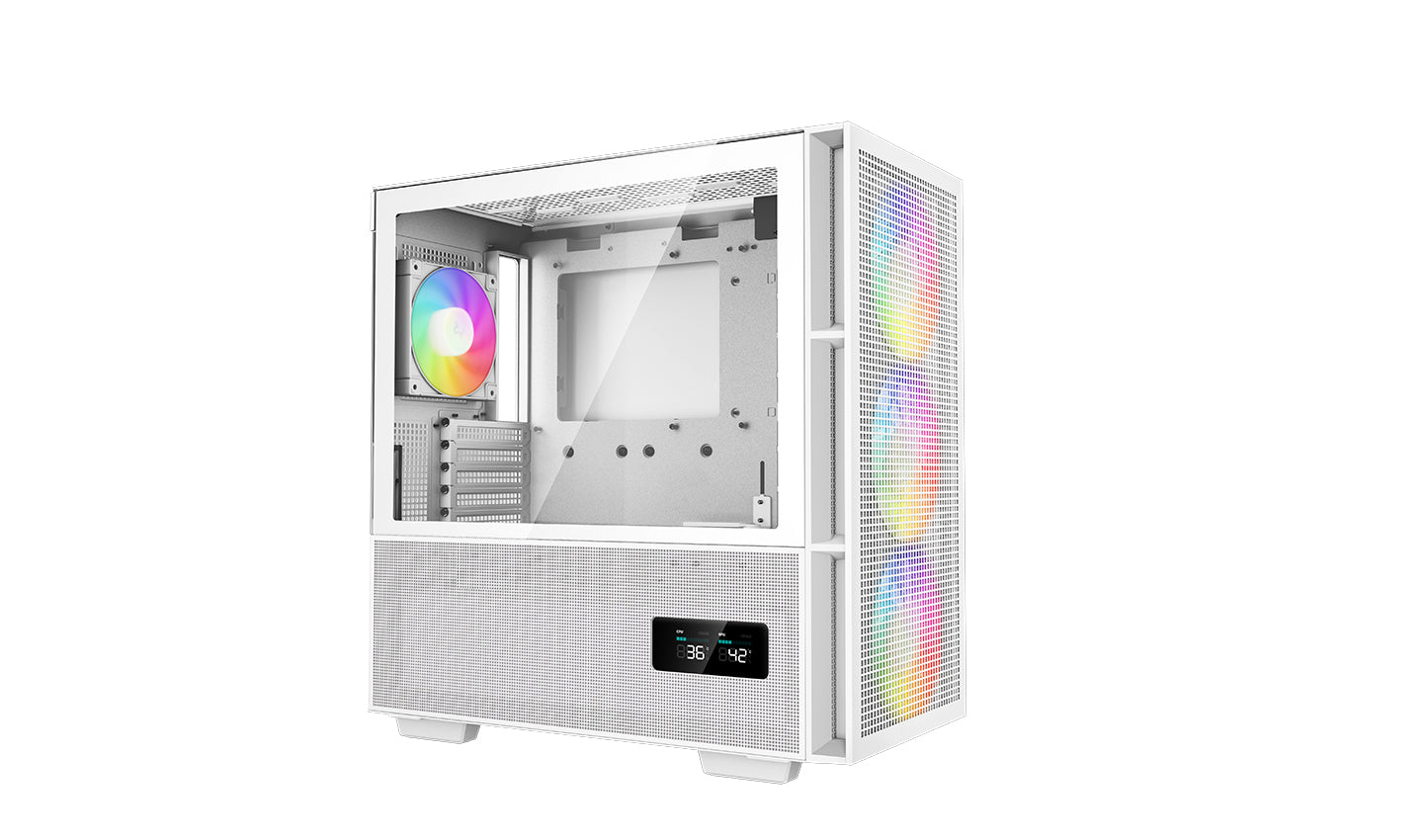

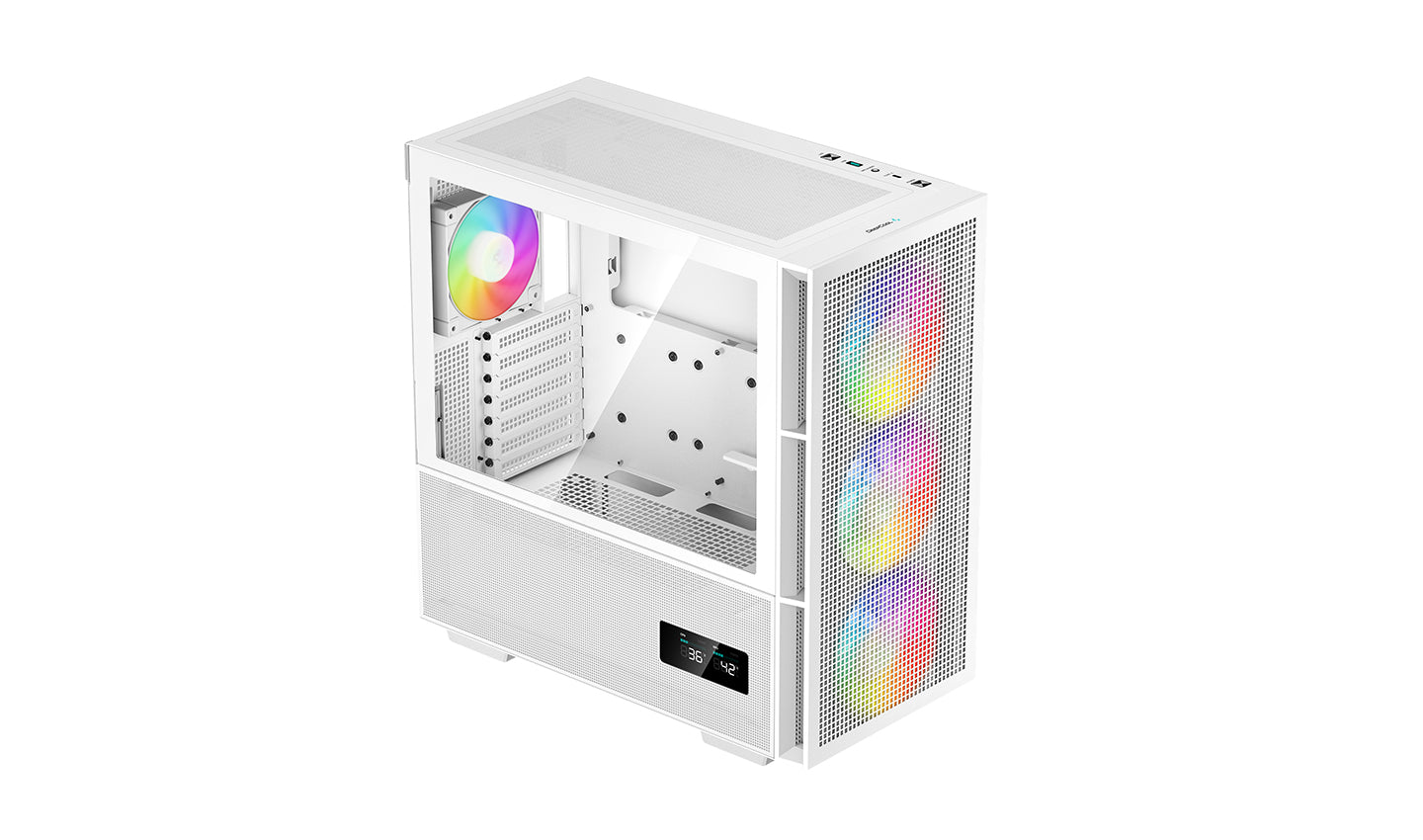

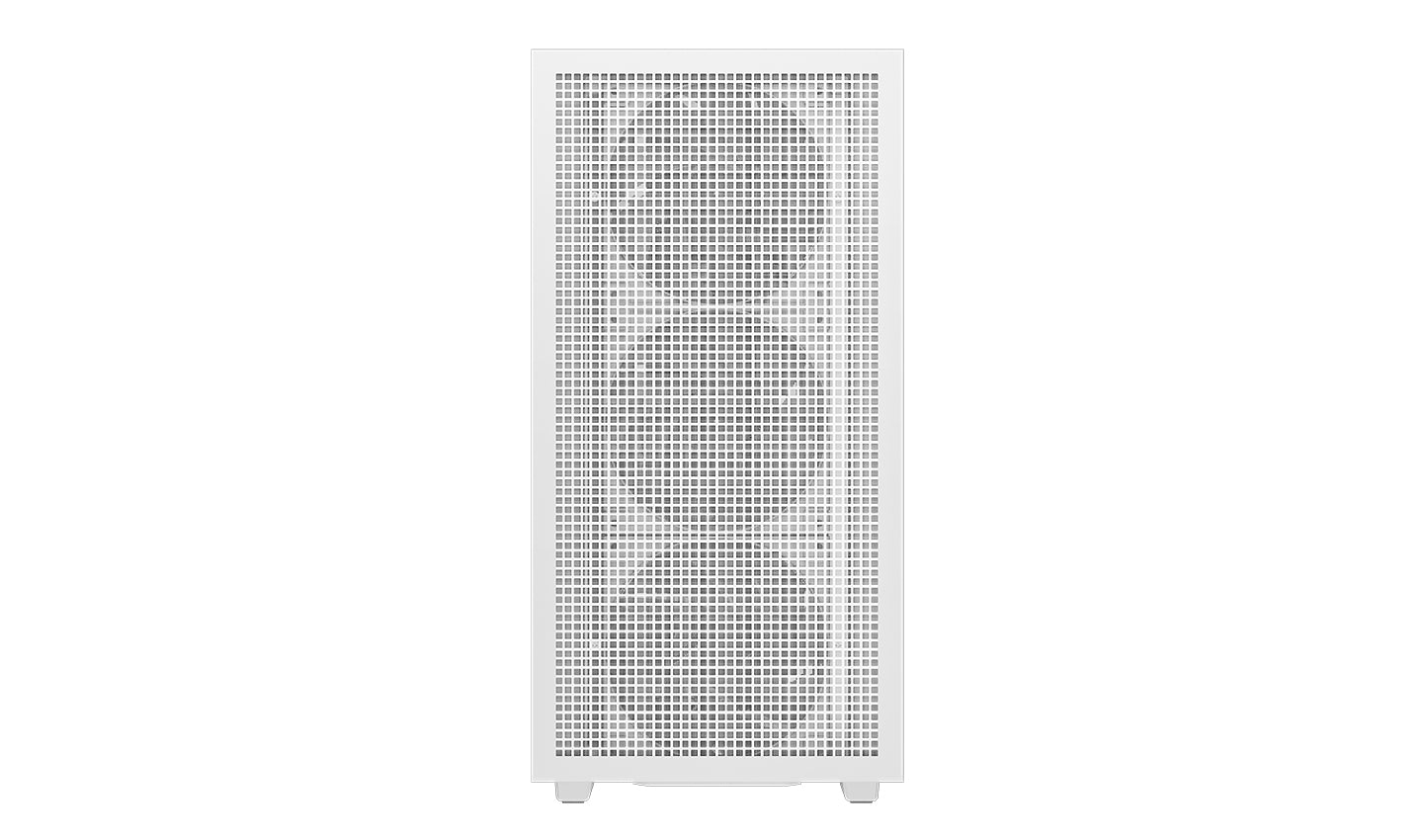

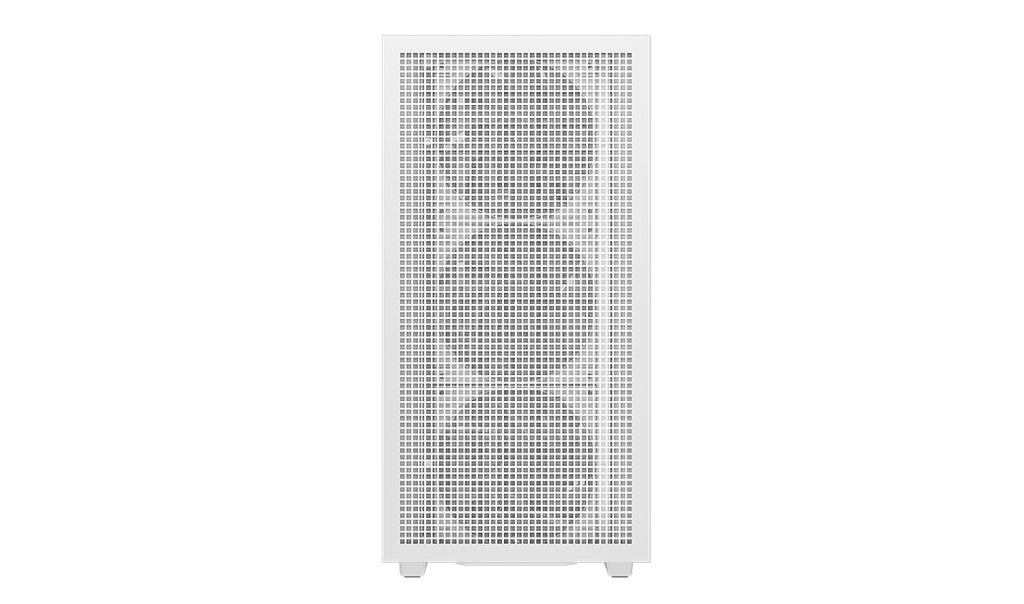

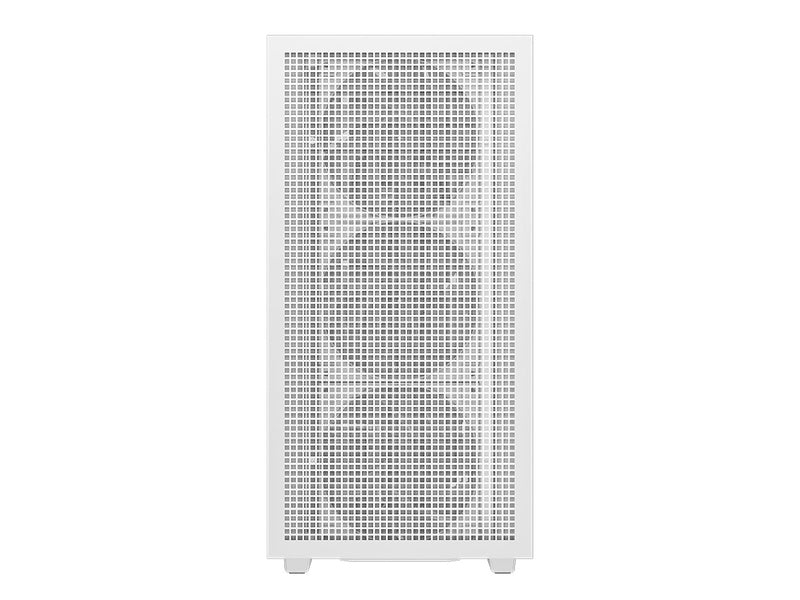

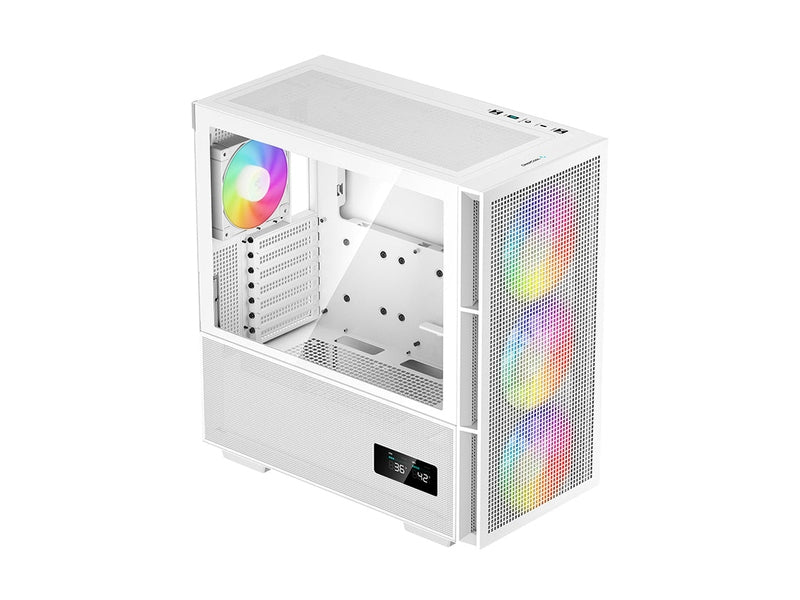

The next generation of airflow cases from DeepCool has arrived, and they are indeed glorious. The CH560 DIGITAL WH is a newly designed mid-tower case with a concentrated focus on increased airflow throughout the entire chassis. Three bright PWM enabled 140mm ARGB fans are mounted in front of the pure white main compartment, a hybrid side panel, and a dual status digital screen sets the CH560 DIGITAL WH apart from the competition.
CH560 DIGITAL WH
The next generation of airflow cases from DeepCool has arrived, and they are indeed glorious. The CH560 DIGITAL WH is a newly designed mid-tower case with a concentrated focus on increased airflow throughout the entire chassis. Three bright PWM enabled 140mm ARGB fans are mounted in front of the pure white main compartment, a hybrid side panel, and a dual status digital screen sets the CH560 DIGITAL WH apart from the competition.
| DeepCool CH560 DIGITAL WH – Technical Specifications | |
|---|---|
| Product Dimensions | 458 × 230 × 471 mm (L × W × H) |
| Net Weight | 7.7 kg |
| Materials | ABS + SPCC + Tempered Glass |
| Motherboard Support | Mini-ITX / Micro-ATX / ATX / E-ATX |
| Front I/O Ports | USB 3.0 ×1, Audio ×1, Type-C ×1 |
| 3.5" Drive Bays | 2 |
| 2.5" Drive Bays | 2 + 1 |
| Expansion Slots | 7 Slots |
| Pre-Installed Fans | Front: 3 × 140 mm ARGB Rear: 1 × 120 mm ARGB |
| Fan Support | Front: 3 × 120 mm / 3 × 140 mm Top: 3 × 120 mm / 2 × 140 mm Rear: 1 × 120 mm / 1 × 140 mm (Only supports up to 120 mm fan at the rear when using a 360 mm radiator on top) PSU Shroud: 2 × 120 mm |
| Radiator Support | Front: 120 / 140 / 240 / 280 / 360 mm Top: 120 / 140 / 240 / 280 / 360 mm Rear: 120 / 140 mm |
| CPU Cooler Height Limit | 175 mm |
| GPU Length Limit | 380 mm |
| Power Supply Type | ATX PS2 (maximum length: 170 mm) |
| EAN | 6933412774877 |
| P/N | R-CH560-WHAPE4D-G-1 |
