Overview

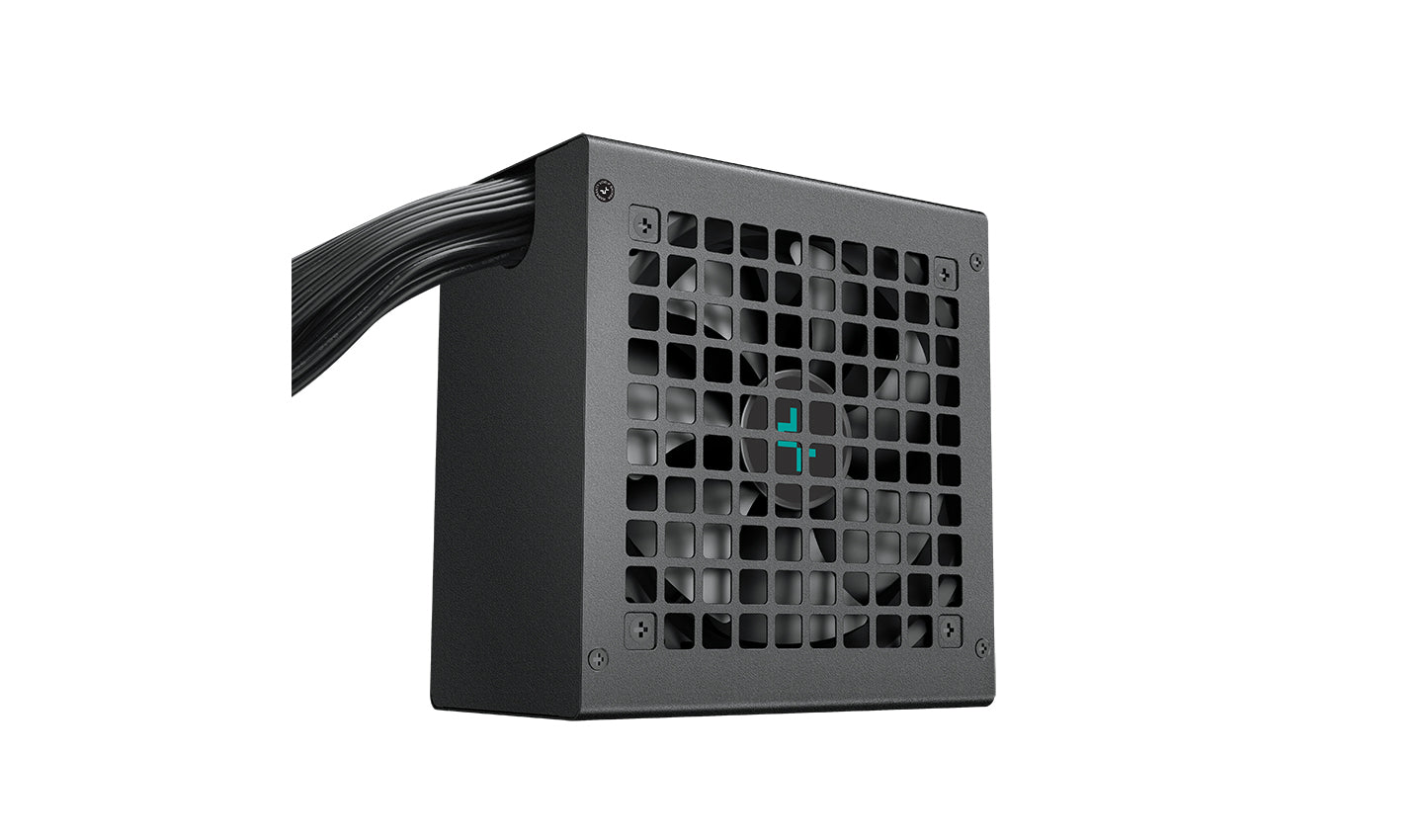

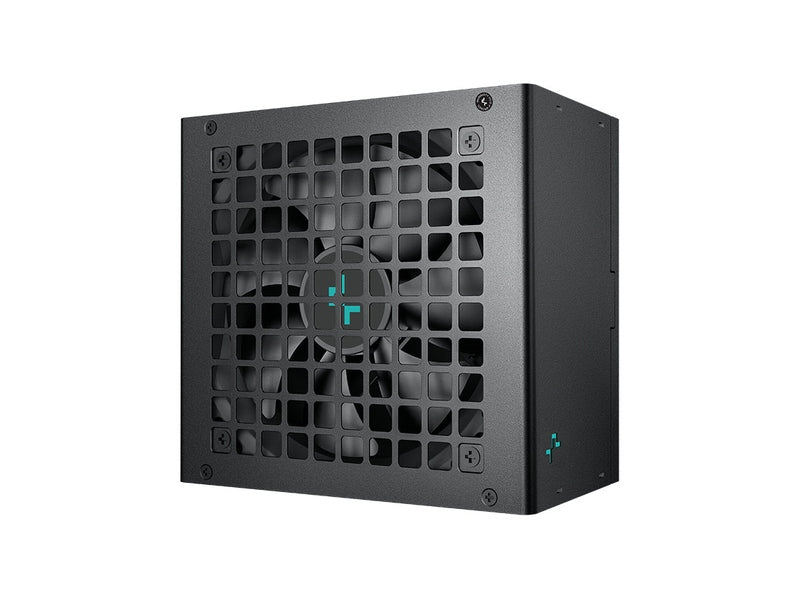

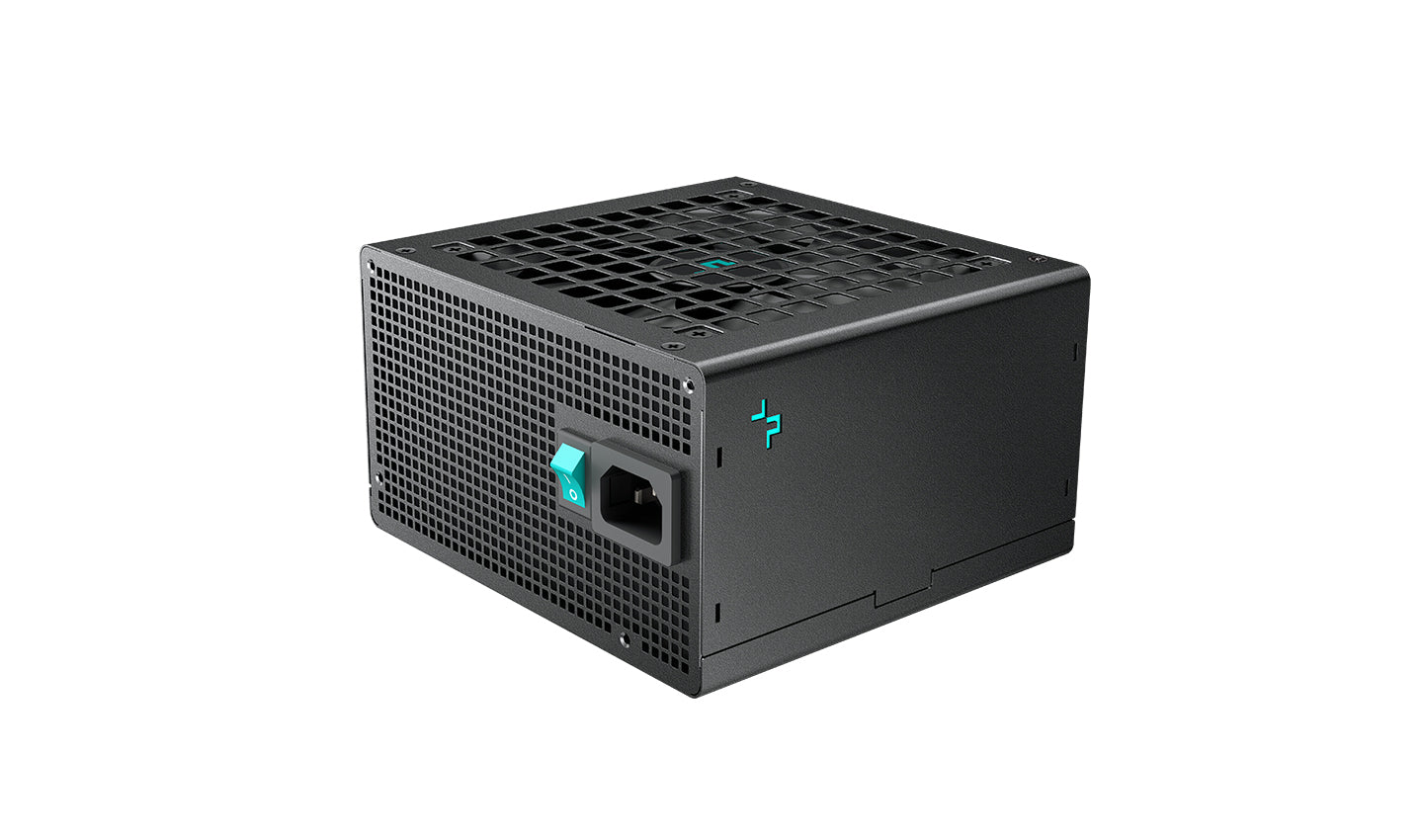

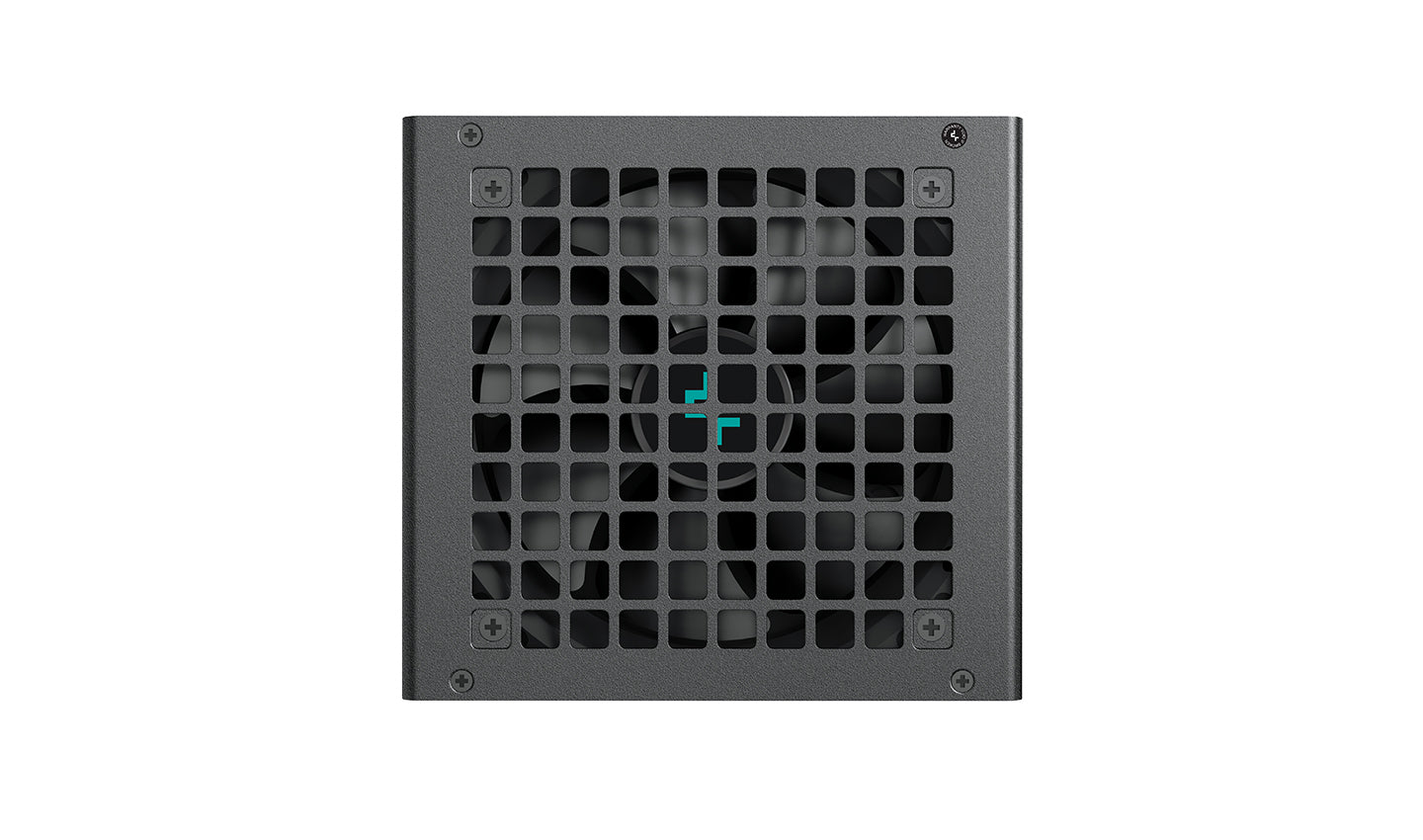

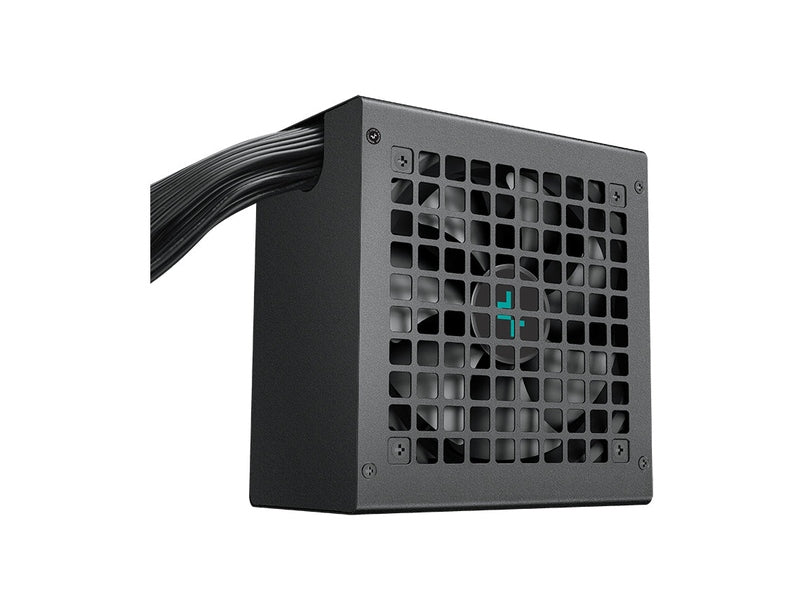

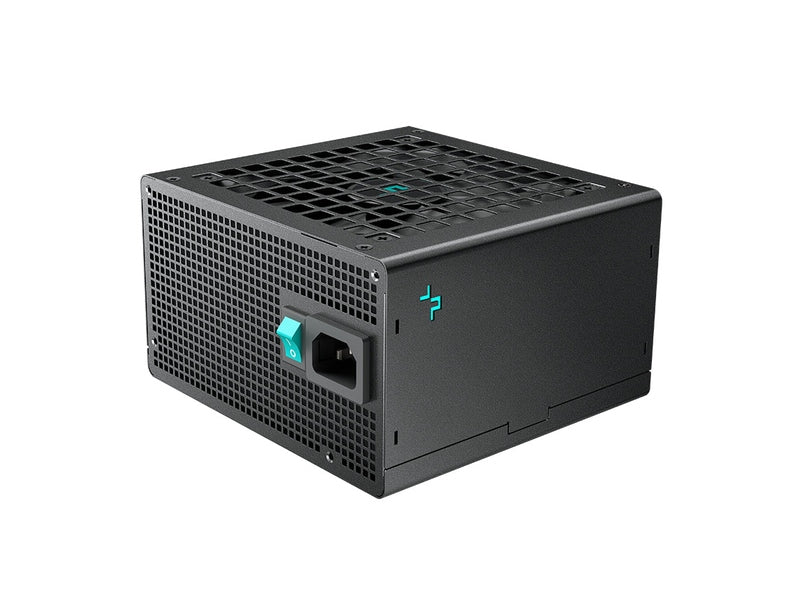

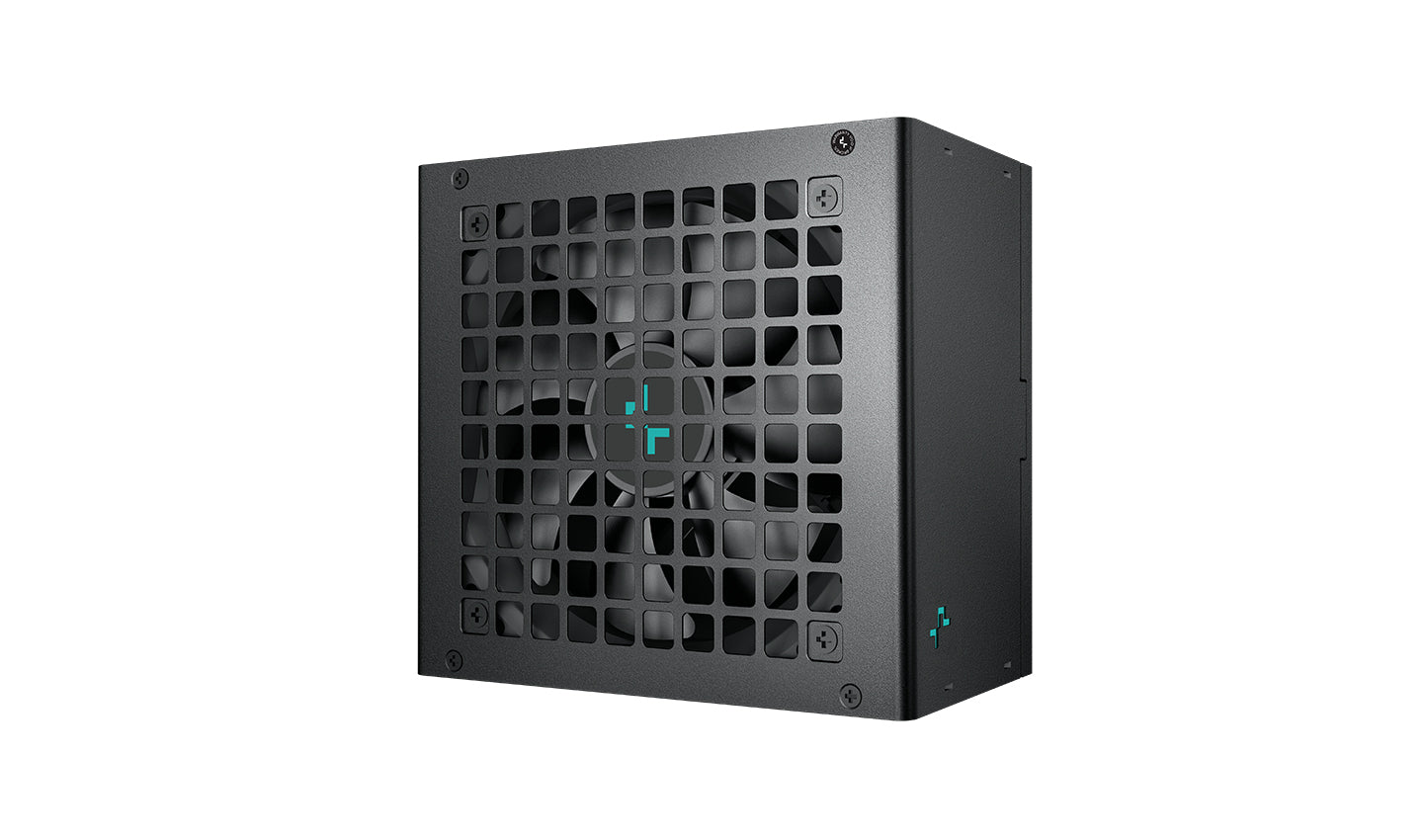

PL650D
The PL650D updates DeepCool non-modular PSUs with a 12V-2x6 cable and brings them into compliance with INTEL's ATX3.1 standard. These units are 80 PLUS Bronze-verified, come with a 120mm hydro-bearing fan, and will provide stable power for years to come.
PL650D
The PL650D updates DeepCool non-modular PSUs with a 12V-2x6 cable and brings them into compliance with INTEL's ATX3.1 standard. These units are 80 PLUS Bronze-verified, come with a 120mm hydro-bearing fan, and will provide stable power for years to come.
| ATX12V V3.1 Power Supply – Technical Specifications | |
|---|---|
| Type | ATX12V V3.1 |
| Product Dimensions | 150 × 140 × 86 mm (W × L × H) |
| Efficiency Certification | 80Plus Bronze / Cybenetics Silver / PPLP Silver / CQC II 级 |
| Fan Size | 120 mm |
| Fan Bearing | HYB (Hydro Bearing) |
| Topology | Active PFC + DC to DC |
| Capacitors | Chinese Electrolytic Capacitors |
| Power Good Signal | 100–150 ms |
| Hold Up Time | ≥16 ms |
| Efficiency | ≥85% Under Typical Load (50% Loading) |
| Protection | OPP / OVP / SCP / OTP / OCP / UVP / SIP / NLO |
| Operation Temperature | 0 – 40 ℃ |
| Regulatory | CE / FCC / CCC / RCM / EAC / BIS / CAN ICES-003(B) / NMB-003(B) / TUV-RH |
| ErP Regulation | ErP 2014 |
| Environment Protection | WEEE / 中国 RoHS / Triman / P65 |
| MTBF | 100,000 Hours |
