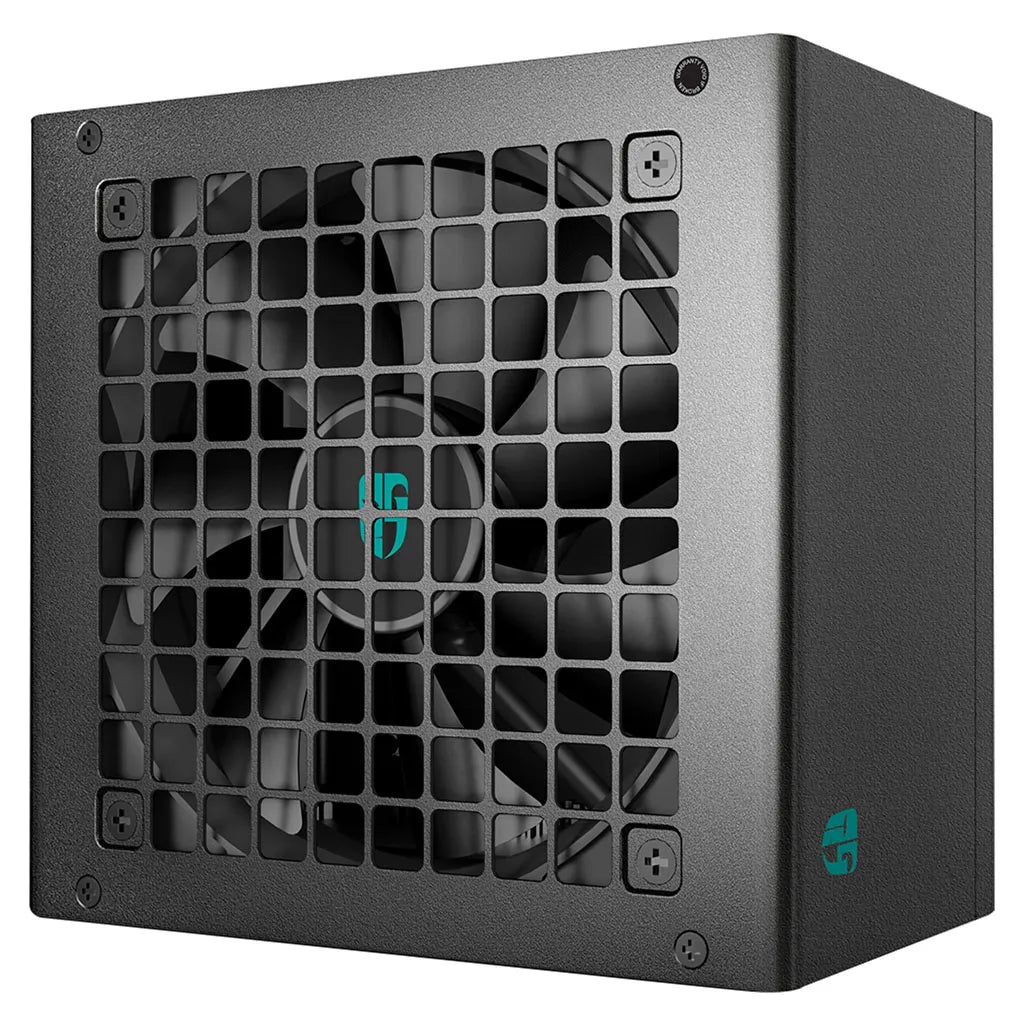

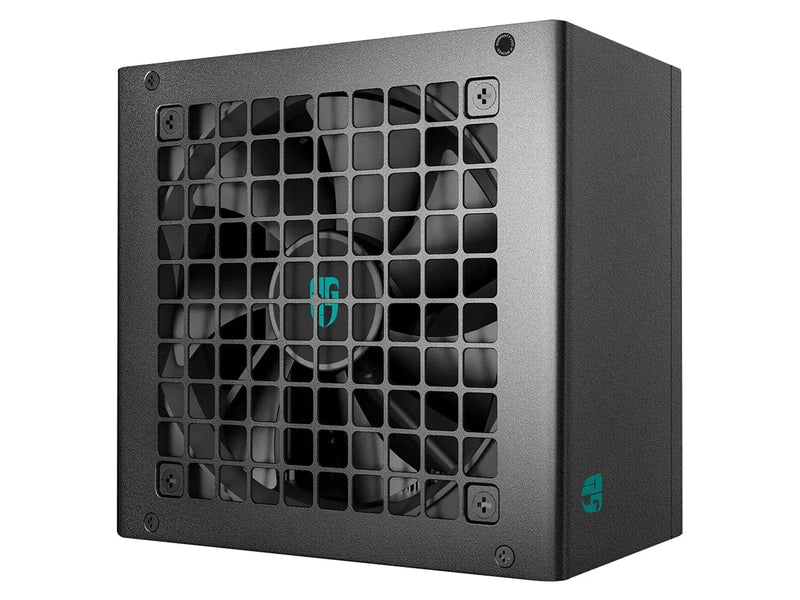

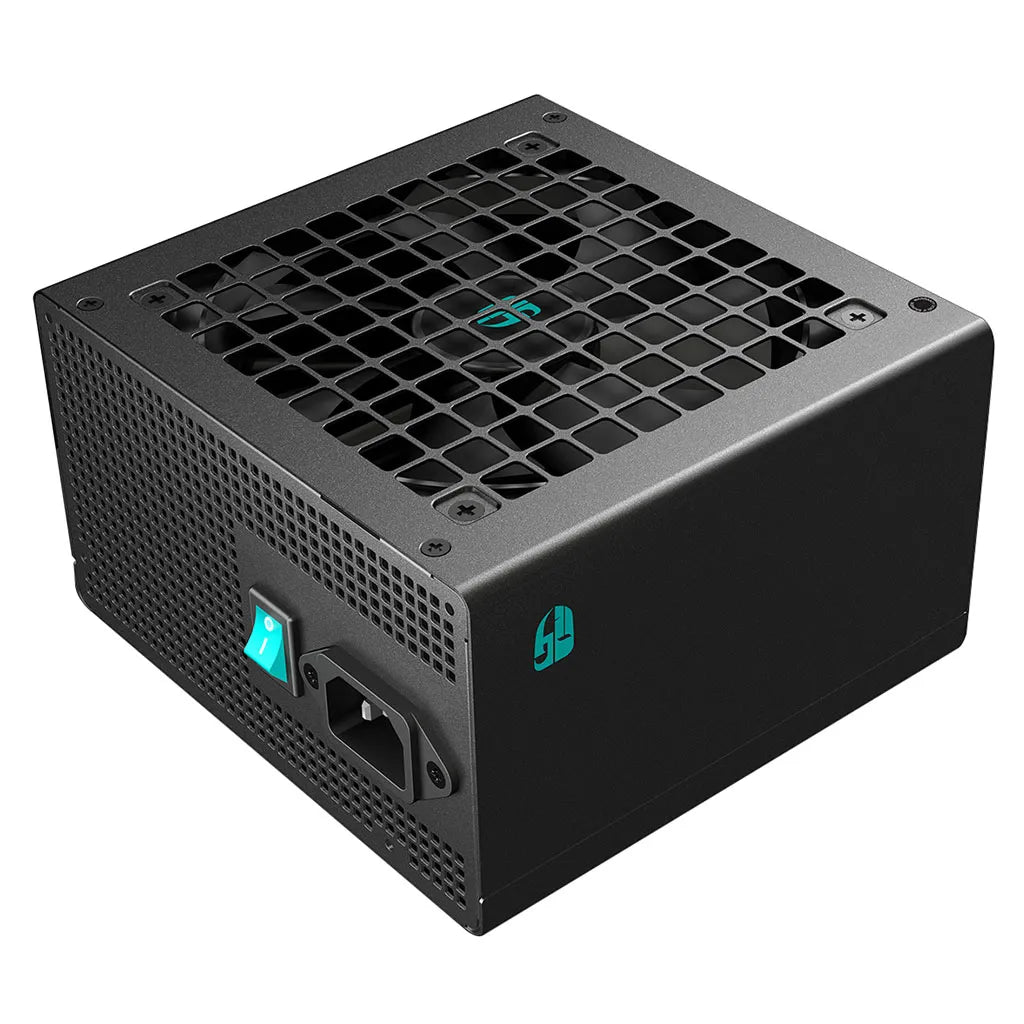

DeepCool PN750M 750W ATX 3.1 Fully Modular Power Supply
The DeepCool PN750M (Model: R-PN750M-FC0B-JGAU) is a high-efficiency 750W ATX 3.1 power supply designed to meet the demands of next-generation systems. Built on the CWT GPX platform, it features a native 12V-2×6 PCIe 5.1 cable capable of delivering up to 600W for high-end GPUs like the RTX 4090. Certified with 80PLUS Gold and Cybenetics Gold & A- (230V), the PN750M achieves up to 90% efficiency under typical loads. Internally, it uses DC-to-DC topology, active PFC, and a main Japanese electrolytic capacitor for stable voltage regulation. A 120mm fluid dynamic bearing fan ensures quiet cooling, while fully modular sleeved cables simplify cable management. With ATX 3.1 compliance and robust protections, the PN750M is ideal for builders seeking reliability, efficiency, and future-proof compatibility.
DeepCool PN750M 750W ATX 3.1 Fully Modular Power Supply
The DeepCool PN750M (Model: R-PN750M-FC0B-JGAU) is a high-efficiency 750W ATX 3.1 power supply designed to meet the demands of next-generation systems. Built on the CWT GPX platform, it features a native 12V-2×6 PCIe 5.1 cable capable of delivering up to 600W for high-end GPUs like the RTX 4090. Certified with 80PLUS Gold and Cybenetics Gold & A- (230V), the PN750M achieves up to 90% efficiency under typical loads. Internally, it uses DC-to-DC topology, active PFC, and a main Japanese electrolytic capacitor for stable voltage regulation. A 120mm fluid dynamic bearing fan ensures quiet cooling, while fully modular sleeved cables simplify cable management. With ATX 3.1 compliance and robust protections, the PN750M is ideal for builders seeking reliability, efficiency, and future-proof compatibility.
| DeepCool PN750M – Technical Specifications | |
|---|---|
| Model | PN750M |
| Part Number | R-PN750M-FC0B-JGAU |
| Rated Power | 750W |
| Form Factor | ATX |
| Standard | ATX12V v3.1 |
| Efficiency Certification | 80PLUS Gold Cybenetics Gold Cybenetics A- (230V) |
| Platform | CWT GPX |
| Topology | Active PFC + DC-to-DC |
| Capacitors | Main Japanese electrolytic capacitor |

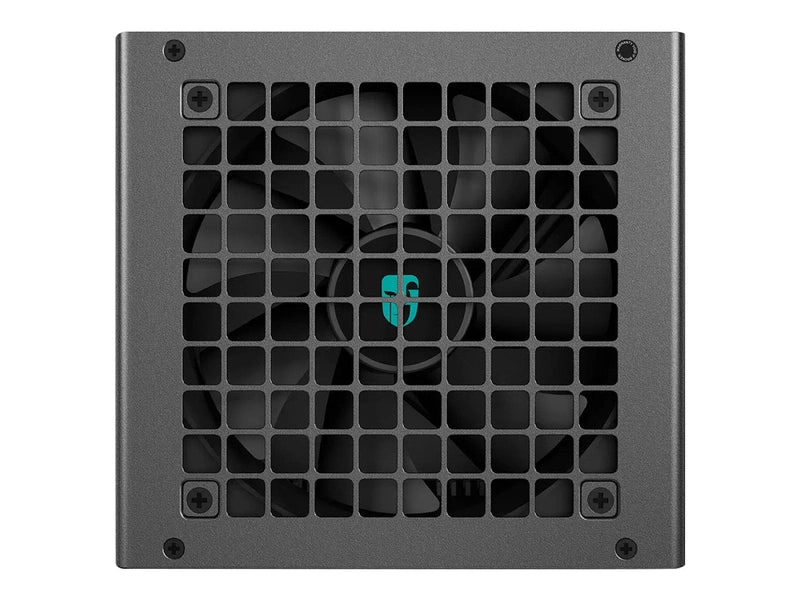

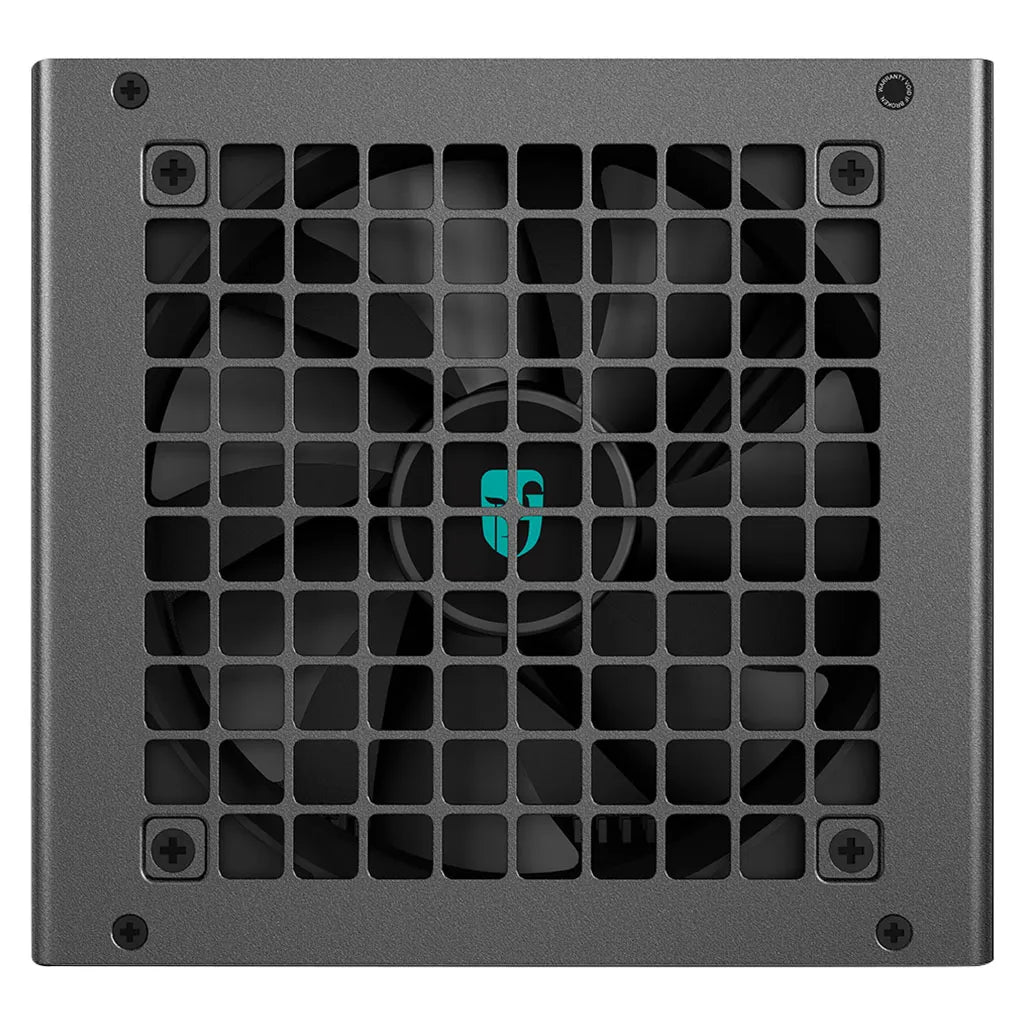

| Fan Size | 120 mm |
| Fan Bearing | Fluid Dynamic Bearing (FDB) |
| Modularity | Fully Modular |

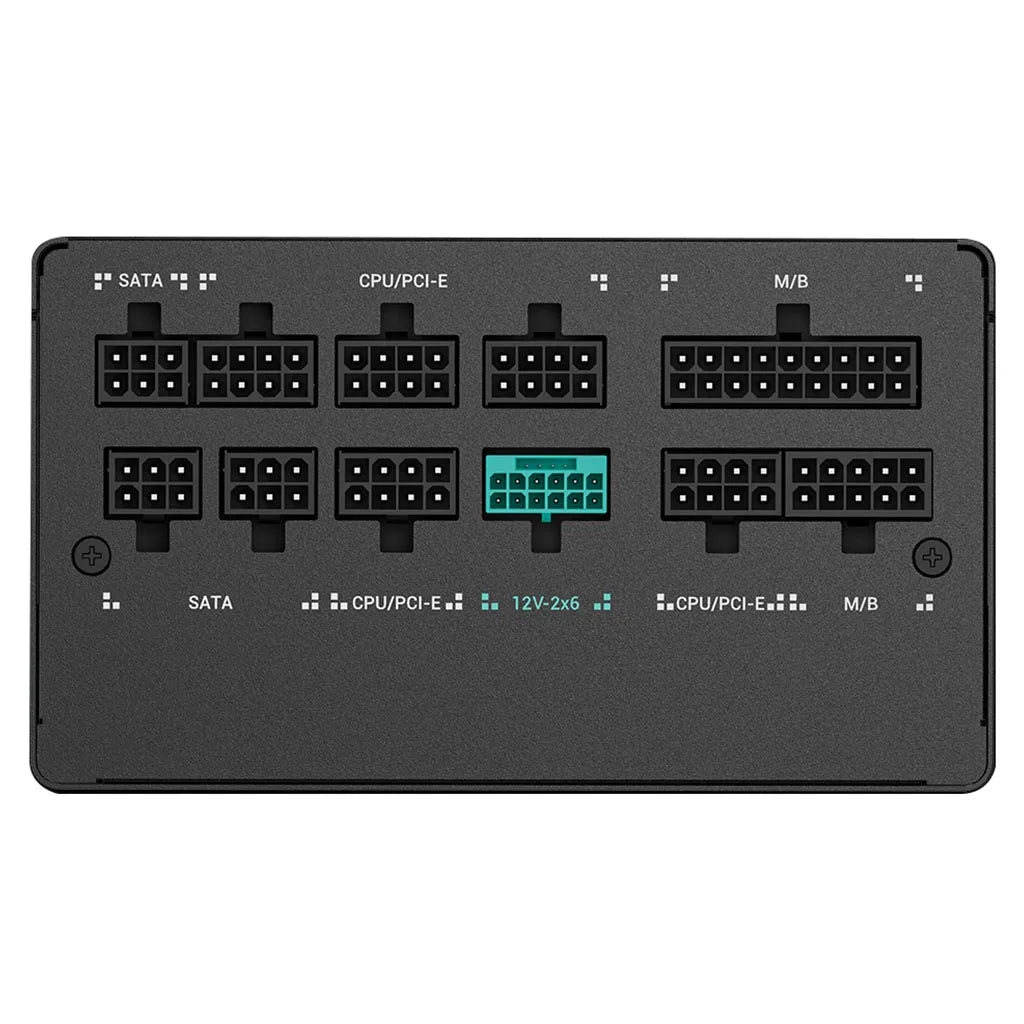

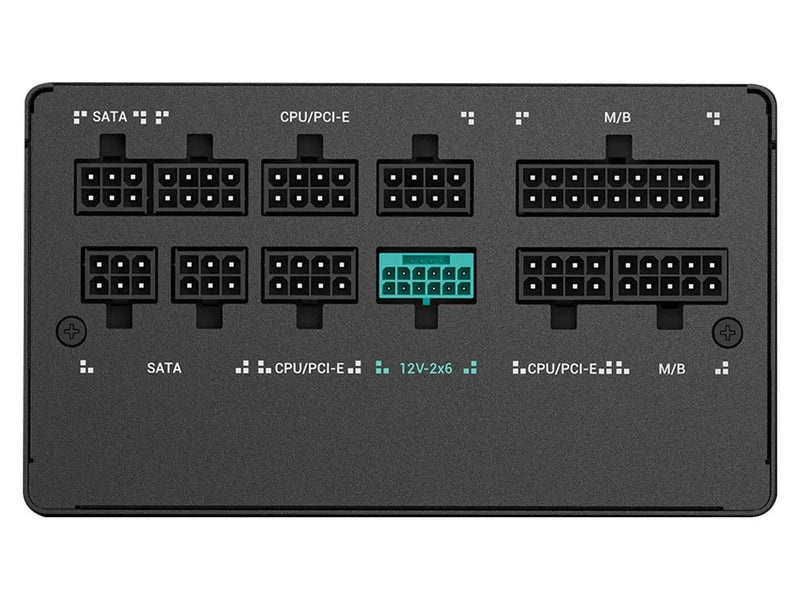

| PCIe 5.1 Support | Native 12V-2×6 cable (600W) |
| Cable Type | Sleeved |
| Protections | OCP / OVP / UVP / SCP / OTP / OPP |
| Hold-Up Time | ≥16 ms at 75% load |
| Power Good Signal | 100–150 ms |
| Operating Voltage | 100–240V AC |
| Dimensions | 150 × 140 × 86 mm (W × L × H) |
| Color | Black |
