Dell Pro Max Tower T2 Desktop
Extraordinary performance
Innovative internals
Images for illustrative purposes only - actual items may differ from images or based on configurations selected.
More expandability with a 32L chassis and up to 1500W power supply options
3x M.2 SSD storage up to 12TB.
3x 3.5" HDD up to 24TB.
Optional front accessible storage bay.
Supports up to 125W Intel Core Ultra K-series CPUs with unlimited turbo duration.
Supports up to NVIDIA RTX PRO™ 6000 Blackwell Generation graphics.
Up to Wi-Fi 7[1] connectivity option.
Expandable with 4 PCIe slots.

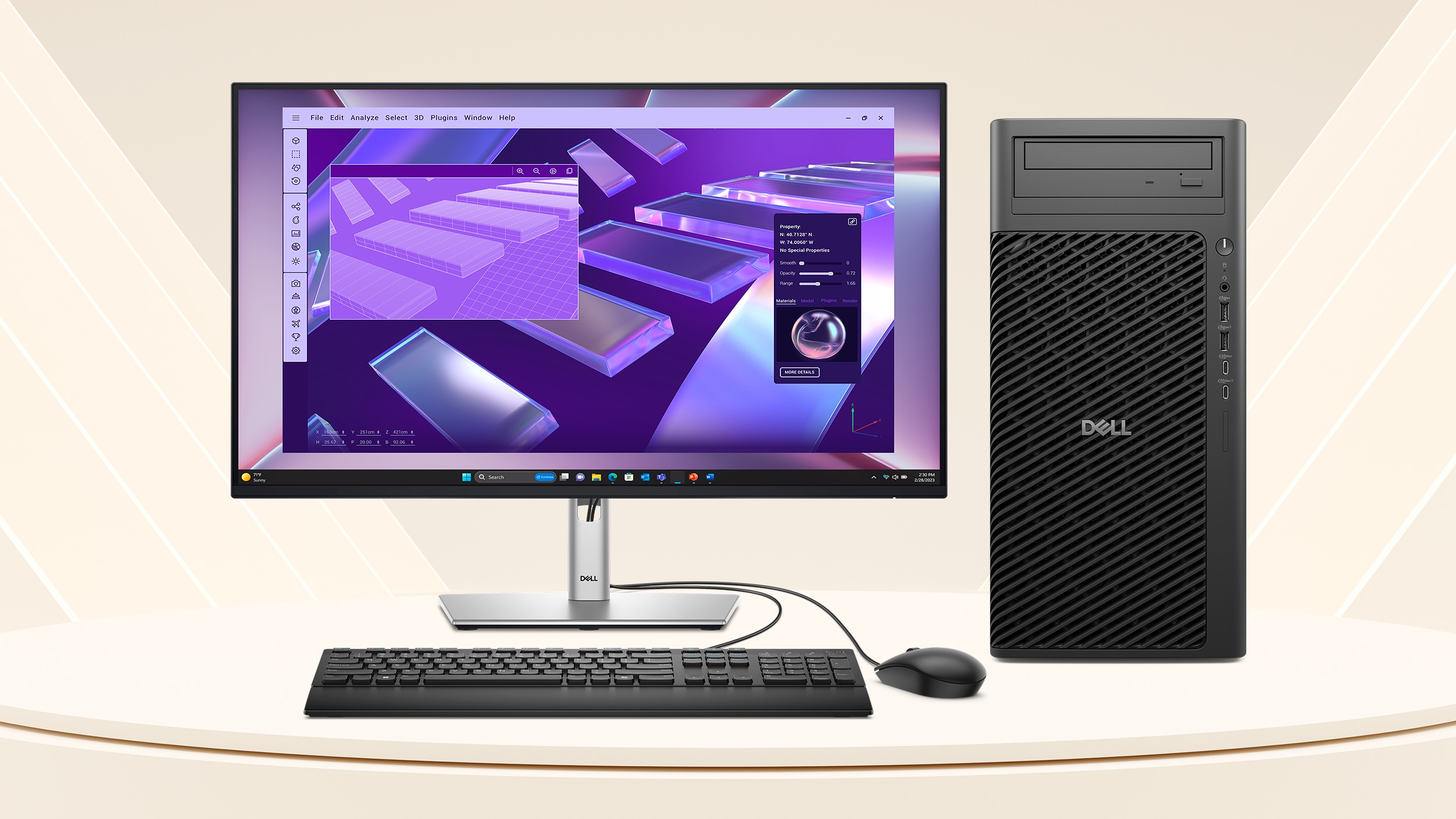

AI-driven workflows, optimised
Effortlessly tackle large data-sets, run complex analyses or optimise machine learning models with built-in AI power. With Intel® Core™ Ultra processor, NVIDIA professional graphics, and now a dedicated NPU, stay efficient and productive with powerful on-device AI experiences. Enjoy inclusive collaboration, seamless content creation, energy efficiency, and faster threat detection - all integrated seamlessly into your day-to-day.
Images for illustrative purposes only - actual items may differ from images or based on configurations selected. Monitor sold separately.
Elevated connectivity
Intelligent reliability

ISV certification
Workstations are tested and certified to ensure reliability and the best possible performance.

Reliable Memory Technology Pro
Identifies bad memory sectors and alerts users when a DIMM has hit critical levels.

RAID capable storage
New security features and software.
A workstation designed for sustainability
Designed to meet the latest environmental standards with recycled materials and packaging.
Images for illustrative purposes only - actual items may differ from images or based on configurations selected. Monitor sold separately.
Innovative materials
Designed with up to 46% recycled plastic including post-consumer recycled plastic and closed loop ITE derived plastic.
Raising environmental standards
This product is certified ENERGY STAR®, registered EPEAT Gold with Climate+ and carries the latest TCO designation. Meaning it meets key sustainability criteria for renewable energy use and safe substances and circularity.
Seamlessly transition from old to new technology
We can help you responsibly and securely retire your legacy IT equipment, regardless of brand, while addressing your sustainability goals.
Ports and slots

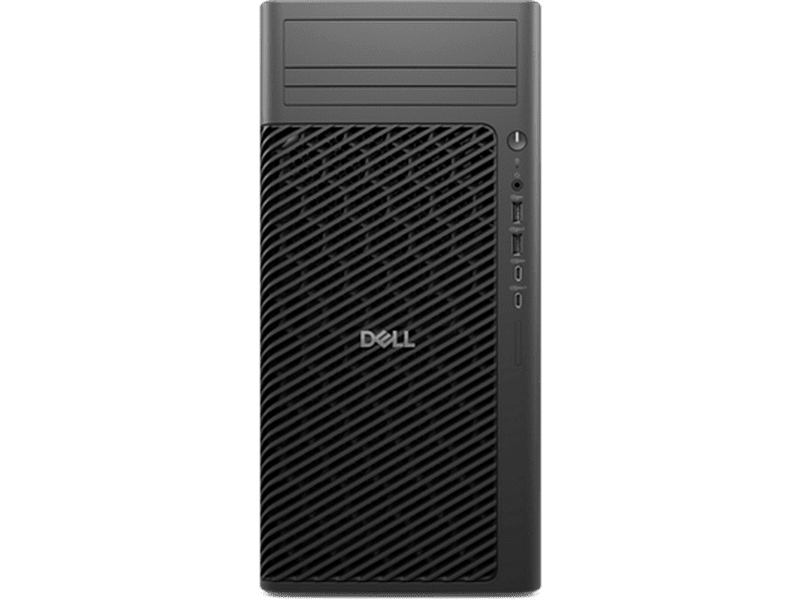

Front side
- Lockable storage bay (optional)
- Optical disk drive (optional)
- Power switch with LED
- Universal audio port
- (2) USB 3.2 Gen 1 (5Gbps)
Lower port with PowerShare - USB-C 3.2 Gen 2 (10Gbps)
- USB-C 3.2 Gen 2x2 (20Gbps) with PowerShare
USB Interface
- Power Connector
- (2) DisplayPort 1.4a
- Optional port module (choose one):
-Serial Module
-TBT4 (40Gbps) + USB-C (10Gbps)
-USB 3.2 Gen 2 (10Gbps) Type-C® with DisplayPort™ Alt Mode port
-HDMI 2.1 FRL
-DisplayPort™ 2.1 (UHBR20)
-5Gbe LAN
-(2) USB-A 3.2 Gen 2 (10Gbps)
-VGA
-5G Optical Fiber - USB-C 3.2 Gen 2x2 (20Gbps)
- Thunderbolt 4 (USB-C)
- (2) USB 2.0 (480Mbps) with Smart Power On
- (2) USB 3.2 Gen 2 (10Gbps)
- RJ-45 Ethernet (1GbE)
Specifications
Processor | Intel Core Ultra 9 285K (36 MB cache, 24 cores, 24 threads, 3.2 GHz to 5.7 GHz, 125W) |
Operating System | Windows 11 Pro |
Operating System Language Pack | English |
Thermal Cooling | Premium CPU Air Cooler |
Systems Management | Intel vPro Disabled |
Intel Responsiveness Technologies | Intel Rapid Storage Technology Driver |
Memory | 32GB: 2 x 16 GB, DDR5, 5600 MT/s, non-ECC |
Graphics | NVIDIA RTX 4000 ADA, 20 GB GDDR6, 4 DP |
Graphics Holder | T2 Graphic Card Holder |
Storage configuration (Boot Drive) | HDD Cables for 0-2 Internal Drive |
Optical Drive | 8x DVD+/-RW 9.5mm ODD |
1st M 2 NVMe SSD | 1TB SSD TLC with DRAM M.2 2280 PCIe Gen4 SED Ready |
Chassis Options | Dell Pro Max Tower T2 with 1500W (80 Plus Platinum) PSU |
Cable Cover | Cable Cover (Donington) |
Power Cord | System Power Cord (ANZ) |
Wireless | Intel(R) Wi-Fi 6/7 BE200, 2x2, 802.11be, MU-MIMO, Bluetooth(R) 5.4 wireless card |
Wireless Antenna | External Antenna |
Keyboard | Dell Wired Keyboard KB216 (US English) |
Mouse | Dell MS116 Wired Mouse Black |
Fan | No Fans Included |
Speakers | Internal Speaker for Precision |
Cables and Dongles | 3.5" HDD/ODD Y type power cable for front access bay |
Extended Service | ProSupport and Next Business Day Onsite Service Extension, 36 Month(s) |
