Description
Dynabook Thunderbolt 4 Dock Station (PS0120AA1PRP)
ONE DOCK. A WORLD OF POSSIBILITIES.

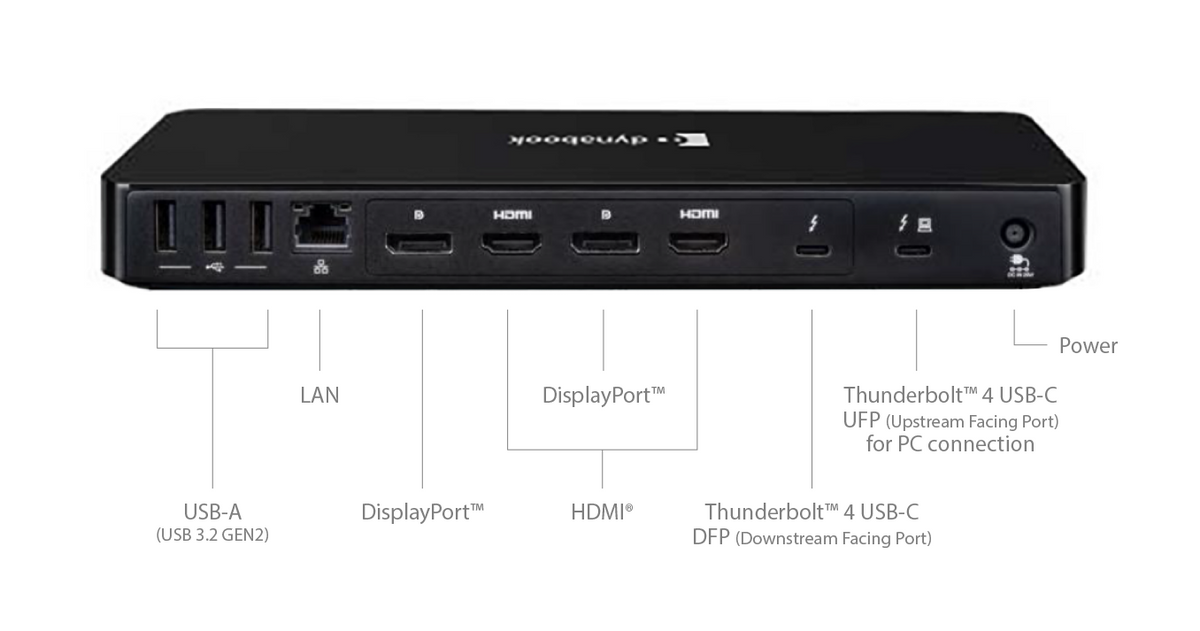

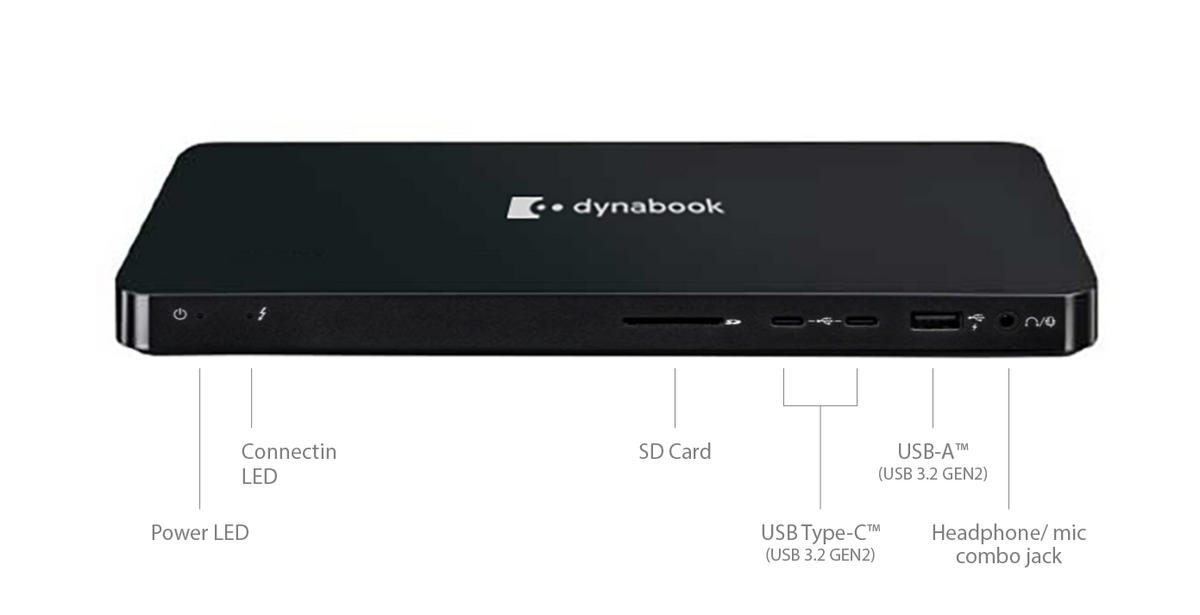

Comprehensive & flexible connectivity
Connect up to
4 displays
simultaneously
Up to 8K single
video resolution
Dual HDMI®
and DisplayPort™
video output
Charges your
laptop up to 90W
Additional
Thunderbolt™ 4
USB-C DFP Port
OUR DIFFERENTIATORS
Single-cable
port hub
One cable connection
for all your business
productivity &
efficiency
A powerhouse
of productivity
Full set of ports &
Thunderbolt™ 4
connectivity with up to 4 4K
displays
TECH SPECS
Specification
PA NumberPS0120LA1PRP
Supported resolutionSingle output: up to 8K @30Hz via Thunderbolt™ 4/USB-C or DisplayPort™. Dual output: up to 4K @60Hz. Triple output: up to 4K. Quad output: up to 4K @30Hz.
Video interface2x HDMI™, 2x DisplayPort™
Audio interface1x headphone/microphone combo jack
Other interfaces1x USB 3.2 Gen2 front port with Sleep and Charge, 3x USB 3.2 Gen2 rear ports, 2x USB Type-C USB 3.2 Gen2 ports, Thunderbolt 4 USB-C UFP and DFP ports, SD card reader and DC-IN jack.
Additional featuresPower button, security lock slot and LED indicators.
LAN1x RJ-45 Ethernet port, 10 Base-T / 100BASE-TX / 1000 Base-T
Supported video modePC screen only, Duplicate Mode, Extend Mode, second screen only
Power20V DC, 6.75A, 135W
System requirementsDynabook computer with Thunderbolt™ 4/USB Type-C™ video and power delivery support, Microsoft Windows 10 or 11.
Box contentDynabook Thunderbolt™ 4 Dock, Thunderbolt™ 4/USB Type-C™ cable, AC adaptor, power cord, Quick Start Guide and Warranty Leaflet.
Dimensions84 (W) x 245 (D) x 27 (H) mm
Weight~440g
ColorBlack
Warranty3 Years
*Support for up to four external displays or three monitors plus laptop display.
