Description

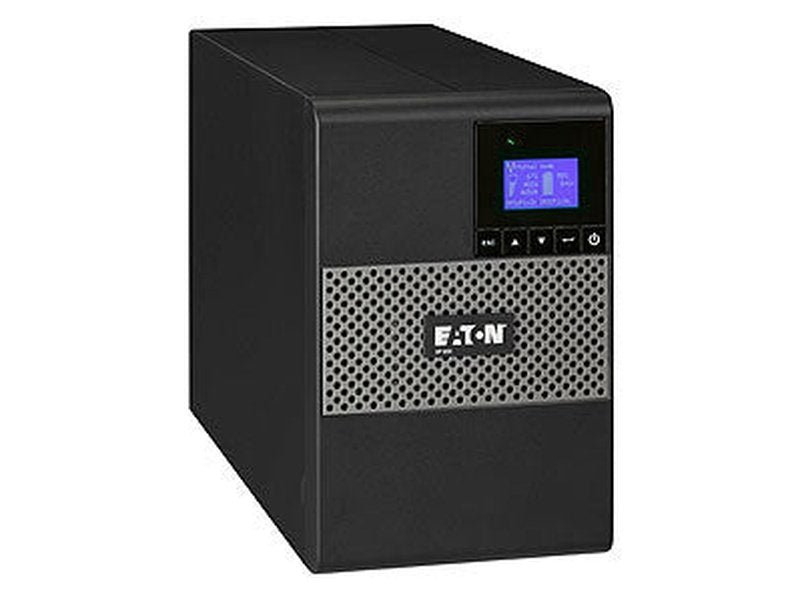

Eaton 5P UPS Tower Model
SKU: 5P650AU
The Eaton 5P UPS is a business-class back-up power solution available as a tower UPS, wall-mount UPS and rack-mount UPS. Several models are available as a compact UPS – which are 2U in height with shorter depths than a traditional UPS – making them perfect for 4-post or 2-post rail and wall mounting. The 5P UPS even offers flexibility in battery types with two models offering lithium-ion batteries. Complete your back-up power solution by pairing a 5P UPS with an Eaton Gigabit Network card – the first in the industry to comply with the UL and IEC cybersecurity standards – and the Brightlayer Data Centers suite software for seamless management of your connected equipment.
Applications: Network cabinets, server rooms, distributed IT, edge computing.
Graphical LCD
Energy efficient
Virtualisation-ready
GENERAL SPECIFICATIONS
Feature | Details |
---|---|
PRODUCT NAME | Eaton 5P UPS |
CATALOG NUMBER | 5P650AU |
PRODUCT LENGTH/DEPTH | 150 mm |
PRODUCT HEIGHT | 230 mm |
PRODUCT WIDTH | 345 mm |
PRODUCT WEIGHT | 7.8 kg |
COMPLIANCES | CB, C-Tick Compliant |
CERTIFICATIONS |
IEC/EN 62040-2 EN 62040-3 IEC/EN 62040-1 |
PRODUCT SPECIFICATIONS
Feature | Details |
---|---|
SPECIAL FEATURES |
|
TYPE | UPS |
TOPOLOGY | Line-interactive |
FORM FACTOR | Tower |
CONSTRUCTION TYPE | Free standing model |
COLOR | Black/silver |
VA RATING | 850 VA |
WATTAGE | 420 W |
RACK MOUNTING KIT | No |
PACKAGE CONTENTS |
|
AUTO SHUTDOWN FUNCTION | Yes |
INPUT CONNECTION | Fixed connection |
INPUT NOMINAL VOLTAGE | 230V default (200/208/220/230/240V) |
INPUT FREQUENCY RANGE | 47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40-70 Hz in low-sensitivity mode |
RECEPTACLE | (2) AU; (3) IEC C13 |
OUTPUT WAVEFORM | Sine wave |
VOLTAGE | 230V |
OUTPUT NOMINAL VOLTAGE | 230V default (200/208/220/230/240V) |
RUNTIME GRAPH | View runtime graph |
BATTERY MANAGEMENT | ABM or constant voltage charging method (user selectable), automatic battery test, deep discharge protection |
BATTERY REPLACEMENT | User replaceable |
BATTERY TYPE | Sealed, lead-acid |
EXTENDED BATTERY CAPABILITY | None; See Eaton 5PX UPS for extended runtimes options |
COMMUNICATION | 1 USB port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously), 1 mini-terminal block for remote ON/OFF and Remote Power Off |
EXPANSION SLOTS | One slot for optional communication card |
ETHERNET INTERFACE | No |
INCLUDES NETWORK CARD | No |
SOFTWARE COMPATIBILITY | Eaton Intelligent Power Manager, Eaton Intelligent Power Protector |
USER INTERFACE | Multilingual graphical LCD display |
TYPE OF INTERFACE | Other |
POTENTIAL FREE SWITCH CONTACT | Yes |
ALTITUDE | 2000 m |
NOISE LEVEL | <40 dB at 1 meter |
RELATIVE HUMIDITY | 0-90% non-condensing |
TEMPERATURE RANGE | 0° to 35°C (32° to 95°F) |
EFFICIENCY | 96% |
INPUT VOLTAGE RANGE | 160-294 V (adjustable to 150 V-294 V) |
OUTPUT FREQUENCY | 50/60 Hz ±0.1 % (autosensing) |
OUTPUT VOLTAGE RANGE | 230 V (+6%/-10%) |
PHASE (INPUT) | Single-phase |
PHASE (OUTPUT) | Single-phase |
RUNTIME AT FULL LOAD | 2 min |
