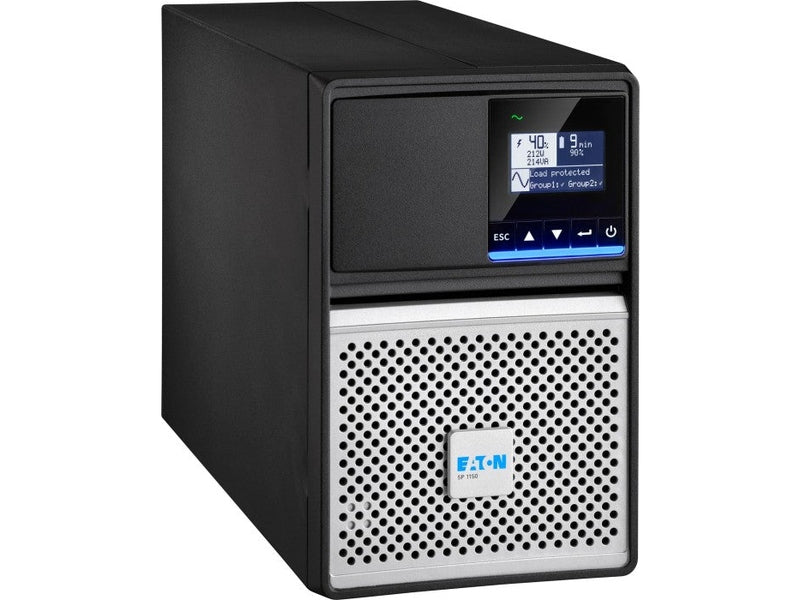

Eaton 5P1150AUG2 5P Gen 2 1150VA / 920W Tower UPS With LCD

EatonSKU: 5P1150AUG2

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$1,013.00

Estimate shipping

Description


Category Specifications
Rating (VA/W) 1150VA / 920W
Format Tower
Electrical Characteristics Technology
Line-Interactive High Frequency (Pure Sinewave, Booster + Fader)

Input nominal voltage
200V-240V

Input voltage range without using batteries
160V-294V (adjustable to 150V-294V)

Input frequency range without using batteries
47 to 70 Hz (50 Hz system), 56.5 to 70 Hz (60 Hz system), 40 Hz in low-sensitivity mode

Output voltage
230V (+6 / -10 %) (Adjustable to 200V / 208V / 220V / 230V / 240V), 50 / 60 Hz + / - 0.1 Hz (autosensing)
Connections Input
IEC C14 (10A)

Outputs Tower models
2 x AU 10A, 3 x IEC C13 (10A)

Outputs Rack 1U models
6 x IEC C13 (10A)

Switched outlets groups
2 outlet groups
Batteries Typical backup times *

200W:34

300W:19

400W:13

600W:7.5

800W:4

Battery management
Eaton ABM + or constant voltage charging method (user selectable), enhanced battery life time prediction based on usage conditions, battery exchange wizard, automatic battery test, deep discharge protection
Interfaces Communication ports
1 USB port + 1 serial RS232 port and relay contacts (USB and RS232 ports cannot be used simultaneously), 1 mini terminal block for Remote ON/ OFF and Remote Power OFF

Communication slot
1 slot for Network-M3, INDGW-M2 or Relay-MS cards
Operating conditions, Compliances and Certifications Operating temperature 0 to 40°C

Noise level <30 dB @ typical load

Safety IEC/EN 62040-1, UL1778, CSA22.2

EMC, Performance IEC/EN 62040-2, IEC / EN 62040-3, FCC Class B, CISPR 32 Class B

Approvals CE / CB report (TUV) / cTUVus / UKCA / Ukr / Cm

EcoDesign RoHS, REACH, WEEE, Packaging directive, Battery directive, PEP Ecopassport
Dimensions W x D x H / Weight 150x345x233mm / 11kg
