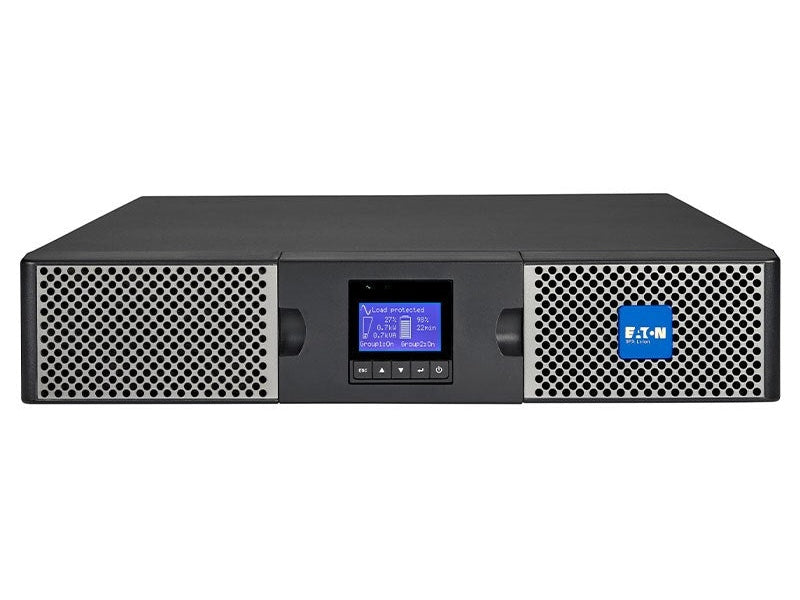

EATON 9PX 2000VA/1800W RACK/TOWER, 10AMP INPUT

EatonSKU: 9PX2000IRTAU

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$3,654.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Estimate shipping

Description

General

Topology
On-line double conversion with Power Factor Correction (PFC) system

Configuration
Rack/Tower

Part Number
9PX2000iRTAU

Rating (VA/Watts)
2000/1800

Dimensions (H x W x D, mm)
86.5 x 440 x605

Weight (kg)
27.4

Warranty
3 years electronics, 2 years battery

Electrical Input

Connection
(1) IEC-320-C14

Input Voltage Range
176-276V without derating (up to 100-276V with derating)

Nominal Voltage
200/208/220/230/240V

Frequency
50/60 Hz autoselection

Frequency Range
40-70 Hz

Electrical Output

Nominal Voltage
200/208/220/230/240V

Output Receptacles
(6) IEC-320-C13
(2) Aust. 10A

Remotely controlled sockets
2 Groups: (2) Aust. 10A & (2) IEC C13 10A

Efficiency (Normal Mode)
Up to 93% in online mode (Up to 98% in Hi-efficiency mode)

Output Frequency
50/60 Hz autoselect, frequency converter mode

Battery

Battery Management
ABM® & Temperature compensated charging method (user selectable), Automatic battery test, deep discharge protection, automatic recognition of external battery units

Extended Battery Capability
EBM (2U)

Communications

User Interface
Multilingual graphical LCD display

Communication Ports
1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for Remote Power Off + 1 mini-terminal block for Output relay

Communication Slot
1 slot for Network-MS card, ModBus-MS or Relay-MS cards

Environmental & Standards

Audible Noise
40dB

Operating Temperature
0 to 40°C

Safety markings
IEC/EN 62040-1, UL 1778, CSA 22.2

EMC Markings
IEC/EN 62040 -2 , FCC Class B, CISPR22 Class B

Approvals
CE /CB report (TUV) / cULus / EAC / RCM / KC / Energy Star
