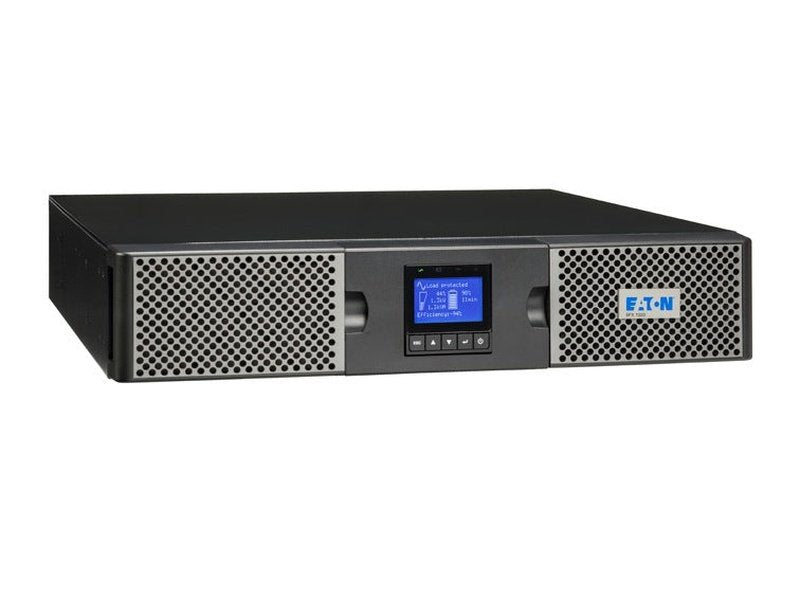

EATON 9PX 3000VA/3000W 2U RACK/TOWER, 16AMP INPUT

EatonSKU: 9PX3000IRT2UANZ

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$5,492.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Estimate shipping

Description

Overview


9PX3000IRT2U
Eaton 9PX 3000W RT2U (tower/rack 2U)



General

Topology On-line double conversion with Power Factor Correction (PFC) system

Configuration Rack/Tower

Part Number 9PX3000IRT2U

Rating (VA/Watts) 3000/3000

Dimensions (H x W x D, mm) 86.5 x 440 x 605

Weight (kg) 27.6

Warranty 3 years electronics, 2 years battery

Rail Kit Included Yes


Electrical Input


Connection
(1) IEC-320-C20

Input Voltage Range 176-276V without derating (up to 100-276V with derating)

Nominal Voltage 200/208/220/230/240V

Frequency 50/60 Hz autoselection

Frequency Range 40-70 Hz


Electrical Output


Nominal Voltage 200/208/220/230/240V

Outlets
(8) IEC-320-C13
IEC C13
(2) IEC-320-C19
IEC C19

Efficiency (Normal Mode) Up to 94% in online mode (Up to 98% in Hi-efficiency mode)

Output Frequency 50/60 Hz autoselect, frequency converter mode


Battery

Battery Management ABM® & Temperature compensated charging method (user selectable), Automatic battery test, deep discharge protection, automatic recognition of external battery units

Extended Battery Capability EBM (2U)


Communications

User Interface Multilingual graphical LCD display

Communication Ports 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for Remote Power Off + 1 mini-terminal block for Output relay

Communication Slot 1 slot for Network-MS card, ModBus-MS or Relay-MS cards.


Environmental & Standards


Audible Noise 40dB

Operating Temperature 0 to 40°C

Safety markings IEC/EN 62040-1, UL 1778, CSA 22.10

EMC Markings IEC/EN 62040 -2 , FCC Class B, CISPR22 Class B

Approvals CE /CB report (TUV) / cULus / EAC / RCM / KC / Energy Star
