EATON 9PX 3000VA/3000W 3U RACK/TOWER, 16AMP INPUT

EatonSKU: 9PX3000IRT3UANZ

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$5,492.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Payment & Security

Apple Pay Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Estimate shipping

Description

Overview

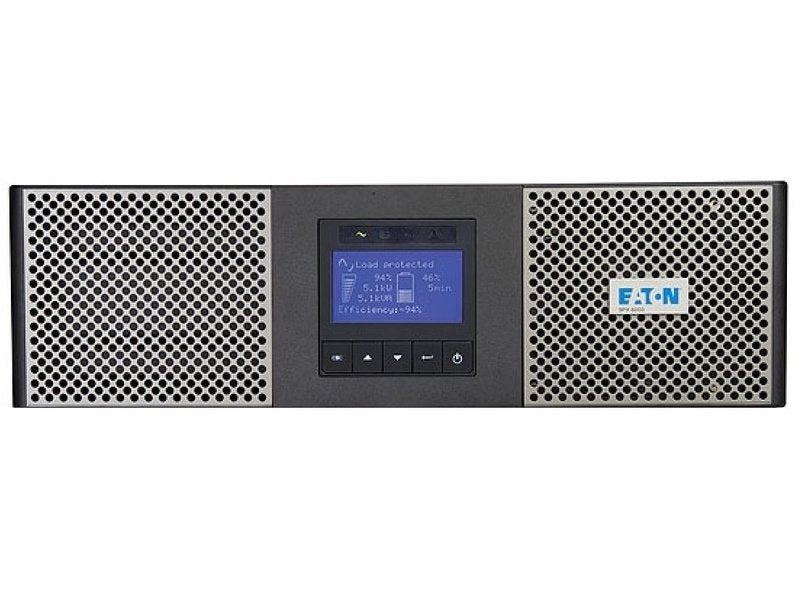

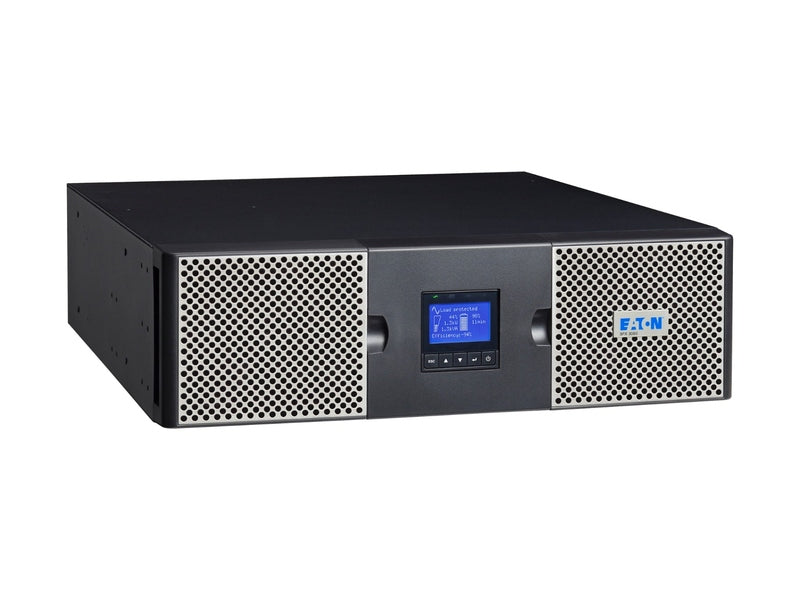

Eaton 9PX 3000W RT3U (tower/rack 3U short depth)

General

Topology
On-line double conversion with Power Factor Correction (PFC) system

Configuration
Rack/Tower

Part Number
9PX3000IRT3U

Rating (VA/Watts)
3000/3000

Dimensions (H x W x D, mm)
130 x 440 x 485

Weight (kg)
27.4

Warranty
3 years electronics, 2 years battery

Rail Kit Included
Yes


Electrical Input

Connection
(1) IEC-320-C20
IEC C20

Input Voltage Range

176-276V without derating (up to 100-276V with derating)

Nominal Voltage

200/208/220/230/240V

Frequency
50/60 Hz autoselection

Frequency Range
40-70 Hz


Electrical Output

Nominal Voltage

200/208/220/230/240V

Output Receptacles

(8) IEC-320-C13
IEC C13

(2) IEC-320-C19
IEC C19

Efficiency (Normal Mode)

Up to 94% in online mode (Up to 98% in Hi-efficiency mode)

Output Frequency
50/60 Hz autoselect, frequency converter mode


Communications

User Interface

Multilingual graphical LCD display

Communication Ports
1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for Remote Power Off + 1 mini-terminal block for Output relay

Communication Slot
1 slot for Network-MS card, ModBus-MS or Relay-MS cards.


Environmental & Standards

Audible Noise

40dB

Operating Temperature

0 to 40°C

Safety markings
IEC/EN 62040-1, UL 1778, CSA 22.11

EMC Markings

IEC/EN 62040 -2 , FCC Class B, CISPR22 Class B

Approvals
CE /CB report (TUV) / cULus / EAC / RCM / KC / Energy Star
