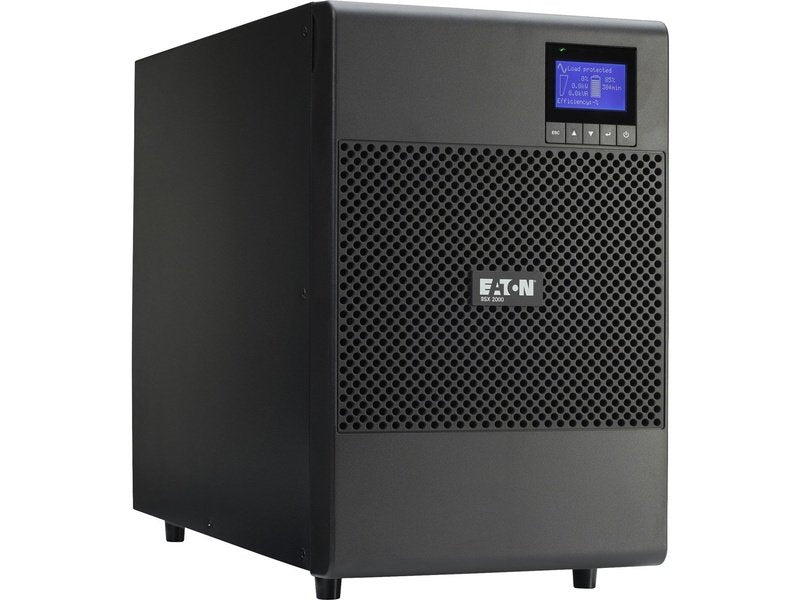

EATON 9SX 2000VA/1800W ON LINE TOWER UPS 240V

EatonSKU: 9SX2000I-AU

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$3,511.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Estimate shipping

Description

Overview


Eaton 9SX 2000I


General

Topology
On-line double conversion with PFC (Power Factor Correction) system

Configuration
Tower

Part Number
9SX2000I-AU

Rating (VA/Watts)
2000/1800

Dimensions (H x W x D, mm)
346 x 214 x 412

Warranty
2 years

Electrical Input
Connection
(1) IEC-320-C14
IEC C14

Input Voltage Range
200-276V without derating (up to 140-276V with derating)

Nominal Voltage
200/208/220/230/240V

Frequency
50/60 Hz autoselection

Frequency Range
40-70 Hz

Electrical Output

Output Receptacles
(1) IEC-320-C19
IEC C19
(5) Aust. 10A
Australian 10A

Output Frequency
50/60 Hz autoselect, frequency converter as standard

Battery

Battery Management
ABM® and Temperature compensated charging method (user selectable), automatic battery test, deep discharge protection, automatic recognition of external battery units.

Extended Battery Capability
EBM

Communications

User Interface
Multilingual graphical LCD display

Communication Ports
1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off + 1 mini-terminal block for Output relay

Communication Slot
1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards

Environmental & Standards

Audible Noise
<45dB

Operating Temperature
0 to 40°C continuous

Safety markings
IEC/EN 62040-1, UL 1778, CSA 22.2

EMC Markings
IEC/EN 62040 -2 , FCC Class B, CISPR22 Class B

Approvals
CE /CB report (TUV) / cULus / EAC / RCM
