Eaton 9SX 36V Tower Extended Battery Module

EatonSKU: 9SXEBM36T

Availability:

🚚 In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Pickup available at PC LAN Store

1-3 Business Days

Price:
Sale price$1,087.00
1

Estimate shipping

Description

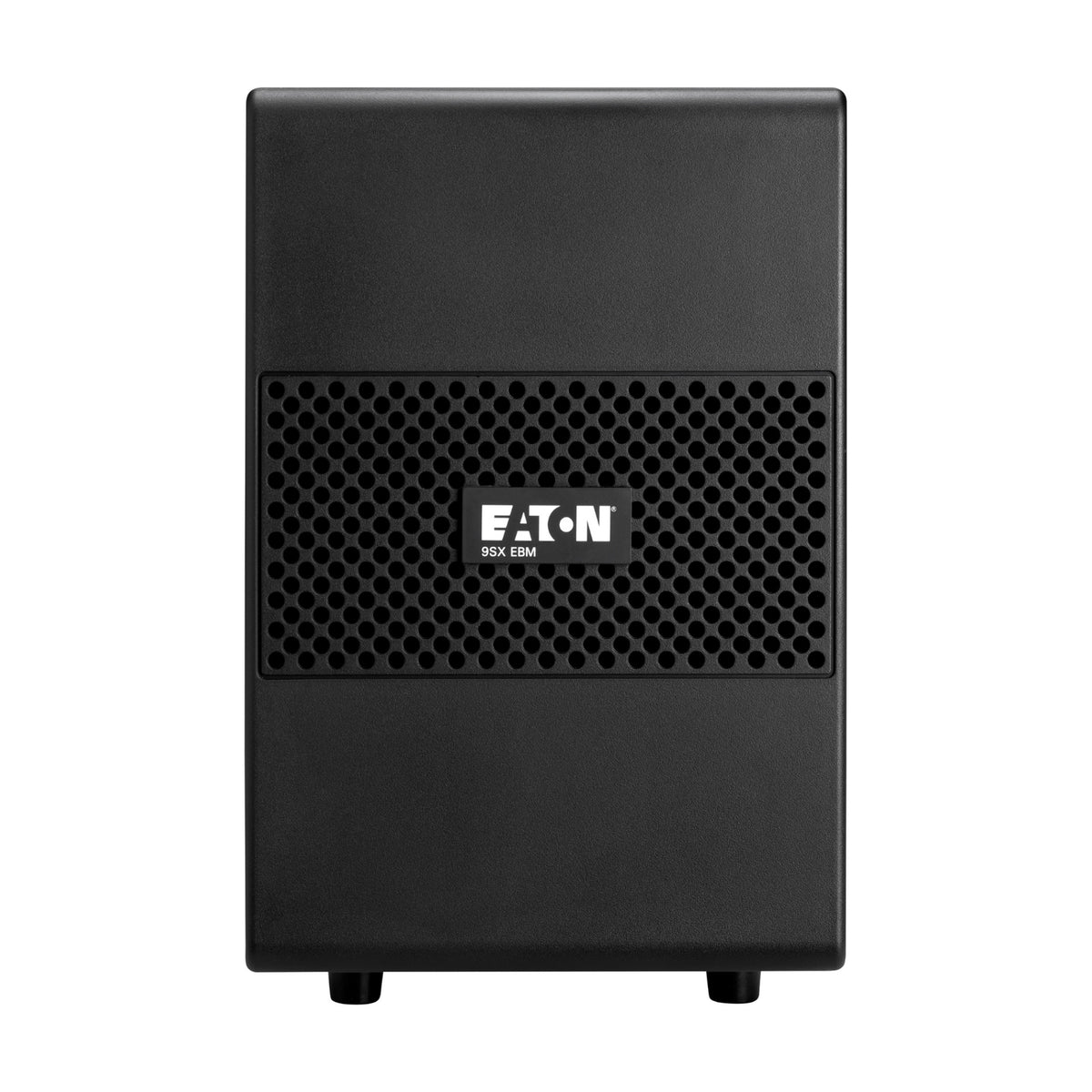

Eaton 9SX 36V Tower Extended Battery Module

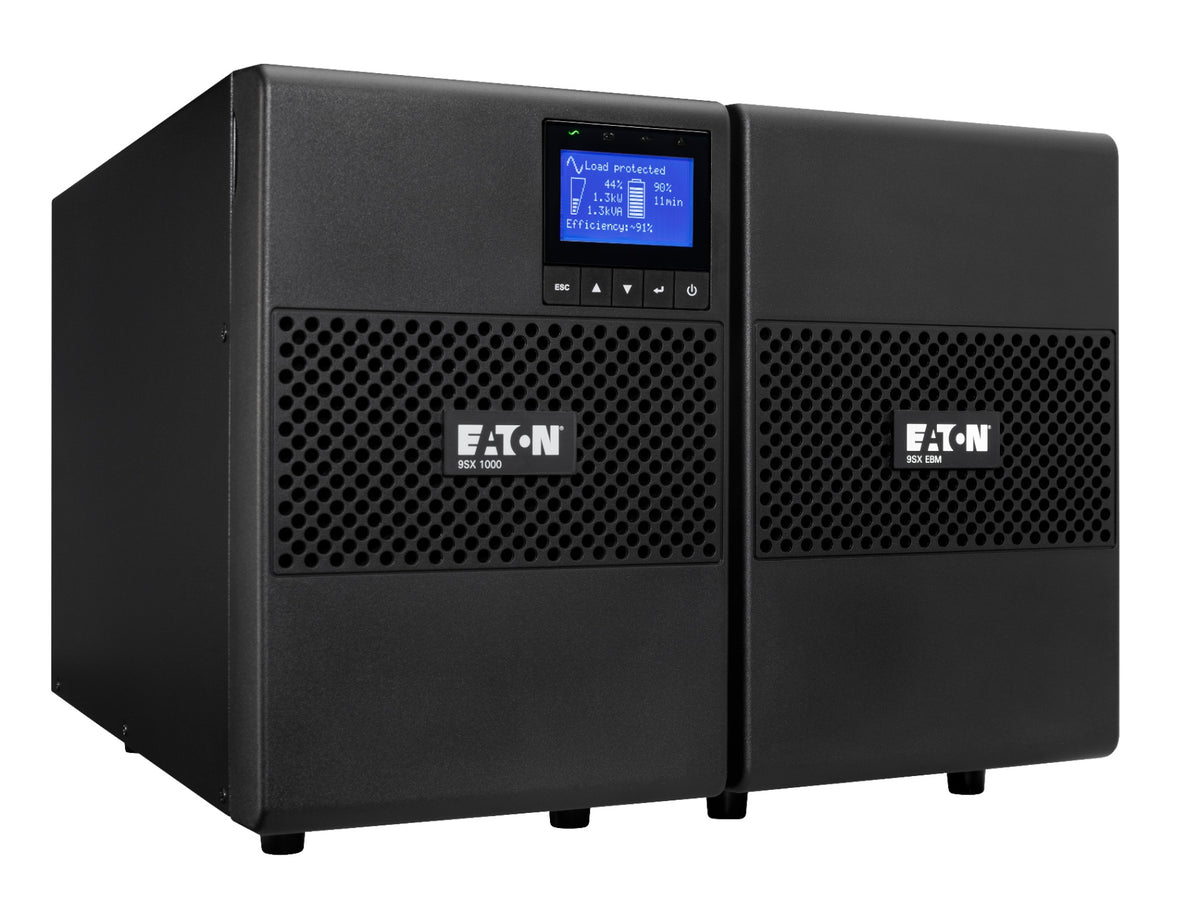

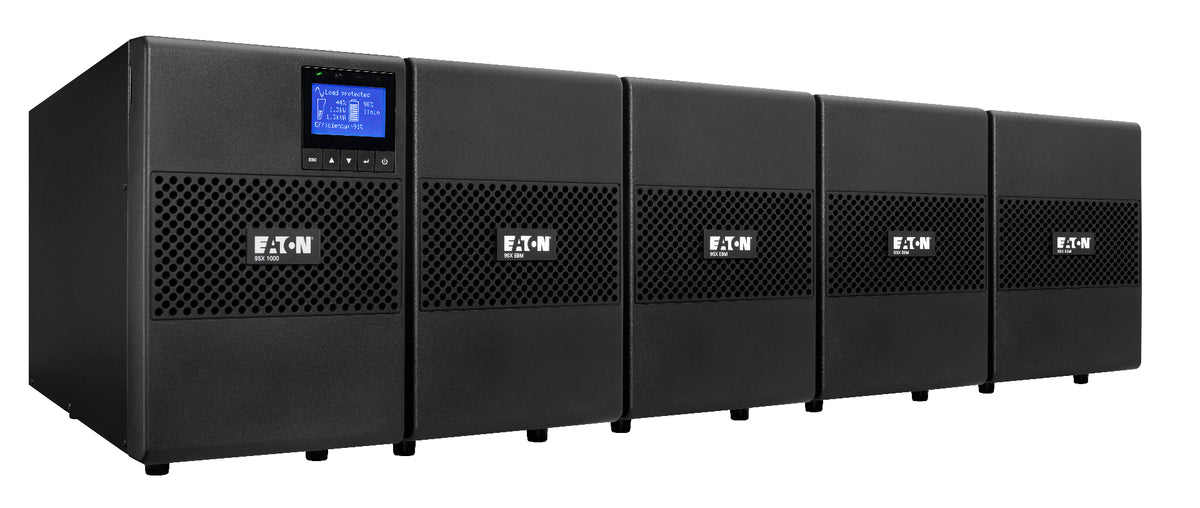

The Eaton 9SX Extended Battery Module (EBM) 36V (model 9SXEBM36T) is a tower-format external battery pack that expands runtime for Eaton 9SX 1000VA UPS systems. The module contains six sealed lead-acid batteries (12 V / 9 Ah each) delivering a 36 V pack and supports hot-swappable, scalable runtime by connecting up to four EBMs in parallel. Designed as a free-standing tower unit in black, it includes the EBM power cable, EBM detection cable and a Quickstart guide. Certified to relevant safety and EMC standards and backed by a 2-year manufacturer warranty.

Specification

Product Name
Eaton 9SX Extended battery module
Catalog Number
9SXEBM36T
UPC
743172091154
Product Length/Depth
387 mm
Product Height
252 mm
Product Width
160 mm
Product Weight
19 kg
Compliances
CE Marked
TUV
cULus Listed
CSA 22.2
FCC part 15 Class B
CISPR22 Class B
Certifications
IEC/EN 62040-1
UL 1778
IEC/EN 62040-2
CE
cULus Listed
EAC
