Grandstream GWN7604 Wi-Fi 6 Access Point With Integrated Gigabit Ethernet Switch 2x2 802.11AX AX3000

GrandstreamSKU: GWN7604

  • Built-in Wi-Fi 6 Access Point: Dual-band Wi-Fi 6 (802.11ax) with 2×2 MU-MIMO on 2.4GHz (up to 573.5Mbps) and 3×3:2 MU-MIMO on 5GHz (up to 2.4Gbps), supporting up to 256 wireless clients.
  • Network Interfaces: 1× Gigabit PoE/PoE+ uplink port, 2× Gigabit LAN ports with PoE PSE output, and 1× additional Gigabit Ethernet port.
  • PoE Support: IEEE 802.3af/at compliant with up to 12W total PoE output budget for LAN2/LAN3 devices.
  • Wireless Security: Supports WPA3, WPA2/WPA Enterprise, WEP, secure boot, digital signature verification, unique security certificates, and randomized default passwords.
  • Enterprise Wireless Features: Supports up to 32 SSIDs (16 per radio), internal dual-band antennas, and wireless coverage up to 100 meters.
  • Built-in Unified Communications: Integrated IP PBX delivers voice and video communications with advanced collaboration features and optional PBX upgrades.
  • Integrated Network Security: Built-in firewall includes antivirus, Layer 3–7 IDS/IPS, DPI, SSL inspection, VPN routing, encrypted traffic protection, and secure boot.
  • Integrated Networking: Includes a built-in VPN router supporting up to 2.5Gbps or 3Gbps throughput, multiple WAN ports with load balancing and failover, and selected models feature a Gigabit switch with PoE ports and 2.5GbE SFP uplinks.
  • Centralized Management: Easily deploy and manage all Grandstream endpoints through GDMS Cloud, mobile app, local Web UI, SSH, or SNMP.

Availability:

🚚 In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Pickup available at PC LAN Store

1-3 Business Days

Price:
Sale price$138.00
1

Estimate shipping

Description

GWN7604
Wi-Fi 6 Access Point with Integrated PoE Switch

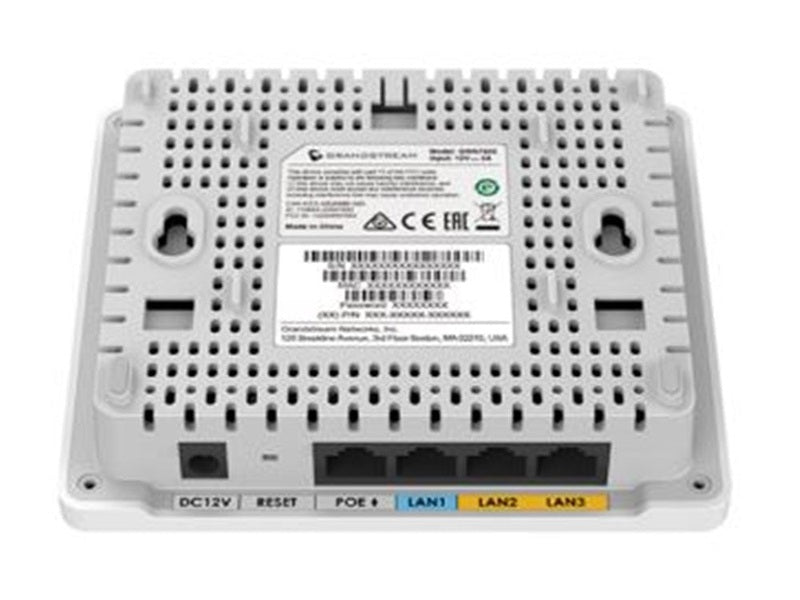

The GWN7604 is a compact and versatile Wi-Fi 6 Access Point with 4 Gigabit Ethernet ports, including one uplink port that can receive PoE/PoE+ to power the access point and two ports with PSE that can provide PoE and a network connection to other devices.

Features:

  • 3Gbps aggregate wireless throughput, 4x Gigabit ports
  • Up to 100 meters coverage range
  • Self power adaptation upon auto detection of PoE/PoE+ and PSE
  • Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
  • Supports up to 256 concurrent Wi-Fi client devices
  • Advanced QoS to ensure real-time performance of low-latency applications

Specification

Specs
Client DevicesUp to 256
2.4G Throughput573.5Mbps (2x2:2 MU-MIMO)
5G Throughput2.4Gbps (3x3:2 MU-MIMO)
6G THROUGHPUTN/A
RangeUp to 100 Meters
Network Interfaces1 x 10/100/1000M uplink Ethernet port with POE/POE+ 2 x 10/100/1000M Ethernet port with PSE 1 x 10/100/1000M Ethernet port
PoE/PoE+PoE 802.3af/ 802.3at PSE max output: Total 12W power budget for LAN2/LAN3 Maximum Power Consumption: 7.5W (Excluding PoE Output)
Wi-Fi StandardsIEEE 802.11a/b/g/n/ac/ax
SSIDs32 SSIDs total, 16 per radio (2.4GHz and 5 GHz)
Antennas2 x dual-band internal antennas,1x 5G internal antenna
Wi-Fi and Security SystemsWEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/ control lockdown via digital signatures, unique security certificate and random default password per device
Dimensions135mm(L) x 115mm(H) x 30mm(W)
MountingIndoor Wall mount
