Description

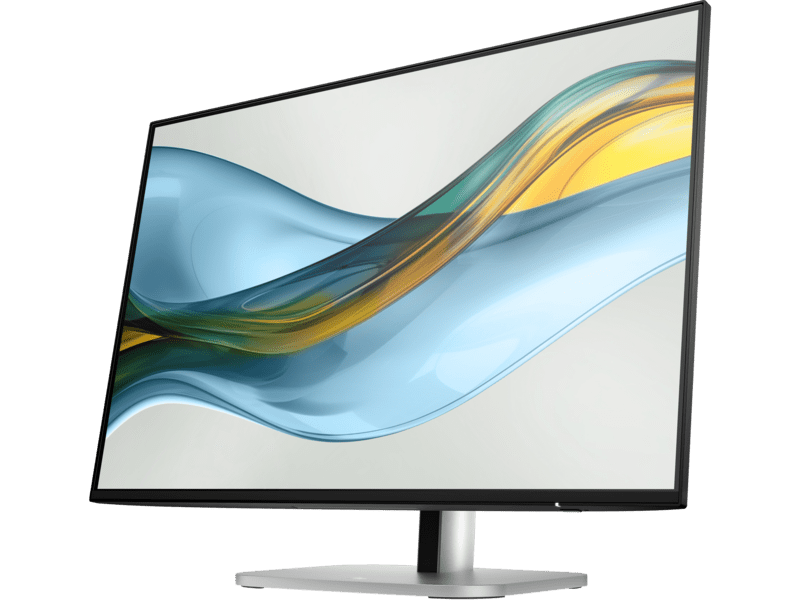

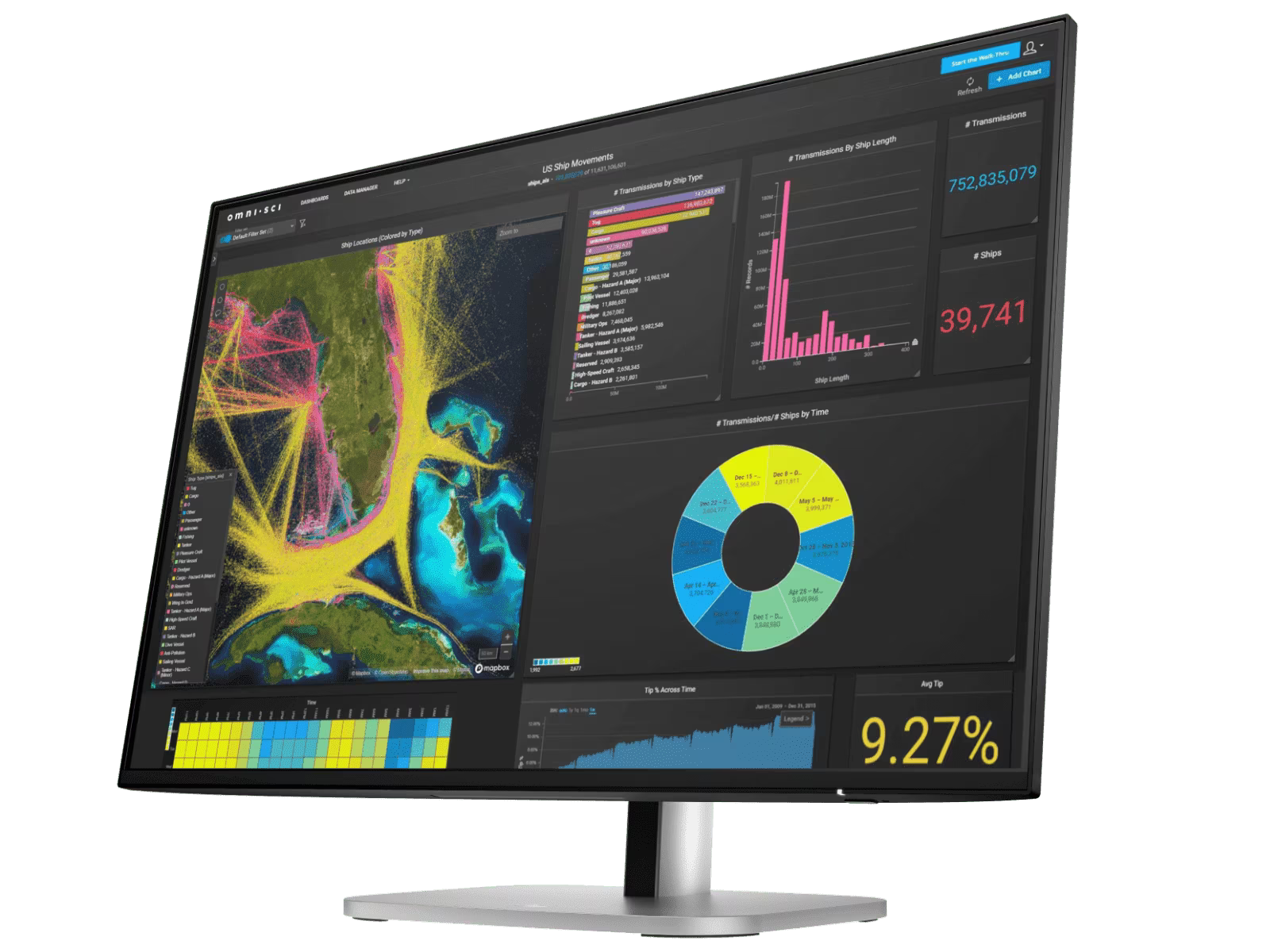

HP Series 5 Pro 24 inch WUXGA Monitor - 524pn (9D9A7AA)

- 24 inch WUXGA (1920 x 1200 @ 100 Hz)
- Flat IPS, LCD with Edge-lit, WLED
- 1 DisplayPort™ 1.2, 1 HDMI 1.4, USB hub
- Tilt and Height Adjustable, Pivot, Swivel Stand
- Anti-glare, HP Eye Ease, Progressive white balance
Elevate your productivity
See more of your work and get more done on this 24" WUXGA resolution monitor. A lightning-fast 100 Hz refresh rate[1] brings out every detail. Elevate your view even more by experiencing bright, vibrant, consistent colors with 100% sRGB[1] and HP Progressive White Balance.[2]
Designed to inspire
Change the way you see your desk. See more of your display with the 3-sided borderless with micro-edge bezel design. To get even more done, pair this display with another HP Series 5 Pro 24" WUXGA monitor[4] and a dock[3] for the perfect dual display setup[13].
Take control of your comfort
Find a way to feel your best all day with 4-way adjustability optimized by the step-by-step Ergonomic Setup Guide[5] in HP Display Center[9]. Keep your eyes comfortable with HP Eye Ease by reducing blue light without impacting color.
Materials that make an impact
The better choice for a brighter tomorrow, this energy-efficient monitor's enclosure contains at least 90% recycled plastic content[6]. And with 100% of paper-based packaging sustainably sourced[7], you can feel good about your purchase.
HP Series 5 Pro 24 inch WUXGA Monitor - 524pn (9D9A7AA)
| Display size (diagonal) |
24" |
|---|---|
| Display size (diagonal) |
61 cm (24") |
| Panel technology |
IPS; LCD 1 |
| Display features |
Anti-glare; Height Adjust/Tilt/Swivel/Pivot; HP Eye Ease; Progressive white balance 2 |
| Color gamut |
100% sRGB |
| Onscreen controls |
Brightness+; Color; Image; Input; Power; Menu; Management; Information; Exit |
| Native resolution |
WUXGA (1920 x 1200) 1 3 |
| Resolutions supported |
640 x 480 @ 60 Hz; 640 x 480 @ 75 Hz; 720 x 400 @ 70 Hz; 800 x 600 @ 60 Hz; 800 x 600 @ 75 Hz; 1024 x 768 @ 60 Hz; 1280 x 720 @ 60 Hz; 1280 x 1024 @ 60 Hz; 1440 x 900 @ 60 Hz; 1600 x 900 @ 60 Hz; 1680 x 1050 @ 60 Hz; 1920 x 1080 @ 50 Hz; 1920 x 1080 @ 60 Hz; 1920 x 1080 @ 100 Hz; 1920 x 1200 @ 60 Hz; 1280 x 1024 @ 75 Hz; 720 x 480 @ 60 Hz; 720 x 576 @ 50 Hz; 1024 x 768 @ 75 Hz; 1280 x 720 @ 50 Hz; 1280 x 720 @ 100 Hz; 1280 x 800 @ 60 Hz; 1920 x 1080 @ 75 Hz; 1920 x 1200 @ 75 Hz; 1920 x 1200 @ 100 Hz |
| Contrast ratio |
1500:1 1 |
| Display contrast ratio (dynamic) |
10000000:1 |
| Brightness |
350 nits 1 |
| Pixel pitch |
0.27 x 0.27 mm 1 |
| USB Type-A |
4 USB Type-A 5Gbps signaling rate (1 charging) |
| Usb b (hub enablement) |
1 USB-B |
| DisplayPort™ |
1 DisplayPort™ 1.2 |
| HDCP |
Yes, DisplayPort™ and HDMI |
| HDMI |
1 HDMI 1.4 |
| VESA mounting |
100 x 100 mm |
| Dimensions (W x D x H) |
53.28 x 4.7 x 34.29 cm (without stand) |
| Dimensions With Stand (W x D x H) |
53.28 x 18.95 x 51.75 cm |
| Package dimensions (W x D x H) |
62.1 x 14 x 41.1 cm |
| Weight |
5.1 kg (with stand) |
| Package weight |
7.4 kg (with stand) |
| Screen treatment |
Anti-glare |
| swivel |
±45° |
| Tilt |
-5 to +23° |
| Horizontal viewing angle |
178° |
| Vertical viewing angle |
178° |
| Aspect ratio |
16:10 1 |
| Backlight type |
Edge-lit; WLED |
| Bezel |
3-sided borderless |
| Curvature |
Flat |
| Display area (metric) |
51.84 x 32.4 cm |
| Height adjustment range |
150 mm |
| Response time (typical) |
5ms GtG (with overdrive) 1 |
| Display scan frequency (horizontal) |
30-130 kHz |
| Display scan frequency (vertical) |
50-100 Hz |
| Flicker-free |
Yes |
| Hardness |
3H |
| Low blue light |
Yes, HP Eye Ease (TÜV Low Blue Light Hardware Solution certified) 1 |
| Panel bit depth |
8 bit (6 bit + FRC) |
| pivot |
±90° |
| Pixels per inch (ppi) |
94 ppi |
| Resolution (maximum) |
WUXGA (1920 x 1200 @ 100 Hz) |
| Management Software |
HP Display Center; HP Client Management Script Library |
| Physical security |
Security lock-ready 4 |
| Power |
100 - 240 VAC 50/60 Hz |
| Power supply type |
Internal |
| Power consumption |
58 W (maximum), 22 W (typical), 0.5 W (standby) |
| Operating humidity range |
20 to 80% RH (non-condensing) |
| Non-Operating Humidity Range |
5–95% |
| Operating temperature range |
5 to 35°C |
| Operating temperature range |
41 to 95°F |
| Sustainable impact specifications |
Low halogen; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable; Outside box and corrugated cushions are 100% sustainably sourced and recyclable; 85% ITE-derived closed loop plastic; Contains ocean-bound plastic; Contains 20% recycled glass in the monitor panel; At least 30% recycled metal including 90% recycled aluminum in the stand 5 6 7 8 9 10 |
| What's in the box |
Monitor; DisplayPort™ cable; HDMI cable; Warranty card; USB Type-B to A cable; Quick Setup Poster; AC power cord 11 |
