Description

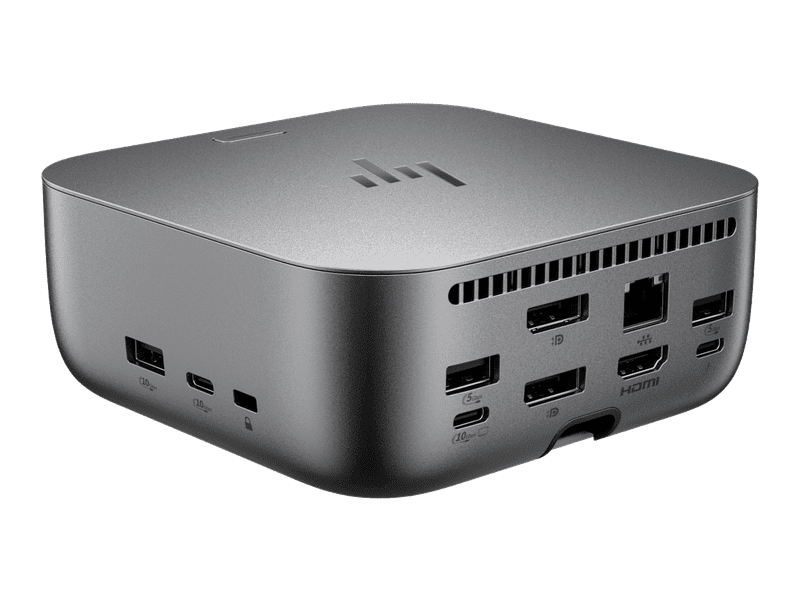

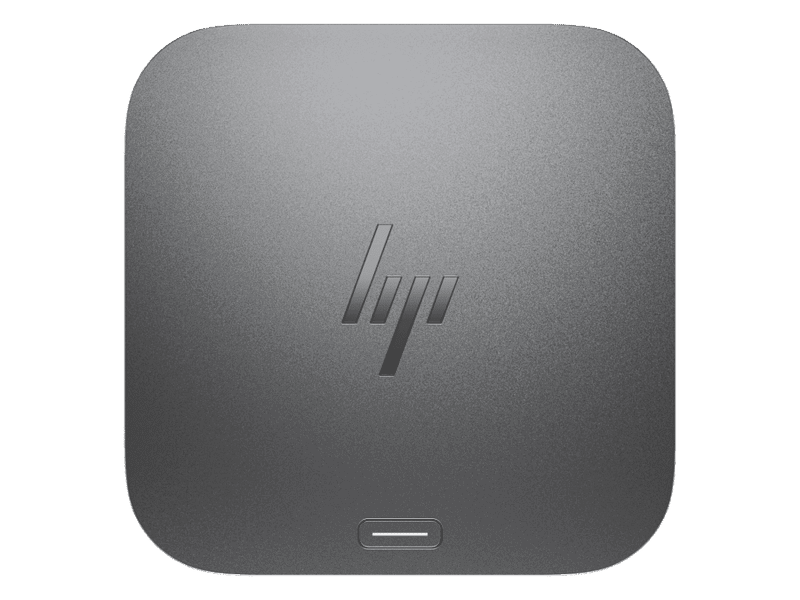

HP Thunderbolt 4 Ultra 180W G6 Dock (9X481UT)
(with Thunderbolt 4 cable shown)
- (1) USB Type-A 3.2 Gen 2 (10 Gbps) charging port
- (1) Mechanical power button with RGB LED<sup>1</sup>
- (1) USB Type-A 3.2 Gen 2 (10 Gbps) charging port
- (1) USB Type-C 3.2 Gen 2 (10 Gbps) port with data and power out (15W)
- (1) Thunderbolt 4 cable (40 Gbps) to connect to host system
1. The dock power button may support non-HP notebooks that have implemented USB Power Delivery specification to support Extended Alert
messages.
2. Up to 180W power delivery through the Thunderbolt 4 cable available on PC's that support PD 3.1.
HP Thunderbolt 4 Ultra 180W TAA G6 Dock
- (1) USB Type-A 3.2 Gen 2 (10 Gbps) charging port
- (1) USB Type-C 3.2 Gen 2 (10 Gbps) port with data and power out (15W)
- (1) Nano security lock slot
- (1) USB Type-A 3.2 Gen 1 (5 Gbps) charging port
- (1) USB Type-C 3.2 Gen 2 with DisplayPort Alt Mode
- (2) DisplayPort 1.4 ports
- (1) HDMI 2.1 port
- (1) Thunderbolt 4 port
- (1) USB Type-A 3.2 Gen 1 (5 Gbps) charging port
- (1) Ethernet port (2.5 Gbps)
1. Requires infrastructure that supports 2.5GB Ethernet speeds.
-
(1) Thunderbolt 4 cable connector
-
Bottom cover latch
-
(1) RGB LED bar
Specifications
Category | Details |
---|---|
Part Number | 9X481UT |
Dimensions (HxWxD) | 121.2 x 121.2 x 50.5 mm (4.77 x 4.77 x 2 in) |
Weight | 0.65–0.8 kg (1.43–1.76 lb) |
Cable Type / Length | Thunderbolt™ 4 / 1 m (3.2 ft) |
Power Delivery | Up to 180W (HP and non-HP systems with PD 3.1 support) |
Security | HP Wolf Security, HP Sure Start |
Supported OS | Windows 10+, ChromeOS, macOS, Linux, ThinPro |
Tested Platforms | Select HP commercial and 3rd-party PCs (HP Compatibility Tool) |
Compatible HP Platforms | Extensive list including HP EliteBook, ZBook, ProBook, and AI PCs (G11 and G1i series) |
Top Components | Power button with RGB LED |
Front I/O | - 1x USB-C 3.2 Gen 2 (10 Gbps, 15W) - 1x RGB LED bar |
Right Side I/O | - 1x USB-A 3.2 Gen 2 (10 Gbps, charging) - 1x USB-C 3.2 Gen 2 (10 Gbps, 15W) - 1x Nano security lock slot |
Left Side I/O | - 2x USB-A 3.2 Gen 2 (10 Gbps, charging) |
Back I/O | - 2x USB-A 3.2 Gen 1 (5 Gbps, charging) - 1x USB-C 3.2 Gen 2 (DP) - 2x DisplayPort 1.4 - 1x HDMI 2.1 - 1x Thunderbolt 4 - 1x Ethernet (2.5 Gbps) - 1x Thunderbolt 4 host cable |
Dock LED Indicators | RGB LED (White, Blue, Amber, Green, Red) for power button and LED bar |
Networking & Manageability | PXE Boot, Wake-on-LAN, MAC Pass-through, vPro, WLAN-LAN switching, Disable LAN, HP CMSL, eTag, Event messaging |
Wireless Connectivity | Realtek RTL8721DM Wi-Fi (802.11 a/b/g/n) + Bluetooth® |
Software Included | Poly Lens, HP Quick Connect, myHP |
Display Support | Up to 4 external displays Max resolution: up to 8K Max refresh: up to 360Hz |
Video Output Details | Varies based on connection type and display compression support (see below) |
Resolution Examples* | Thunderbolt Dual DP: up to (4) 4K @60Hz or 8K @60Hz Single DP: same capability Non-TB: up to FHD @360Hz or 4K @120Hz (requires DSC) |
Certifications | Intel® Thunderbolt™ 4 |
Operating Temp. | 0°C to 35°C (32°F to 95°F) |
Non-Operating Temp. | -20°C to 60°C (-4°F to 140°F) |
Humidity | Operating: 10%–90% Non-operating: 5%–95% |
Altitude | Operating: -15 m to 3,048 m Non-operating: -15 m to 12,192 m |
Security Slot Type | 1x Nano security slot |
Warranty | 3-Year Limited Warranty (3-0-0) |
Package Contents | Dock, 230W power adapter, power cord, product notice, warranty card |
Country of Origin | China, Thailand |
