Value SAS SSDs Deliver Twice the Interface Speed of SATA SSDs at a Lower Cost than SAS SSDs
HPE Value SAS Solid State Drives support full-duplex 12 Gb, versus SATA SSDs that are bottlenecked by the simplex 6 Gb SATA interface specification.
Featuring similar price points to 6 Gb SATA SSDs and capacities ranging from 960 GB to 7.68 TB, HPE 12 Gb Value SAS RI SSDs deliver significantly more performance per dollar and are designed to easily replace enterprise SATA SSDs in server applications.
HPE Value SAS SSDs offer a significant random IOPS performance boost over 6 Gb SATA SSDs with 1.94x1 more random read IOPS and 1.75x1 more random mixed IOPS performance.
HPE Value SAS SSDs also deliver sequential bandwidth performance gains of 1.5x1 more read bandwidth and 1.27x1 more write bandwidth than SATA SSDs.
Value SAS SSDs Run More Data Analytic Workloads in Less Time and with Lower Latency than SATA SSDs
HPE Value SAS Solid State Drives offer faster connection rates that can improve the performance of decision support system applications than SATA SSDs.
Value SAS SSDs deliver faster, lower latency storage performance than 6 Gb SATA SSDs which enables data retrieval sooner with up to 25%2 less time needed to complete query sets than SATA SSDs.
Value SAS SSDs save time executing data analytic workloads with up to 30%2 lower read latency needed to access and pull data compared to 6 Gb SATA SSDs.
By improving performance at similar price points, Value SAS SSD delivers up to 22%2 better data analytics performance per dollar than 6Gb SATA SSDs.
HPE Multi Vendor Offering for Value SAS SSDs Help Simplify Purchasing Decisions While Improving TCO
HPE Multi Vendor offering provides shorter lead times to best available HPE 12 Gb Value SAS SSD supply.
Preferable pricing on HPE qualified Value SAS SSDs and extended SKU lifecycles simplifies the procurement process.
Assurance that the HPE Value SAS Solid State Drives selected delivers the minimum performance published or better.
The specified performance capabilities of enterprise SATA and Value SAS SSDs per HPE published SSD QuickSpecs October 2020 comparing the single highest performance specification of any capacity or SKU offering (random mixed performance = 4K Random 70% Read / 30% Write Queue 32 IOPS performance). https://h20195.www2.hpe.com/v2/getdocument.aspx?docname=a00001288enw
From the Principled Technologies® Report entitled, “Make business decisions faster with value SAS and data center NVMe™ SSDs from Toshiba Memory,” and available at: https://www.principledtechnologies.com/KIOXIA/RM5-Series-value-SAS-and-CD5-NVMe-mainstream-vs-SATA-decision-support-1019-v2.pdf June 2019
Lifetime writes 1,750
Endurance DWPD (Drive Writes Per Day) 1
Random Read IOPS (4KiB, Q=16)=105,000
Max Random Read IOPS (4KiB)=155,000@Q32
Random Write IOPS (4KiB, Q=16)=32,000
Max Random Write IOPS (4KiB)=32,000@Q4
Power (Watts) 9.65
Plug type Hot Pluggable
Height 15 mm
HPE Solid State Drives and Add-In Cards have a standard 3/0/0 warranty; Customer Self Repair (CSR) subject to maximum usage limitations. Maximum usage limit is the maximum amount of data that can be written to the drive. Drives that have reached this limit will not be eligible for warranty coverage.
Weight 1.1 lb
Weight 0.5 kg
Minimum dimensions ( H x W x D) 8.63 x 9 x 5.75 in
Minimum dimensions ( H x W x D) 21.92 x 22.86 x 14.61 cm
Detailed product description

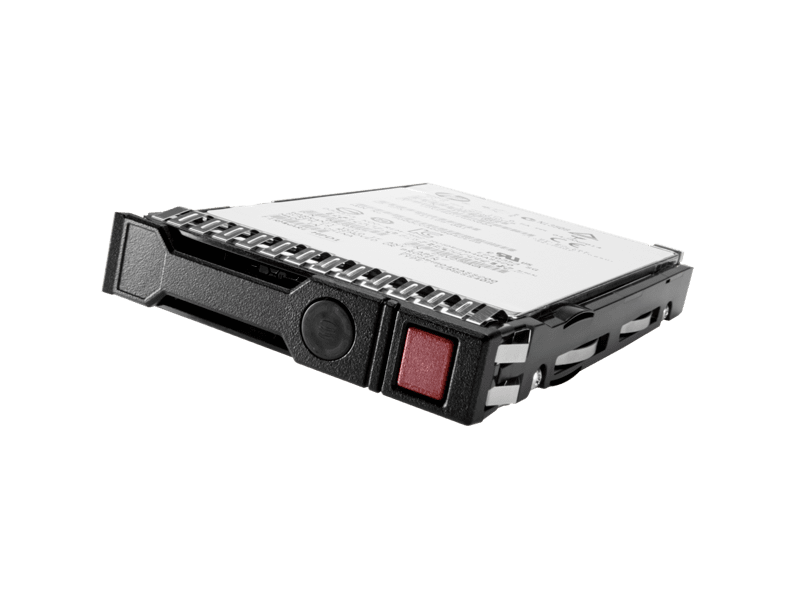

HPE 960 GB, SAS, read intensive, digitally signed FW, solid state, small form factor Multi Vendor value SAS drive in a Smart Carrier with 3-year warranty
Platform supported HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
