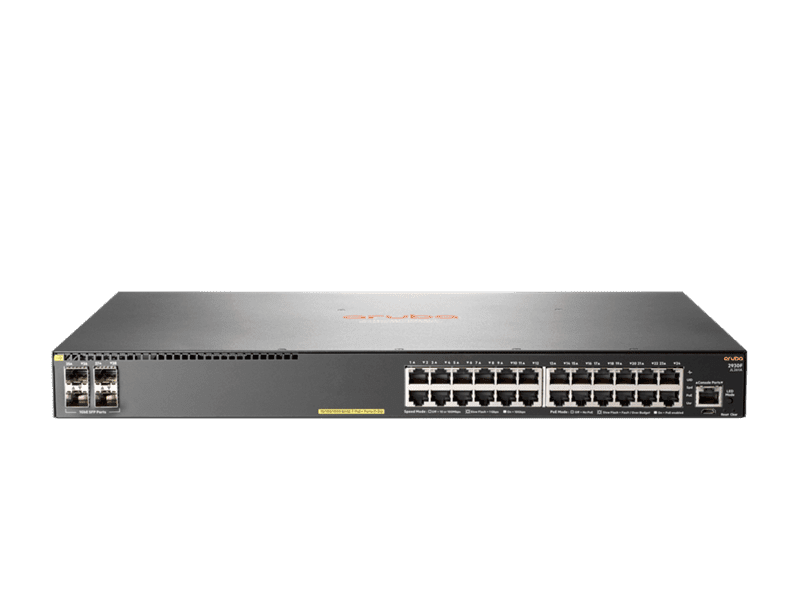

HPE JL261A Aruba 2930F 24-Port POE+ 370W Manageable Gigabit Switch with 4SFP

HPE ArubaSKU: JL261A

Availability:

✅ In Stock at PC LAN Store

Price:
Sale price$1,514.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Payment & Security

Apple Pay Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Estimate shipping

Description

Aruba 2930F 24G PoE+ 4SFP Switch [JL261A]

The Aruba 2930F Switch Series is designed for customer creating digital workplaces optimized for mobile users. These Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central. Virtual Switching Framework (VSF) provides stacking scale and simplicity for enterprise edge, SMB and branch offices. The 2930F delivers performance and value with support for RIP routing, Access OSPF, 10GbE uplinks, up to 740W PoE+, robust QoS, and requires no software licensing.



What's New

  • Aruba Layer 3 switch series that is easy to deploy and manage with Aruba ClearPass Policy Manager and Aruba AirWave.
  • Simplify with zero touch provisioning (ZTP) and cloud-based Aruba Central support.
  • Scale with 8 chassis VSF stacking.
  • Convenient built-in 1GbE or 10GbE uplinks and up to 740W PoE+.

Key Features

High-Performance Access Layer Switches

The Aruba 2930F Switch Series provides performance, security, and ease of use for enterprise edge, SMB, and branch office networks.

Optimized for the digital workplace with unified management tools such as Aruba ClearPass Policy Manager, Aruba Airwave and Aruba Central. Provides optimal configuration automatically when connected to Aruba access points for PoE priority, VLAN configuration, and rogue AP containment.

Stacking with Virtual Switching Framework (VSF) and convenient built-in 1GbE or 10GbE uplinks and PoE+ models deliver right-size network access performance.

Robust Layer 3 feature set includes Access OSPF, static and RIP routing, ACLs, sFlow, IPv6 with no software licensing required.



Performance and Power at the Edge

The Aruba 2930F Switch Series is designed with a powerful Aruba ProVision ASIC, to enable the mobile campus with SDN optimizations, low latency, increased packet buffering, and adaptive power consumption.

Increase performance with selectable queue configurations and associated memory buffering that meets your specific network application requirements.

Virtual Switching Framework (VSF) virtualizes up to eight physical switches into one logical device for simpler, flatter, more agile networks.

Supports up to 740W of internal PoE+ power for wireless access points, cameras and phones.



Security and Quality of Service You Can Rely on

The Aruba 2930F Switch Series includes security and quality of services features to build a network that meets ever-changing corporate policies and compliances while protecting your data from both inside and outside attacks.

Flexible authentication options include standards based security protocols such as 802.1X, MAC and Web Authentication, to enhance security and policy-driven application authentication.

Powerful, multilevel-access security controls include source-port filtering, RADIUS/TACACS+, SSL, Port Security, and MAC address lockout.



Simplify with Integrated Wired/Wireless Management

The Aruba 2930F Switch Series supports Aruba ClearPass Policy Manager for unified and consistent policy between wired and wireless users and simplifies implementation and management of guest login, user onboarding, network access, security, QoS, and other network policies.

Supports Aruba Airwave Network Management software to provide common platform for Zero Touch Provisioning management, and monitoring for wired and wireless network devices.

Cloud-based management supported by Aruba Central.

RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms and events.

Out-of-band Ethernet management port keeps management traffic segmented from your network data traffic.


Specifications

Category Specifications
Differentiator Popular Aruba 28-port Gig access switch with 370 Watts PoE+ power.
This model has 24x 10/100/1000 PoE+ ports and 4x 1000/100 SFP transceiver slots for uplink connectivity. PoE+ is supported with a power budget of 370 Watts.
Power Consumption 445 W (maximum)
Heat Dissipation 258 BTU/hr (272.2 kJ/hr)
Input Voltage 100 - 127 / 200 - 240 VAC, rated
Ports (24) RJ-45 autosensing 10/100/1000 PoE+ ports<br>(4) SFP
Latency 1000 Mb Latency: < 3.8 µs
Switching Capacity 56 Gbps
Throughput Up to 41.7 Mpps
Memory and Processor Dual Core ARM Cortex A9 @ 1016 MHz
1 GB DDR3 SDRAM
Packet buffer size: 12.38 MB 4.5MB Ingress/7.785 Egress
4 GB eMMC
PoE Capability 370 W PoE+
Management Features Aruba AirWave
Central Network Management
IMC - Intelligent Management Center
Command-line interface
Web browser
Configuration menu
SNMP manager
Telnet
RMON1
FTP
Out-of-band management (serial RS-232C or micro USB)
Warranty Limited Lifetime Warranty: See www.hpe.com/networking/warrantysummary for warranty and support information included with your product purchase.
Weight 3.9 kg (8.6 lb)
Dimensions 4.39 x 44.25 x 30.42 cm (1.73 x 17.42 x 11.98 in)
