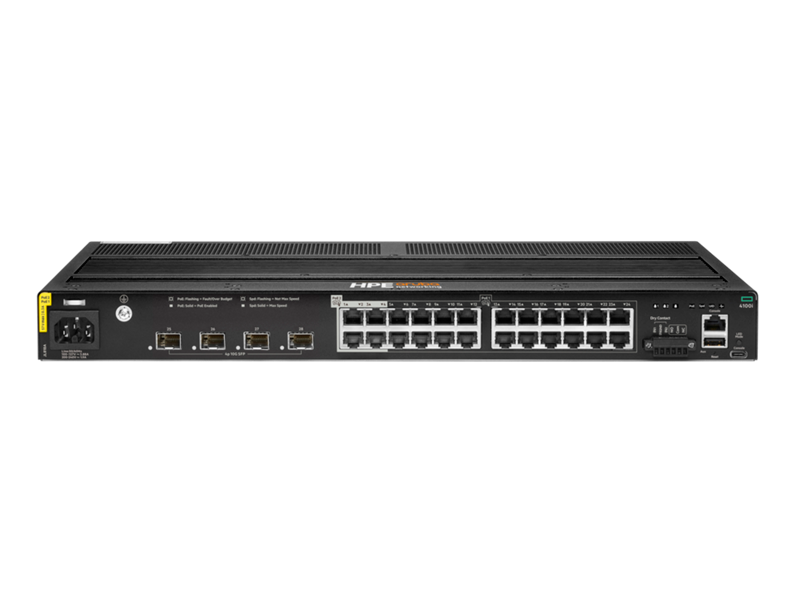

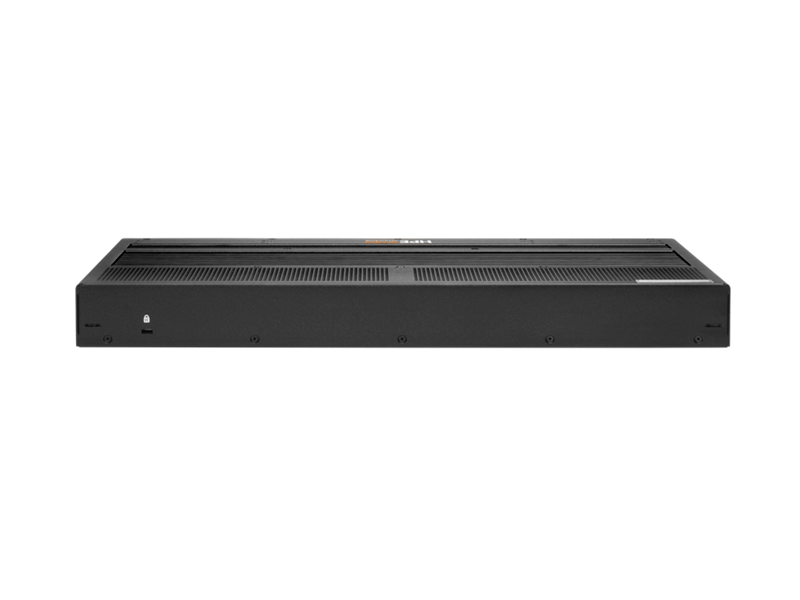

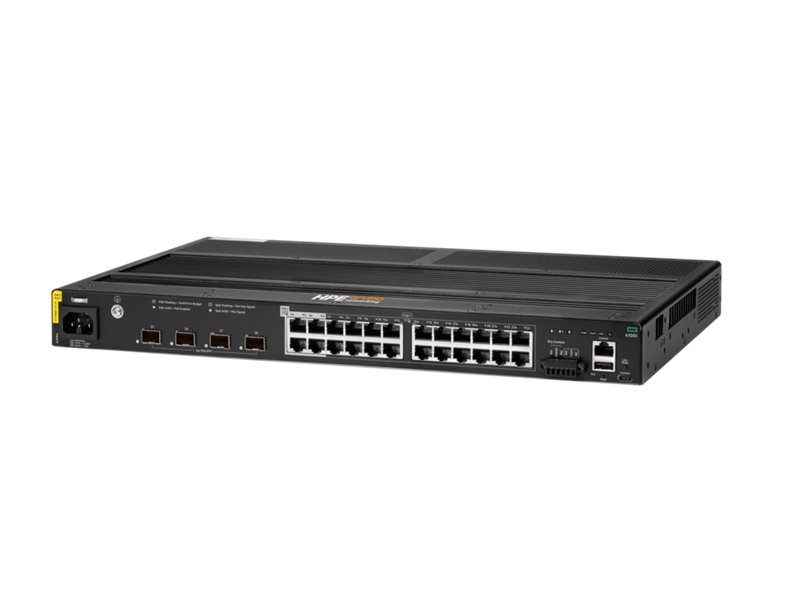

HPE Aruba Networking CX 4100i 24-Port Gigabit Managed PoE Switch 20x Class 4 PoE 4x Class 6 PoE 4x 10Gb SFP+ (JL818A)

HPESKU: JL818A#ABG

Availability:

🚚 In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Pickup available at PC LAN Store

1-3 Business Days

Price:
Sale price$18,322.00
1

Estimate shipping

Description

HPE Aruba Networking CX 4100i 24-Port Gigabit Managed PoE Switch 20x Class 4 PoE 4x Class 6 PoE 4x 10Gb SFP+ (JL818A)

Maximize your HPE Aruba Networking CX 4100i Switch Series

What's New

  • Ruggedized Layer 2 switch series provides high performance, fully manageable, and reliable, Ethernet connectivity to IoT, access points, and user devices in harsh environments.
  • Versatile form factors with fast 1/10 GbE uplinks deliver both 30W and 60W PoE to improve IoT power.
  • Layer 2 feature set with static routing and no switch software licensing required.
  • HPE Aruba Networking Dynamic Segmentation enables enhanced security and simplified access for users and IoT.
  • Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software.
  • HPE Aruba Networking Virtual Switching Framework (VSF) now available to scale up local network resources and resiliency requirements.

    Ruggedized Access Switch Series

    The HPE Aruba Networking CX 4100i Switch Series provides IP30 Ethernet connectivity with high speed uplinks, 30W and 60W PoE, to securely extend the enterprise network and support IoT in harsh environments.


    AI-ready performance and power

    The HPE Aruba Networking CX 4100i Switch Series is designed with ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption needed to support AI, Wi-Fi 7, and IoT requirements.

    Simplified Configuration and Management

    The CX 4100i series provides flexibility to manage and simplify configurations with HPE Aruba Networking Switch Multi-Edit Software, easy to use built-in web GUI, or industry standard CLI.

    Smarter Segmentation

    The CX 4100i series supports dynamic segmentation that automatically applies and enforces user, device, and application-aware policies on wired and wireless infrastructures.



    Specifications

    Differentiator 20 x 100M/1G Base-T Class 4 PoE ports, supporting up to 30W per port
    4 x 1/10G SFP ports
    Power consumption Idle: 23W
    100% Traffic Rate: 34W
    100% Traffic Rate (w/ heater): 62W

    Note: Heater will only turn on at extreme low temperature condition.
    Heat dissipation 117 BTU/hr at 230V - Room temperature (25°C)
    Input voltage 100V-240V
    Ports 4 x 100M/1G Base-T Class 6 PoE ports, supporting up to 60W per port
    20 x 100M/1G Base-T Class 4 PoE ports, supporting up to 30W per port
    4 x 1G/10G SFP ports

    1 x USB-C console port
    1 x RJ45 console
    1 x USB Type-A host port
    1 x Alarm socket
    Latency 1 Gbps: 1.585 μSec , 10 Gbps: 1.243 μSec

    Average Latency (LIFO-64-bytes packets)
    Switching capacity Up to 128 Gbps depending on the model
    Stacking capabilities No stacking capability
    Throughput Up to 95 Mpps depending on the model
    Memory and processor CPU: Dual Core Arm® Cortex-A9 @ 1016 MHz
    Memory and flash: 4 GB DDR3 32 GB eMMC
    Power supply Fixed internal power supply (300W) 240W of PoE Power (no de-rating)
    PoE capability 240W no derating
    Operating temperature -40°C to 60°C, 0m/s (-40°F to 140°F, 0 LFM)
    -40°C to 70°C, 0.2m/s (-40°F to 158°F, 40 LFM)
    -34°C to 75°C, 1m/s (-29.2°F to 167°F, 200 LFM)
    Management features Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software.
    Warranty 5-year warranty
