Description

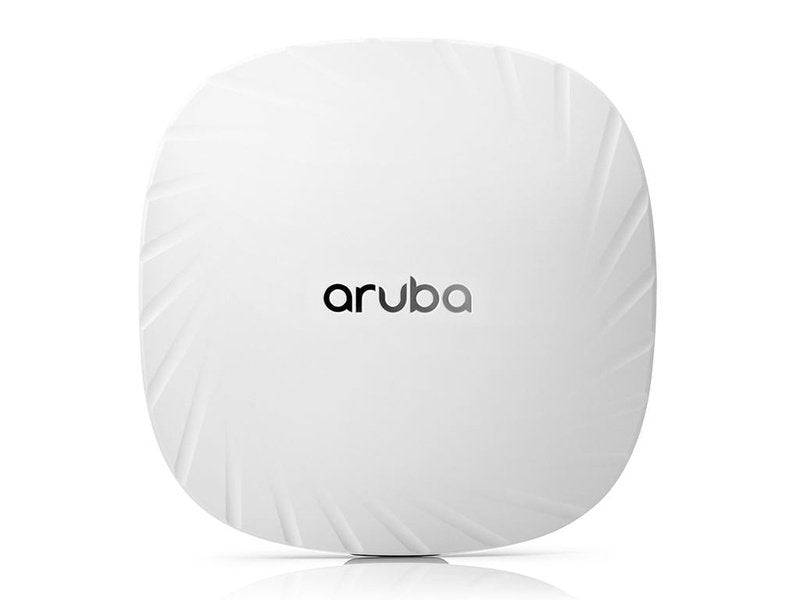

Aruba AP-505 (RW) Dual Radio 2x2:2 802.11ax Internal Antennas Unified Campus AP - R2H28A
The Aruba 500 Series Wireless Access Points provide high-performance connectivity to budget-conscious organizations experiencing growing numbers of mobile, IoT and mobility requirements. Supporting the latest Wi-Fi 6 standard, the 500 Series can achieve a maximum aggregate data rate of 1.77 Gbps (1.774 Gbps) for venues and workplaces such as schools, midsize offices, and retailers. The Aruba 500 Series APs are also designed to provide improved user experiences by integrating key Wi-Fi optimization technologies for increased Wi-Fi efficiency and optimized client airtime.
Wi-Fi 6 for high performance and efficiency.
Provides policy enforcement for wireless traffic through Dynamic Segmentation.
IoT-ready with a built-in Bluetooth 5 and 802.15.4 radio that supports Zigbee®.
Supports up to 256 associated clients per radio.
Can be deployed as a cloud-managed Instant AP or controller-based AP.
Incredible Efficiency with Wi-Fi 6
The Aruba 500 Series Wireless Access Points support the Wi-Fi 6 standard, including features such as orthogonal frequency-division multiple access (OFDMA), bi-directional Multi-User MIMO (MU-MIMO), and Target Wait Time (TWT).
Patented RF optimization technologies like ClientMatch have also been enhanced with Wi-Fi 6 awareness to group Wi-Fi 6-capable client devices together for optimized network utilization.
The Aruba 500 Series also supports AirSlice, a unique capability that enhances OFDMA with SLA-grade application assurance from the access point to the client device.
Infrastructure Designed with Flexibility in Mind
The Aruba 500 Series Wireless Access Points can be deployed in either controller-less or controller-based mode, depending on enterprise requirements.
Infrastructure Designed with Flexibility in Mind
The Aruba 500 Series Wireless Access Points can be deployed in either controller-less or controller-based mode, depending on enterprise requirements.
This product can be managed locally, in the cloud with Aruba Central, or through a converged multivendor on-premises solution with Aruba AirWave.
It also comes with Intelligent Power Monitoring to enable or disable AP features based on available PoE power from a network switch.
IoT Platform Capabilities
The Aruba 500 Series Wireless Access Points have the ability to support up to 256 associated clients per Wi-Fi radio – ideal for organizations deploying Wi-Fi connected IoT devices.
Supports Bluetooth 5 and Zigbee® wireless protocols through an integrated IoT radio, and third-party expansion with an integrated USB port.
Features improved client visibility with integrated device profiling, and the option for advanced insights when integrated with ClearPass Policy Manager or ClearPass Device Insight.
Specifications
Device Type | Radio access point |
---|---|
Form Factor | In-ceiling - indoor |
Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax |
Frequency Band | 2.4 GHz, 5 GHz |
Performance | Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (5 GHz): 1.2 Gbps ¦ Aggregate throughput: 1.774 Gbps |
Capacity | Wireless clients per Wi-Fi radio: 256 ¦ BSSIDs per radio: 16 ¦ OFDMA units: 8 |
Included Accessories | Mounting bracket |
OS Required | ArubaOS, InstantOS |
Power Over Ethernet (PoE) Supported | PoE |
