Description

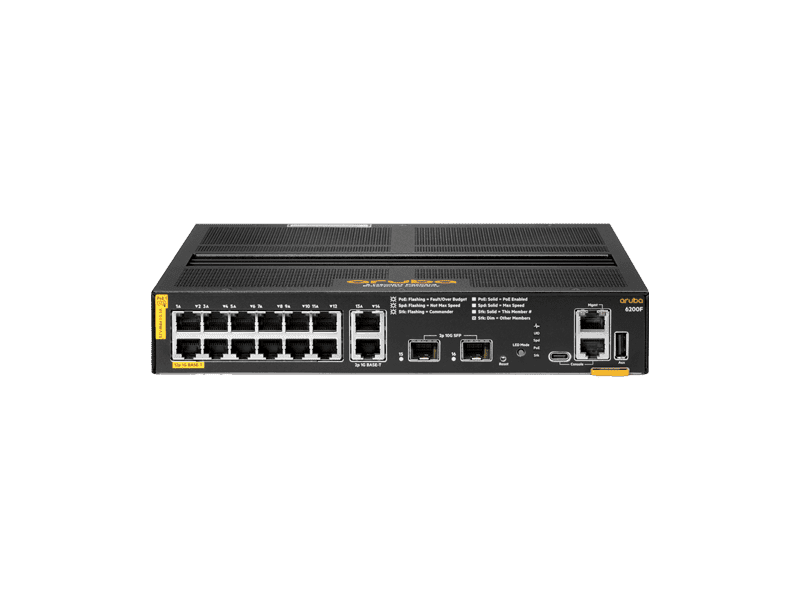

HPE Aruba Networking CX 6200F 12G Class4 PoE 2G/2SFP+ 139W Switch [R8Q72A]
Ports
- 12x ports 10/100/1000BASE-T Class 4 PoE Ports, supporting up to 30W per port
- 2x 1G/10G SFP ports; PHY-less
- 2X 1GbE ports
- Supports PoE Standards IEEE 802.3af, 802.3at
- 1x RJ-45 Console Port
- 1x USB-C Console Port
- 1x OOBM
- 1x USB Type-A Host port
What's New
- Enterprise-class connectivity with support for ACLs, robust QoS, and common protocols such as static and Access OSPF routing.
- Scalability with 8 member VSF stacking. 24 and 48-port fixed and modular switch models can stack together for up to 384 ports.
- Models include modular switches with 1/10GbE uplinks, LRM, and MACSec 256, fixed switches with either 1/10GbE SFP+ or 1GbE SFP uplinks, and options that support 30W to 60W of PoE per port.
- Intelligent monitoring and visibility via Aruba Network Analytics Engine. Aruba NetEdit support for automation, configuration and verification. One touch deployment using the Aruba CX Mobile App.
- Aruba Dynamic Segmentation enables enhanced security and simple access for users and IoT.
- Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency.
Key Features
Automation and Analytics
The HPE Aruba Networking CX 6200 Switch Series delivers unparalleled visibility with built-in analytics for real-time monitoring and troubleshooting to help fix problems faster. The Aruba Network Analytics Engine (NAE) automatically interrogates and analyzes events that can impact network health.
Advanced telemetry and automation provide the ability to easily identify and troubleshoot network, system, application, and security related issues easily through the use of Python agents and REST APIs.
The Time Series Database (TSDB) stores configuration and operational state data, making it available to quickly resolve network issues.
Aruba NetEdit introduces automation that allows for rapid network-wide changes, and ensures policy conformance post network updates. Intelligent capabilities include search, edit, validation (including conformance checking), deployment, and audit features.
The Aruba CX Mobile App simplifies connecting, stacking, and managing HPE Aruba Networking CX 6200 switches. Switch information can be imported into Aruba NetEdit for simplified configuration management and to continuously validate the conformance of configurations anywhere in the network.
Performance and Power
The HPE Aruba Networking CX 6200 Switch Series uses a fully distributed architecture with Aruba Gen7 ASICs that delivers very low latency, increased packet buffering, and adaptive power consumption. All switching and routing are wire-speed to meet the demands of bandwidth-intensive applications.
Aruba Virtual Switching Framework (VSF) allows you to quickly grow your network using high performance front-plane stacking. Create 8 member stacks using built-in SFP+ ports with flexibility to create stacks that span longer distances using long-range transceivers.
Deploy wireless access points and IoT devices with HPE Aruba Networking CX 6200 models that support up to 1440W IEEE 802.3at Class 6 Power over Ethernet for up to 60W per port.
Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency.
Smarter Segmentation
The HPE Aruba Networking CX 6200 Switch Series supports Aruba Dynamic Segmentation that automatically applies and enforces user, device, and application-aware policies on Aruba wired and wireless infrastructures.
Automated device profiling, role-based access control, and Layer 7 firewall features deliver enhanced visibility and performance for a better overall experience for both IT and end-users alike.
Switch-to-switch tunnels with VXLAN for low-latency and high performance use cases.
Specifications
Feature | Description |
---|---|
Power Consumption | 170W at 230 VAC |
Input Voltage | 100V-120V/200V-240V |
Ports | 12x 10/100/1000BASE-T Class 4 PoE Ports, 2x 1G/10G SFP ports, 2x 1GbE ports |
1x RJ-45 Console Port, 1x USB-C Console Port, 1x OOBM, 1x USB Type-A Host port | |
Latency | 1 Gbps: 2.28 μSec, 10 Gbps: 1.46 μSec |
Routing/Switching Capacity | 68 Gbps |
Stacking Capabilities | Up to 8 members |
Throughput | Up to 45.1 Mpps |
Memory and Processor | Quad Core ARM Cortex™ A72 @ 1.2 GHz |
Power Supply Name | Fixed power supply |
PoE Capability | 139W |
Warranty | Limited Lifetime Warranty, see here for details |
Detailed Product Description | Aruba 6200F 12G Class4 PoE 2G/2SFP+ 139W Switch |
Includes Non-Pluggable, Internal PSU behind sheetmetal Chassis Frame | |
Fanless Switch | |
Min=0 \ Max = 2 SFP/SFP+ 1/10G Transceiver | |
1U - Height | |
Weight | 5.09 kg (11.22 lbs) |
Dimensions | 4.39 x 44.247 x 32.54 cm (1.73 x 17.42 x 12.81 in) |
