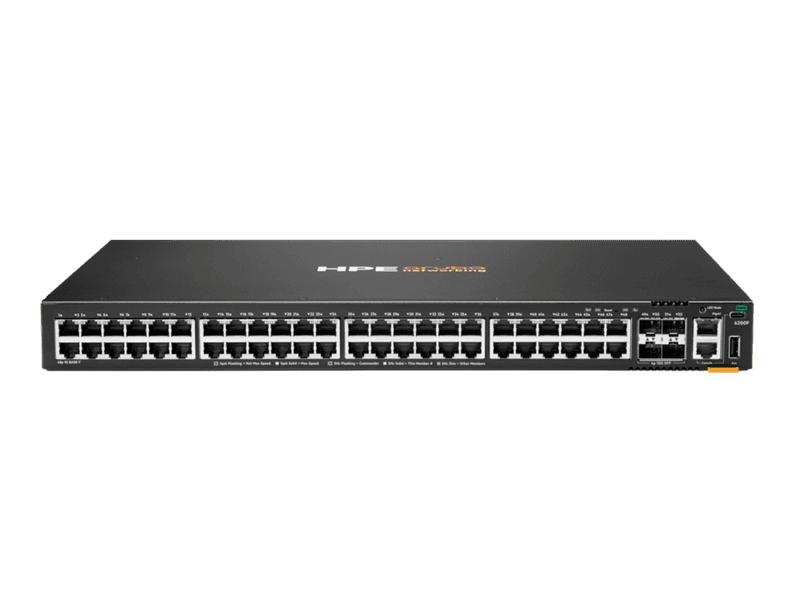

HPE JL726B Aruba CX 6200F 48-Port Non-PoE Manageable Gigabit Switch w/ 4x10G SFP+

HPE ArubaSKU: JL726B

Availability:

❌ Back Order - Contact Us for ETA

Price:
Sale price$5,967.00
Contact Us for ETA

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Description

Overview

What's New

  • Enterprise-class connectivity with support for ACLs, robust QoS, and common protocols such as static and Access OSPF routing.
  • Scalability with 8 member VSF stacking. 24 and 48-port fixed and modular switch models can stack together for up to 384 ports.
  • Models include modular switches with 1/10GbE uplinks, LRM, and MACSec 256, fixed switches with either 1/10GbE SFP+ or 1GbE SFP uplinks, and options that support 30W to 60W of PoE per port.
  • Intelligent monitoring and visibility via Aruba Network Analytics Engine. Aruba NetEdit support for automation, configuration and verification. One touch deployment using the Aruba CX Mobile App.
  • Aruba Dynamic Segmentation enables enhanced security and simple access for users and IoT.
  • Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency.

Key Features

Automation and Analytics

The HPE Aruba Networking CX 6200 Switch Series delivers unparalleled visibility with built-in analytics for real-time monitoring and troubleshooting to help fix problems faster. The Aruba Network Analytics Engine (NAE) automatically interrogates and analyzes events that can impact network health.

Advanced telemetry and automation provide the ability to easily identify and troubleshoot network, system, application, and security related issues easily through the use of Python agents and REST APIs.

The Time Series Database (TSDB) stores configuration and operational state data, making it available to quickly resolve network issues.

Aruba NetEdit introduces automation that allows for rapid network-wide changes, and ensures policy conformance post network updates. Intelligent capabilities include search, edit, validation (including conformance checking), deployment, and audit features.

The Aruba CX Mobile App simplifies connecting, stacking, and managing HPE Aruba Networking CX 6200 switches. Switch information can be imported into Aruba NetEdit for simplified configuration management and to continuously validate the conformance of configurations anywhere in the network.

Performance and Power

The HPE Aruba Networking CX 6200 Switch Series uses a fully distributed architecture with Aruba Gen7 ASICs that delivers very low latency, increased packet buffering, and adaptive power consumption. All switching and routing are wire-speed to meet the demands of bandwidth-intensive applications.

Aruba Virtual Switching Framework (VSF) allows you to quickly grow your network using high performance front-plane stacking. Create 8 member stacks using built-in SFP+ ports with flexibility to create stacks that span longer distances using long-range transceivers.

Deploy wireless access points and IoT devices with HPE Aruba Networking CX 6200 models that support up to 1440W IEEE 802.3at Class 6 Power over Ethernet for up to 60W per port.

Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency.

Smarter Segmentation

The HPE Aruba Networking CX 6200 Switch Series supports Aruba Dynamic Segmentation that automatically applies and enforces user, device, and application-aware policies on Aruba wired and wireless infrastructures.

Automated device profiling, role-based access control, and Layer 7 firewall features deliver enhanced visibility and performance for a better overall experience for both IT and end-users alike.

Switch-to-switch tunnels with VXLAN for low-latency and high performance use cases.


Specifications

DifferentiatorNext-generation family of stackable access switches ideal for enterprise branch offices, campuses and SMB networks. 48x 10/100/1000BASE-T and 4x 1/10G SFP ports.

Power consumption68W at 230 VAC

Input voltage100V-120V/200V-240V

Ports48x ports 10/100/1000BASE-T Ports
4x 100M/1/10G SFP+ ports
1x USB-C Console Port
1x RJ-45 Console Port
1x OOBM
1x USB Type-A Host port

Latency1 Gbps: 2.28 μSec
10 Gbps: 1.46 μSec

Routing/switching capacity176 Gbps

Stacking capabilities8 members

ThroughputUp to 130.9 Mpps

Memory and processorQuad Core ARM Cortex™ A72 @ 1.8 GHz

Power supply nameFixed power supply

WarrantyLimited Lifetime Warranty, see https://www.arubanetworks.com/support-services/ product-warranties/ for warranty and support information included with your product purchase.

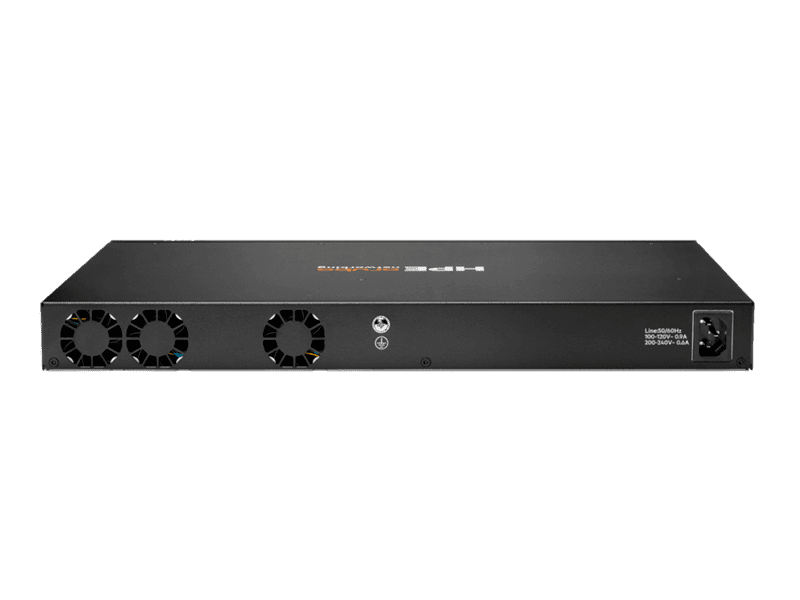

Detailed product descriptionAruba 6200F 48G 4SFP+ Switch
Includes Non-Pluggable, Internal PSU behind sheetmetal Chassis Frame
Includes Non-Pluggable, Internal Fans behind sheetmetal Chassis Frame
Min=0 \ Max = 4 SFP/SFP+ 1/10G Transceiver
1U - Height

Weight5.10 kg, max, depending on model (11.24 lbs, max, depending on model)

Dimensions4.39 x 44.2 cm x 32.7 cm (1.73 x 17.4 x 12.9 in)
