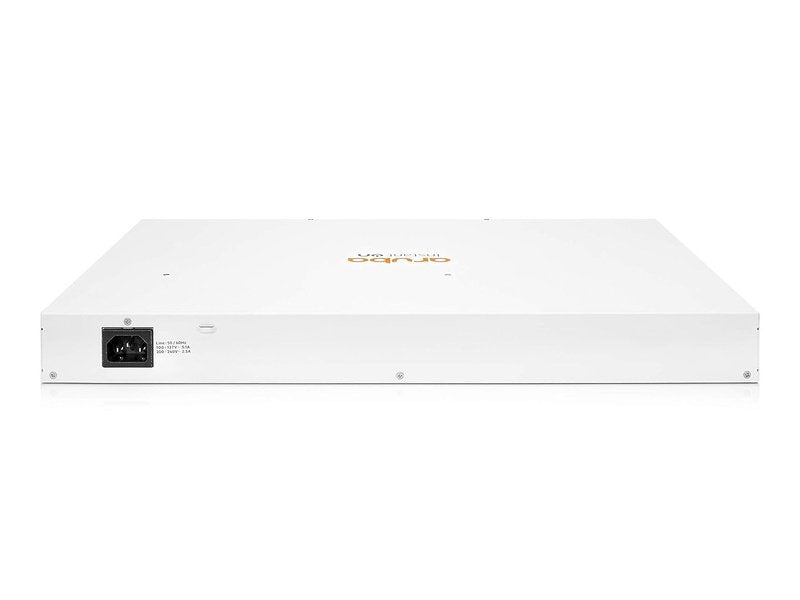

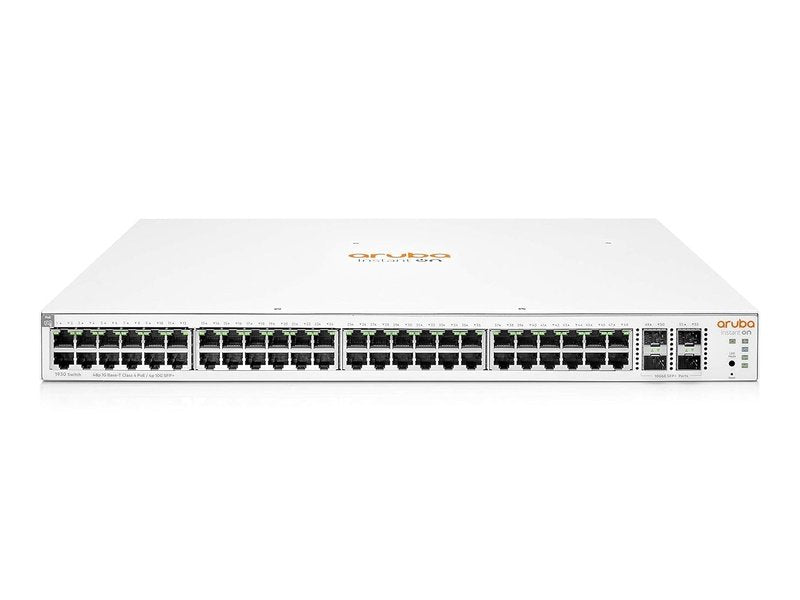

HPE Networking Instant On Switch 48p Gigabit CL4 PoE 4p SFP+ 370W 1930 [JL686B]
The Aruba Instant On 1930 switch series is designed for small and growing businesses that require enhanced performance to support bandwidth-demanding applications. The Aruba Instant On 1930 switch series seamlessly integrates with existing Instant On indoor/outdoor access points and can be centrally managed with the Instant On mobile app onsite or remotely. These cloud-managed layer 2+ Ethernet switches consist of 8-, 24-, and 48-port Class 4 PoE (i.e. PoE+) and non-PoE Gigabit Ethernet models, with 1G SFP slots on 8-port model and 1G/10G SFP+ slots on 24-/48G models for fiber connectivity.
What's New
- Seven advanced smart managed Layer 2+ Gigabit switches for high-performance connectivity.
- Non-PoE and Class 4 PoE (i.e. PoE+) 8-, 24- and 48-port models for deployment flexibility.
- 1G/10G SFP+ ports on 24-and 48-port models for fiber connectivity.
- Aruba Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.
- Option to manage your switches through local web GUI.
- Limited Lifetime Warranty.
Specifications
Feature | Description |
---|---|
Differentiator | Advanced, smart-managed, fixed-configuration Gigabit switches designed for small businesses. |
Easy-to-deploy, secure, and affordable solution. Setup, monitor, and manage through Instant On mobile app, cloud-based web portal, or local web GUI. | |
Power Consumption | Maximum: 520.0W, Idle: 50.0W |
Input Voltage | 100 - 127 / 200 - 240 VAC |
Ports | 48 RJ-45 10/100/1000 ports, 4 SFP 1/10GbE ports |
Switching Capacity | 176 Gbps |
Throughput | 130.95 Mpps, maximum |
Memory and Processor | ARM Cortex-A9 @ 800 MHz, 512 MB SDRAM, 256 MB flash; 1.5 MB packet buffer |
PoE Capability | 370 W Class 4 |
Management Features | Aruba Instant On Portal, Web browser, SNMP Manager |
Warranty | Limited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration. |
Weight | 4.59 kg (10.12 lb) |
Dimensions | 4.39 x 44.25 x 32.26 cm (1.73 x 17.42 x 12.7 in) |
