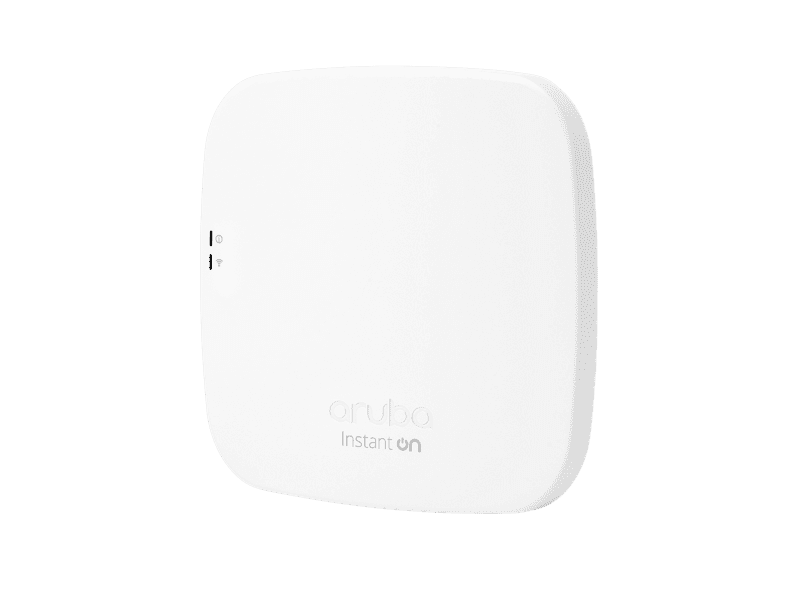

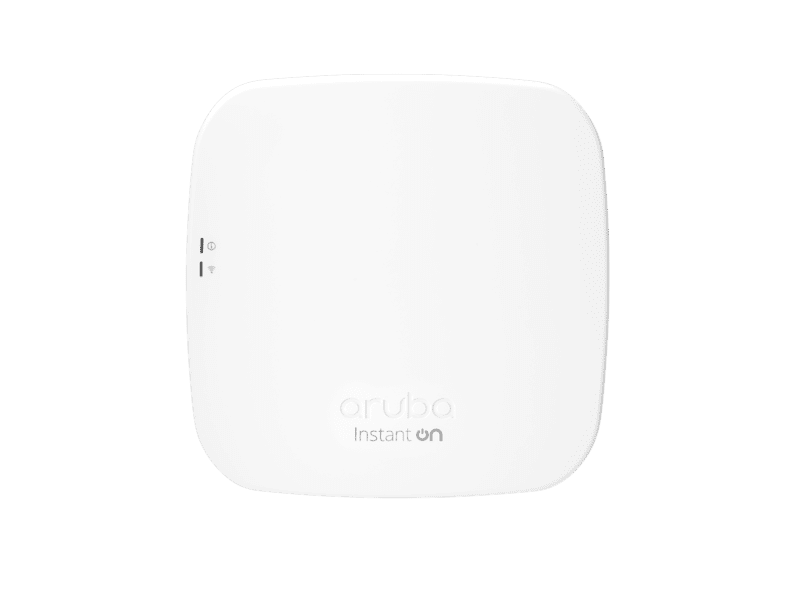

Aruba Instant On AP12 (RW) 3x3 11ac Wave2 Indoor Access Point [R2X01A]
Aruba Instant On AP12 Indoor Access Points deliver affordable, business-grade Wave 2 802.11ac Wi-Fi for low to medium-density small business environments. Business-grade capabilities are designed to meet the mobile, IoT and security needs of small boutiques, tech-start-ups, and retailers at an attractive price point.
The compact form factor of the Aruba Instant On AP12 Indoor Access Points deliver multi-user capabilities and a maximum aggregate peak data rate of 1.6 Gbps for high-definition video streaming and cloud application requirements. These access points (AP) also come with a built-in controller to simplify deployment, making it easy to install and manage multiple access points without requiring extensive IT experience, additional hardware, or software applications.
What's New
Specifications
| Feature |
Description |
| Certifications |
- UL 2043 plenum rating <br> - EN 60601-1-1 and EN 60601-1-2 (for deployment in medical environments) <br> - Wi-Fi Alliance certified (WFA) 802.11ac with Wave 2 (Wi-Fi 5), WPA2, WPA3, Enhanced Open (OWE) |
| Input Voltage |
Power over Ethernet (POE): 802.3af (class 3)
DC power (12V)
Note: Power sources are sold separately
|
| Wi-Fi Antenna |
Integrated downtilt omni-directional antennas with maximum individual antenna gain of 3.9dBi in 2.4GHz and 5.4dBi in 5GHz |
| Connectivity, Standard |
IEEE 802.11ac, 802.11n |
| Ports |
(1) uplink Gigabit Ethernet port, with POE-in support (802.3af) |
| Mounting |

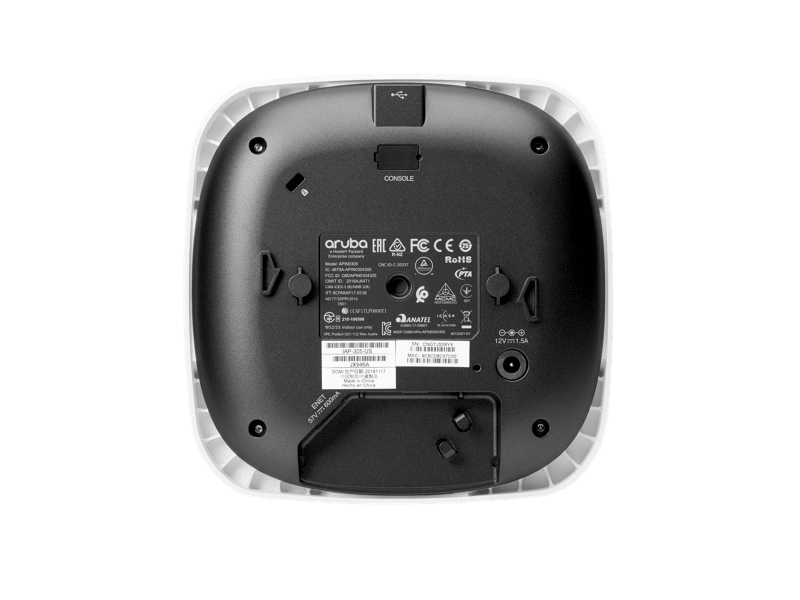

The access point ships with a (black) mount clip to attach to suspended ceiling rails, and a (white) mount clip to attach to solid surfaces (wall/ceiling) |
| Radio Coverage |
Dual Radio for simultaneous dual-band operation
5 GHz 802.11ac 3x3 MIMO for up to 1,300 Mbps wireless data rate, with Multi User MIMO support (Wi-Fi 5)
2.4 GHz 802.11n 2x2 MIMO for up to 300 Mbps wireless data rate (Wi-Fi 4)
|
| Warranty |
Aruba Instant On 2 Year warranty with 24X7 phone support for the first 90 days and chat support for the entire warranty period. Community support as long as you own the products. |
| Differentiator |
Aruba Instant On AP12 Indoor Access Points offer a reliable, affordable, and business-grade Wave 2 802.11ac Wi-Fi experience for low- to medium-density small business environments like design firms, cafés, or restaurants. These cost-effective access points have a peak data rate of 1.6 Gbps and scale up to 25 access points without additional cost and complexity. Regulatory domain of Rest of World. |
| Weight |
483 g (1.1 lb) |
| Dimensions |
34 x 157 x 157 mm (1.3 x 6.2 x 6.2 in) |
